JST connectors are electrical connectors manufactured to the design standards originally developed by J.S.T. Mfg. Co. (Japan Solderless Terminal). JST manufactures numerous series (families) and pitches (pin-to-pin distance) of connectors.

JST connectors are used in many types of products, and commonly used by electronics hobbyists and consumer products for rechargeable battery packs, battery balancers, battery eliminator circuits, 3D printers, and radio controlled servos.

The term "JST" is sometimes incorrectly used as a vernacular term meaning any small white electrical connector mounted on PCBs.
JST manufactures a large number of series (families) of connectors.There are 12 specifications, which are most commonly used by electronics enthusiasts and consumer products.

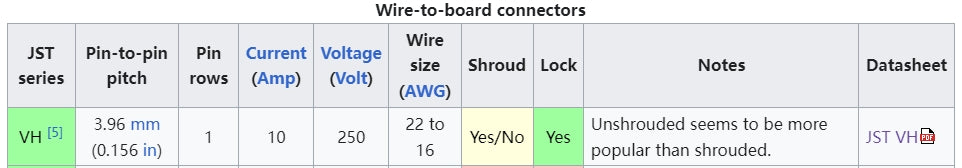

1.VH CONNECTOR

 3.96 mm pitch/Disconnectable Crimp style connectors



This small, field-proven connector for printed circuit boards is reliable and has a large current carrying capacity. lt can be used with a wide variety of signal, power supply, and output circuits that appear in consumerelectronic products.
1.Proven box contact
2.Compact connector with a large capacity
3.Secure contact and mounting

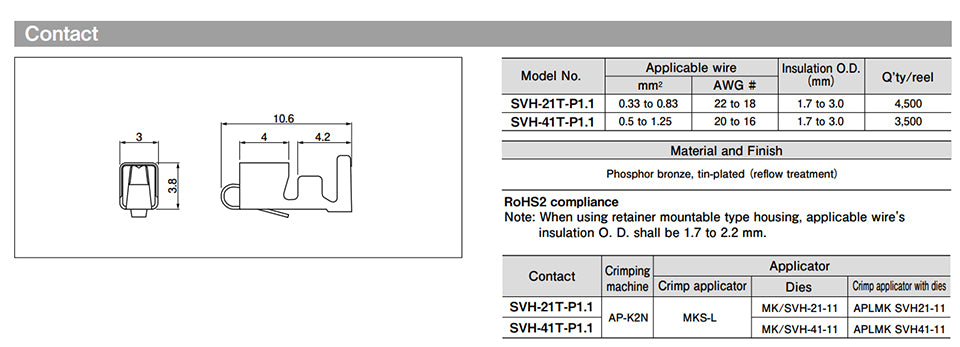

Contact: SVH-21T-P1.1 / SVH-41T-P1.1

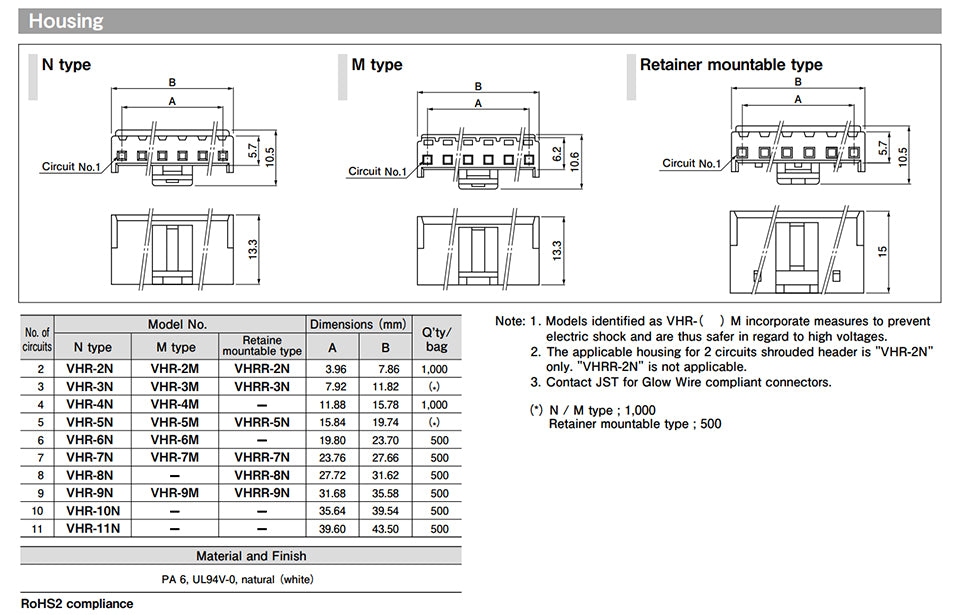

Housing: VHR-2N/3N/4N/5N/6N/7N/8N/9N/10N

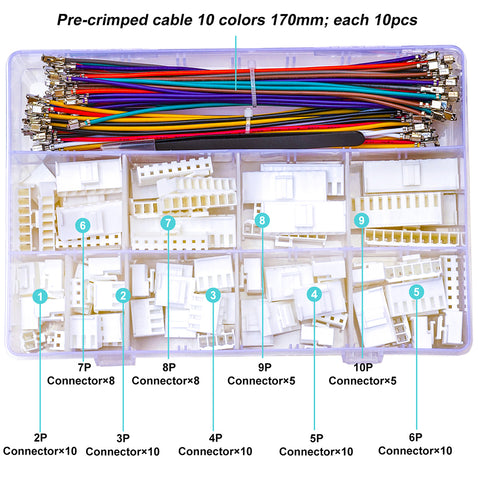

VH connector is an excellent white electrical connector in JST. We integrate it into a classic kit.
