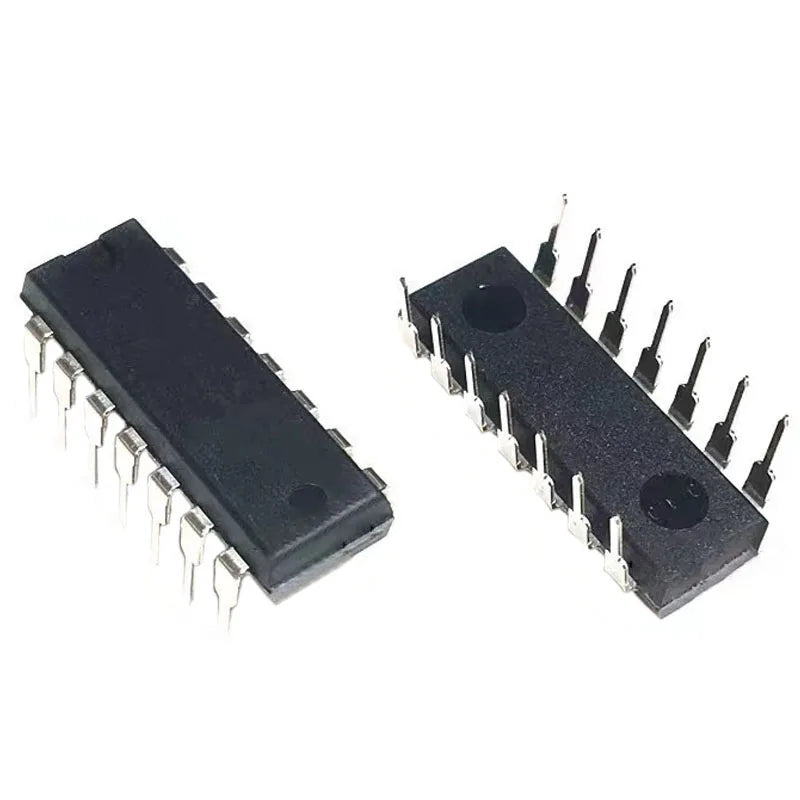

10PCS CD4001BE / CD4011BE / CD4012BE / CD4013BE / CD4016BE / CD4024BE / CD4025BE / CD4030BE / CD4047BE / CD4066BE DIP-14 Logic ICs

CD4000 Series CMOS Logic ICs — DIP-14, 10 Pieces

The CD4000B series are classic CMOS logic integrated circuits from Texas Instruments (and compatible manufacturers), operating from 3V to 18V with extremely low quiescent current consumption. Their wide supply voltage range, high noise immunity, and compatibility with both TTL and CMOS logic levels make them indispensable for digital logic design, timer circuits, oscillators, analog switches, and educational electronics projects.

This listing offers 10-piece packs of individual CD4000B series ICs in DIP-14 packages — breadboard and PCB compatible.

Available ICs — Function Reference

• CD4001BE — Quad 2-input NOR gate. Universal logic gate; can implement any Boolean function. Used in oscillators, latches, and logic circuits.
• CD4011BE — Quad 2-input NAND gate. Universal gate; widely used in debounce circuits, oscillators, and logic design.
• CD4012BE — Dual 4-input NAND gate. For multi-input logic reduction and address decoding.
• CD4013BE — Dual D-type flip-flop with set/reset. For frequency division, data storage, shift registers, and toggle circuits.
• CD4016BE — Quad bilateral analog switch. For audio signal routing, multiplexing, and sample-and-hold circuits.
• CD4024BE — 7-stage ripple-carry binary counter. For frequency division (divide by 2 to 128) and timer applications.
• CD4025BE — Triple 3-input NOR gate. For logic reduction and combinational circuits.
• CD4030BE — Quad 2-input XOR gate. For parity generation, comparators, and arithmetic circuits.
• CD4047BE — Monostable/astable multivibrator. For pulse generation, one-shot timers, and square wave oscillators. Widely used in inverter circuits.
• CD4066BE — Quad bilateral analog switch (improved CD4016). Lower on-resistance, better for audio and signal switching applications.

General Electrical Specifications (CD4000B Series)

• Supply Voltage (VDD): 3V – 18V DC
• Input Voltage: 0V to VDD
• Quiescent Current: <1µA typical at 5V (extremely low power)
• Output Drive Current: ±0.5mA at 5V; ±2.25mA at 10V; ±8.8mA at 15V
• Noise Immunity: 45% of VDD (high noise margin)
• Propagation Delay: ~60ns at 10V (varies by device)
• Operating Temperature: −55°C to +125°C
• Package: DIP-14 (0.3" row spacing, 2.54mm pin pitch)
• Quantity: 10 pieces per pack

CMOS vs. TTL: Why CD4000 Series?

• Wide voltage range (3–18V): Works with 3.3V, 5V, 9V, and 12V systems without level shifters
• Ultra-low power: Ideal for battery-powered and sleep-mode applications
• High noise immunity: More robust in electrically noisy environments than TTL
• Analog switch capability: CD4016/CD4066 pass analog signals bidirectionally — impossible with TTL

Typical Applications

• Digital logic circuit design and prototyping
• Frequency dividers and binary counters (CD4024)
• Astable and monostable oscillators (CD4047, CD4001, CD4011)
• Analog signal multiplexing and routing (CD4016, CD4066)
• D flip-flop latches and shift registers (CD4013)
• XOR-based parity checkers and comparators (CD4030)
• Educational electronics and university lab experiments
• Inverter and UPS driver circuits (CD4047)

Package Contents

• 10 × CD4000B series CMOS IC in DIP-14 package (model as selected)
