SPECIFICATIONS

Accuracy: 5%

Brand Name: JCCON

Condition: New

High-concerned chemical: None

Origin: Mainland China

Resistance Tolerance: 10-20%

Type: Wirewound Resistor

is_customized: Yes

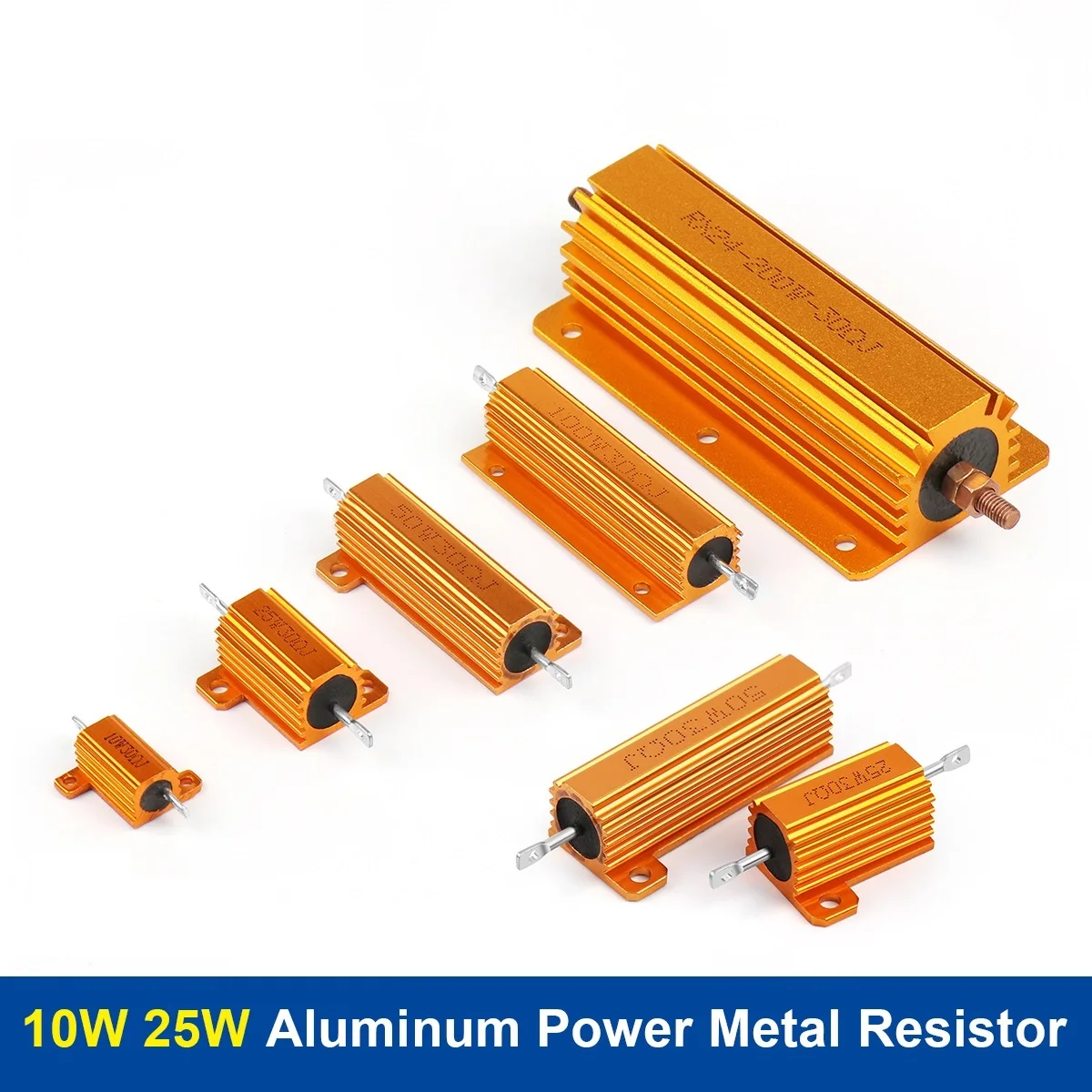

2Pcs 10W 25W Aluminum Power Metal Shell Wirewound Resistor RX24 0.1R~10K 1 2 3 5 6 8 10 20 100 150 1K 10K ohm Gold Resistors

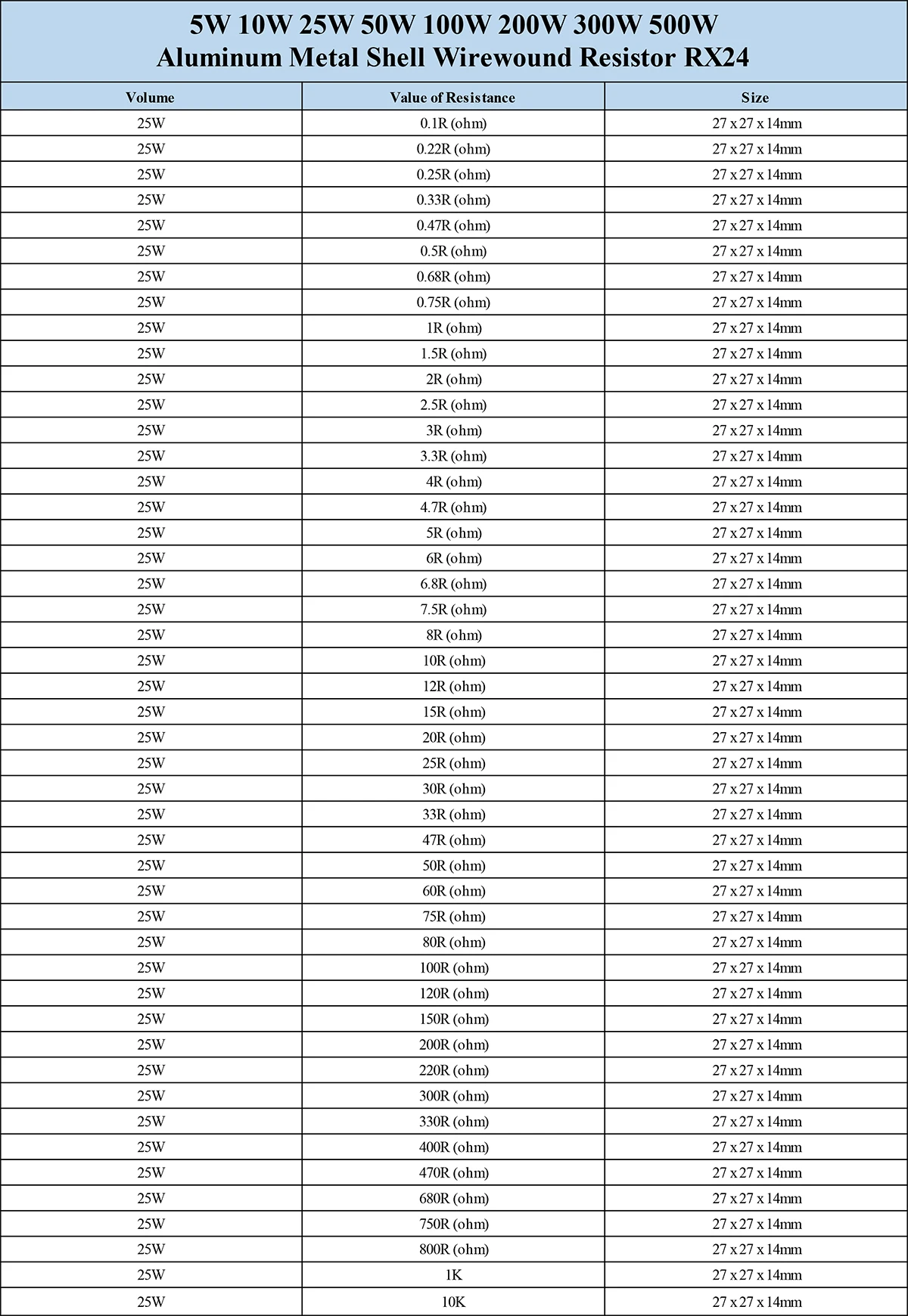

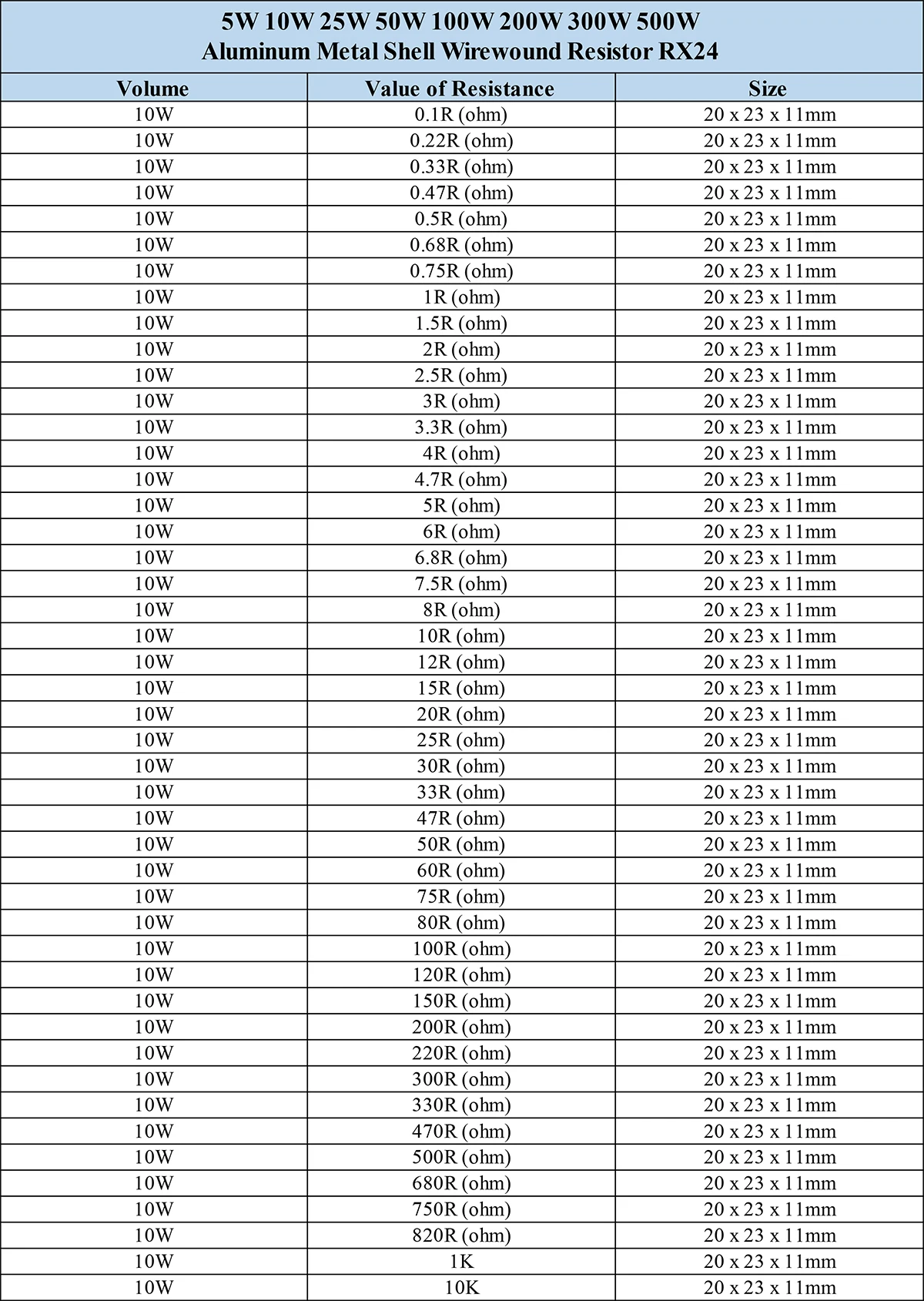

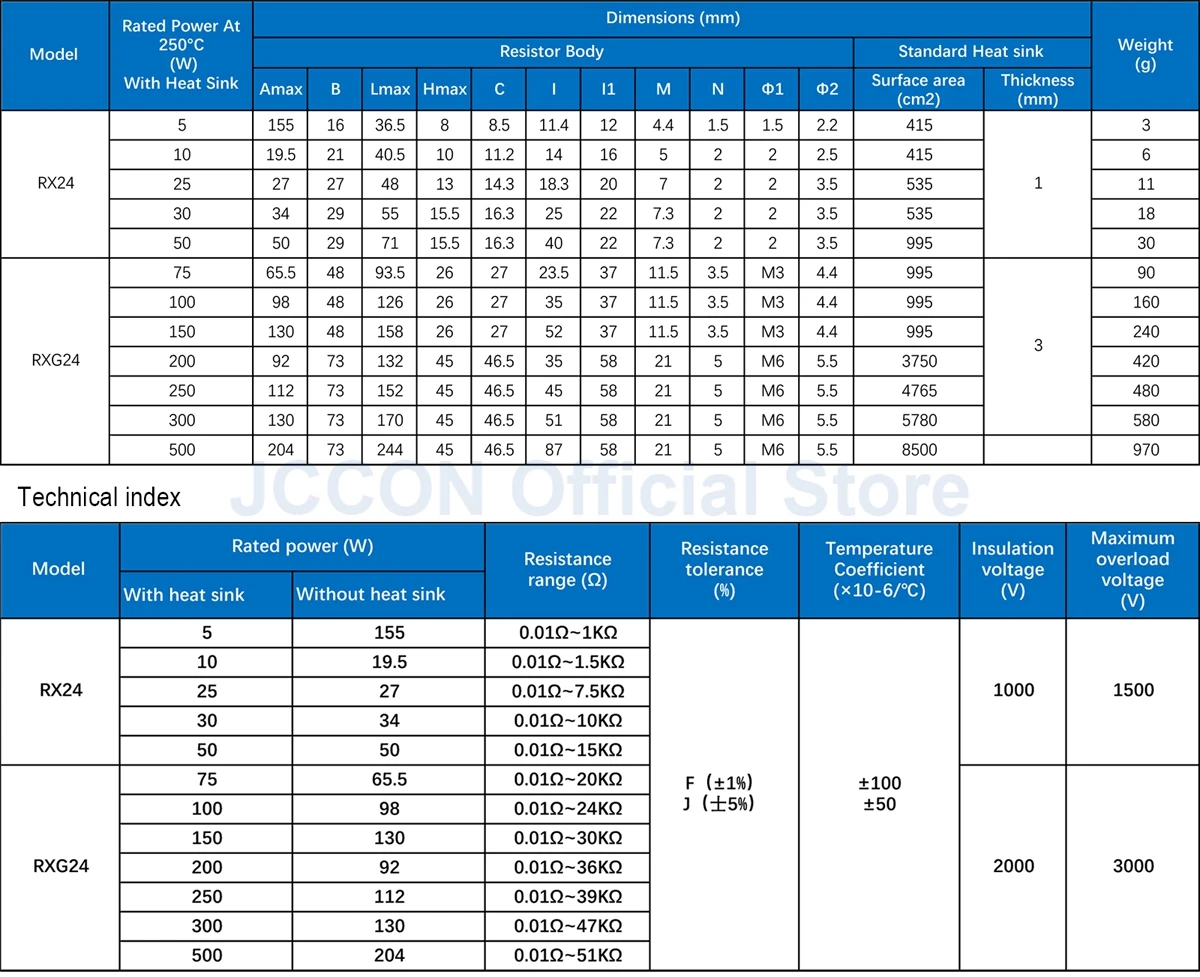

Each type specification:

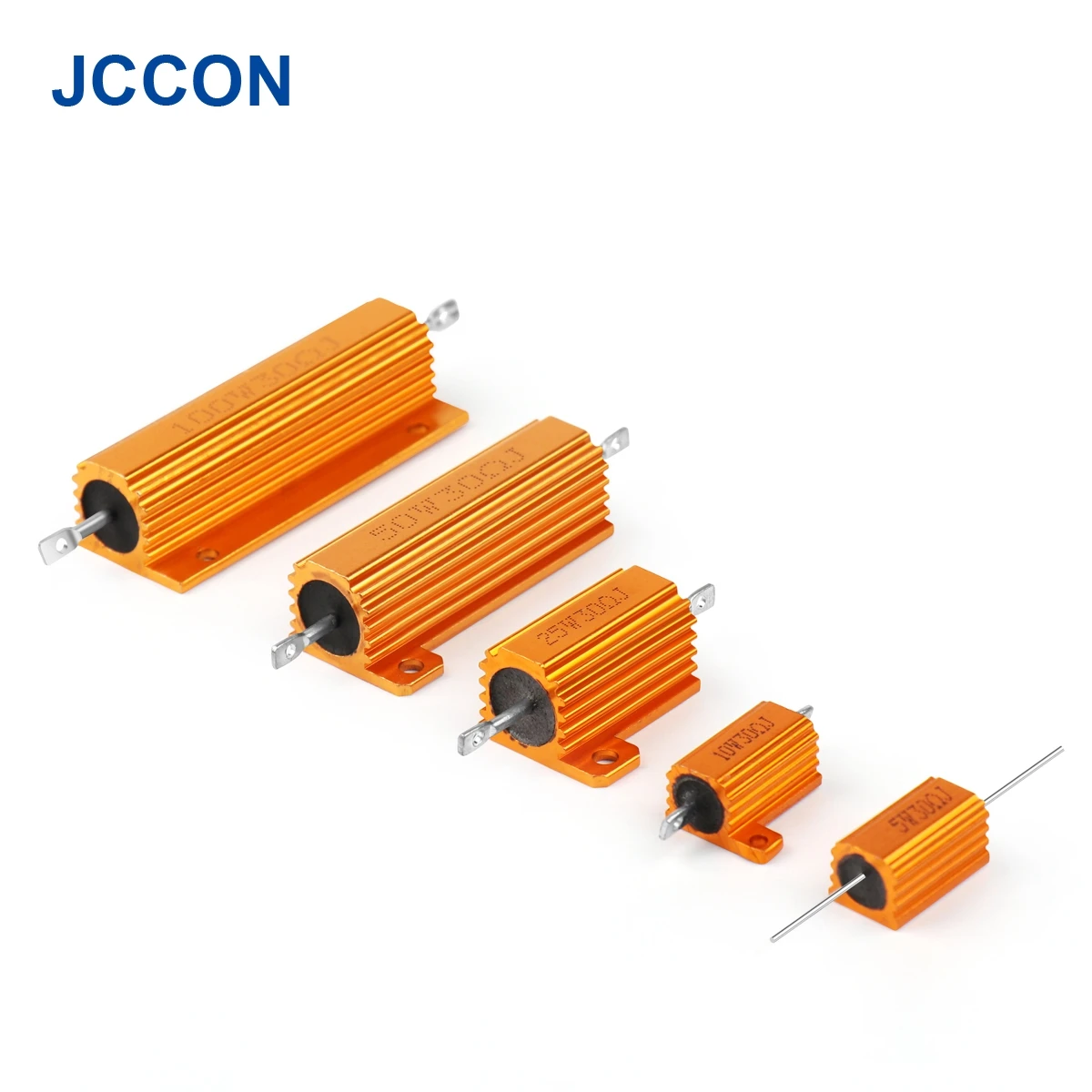

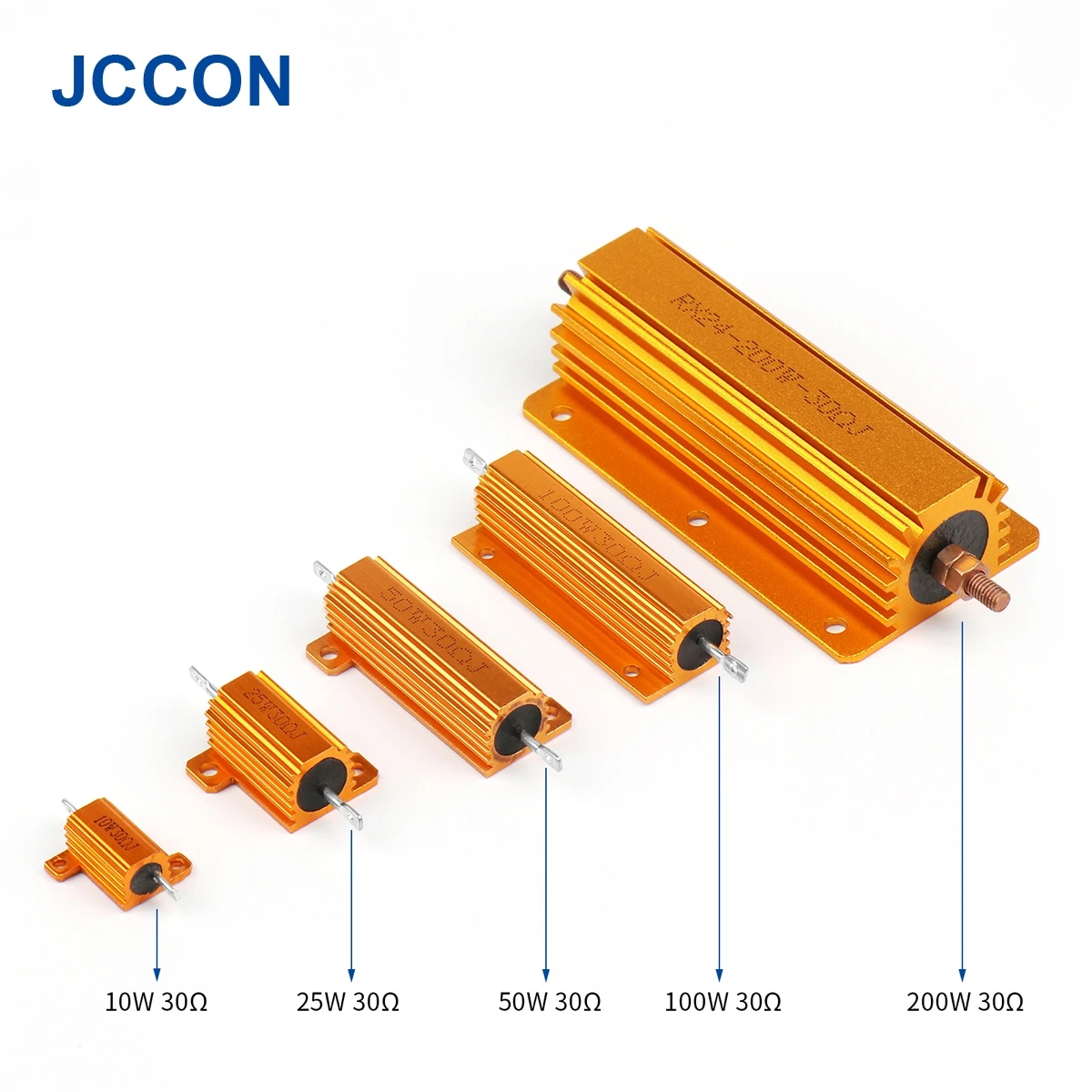

5W Aluminum Resistor Size: 15.2*17*8mm

10W Aluminum Resistor Size: 20*23*11mm

25W Aluminum Resistor Size: 27*27*14mm

50W Aluminum Resistor Size: 50*28*15mm

100W Aluminum Resistor Size: 98*48*26mm

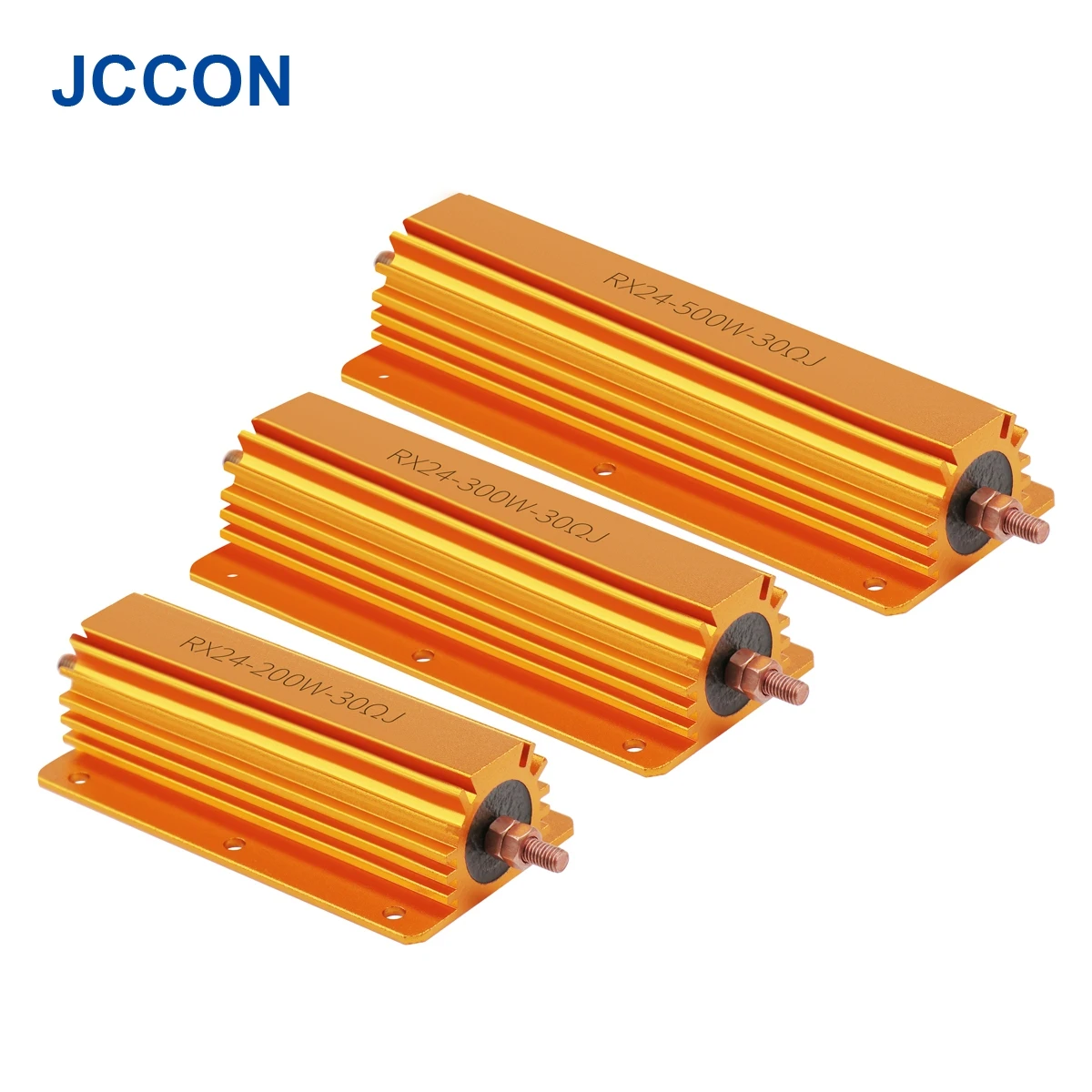

200W Aluminum Resistor Size: 92*73*45mm

300W Aluminum Resistor Size: 128*73*45mm

500W Aluminum Resistor Size: 200*73*45mm

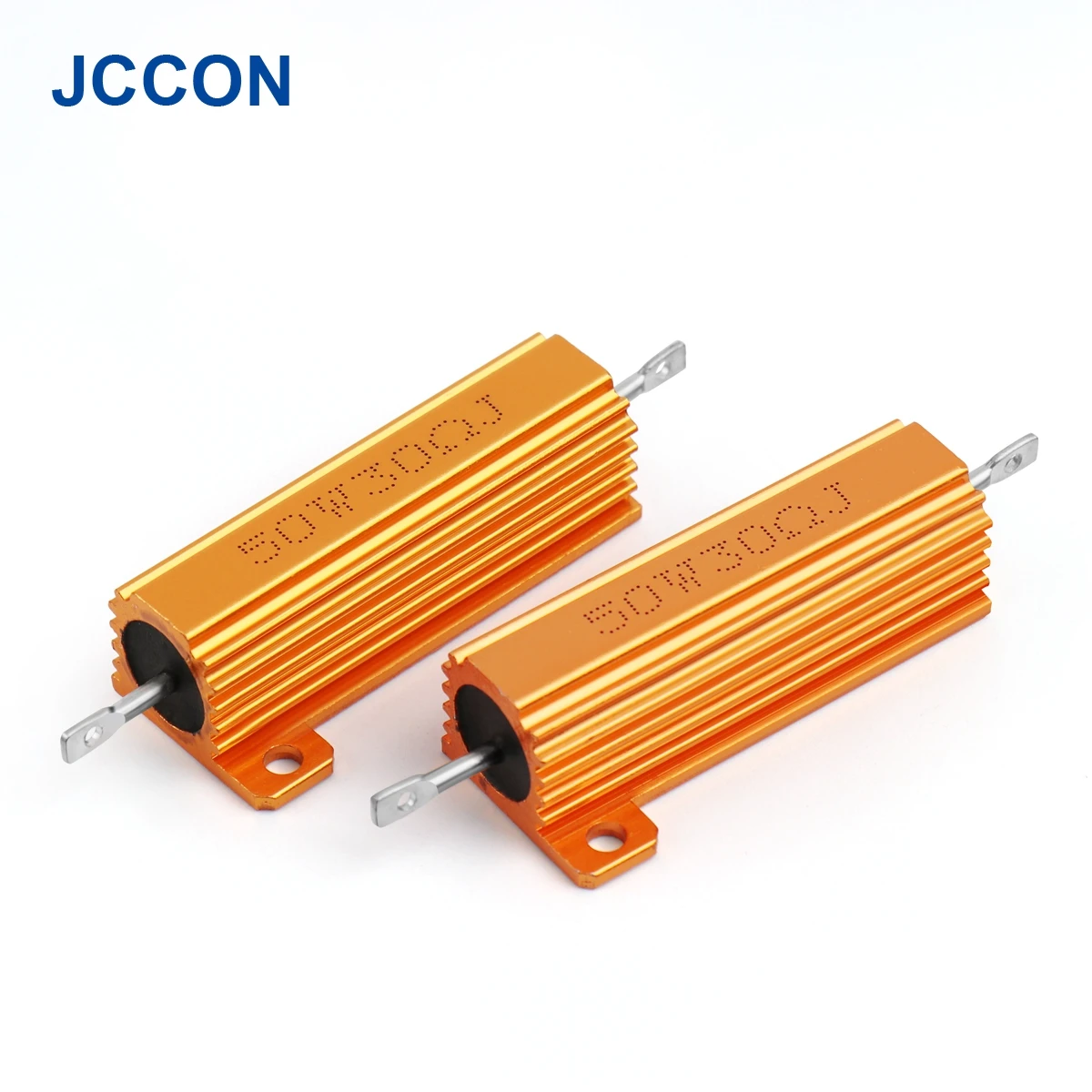

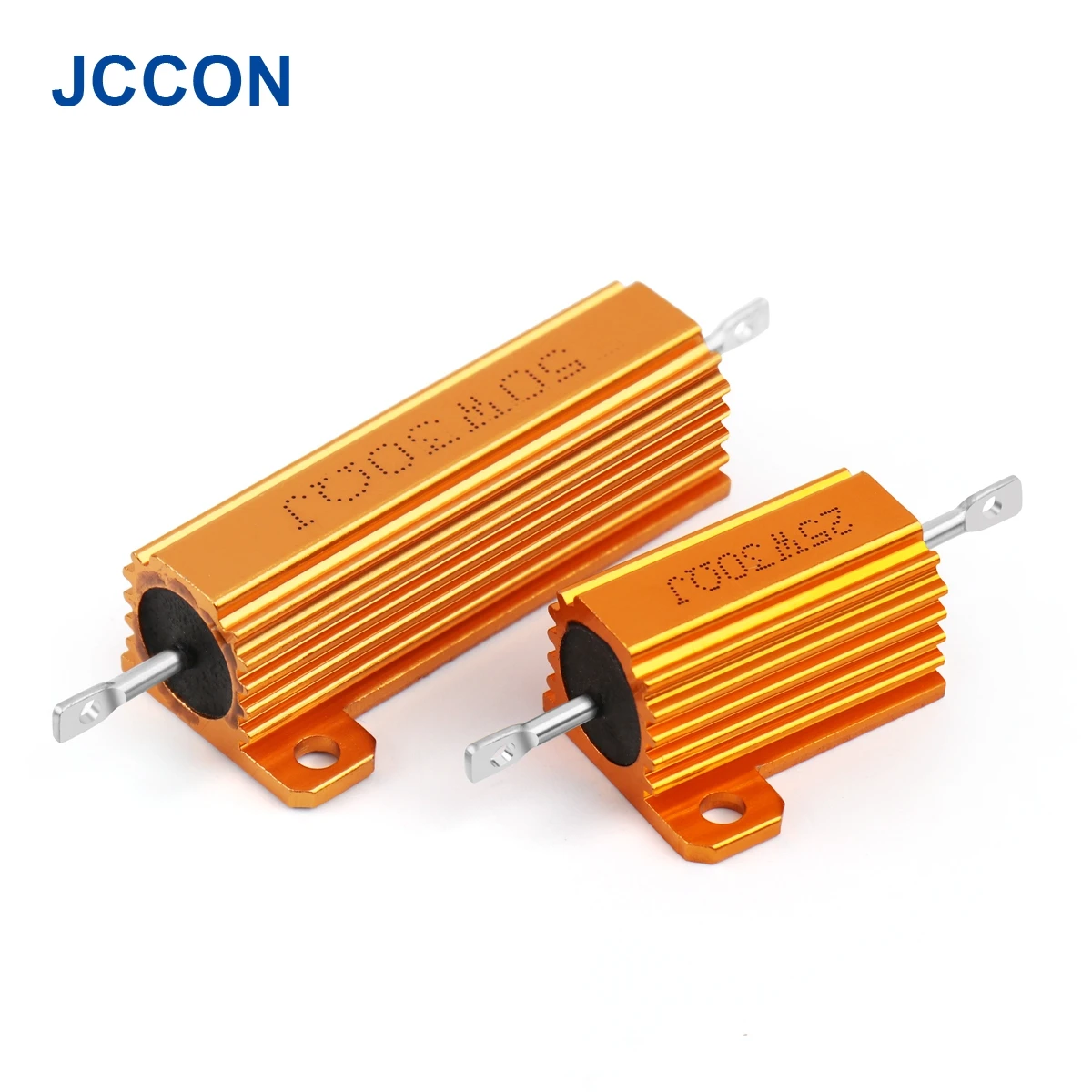

Oxidized gold aluminum shell

Using extremely positive alumina shell, anti-corrosion, good wear resistance, long service life

RX24 gold aluminum shell high-power resistor:

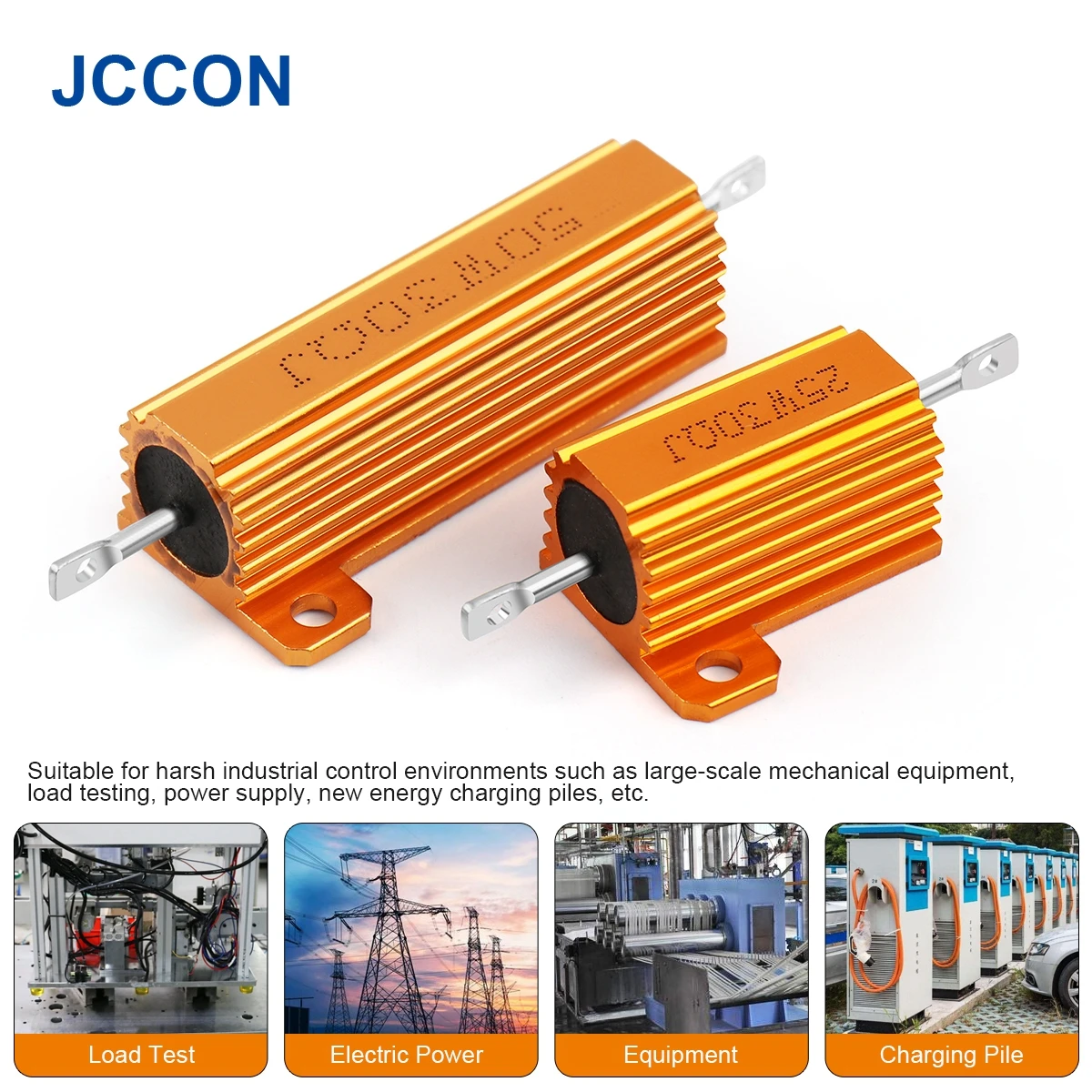

Mainly used in current-limiting protection circuits and measurement and control circuits, testing aging station power supplies, inverters, automotive LED lights, automation equipment, audio, elevators, frequency dividers

Tinned copper terminal

Lead-out terminals are made of tinned copper and stainless steel rods, which are anti-rust, anti-oxidation, dust-proof and anti-corrosion.

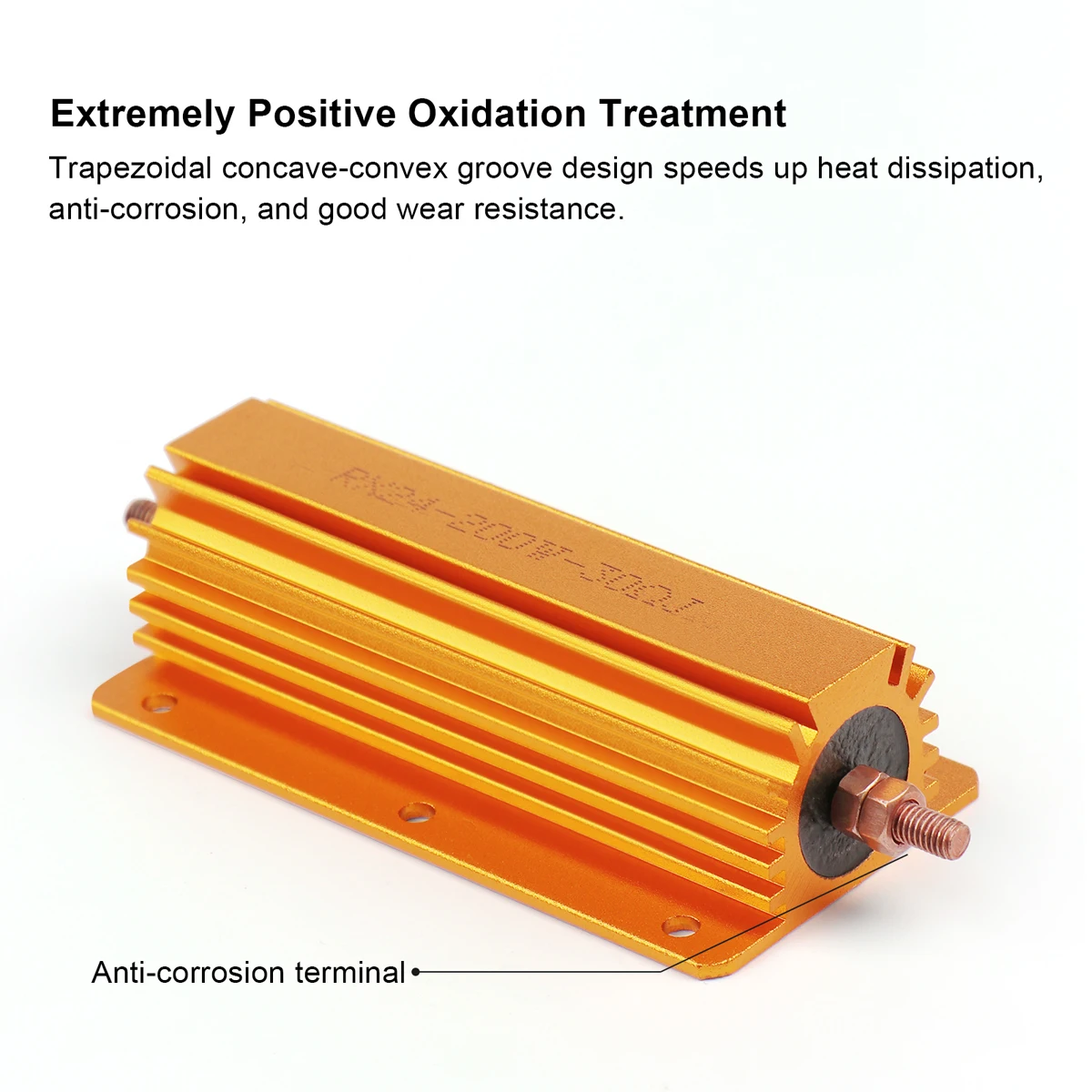

Surface concave-convex groove design

Concave-convex groove design, fully welded structure, with good reliability in operation.

Molded package wire wound resistor rod

Good heat dissipation, high insulation, environmental protection molded structure, safe and reliable

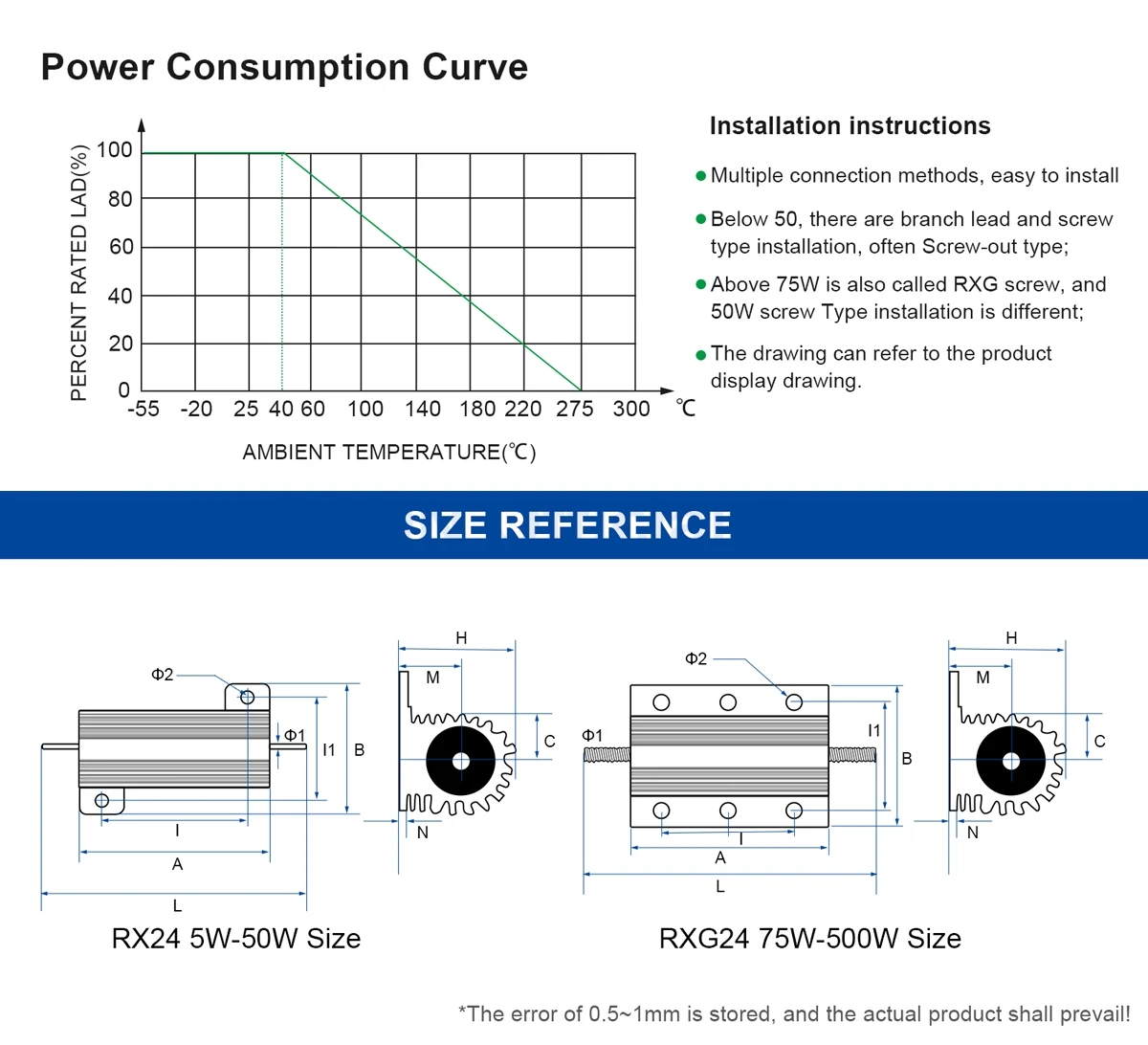

Installation instructions:

●Multiple connection methods, easy to install

●Under 50w, there are separate lead wires and screw-out installations, usually screw-out installations;

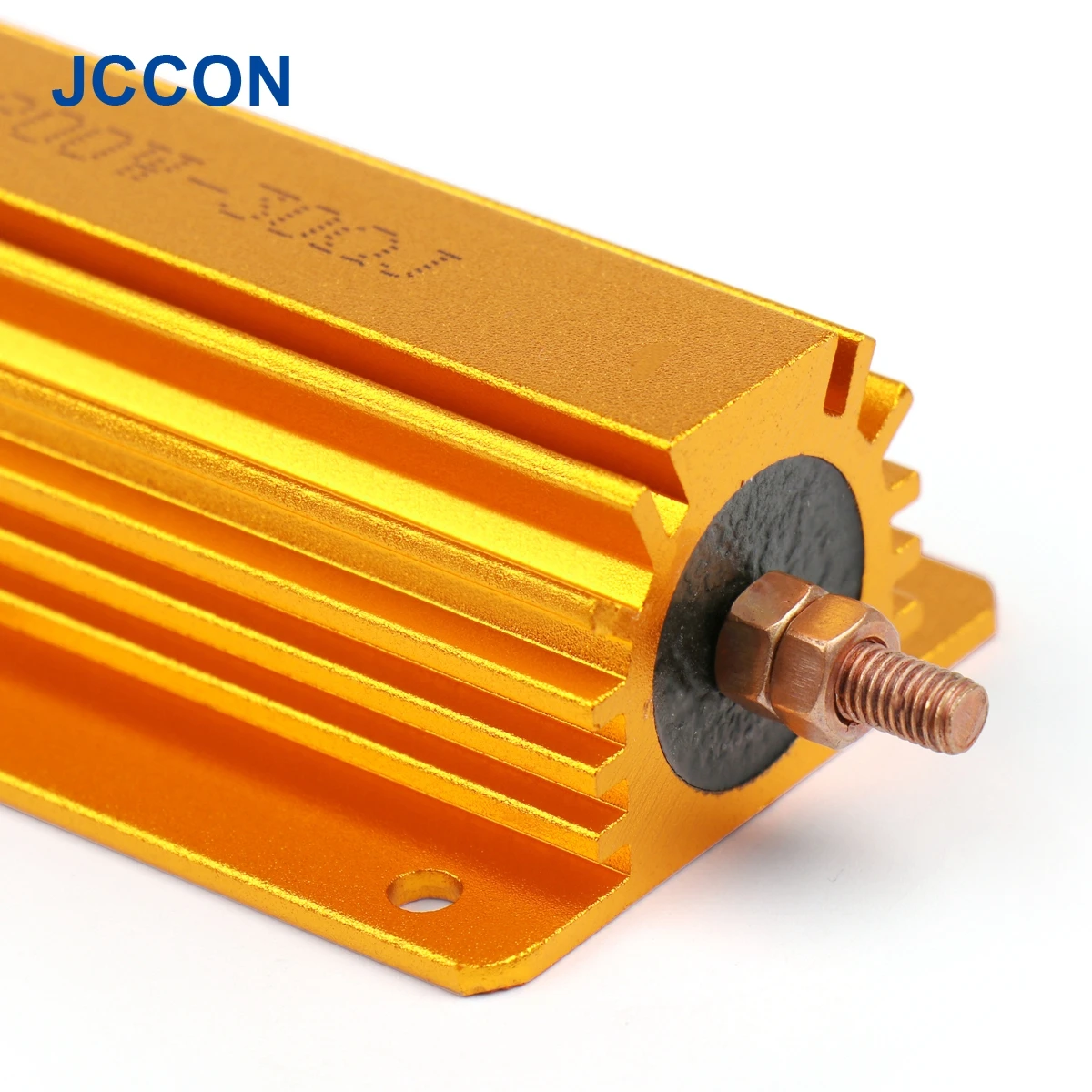

●Above 75W is also called RXG screw, which is different from 50W screw type installation;

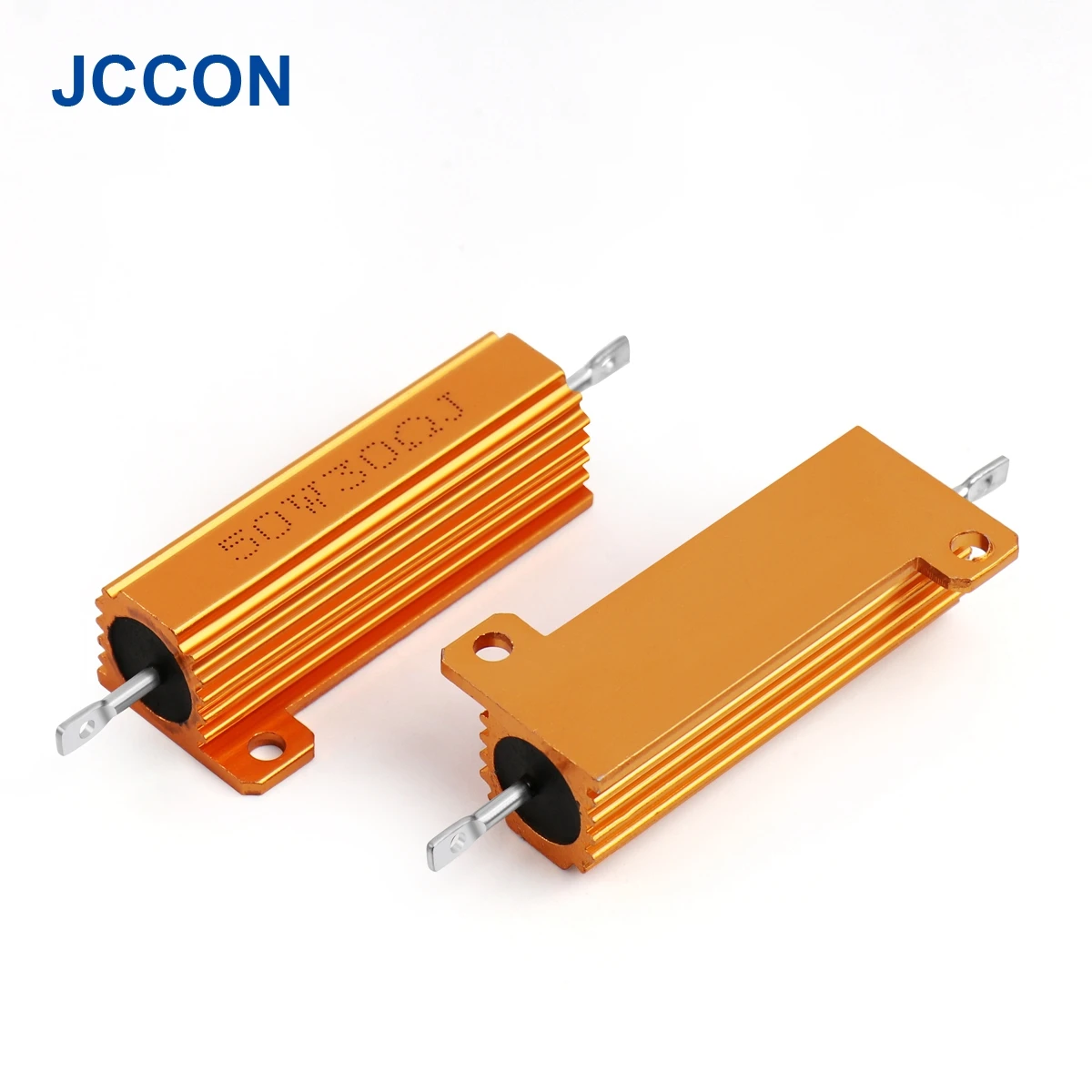

Good heat dissipation, suitable for heat sink installation:

·High insulation

·Fully welded structure

·Installed on the substrate to apply heat absorption effect

·Molded structure with environmental protection

·There is no inductive winding to limit low reactance components

·Good reliability in operation

Packgae Include:

2Pcs x Aluminum Metal Resistor

Color: As your choice!!

Quantity: As your choice!!

(We have a lot of Stocks, if you need more, please contact us.)
