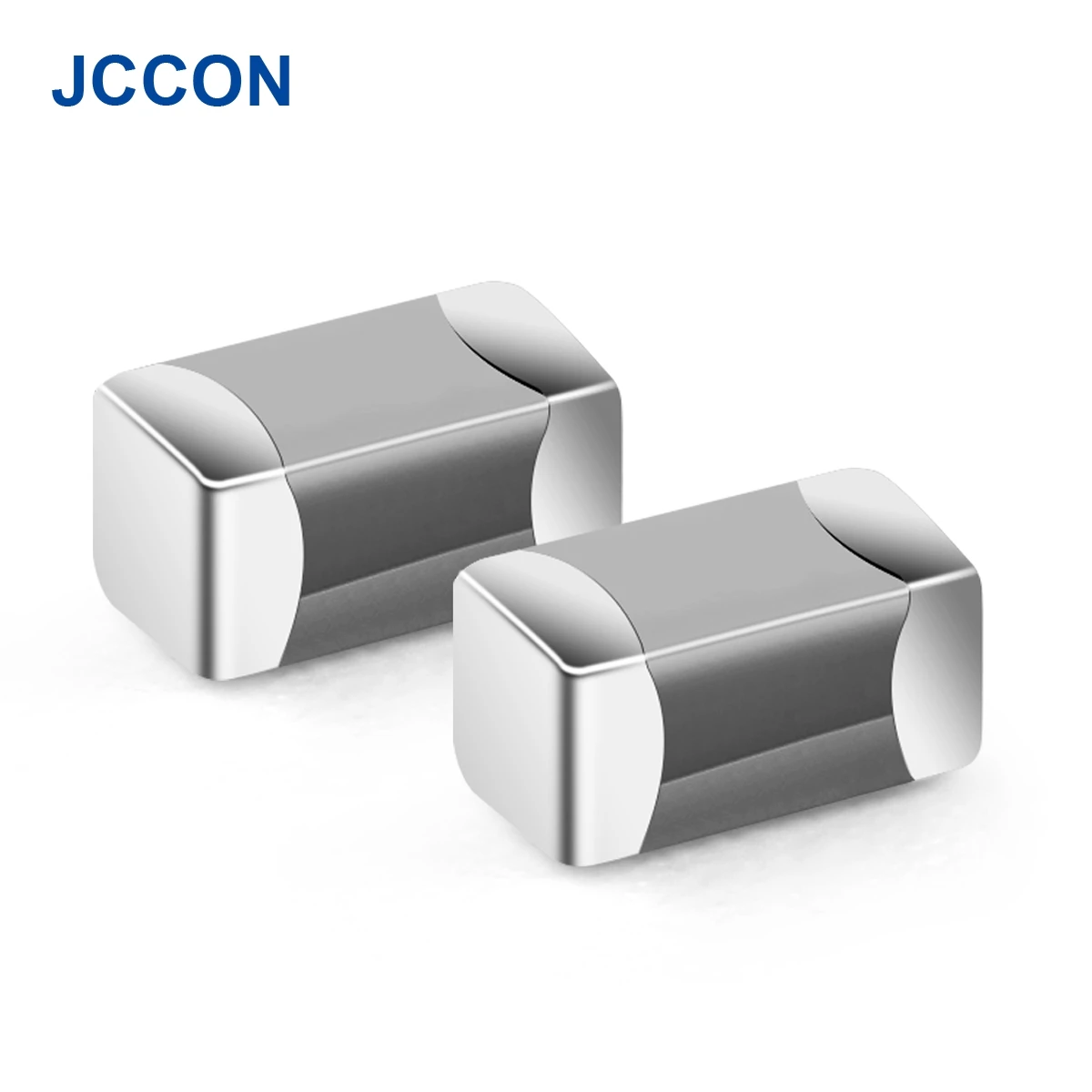

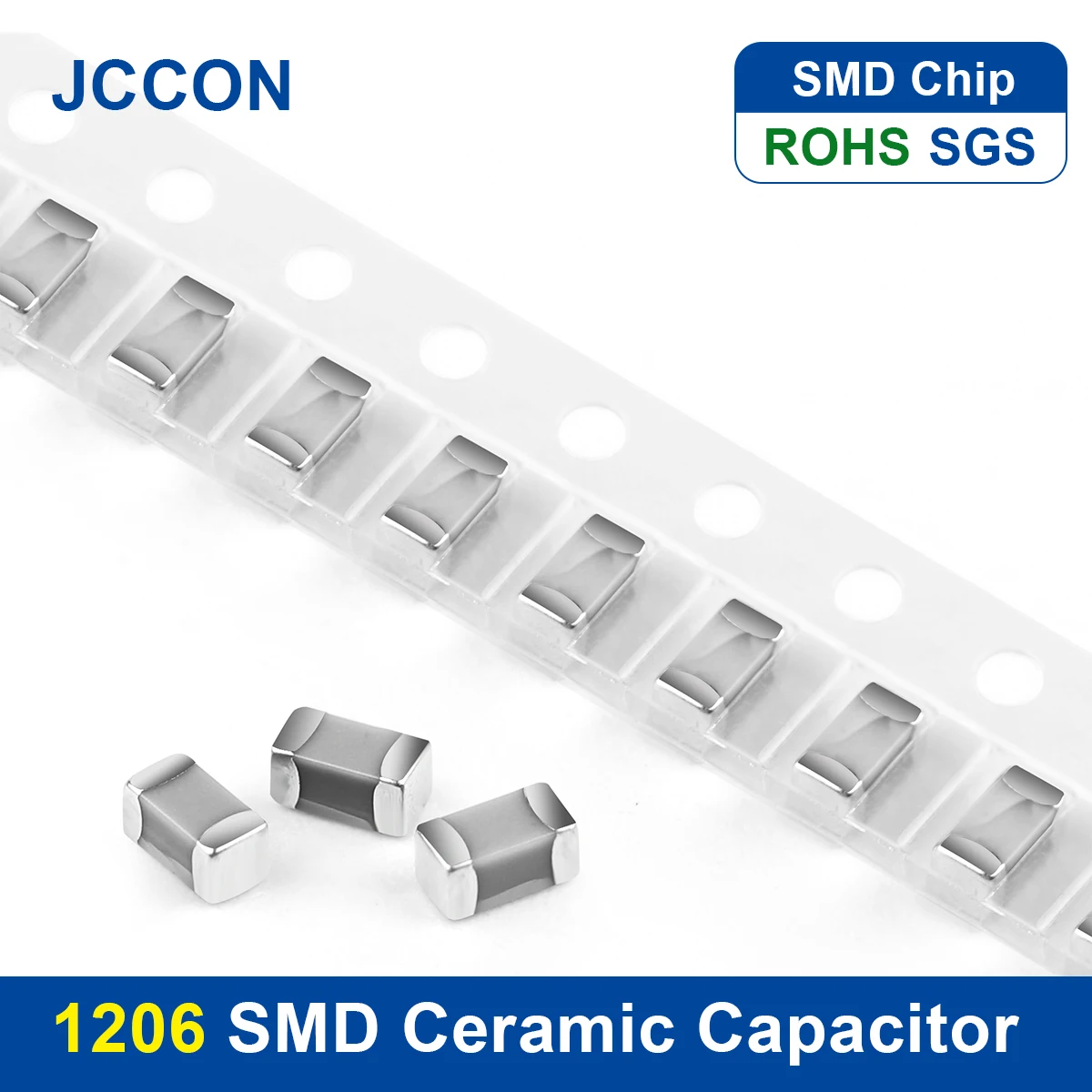

100Pcs 1206 50V SMD Thick Film Chip Multilayer Ceramic Capacitor 0.5pF-100uF 10NF 100NF 1UF 2.2UF 4.7UF 10UF 1PF 6PF 0.1UF 1nF 47nF

Specification:

Model: Chip Capacitor

DIP: 0201, 0402, 0608, 0805, 1206, 1210, 1808

Capacity: 0.2P~100UF 10V~5000V

Voltage: 6.3V, 10V, 16V, 25V, 35V, 50V, 100V, 200V, 250V, 450V, 500V, 1000V, 2000V, 3000V

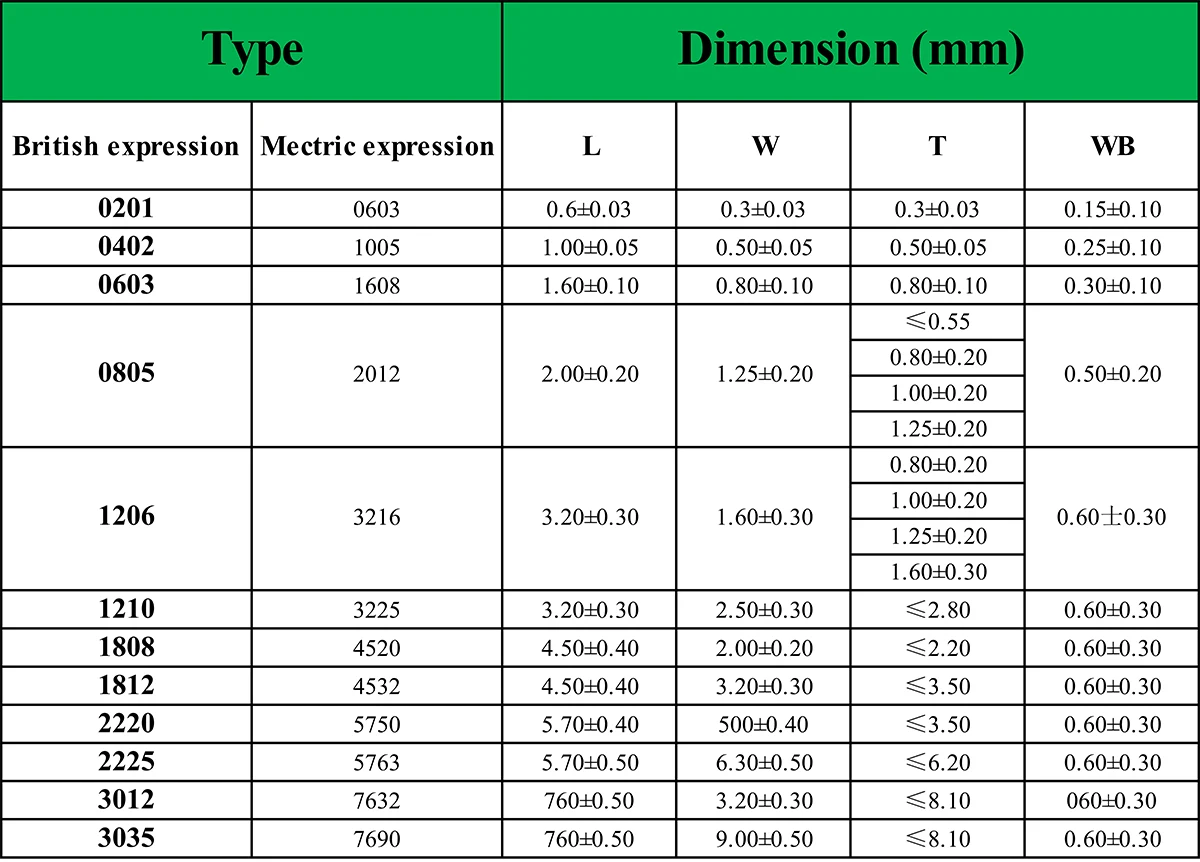

1. Volume: The volume of the chip capacitor is as follows:

0201 0603 0.6MM*0.3MM (length * width)

0402 1005 1.0MM*0.5MM (length * width)

0603 1608 1.6MM*0.8MM (length * width)

0805 2012 2.0MM*1.2MM (length * width)

1206 3216 3.2MM*1.6MM (length * width)

1210 3225 3.2MM*2.5MM (length * width)

1808 4520 4.5MM*2.0MM (length * width)

1812 4532 4.5MM*3.2MM (length * width)

2220 5750 5.7MM*5.0MM (length * width)

2. Capacity: SMD capacitor capacity is divided into 3 units, PF (batch method), NF (na method), UF (micro method)

1000PF=1NF, 1000NF=1UF 1NF is expressed as 102 10NF=103 100NF=104 1000NF=1UF=105

3. Material: There are four kinds of materials for chip capacitors, NPO, X7R, X5R, Y5V

NPO temperature resistance： -55°~+125°

X7R temperature resistance： -55°~+125°

X5R temperature resistance： -55°~+85°

Y5V temperature resistance： -55°~+85°

4. Accuracy: The accuracy of chip capacitors is conventionally divided into four types, J file, K file, M file, Z file

J file: error ±5% K file: error ±10% M file: error ±20% Z file: error -20%~+80%

Packgae Include:

100Pcs/Lot x SMD Ceramic Capacitor

Type: As your choice!!

Quantity: As your choice!!

(We have a lot of Stocks, if you need more, please contact us.)
