15A 400W MOSFET Trigger Switch Drive Module with PWM Control for Arduino
15A 400W MOSFET Trigger Switch Drive Module with PWM Control for Arduino
Couldn't load pickup availability
- ★Product Description
- ★About us
- ★Custom cable
SPECIFICATIONS
Application: Computer
Brand Name: Si Tai&SH
Condition: New
Dissipation Power: 15A 400W
High-concerned chemical: None
Operating Temperature: -40-+85
Origin: Mainland China
Package: SMD
Supply Voltage: DC 5V--36V
Type: Voltage Regulator
is_customized: Yes
Module Highlights:
1. The use of imported dual-MOS parallel active output, lower resistance, more current, strong power. At room temperature to provide current of 15A, 400W power;
2. Wide voltage input, support PWM;
3. Easy to control high power devices.

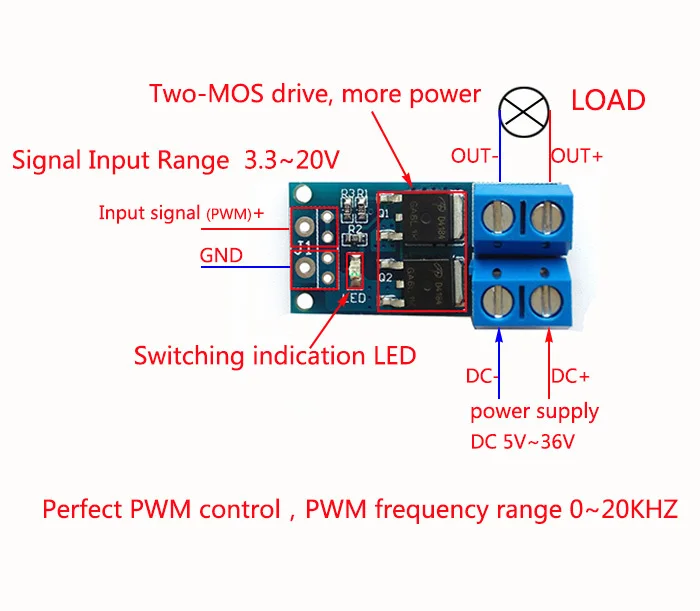

Product specifications and applications:
1. Working voltage: DC 5V - 36V;
2. The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal can be supported frequency range 0--20KHZ.
3. Output capacity: DC DC 5V - 36V, at room temperature, continuous current 15A, power 400W!
4. Application: High Power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valve; motor speed control, lamp brightness.
5. life: unlimited-off;
6. Working temperature: -40-85 °;

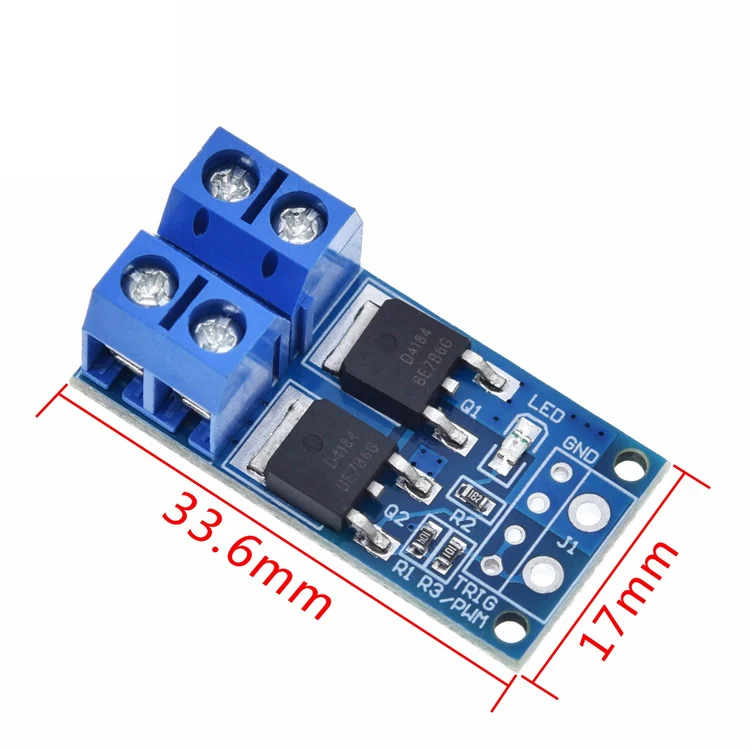

7. Size: 3.4 * 1.7 * 1.2cm.
