Feaures:

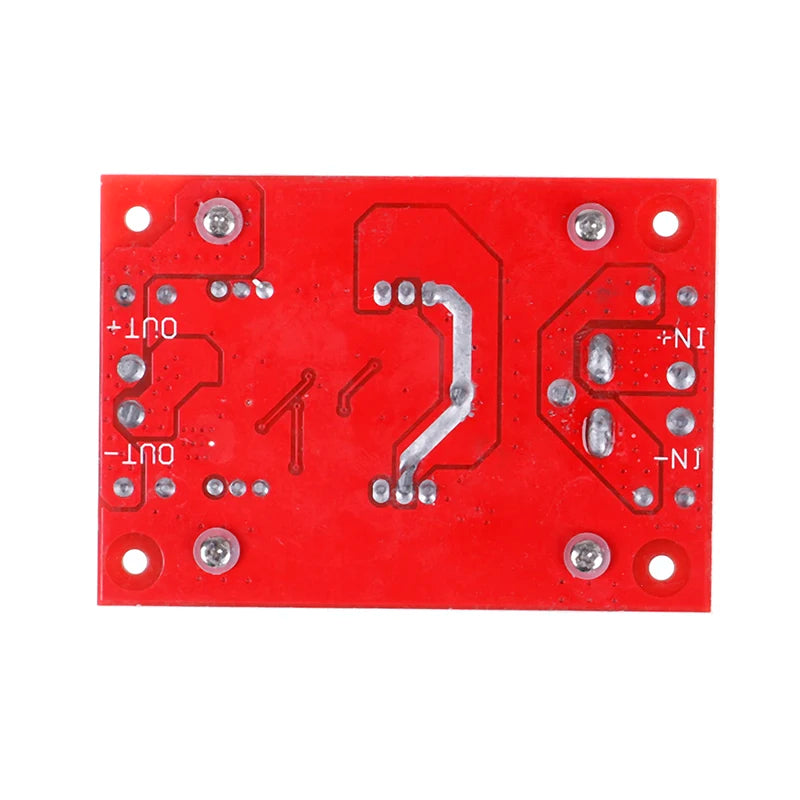

Module name :400W boost constant current module

Module properties: non-isolated step-up module (BOOST)

Input voltage: DC8.5V-50V

Input current: 15A (MAX) exceeds 8A please enhance heat dissipation

Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)

Output voltage: 10-60V continuously adjustable

Constant] range: 0.2-12A

Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)

Operating frequency: 150KHz

Conversion efficiency: up to 96%

Overcurrent protection: yes

Input reverse polarity protection: no

Installation: 4pcs 2.55mm screw holes

Connection method: Connection Output

Module size: 67mm X48mm X 28mm (LxWxH)

Single module: 60g

Package Include:

1 x 400W Boost Converter
