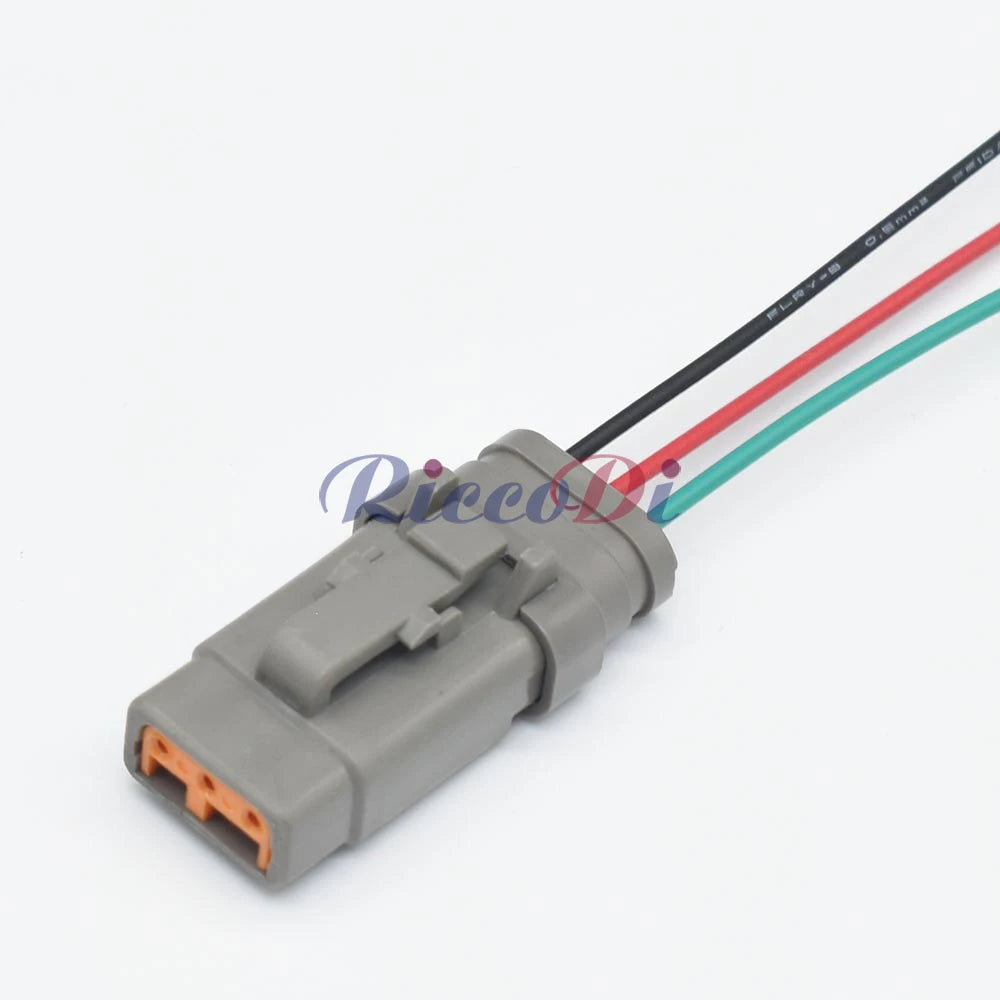

3-Pin Waterproof Deutsch DTM Connector — DTM06-3S / DTM04-3P / ATM06-3S | Grey Male & Female
OEM-compatible Deutsch DTM-series 3-pin waterproof connector in grey. The Deutsch DTM series is the industry standard for high-reliability sealed connectors in automotive, motorsport, off-road, marine, and industrial applications. Cross-references DTM06-3S (female socket), DTM04-3P (male plug), and ATM06-3S (alternative female) — all part of the Deutsch DTM miniature sealed connector family.
Specifications
| Parameter | Value |
|---|---|
| Pin Count | 3 |
| Connector Series | Deutsch DTM (miniature sealed) |
| Part Numbers | DTM06-3S (female) / DTM04-3P (male) / ATM06-3S (alt female) |
| Housing Color | Grey |
| Housing Material | Glass-filled nylon |
| Sealing | Silicone wire seal + face seal |
| Waterproof Rating | IP67 (IP69K with face seal) |
| Terminal Series | Deutsch DTM size 20 (0.5–1.0mm²) |
| Operating Temperature | -55°C to +125°C |
| Application | Automotive, motorsport, off-road, marine, industrial |
| Certification | CE |
Compatible Applications
- Motorsport ECU wiring harness — sensor and actuator connections (MoTeC, Haltech, AEM)
- Off-road vehicle wiring — winch, light bar, and accessory connectors
- Marine wiring harness — bilge pump, navigation light, and sensor circuits
- Agricultural and construction equipment — sensor and control wiring
- Custom automotive harness builds requiring high-reliability sealed connectors
- OEM automotive applications using Deutsch DTM series (trucks, heavy equipment)
Why Choose This Connector?
- ✅ Deutsch DTM series — the gold standard for high-reliability sealed automotive connectors
- ✅ IP67 / IP69K rated — superior moisture protection vs standard automotive connectors
- ✅ -55°C to +125°C range — extreme temperature performance for motorsport and off-road
- ✅ Silicone wire seal — superior chemical and temperature resistance vs rubber seals
- ✅ Grey color — standard DTM color for easy identification in multi-connector harnesses
Comparison: Deutsch DTM vs Standard Automotive Connectors
| Feature | Deutsch DTM | Standard Delphi/Yazaki |
|---|---|---|
| Waterproof Rating | IP67 / IP69K | IP67 |
| Temp Range | -55°C to +125°C | -40°C to +125°C |
| Wire Seal Material | Silicone | Rubber |
| Vibration Resistance | Extreme (motorsport-grade) | Standard automotive |
| Typical Use | Motorsport, off-road, marine | OEM passenger vehicles |
Application Scenarios
- ECU sensor connector on MoTeC / Haltech / AEM motorsport engine management system
- Winch and light bar power connector on off-road 4WD / overlanding vehicle
- Marine bilge pump and navigation sensor wiring on boats and watercraft
- Custom high-reliability harness build for track car, rally car, or race truck
FAQ
Q: What is the difference between DTM06-3S and DTM04-3P?
A: DTM06-3S is the female connector (socket/receptacle side, 6-series housing). DTM04-3P is the male connector (plug/pin side, 4-series housing). They are mating halves of the Deutsch DTM 3-pin connector pair.
Q: What terminals are compatible with Deutsch DTM connectors?
A: Deutsch DTM size 20 terminals (part W2S-P012T1 for female, W2S-P012T2 for male) for 0.5–1.0mm² (AWG 20–18) wire. A Deutsch-compatible crimping tool is required.
Q: Can I use Deutsch DTM connectors in place of standard Delphi or Yazaki connectors?
A: Deutsch DTM connectors are not physically compatible with Delphi or Yazaki housings — they require DTM-specific terminals and tooling. However, they can be used as a higher-reliability alternative in custom harness builds.
Package Contents
- 1× Female Connector Housing (DTM06-3S or ATM06-3S)
- 1× Male Connector Housing (DTM04-3P)
- Terminals not included
