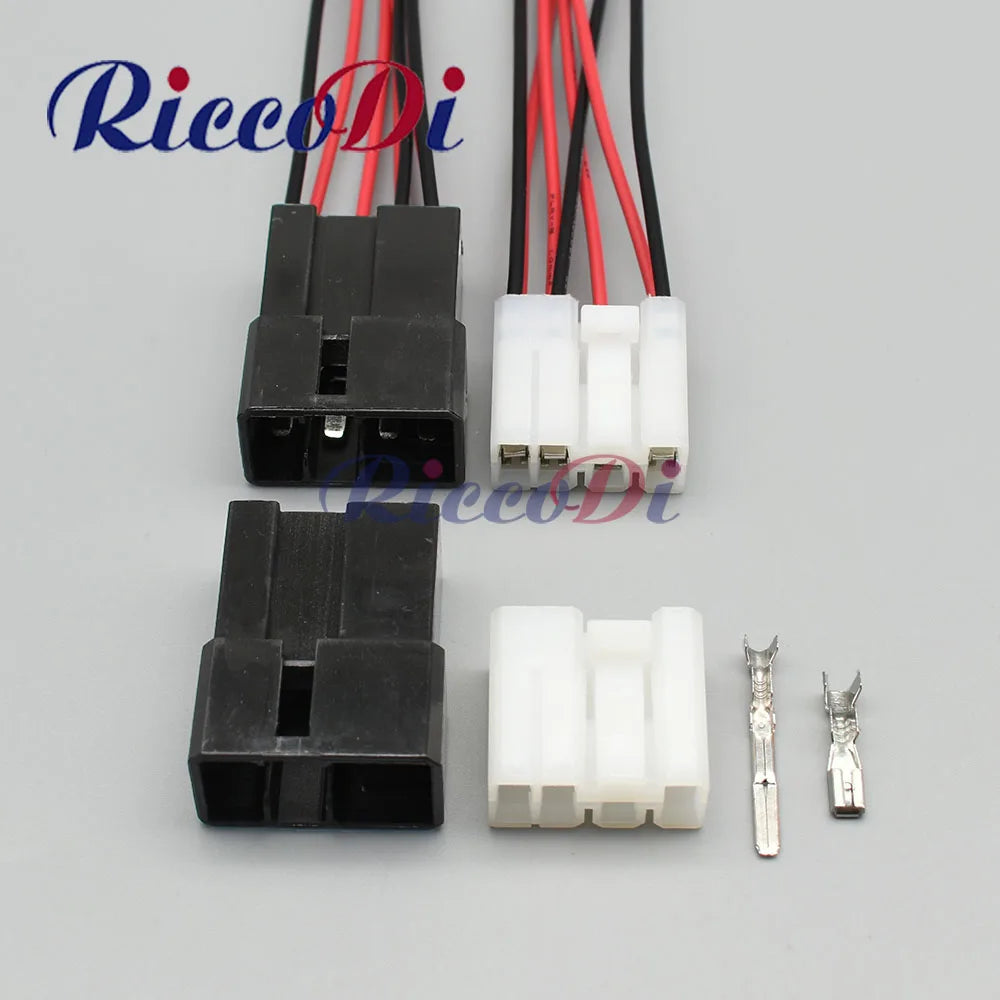

172505-1 / 172495-1 Automotive 7-Pin 3 Series Car Audio Cable Connector — Male Female Docking Wiring Socket
172505-1 / 172495-1 Automotive 7-Pin 3 Series Car Audio Cable Connector Male Female Docking Wiring Socket
Couldn't load pickup availability
172505-1 / 172495-1 Automotive 7-Pin 3 Series Car Audio Cable Connector — Male Female Docking Wiring Socket
Car audio system wiring harness connectors must deliver consistent low-resistance connections for speaker signal, amplifier power, and head unit control circuits — where even minor contact resistance can introduce noise, distortion, or signal loss into the audio chain. The 172505-1 / 172495-1 7-pin 3 Series automotive car audio cable connector is the OEM-specification docking wiring socket for car audio system wiring harness applications, providing a direct-fit replacement for the factory audio connector used in head unit, amplifier, and speaker wiring harness positions.
Built from PA66 nylon housing with tin-plated copper alloy contacts, this connector delivers reliable electrical continuity for car audio speaker signal, power, ground, and control circuits. Whether you're repairing a damaged head unit harness or replacing a corroded amplifier connector, the 172505-1 / 172495-1 provides OEM-grade dimensional accuracy and contact retention force.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Numbers | 172505-1 (female) / 172495-1 (male) |
| Series | 3 Series automotive audio connector |
| Pin Count | 7 pins |
| Connector Type | Automotive car audio cable docking connector |
| Primary Application | Car audio head unit, amplifier, speaker wiring harness |
| Housing Material | PA66 nylon |
| Contact Material | Tin-plated copper alloy |
| Certification | CE |
| Origin | Mainland China |
Key Features
- ✅ OEM part numbers 172505-1 / 172495-1 — direct-fit dimensional match for car audio head unit, amplifier, and speaker wiring harness connector positions
- ✅ 7-pin 3 Series audio connector — covers speaker signal, amplifier power, ground, and head unit control circuits in a single connector body
- ✅ PA66 nylon housing — dimensionally stable in dashboard and door panel temperature ranges; resistant to UV exposure and interior cleaning products
- ✅ Tin-plated copper alloy contacts — low contact resistance for clean audio signal transmission; resists oxidation in interior environments
- ✅ Positive locking latch — secure engagement prevents accidental disconnection from dashboard and door panel vibration
- ✅ CE certified — meets European automotive electrical component standards
Common Applications
- Car audio head unit wiring harness connector repair and replacement
- Automotive amplifier and speaker wiring harness docking connector repair
- Custom car audio system wiring harness fabrication
FAQ
Q: Are terminals included?
A: Terminal availability depends on the variant selected. Complete kits including OEM-specification crimp terminals are available — check the product options before ordering.
Package Contents

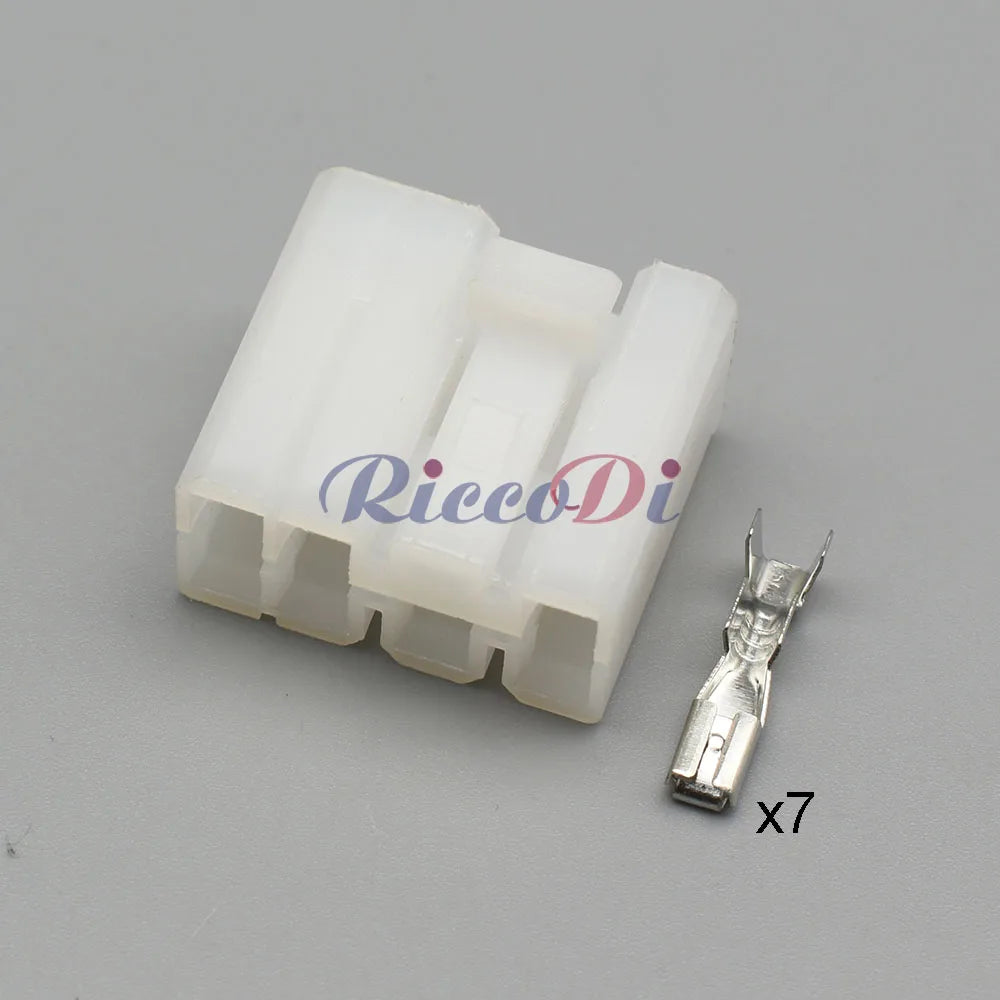

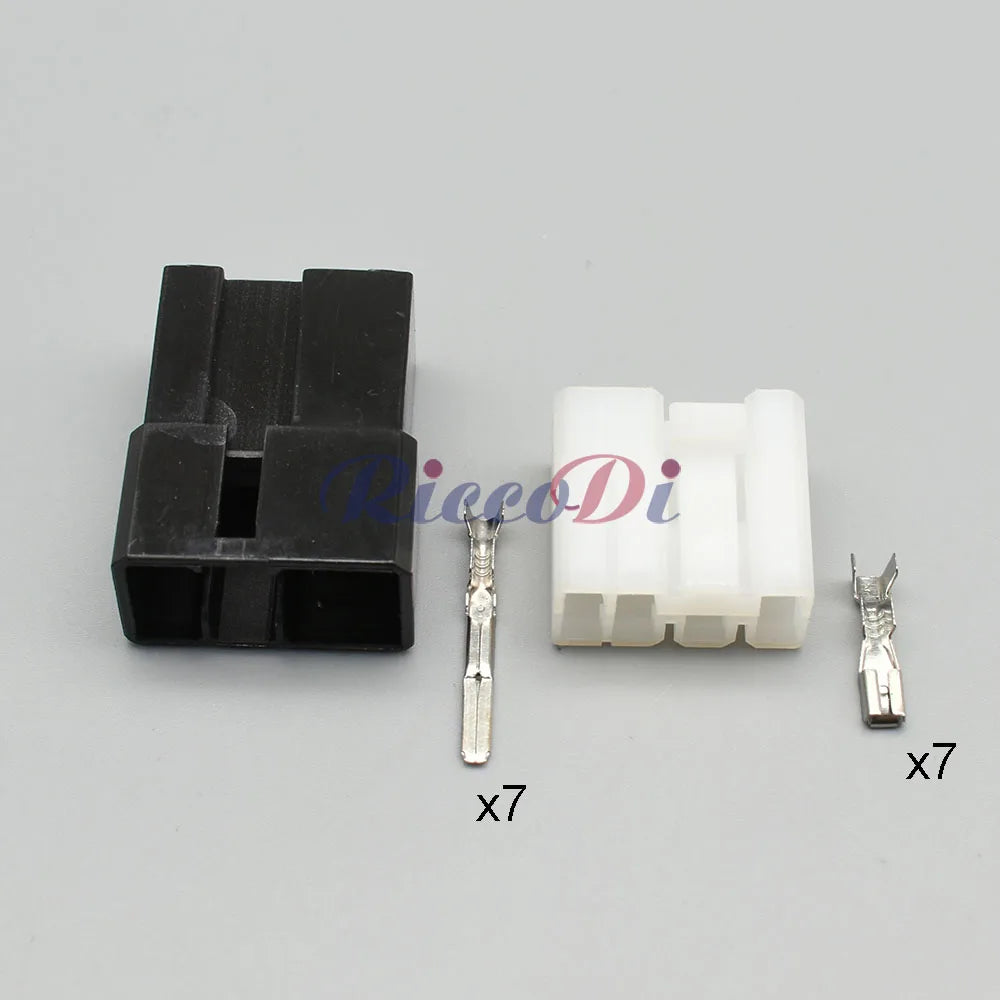

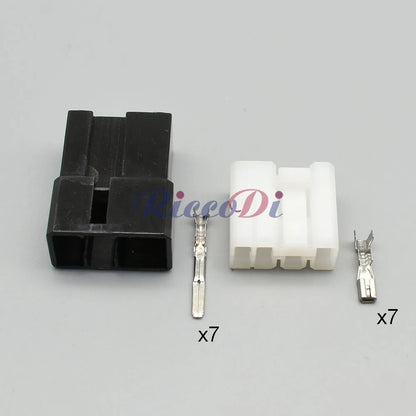

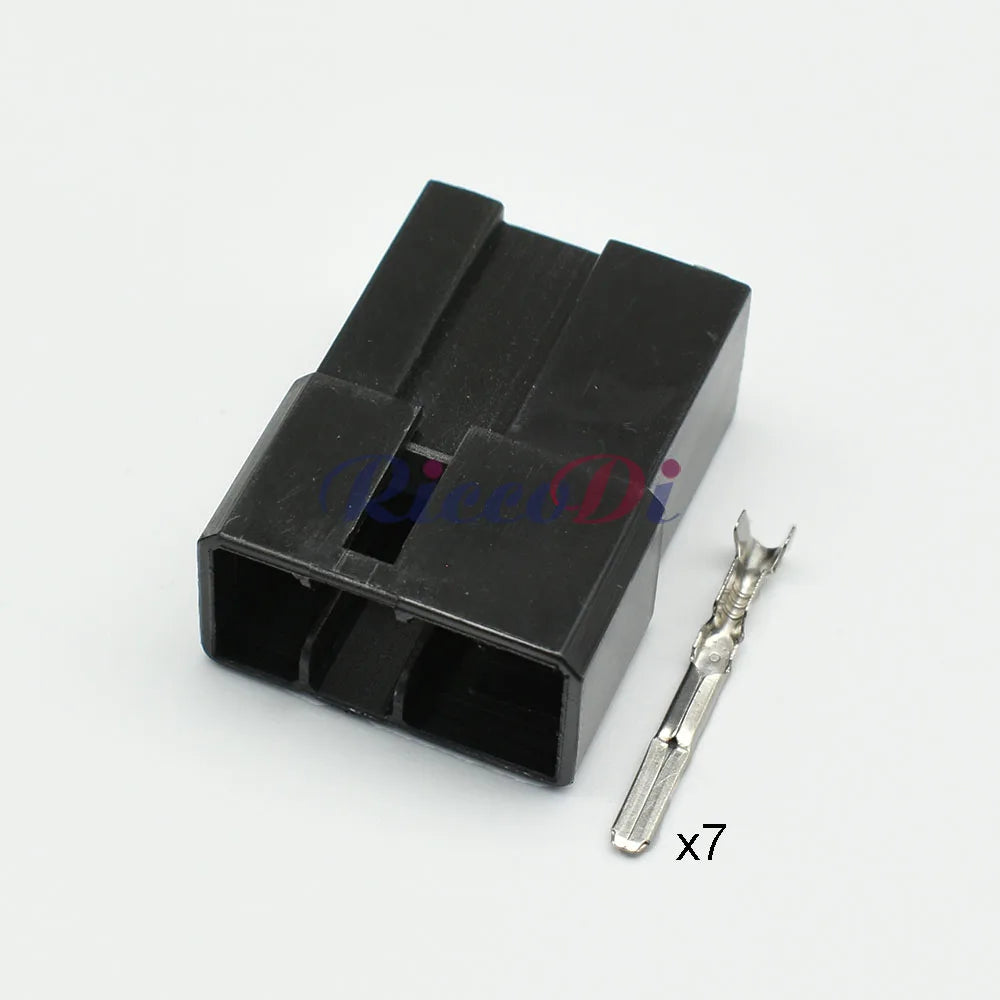

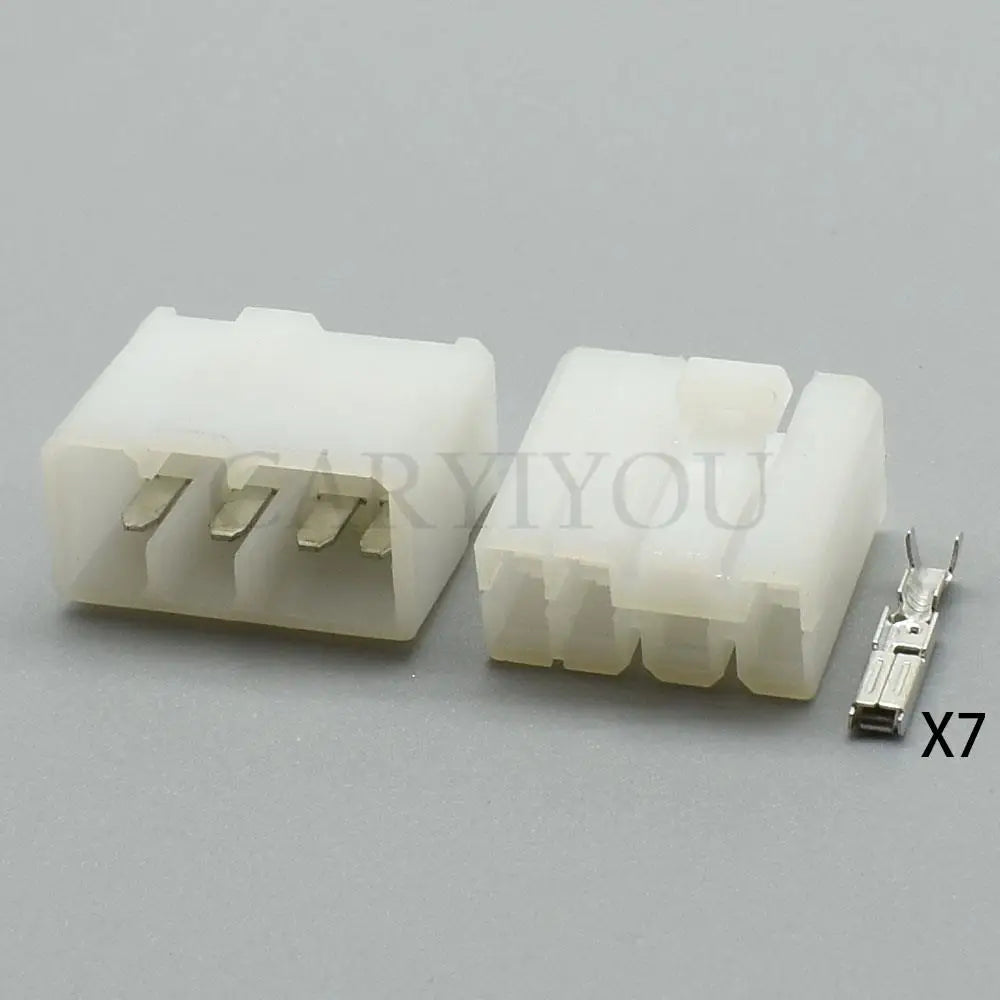

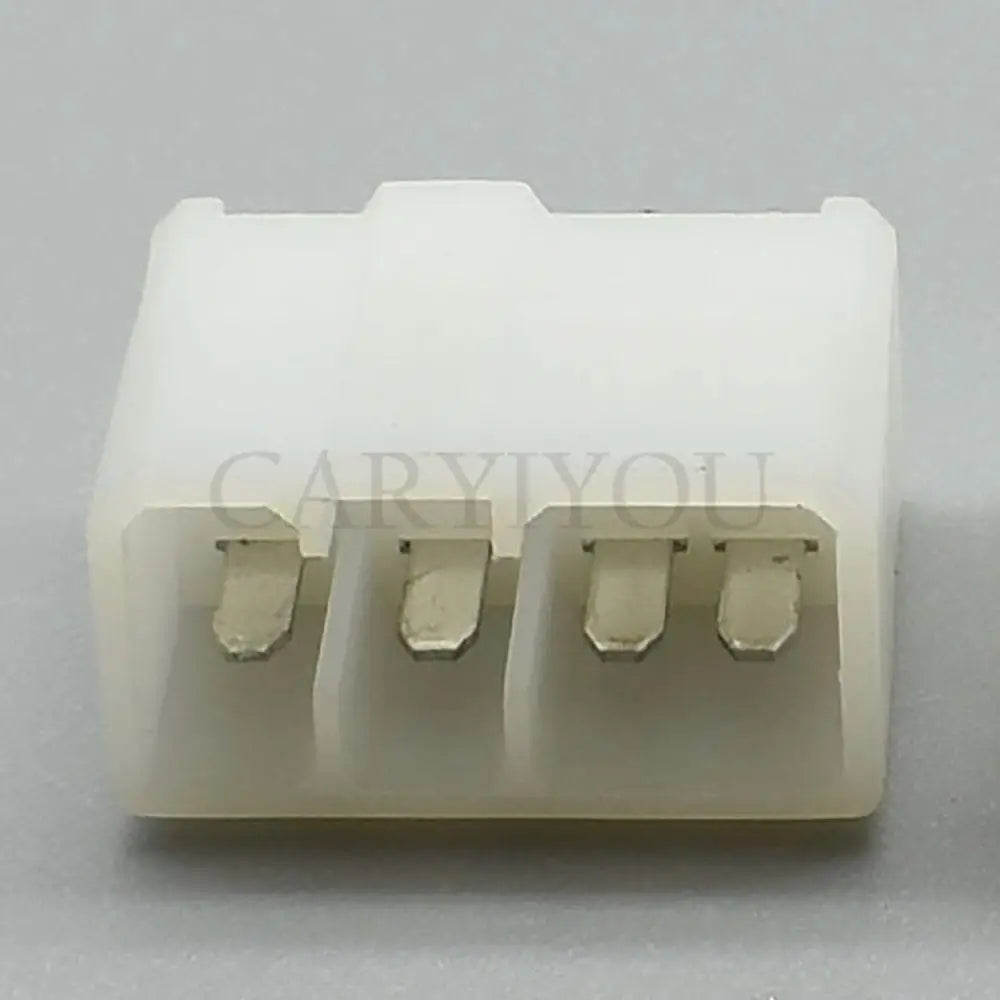

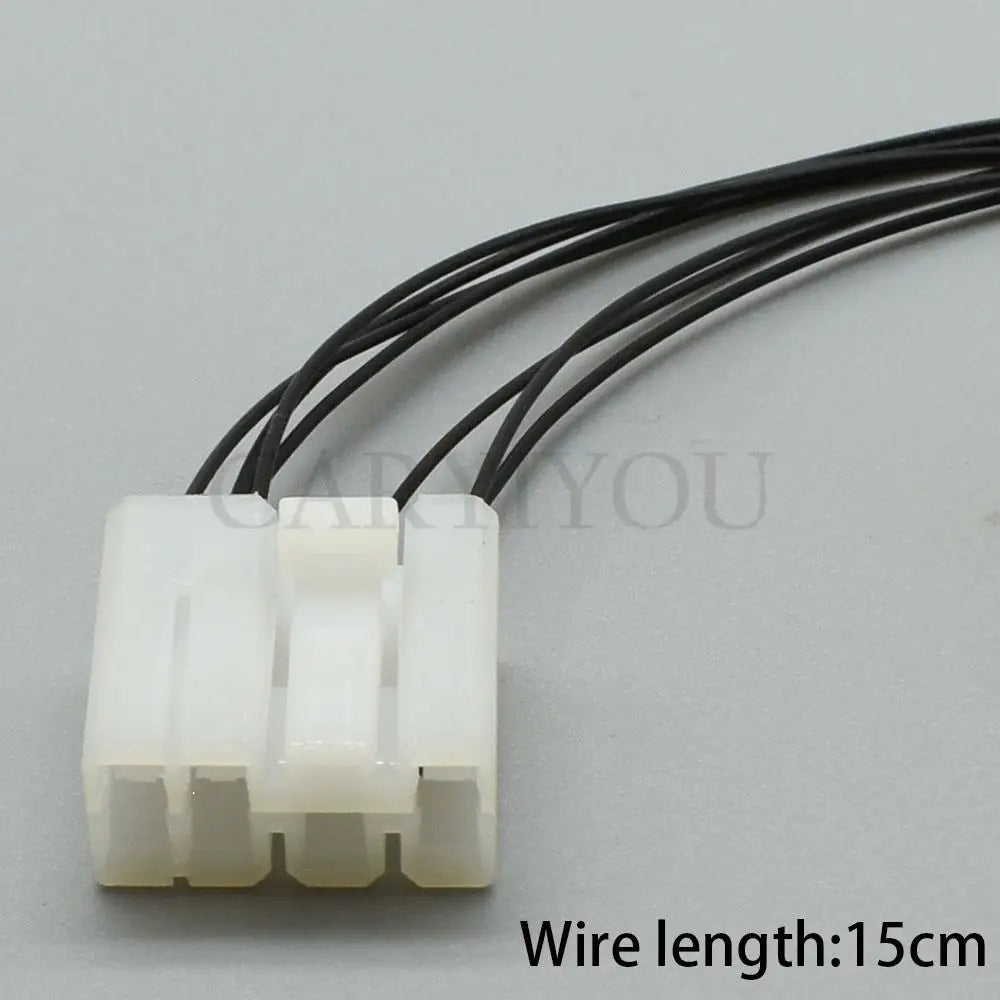

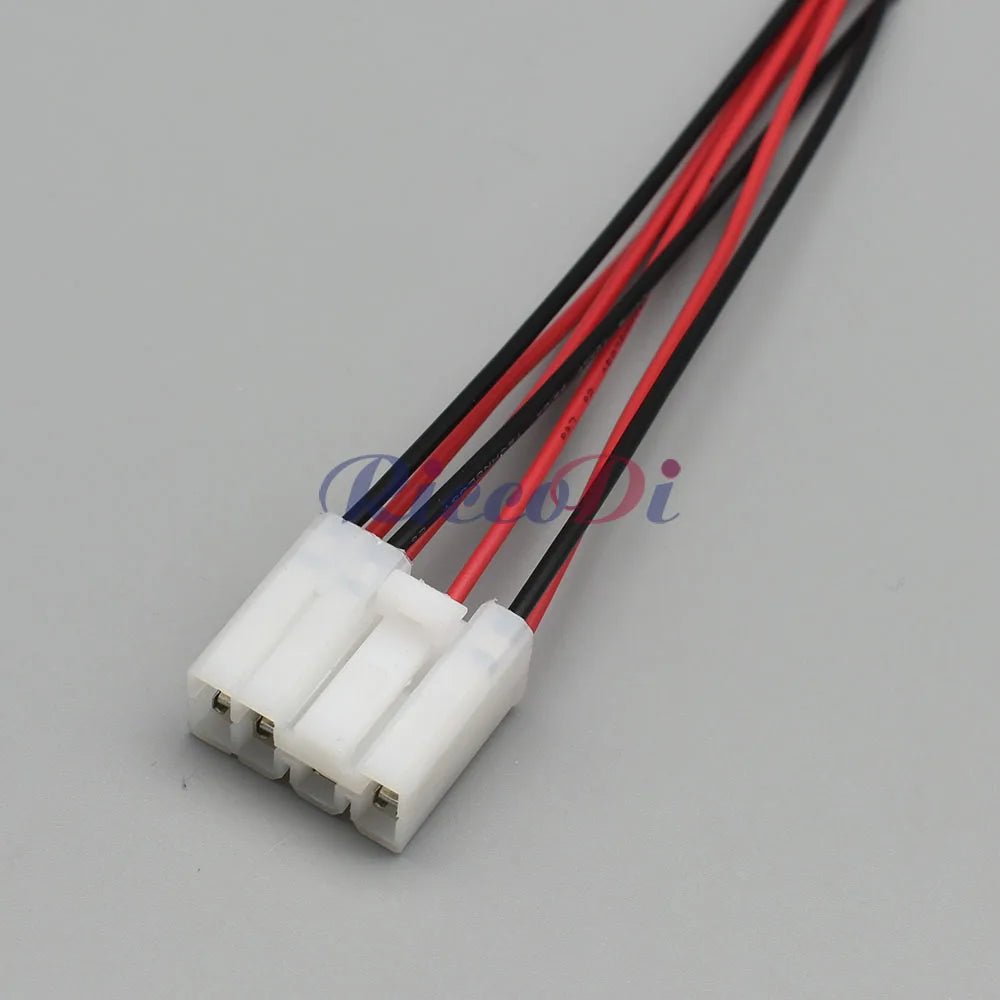

- 1× 172505-1 / 172495-1 7-Pin 3 Series Automotive Car Audio Cable Docking Connector (male plug or female socket as selected)
- Crimp terminals included in complete kit variants
