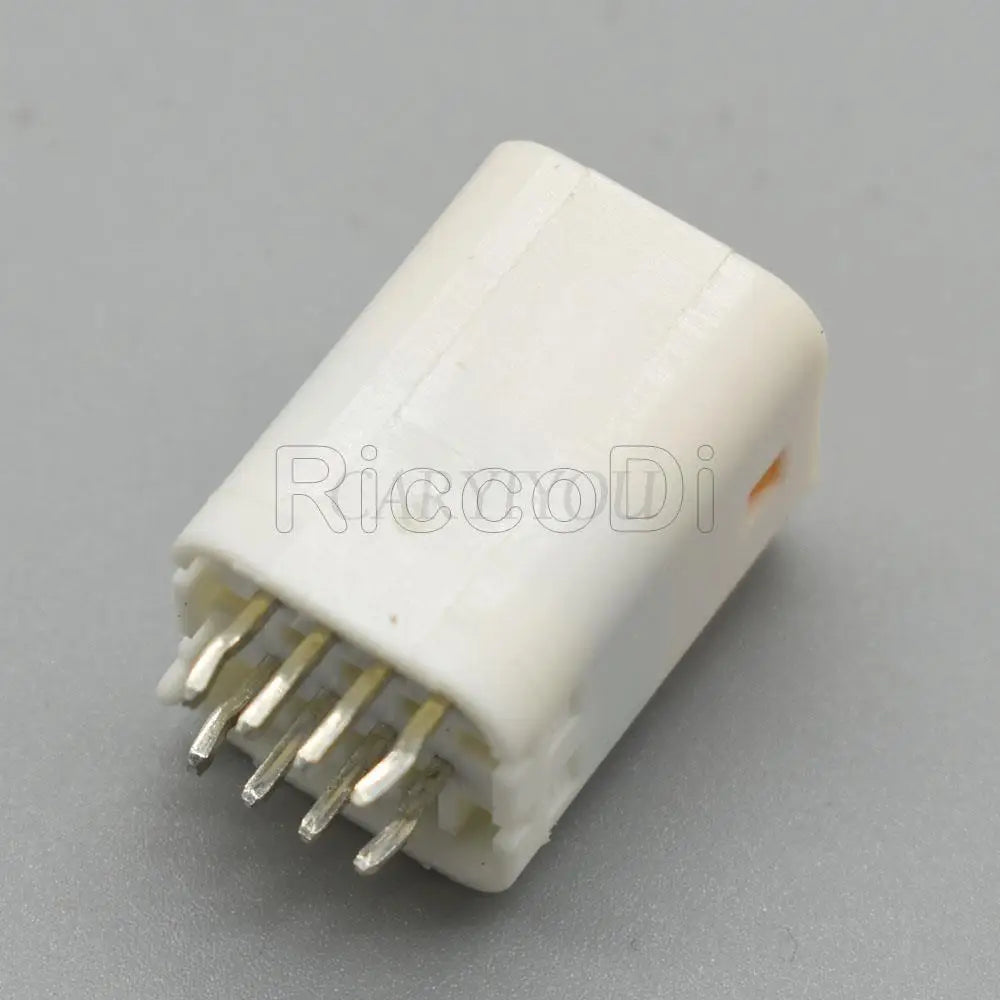

08T-JWPF-VSLE-D / B08B-JWPF-SK-P / 08R-JWPF-VSLE-D JST JWPF 8-Pin Waterproof Automotive Connector — Male Female Docking Plug
08T-JWPF-VSLE-D / B08B-JWPF-SK-P / 08R-JWPF-VSLE-D JST JWPF 8-Pin Waterproof Automotive Connector Male Female Docking Plug
Couldn't load pickup availability
08T-JWPF-VSLE-D / B08B-JWPF-SK-P / 08R-JWPF-VSLE-D JST JWPF 8-Pin Waterproof Automotive Connector — Male Female Docking Plug
The JST JWPF series is a purpose-designed waterproof connector system for automotive and industrial applications where sealed electrical connections are required in compact, space-constrained wiring harness layouts. The 08T-JWPF-VSLE-D (female housing) / B08B-JWPF-SK-P (PCB header) / 08R-JWPF-VSLE-D (male housing) form a complete 8-pin JST JWPF waterproof connector assembly, delivering IP67-rated sealed connections for automotive sensor, actuator, and control module wiring harness applications.
With a sealed wire-to-wire and wire-to-board design, the JST JWPF 8-pin connector is widely used in automotive body electronics, HVAC control, lighting, and sensor circuit wiring harnesses where moisture ingress protection is required. The VSLE (vertical, single locking, with ear) housing design provides a secure, vibration-resistant connection with a positive locking latch for reliable long-term performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Numbers | 08T-JWPF-VSLE-D / B08B-JWPF-SK-P / 08R-JWPF-VSLE-D |
| Series | JST JWPF (Waterproof) |
| Pin Count | 8 pins |
| Pitch | 2.0mm |
| IP Rating | IP67 (sealed, waterproof) |
| Wire Gauge | AWG 22–26 (0.14–0.34mm²) |
| Housing Material | PA66 nylon |
| Contact Material | Copper alloy, tin-plated |
| Locking | Single locking latch with ear (VSLE) |
| Certification | CE |
| Origin | Mainland China |
Key Features
- ✅ IP67 waterproof rating — fully sealed against dust and temporary water immersion; suitable for automotive underbody, exterior, and exposed sensor wiring harness positions
- ✅ JST JWPF series compatibility — dimensionally compatible with genuine JST JWPF contacts, wire seals, and PCB headers for seamless integration into existing JWPF harnesses
- ✅ 2.0mm pitch 8-pin configuration — compact form factor for high-density automotive sensor and control module wiring harness applications
- ✅ Wire-to-wire and wire-to-board options — VSLE housing for wire-to-wire connections; B08B PCB header for direct board-mount applications
- ✅ VSLE single locking latch with ear — positive locking engagement with secondary retention ear prevents accidental disconnection from vibration and harness movement
- ✅ PA66 nylon housing — resistant to automotive fluids, UV exposure, and temperature cycling in exterior and underbody environments
- ✅ CE certified — meets European automotive and industrial electrical component standards
Common Applications
- Automotive body electronics and HVAC control wiring harness sealed connector applications
- Exterior lighting and sensor wiring harness waterproof connector repair
- Automotive door, mirror, and window control module wiring harness connections
- Industrial equipment and machinery sealed wiring harness connector fabrication
- Custom waterproof wiring harness construction for automotive and marine applications
FAQ
Q: Are JST JWPF contacts and wire seals included?
A: Contact and wire seal inclusion depends on the variant selected. Complete kits including JST JWPF-series contacts and wire seals are available — check the product options before ordering.
Q: What is the difference between the 08T-JWPF-VSLE-D and 08R-JWPF-VSLE-D?
A: The 08T-JWPF-VSLE-D is the female (socket) housing, and the 08R-JWPF-VSLE-D is the male (plug) housing. The B08B-JWPF-SK-P is the PCB-mount header for wire-to-board applications.
Q: What crimp tool is required for JST JWPF contacts?
A: JST JWPF contacts require a JST YRS-898 or equivalent ratcheting crimp tool for proper termination. Hand crimping is not recommended for sealed waterproof applications.
Package Contents
- 1× 08T-JWPF-VSLE-D Female Housing / 08R-JWPF-VSLE-D Male Housing / B08B-JWPF-SK-P PCB Header (as selected)
- JST JWPF contacts and wire seals included in complete kit variants
