Features and parameters introduction:
This power supply is an isolated industrial-grade module power supply, with temperature protection, overcurrent protection and short circuit protection, high and low voltage isolation, AC85~265V wide voltage input, 431 regulated DC5V output, small size, stable performance, and high cost performance

Parameter:
Input voltage AC 85 ~ 265v 50/60HZ
Output voltage DC5V (±0.2V)
Output current 700mA
Power 3.5W

1.Use environment:

2. Technical requirements

2.1 Input Characteristics

2.2 Output characteristics

2.2.1 Output regulation rate characteristics

 2.2.2 Other output characteristics

2.3 Protection function

Size: length, width and height 3*2*1.8 (cm)

Installation method:
A. The input and output terminals can be installed with pins and soldered directly on the PCB
B. Reliability requirements for glue fixing
Ambient 25��, MTBF is more than 16000 hours under 80% load

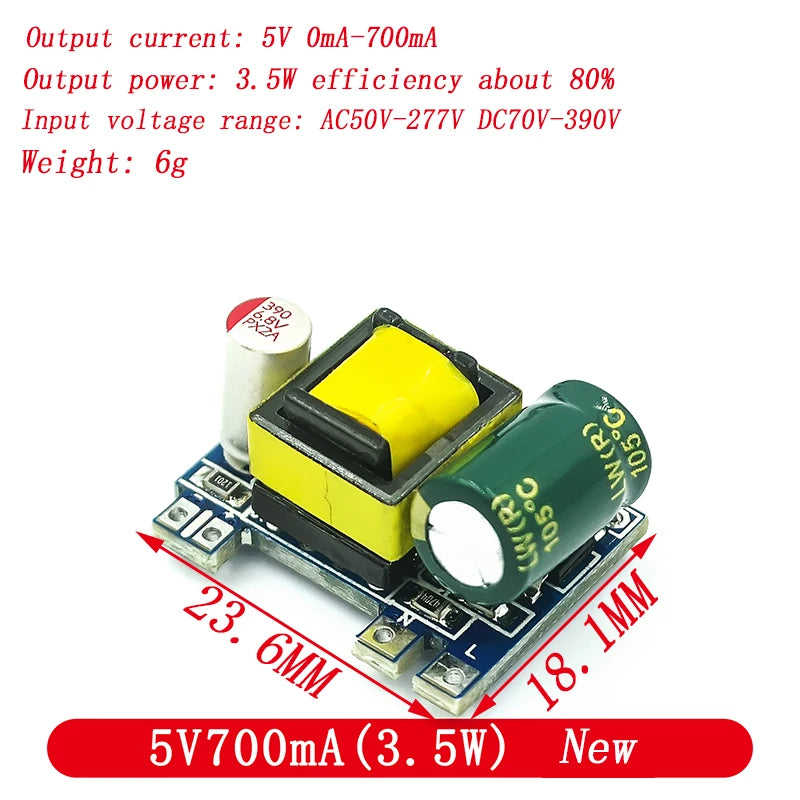

Precision 5V700mA 3.5W isolated switching power supply module 220 to 5V power supply
Operating temperature: -20 degrees to 70 degrees, the green gold capacitor can withstand temperature of 105 degrees for 10,000 hours, more than 5 years at 70 degrees, about 20-50 years at normal temperature (not recommended for use above 70 degrees), high output filter Quality Solid Capacitors

Input voltage range: AC50V-277V DC70V-390V

No-load power: <0.05W Full-load power: <4W

Output characteristics: Multiple modules of the same voltage can be used in parallel to meet the needs of small space and high current.

Output voltage: 5V +-0.15V no-load and full-load, light load minus 0.1V, heavy load rises, 50% load ripple 60mV

Output current: 5V0mA-700mA, enter constant current working mode at full load

Test resistance: 7 ohms for 5V (4.9V)

Output indicator: green light

Output power: 3.5W efficiency about 80%

Output protection: over voltage, over current, over temperature, over power, short circuit protection, etc.

Operating temperature: -20 degrees to 70 degrees, the green gold capacitor can withstand temperature of 105 degrees for 10,000 hours, more than 5 years at 70 degrees, about 20-50 years at normal temperature (not recommended for use above 70 degrees), high output filter Quality Solid Capacitors

Input Features:

Input voltage range: AC50V-277V DC70V-390V

No-load power: <0.05W Full-load power: <4W

Output characteristics: Multiple modules of the same voltage can be used in parallel to meet the needs of small space and high current.

Output voltage: 12V -0.05+0.3V no-load and full-load, light load minus 0.1V, heavy load rises, 50% load ripple 100mV

Output current: 12V0mA-300mA, enter constant current working mode at full load

Test resistance: 40 ohms for 12V (12V)

Output indicator: green light

Output power: 3.5W efficiency about 80%

Output protection: over voltage, over current, over temperature, over power, short circuit protection, etc.

Features:
The product is easy to install, and the input and output can be welded with 5.08 terminals or pins.
There are installation fixing holes at the four corners, which can be fixed with screws to prevent movement or vibration. The diameter of the fixing holes is 3mm.
Universal input voltage AC100V-265V, strong versatility.
High efficiency, strong design density, small size for easy installation, and extremely low output ripple.
Input and output high isolation
Overload, short circuit and over temperature protection are all available
Power protection: overload, short circuit, over temperature protection
Voltage input: AC100V-265V
Frequency input: 50HZ-60HZ
Output voltage: DC12V
Output current: rated 2A peak 4A protection
Output power: 24W
Overall size: length 6.9cm* width 3.6cm* height 2.5cm
