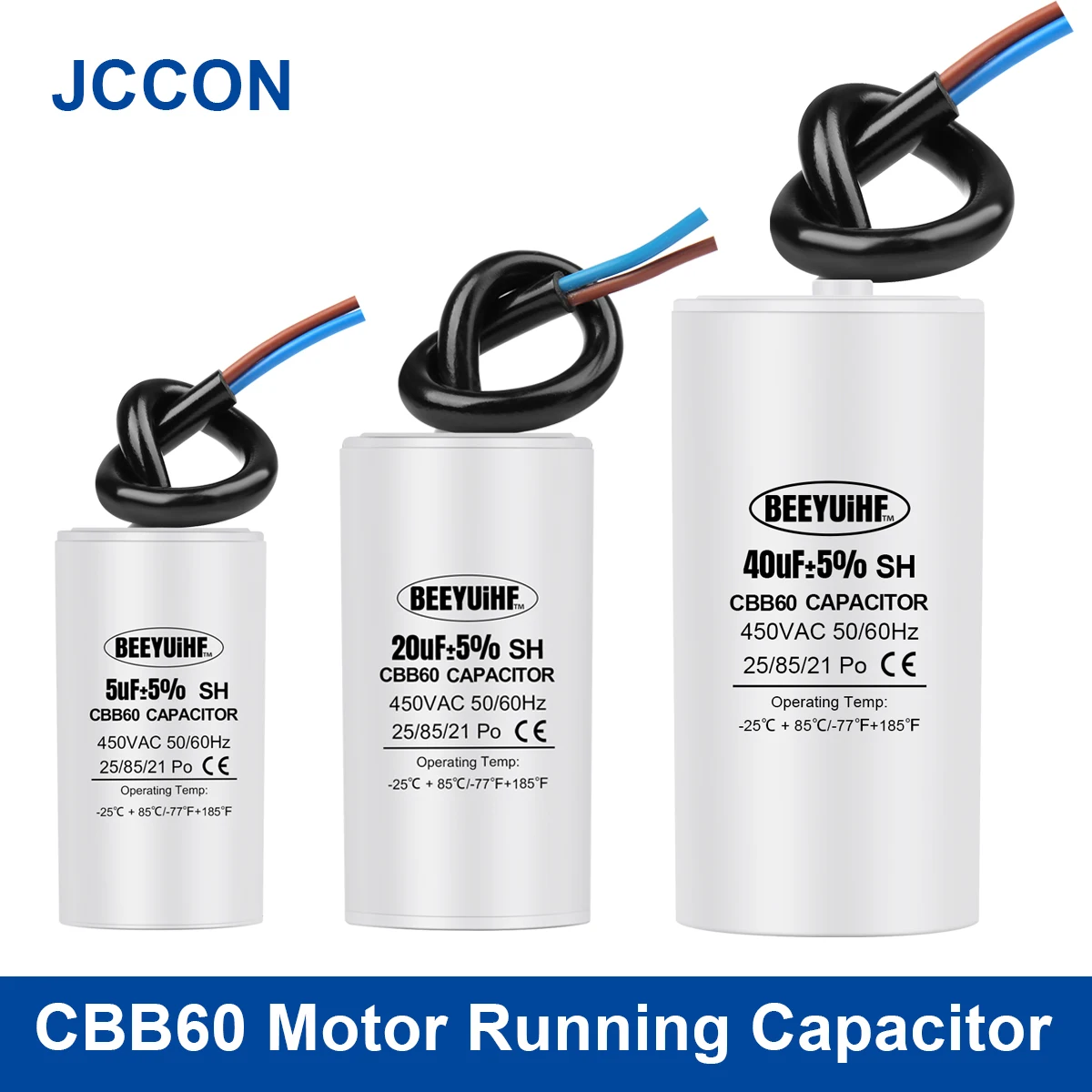

1Pcs CBB60 Starting Capacitor 3uF~80uF Motor Capacitor 50 / 60Hz 450VAC with cable for electric motor/washing machine

Size:

3uF 34x65mm

4uF 34x65mm

5uF 34x65mm

6uF 34x65mm

8uF 34x65mm

9uF 34x65mm

10uF 34x65mm

12uF 38x70mm

14uF 38x70mm

15uF 38x70mm

16uF 38x70mm

18uF 38x70mm

20uF 38x70mm

25uF 38x70mm

30uF 50x100mm

35uF 50x100mm

40uF 50x100mm

45uF 50x100mm

50uF 50x100mm

60uF 50x100mm

70uF 50x100mm

80uF 50x100mm

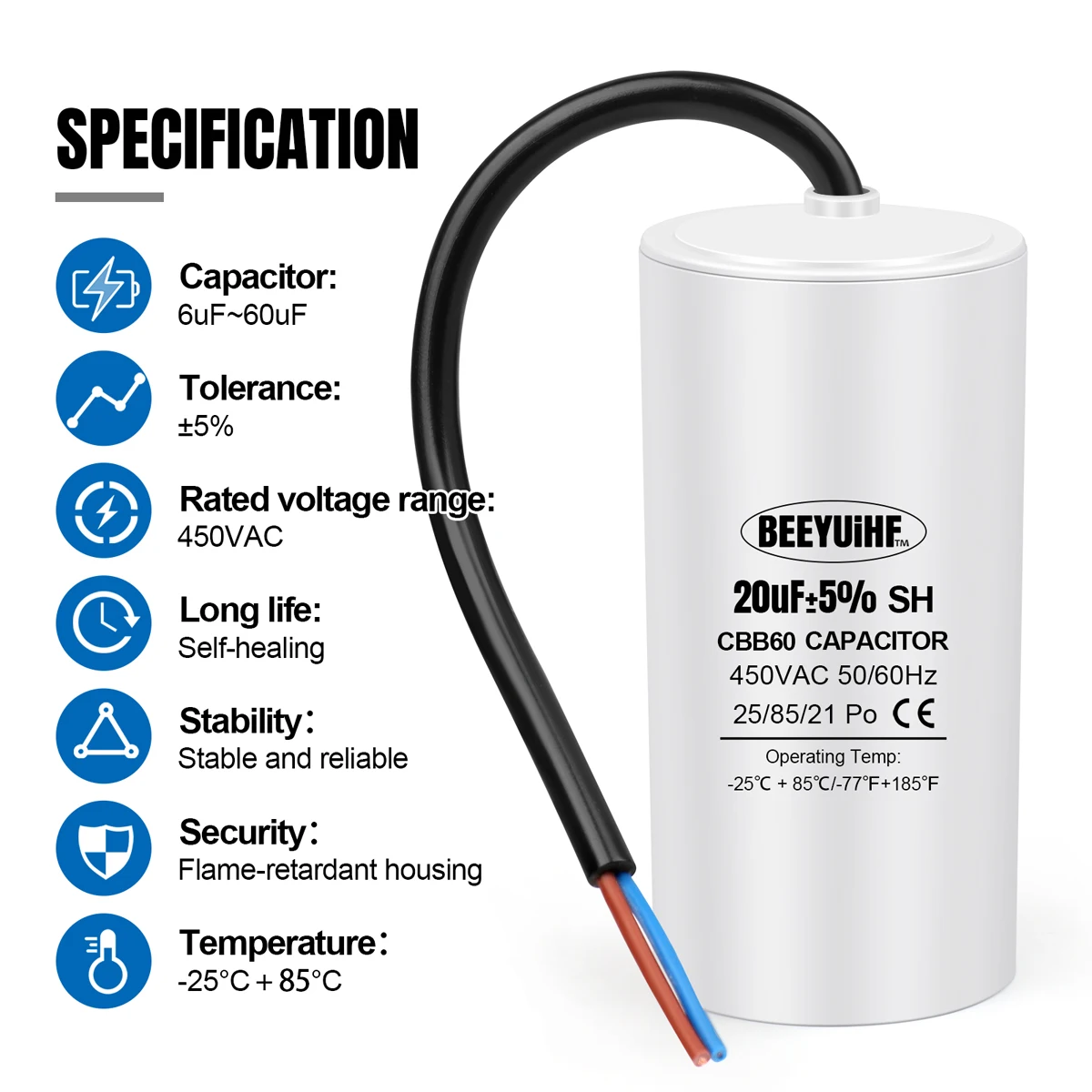

Technical parameters:

Model: CBB60 Capacitor

Rated voltage: 450V AC

Capacity: 3uF/4uF/5uF/6uF/8uF/9uF/10uF/12uF/14uF/15uF/16uF/18uF/20uF/25uF/30uF/35uF/40uF/45uF/50uF/60uF/70uF/80uF

Frequency: 50 / 60HZ

Tolerance: ±5

Security: SH

Insulation resistance: ≥3000MΩ.μF

Material: Polypropylene film

Housing: fireproof PBT

Operating temperature: -25℃ + 85℃/-4F+29F

Functionality: heat resistant, low loss and low impedance.

Scope: Widely used in washing machines, motors, refrigerators, water pumps, sewing machines, mixers, pasta machines, lamps, etc. with 50/60Hz AC power frequency to start and run single-phase motors with relatively low power.

Feature:

● Capacity: 6uF/8uF/10uF/12uF/20uF/25uF/30uF/40uF/50uF/60uF

● Frequency: 50 / 60HZ

● Rated voltage: 450 V AC

● Starting capacitor Features: Good frequency characteristics (wide frequency response), low dielectric loss, high insulation impedance, stable performance, inrush current resistance, high overload capacity and excellent self-healing properties.

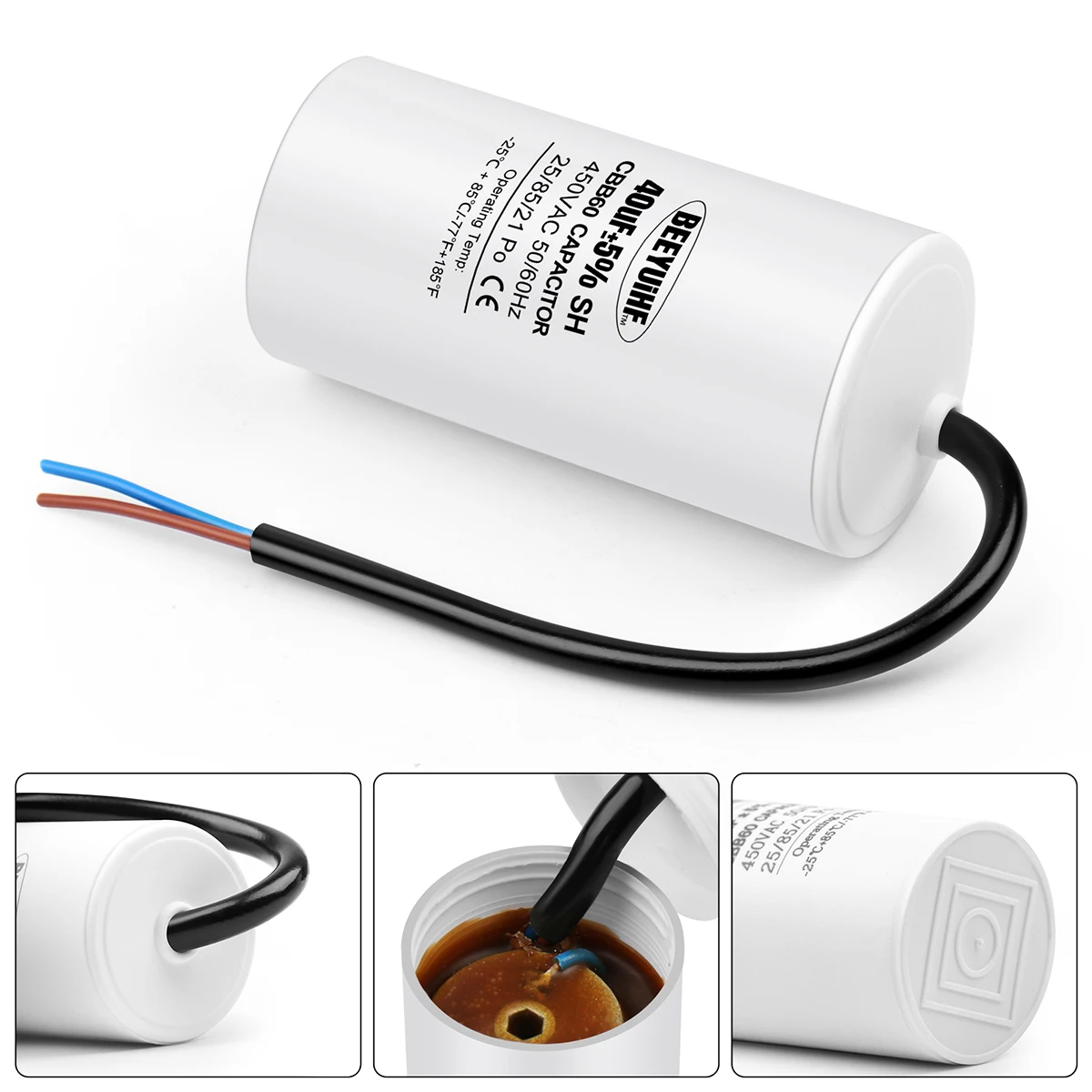

● CBB60 Capacitor motor uses an edge-thickened metalized zinc-aluminum film as its electrode and dielectric. Its internal components are encapsulated in a flame retardant epoxy resin. Starting capacitor has a cylindrical shape, PBT plastic case and a fixing screw at the base for good stability and moisture resistance.

● Suitable for starting and running single-phase motors with AC power frequency of 50HZ 60HZ.

Packgae Included:

BEEYUIHF CBB60 Capacitor
