SPECIFICATIONS
Application: Computer
Brand Name: SPLENDID
Choice: yes
Condition: New
Dissipation Power: 1
High-concerned chemical: None
Operating Temperature: 0-40¡ãC
Origin: Mainland China
Package: SMD
Quantity: 1
Size: 38*21.7MM
Supply Voltage: 3.3V - 5.5V
Type: Module
is_customized: Yes
semi_Choice: yes
Weight: 9g
Dimensions: 38.2mm * 21.6mm

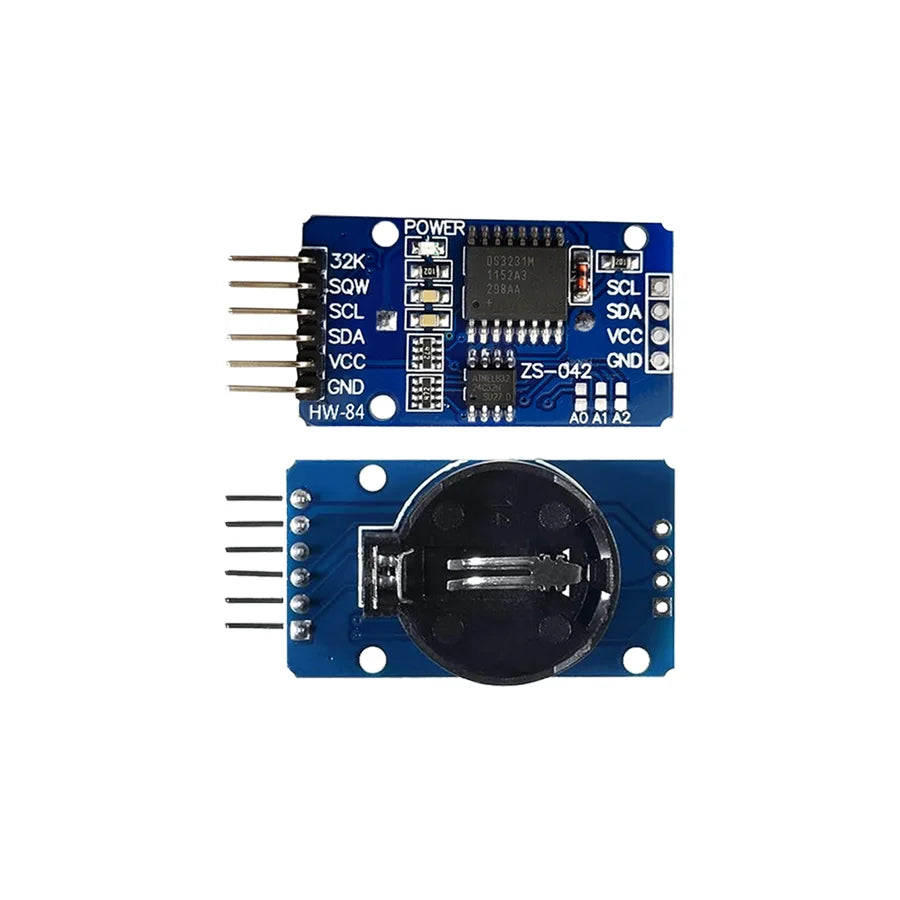

DS3231 AT24C32 High-Precision Clock Module | I2C Module Storage Module
?Operating Voltage: 3.3V - 5.5V
?Clock Chip: High-Precision DS3231 Chip
?Clock Accuracy: 2ppm in the range of 0-40¡ãC, annual error is approximately 1 minute
?Includes 2 programmable alarms
?Square wave output capability
?Real-time clock generates seconds, minutes, hours, day of the week, date, month, and year, with leap year compensation valid until the year 2100
?Built-in temperature sensor with an accuracy of ¡À3¡ãC
?Storage Chip: AT24C32 (32KB storage capacity)
?I2C Interface, 400KHz transfer speed (when operating voltage is 5V)
?Can cascade with other IC devices, 24C32 address can be modified by shorting A0/A1/A2, default address is 0x57
?Includes CR2032 battery, ensuring the clock keeps running even after power loss
?Packaging: Single anti-static packaging
Wiring Instructions (Example for Arduino Uno R3):
SCL ¡ú A5
SDA ¡ú A4
VCC ¡ú 5V
GND ¡ú GND
¡¤ High Precision Real-Time Clock:
The DS3231 module provides high accuracy for real-time clock applications, with a built-in temperature-compensated crystal oscillator, ensuring reliable timekeeping.
¡¤ I2C Interface for Easy Integration:
The module supports I2C communication, making it ideal for integration with Arduino, Raspberry Pi, and other microcontroller-based projects, simplifying setup.
¡¤ Battery & Non-Battery Versions:
Available in both battery and no-battery options, the DS3231 module ensures timekeeping even during power loss when using the battery version, perfect for long-term projects.
¡¤ Built-in AT24C32 Memory:
Includes a built-in 32KB EEPROM memory (AT24C32) for storing data, such as settings or logs, providing extra functionality for your electronics projects.
¡¤ Wide Application Compatibility:
Ideal for Arduino and Raspberry Pi DIY projects, this RTC module can be used for clocks, timers, alarms, data logging, and other time-dependent applications, making it versatile for various uses.
