★Product Description
★About us
★Custom cable

SPECIFICATIONS

Application: Computer

Brand Name: OLNYLO

Condition: New

Dissipation Power: ESP-12F

Model Number: ESP8266 ESP-12F

Operating Temperature: -40 - 125

Origin: Mainland China

Supply Voltage: ESP-12F

Type: Voltage Regulator

is_customized: Yes

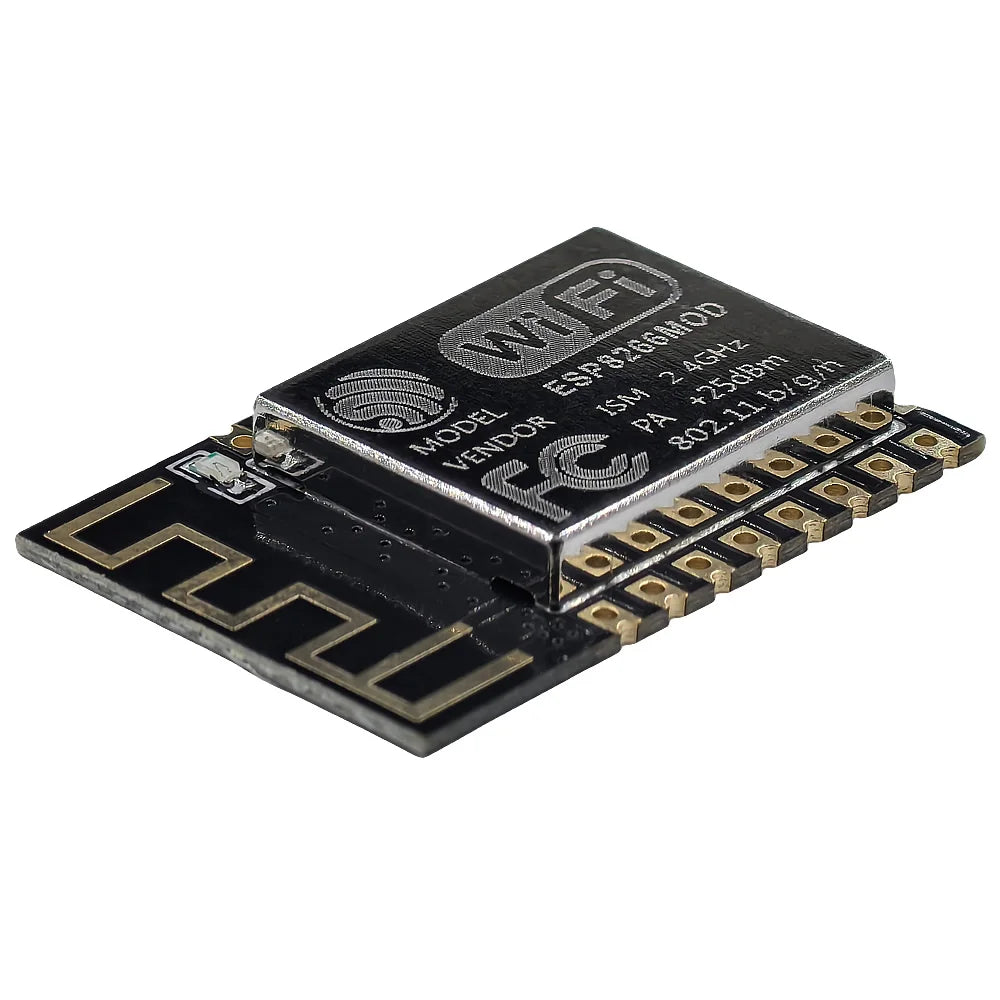

ESP-12F ESP8266 WiFi Serial Module Wireless Transceiver Remote Port Network Development Board for Arduino NodeMCU MicroPython

ESP8266-12F is an enhanced version of ESP8266-12, perfect peripheral circuit, four-layer board technology, enhanced impedance matching, better signal output, whether it is stability or anti-jamming capability, PCB antenna through professional laboratory testing, ROHS certification , Have been greatly improved! For those who choose ESP-12 before, even if the product has been made it does not matter, enhanced version is fully compatible with the firmware before the pin in the ESP-12 on the basis of the addition of six IO port, SPI port leads, the development more convenient, More extensive!

Wireless standards: 802.11 b / g / n

Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)

Data interface: UART / HSPI / I2C / I2S / Ir Remote Contorl GPIO / PWM

Operating voltage: 3.0 ~ 3.6V (recommendation 3.3V)

Working Current: Average: 80mA

Operating temperature: -40 ° ~ 125 °

Storage temperature: Nomal temperature
