Feature:

1. The module is a small-size camera module that can work independently as the smallest system.

2. A new WiFi+ Bluetooth dual-mode development board based on ESP32 design, using onboard PCB antenna, equipped with two high-performance 32-bit LX6cpus, using a 7-stage pipeline architecture, the main frequency adjustment range of 80MHz to 240Mhz.

3.ESP32-CAM is an 802.11b/g/n Wi-Fi + BT/BLE SoC module with ultra-low power consumption and deep sleep current as low as 6mA, so it is suitable for iot applications with high power consumption requirements.

4. Easy to use, ESP32-CAM is a micro module with camera function, equipped with OV2640 camera, GPIO connected to peripherals, and micro-SD card for storing captured images, which can be directly plugged into the base plate.

5.HK-ESP32-CAM-MBEAX adopts Type-C interface, convenient and reliable connection mode, which is used in various iot hardware terminal occasions.

6.ESP32-CAM can be widely used in a variety of Internet of Things occasions, suitable for home intelligent devices, industrial wireless control, wireless monitoring, QR wireless recognition, wireless positioning system signals and other Internet of Things applications, is the ideal solution for Internet of Things applications.

Product parameters:

Operating voltage: 4.75-5.25V, 5V is recommended

SPIFlash: The default value is 32mbit

RAM: Internal 520KB+ external 8MB PSRAM

Wi-Fi: 802.11b/G/n/e/i

Bluetooth: Bluetooth 4.2BR/EDR and BLE standards

Supports interfaces (2Mbps) : UART, SPI, I2C, PWM

TF card support: Maximum support 4G

IO ports: 9

Serial port rate: 115200bps by default

Spectrum range: 2400 ~ 2483.5 MHz

Antenna shape: Integrated PCB, 2dBi gain

Image output format: JPEG (OV2640 only), BMP, GRAYSCALE

Transmit power:

802.11b: 17 ± 2dBm (@11mbps)

802.11g: 14 ± 2dBm (@54mbps)

802.11n: 13 ± 2dBm (@MCS7)

Receiving sensitivity:

CCK, 1mbps: -90dBm

CCK, 11mbps: -85dBm

6Mbps (1/2BPSK) : -88dBm

54Mbps (3/464-QAM) : -70dBm

MCS7 (65Mbps, 72.2 Mbps) : -67dBm

Power consumption:

Off flash: 180mA @ 5V

Turn on the flash and set the brightness to the maximum: 310mA@5V.

Deep sleep: The lowest power consumption can reach 6mA@5V.

Moderm sleep: As low as 20mA@5V.

Light sleep: up to 6.7mA@5V.

Security: VPA/VPA2/ vPA2-enterprise /VPS

Operating temperature: -20℃ ~ 70℃

Storage environment: -40 ° C to 125 ° C, < 90%RH

Features:

Low power dual-core 32-bit CPU, can be used as an application processor

The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS

520 KB of internal SRAM and 8MB of external PSRAM

Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC

OV2640 and OV7670 cameras with built-in flash

Support picture WiFI upload

TF card support

Supports multiple sleep modes.

Embedded Lwip and FreeRTOS

Support STA/AP/STA+AP working mode

Supports Smart Config/AirKiss one-click network distribution

Support secondary development

Applications:

Smart home device map

Wireless monitoring

Smart agriculture

Wireless two-dimensional code recognition

Wireless positioning system signal

And other iot applications

Package included:

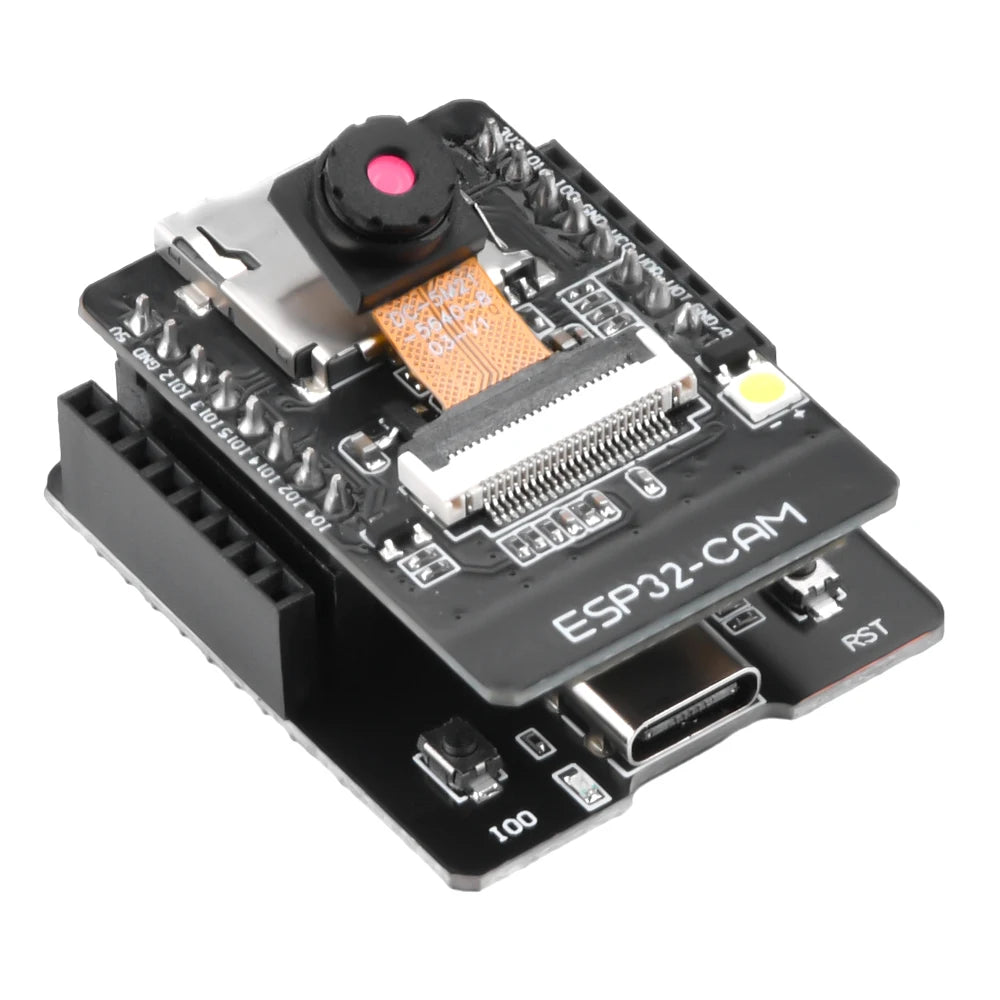

1 x ESP32-CAM ESP32-CAM-MB Type-C ESP32 Serial to WiFi ESP32 CAM Development Board FT232/CH340 5V Bluetooth+OV2640 Camera
