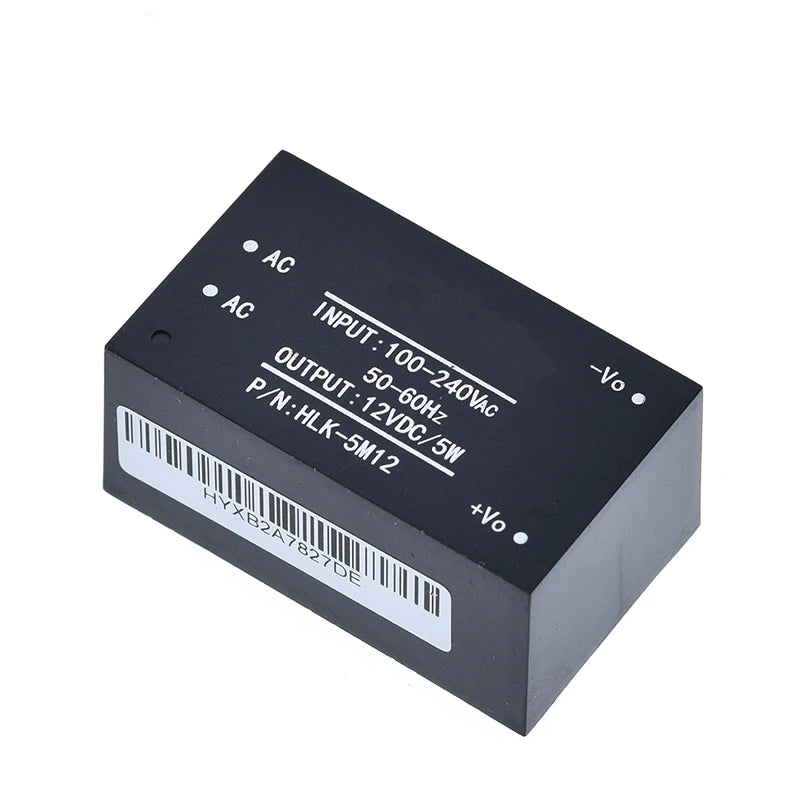

HLK Series AC-DC Mini Power Supply Module 220V to 3.3V/5V/12V for Smart Home and DIY Electronics
HLK Series AC-DC Mini Power Supply Module 220V to 3.3V/5V/12V for Smart Home and DIY Electronics
Couldn't load pickup availability
- ★Product Description
- ★About us
- ★Custom cable
SPECIFICATIONS
Application: Computer
Brand Name: PENGHEKEJI
Choice: yes
Condition: New
Dissipation Power: Standard
Functions: Electronic Module
High-concerned chemical: None
Operating Temperature: -40-+85
Origin: Mainland China
Range of application: Switch And Sensor For Arduino STM
Supply Voltage: 5V/3.3V/12V
Type: Voltage Regulator
is_customized: Yes
1. Product features:
1. Meet UL, CE requirements,
2. Ultra-thin, ultra-small
3. Full voltage input (90 ~ 264Vac)
4. Low ripple, low noise
5. Output overload short circuit protection function
6. High efficiency and high power density
2. Environmental conditions
| Project Name | Technical indicators | Unit |
| Working temperature | -20—+60 |
℃ |
| Storage temperature | -40—+80 |
℃ |
| Relative humidity | 5—95 |
% |
| Heat dissipation mode | Natural cooling |
|
| Atmospheric pressure | 80—106 |
Kpa |
| Altitude | ≤2000 |
m |
| Vibration | Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axis |
3. Electrical characteristics
1. Input characteristics (Test at room temperature).
| Project Name | Technical Requirements | Unit |
| Rated input voltage | 100-240 |
VAc |
| Input voltage range | 90-264 |
VAc |
| Input current | ≤0.2 |
A |
| Input surge current | ≤10 |
A |
| Input voltage | ≤270 |
VAc |
| Enter slow start | ≤50 |
mS |
| Enter slow start | Vin = 110VAc, output full load ≥ 69 | % |
| Input high voltage efficiency | Vin = 220VAc, output full load ≥ 70 | % |
| Long term reliability | MTBF≥100，000 |
h |
| No-load rated output voltage | +5±0.1 |
VDc |
| Rated output voltage at full load | +5±0.2 |
VDc |
| Short time output current | ≥1000 |
mA |
| Long time output current | ≥600 |
mA |
| Voltage regulation rate | ±0.2 |
% |
| Load adjustment rate | ±0.5 |
% |
|
Output ripple and noise (mVp-p) |
≤ 50 Rated input voltage, output full load. With a 20MHz bandwidth oscilloscope, Load side and 10uF and 0.1uF capacitors are tested. |
mV |
| On/Off Overshoot Amplitude | (Rated input voltage, output plus 10% load) ≤ 5 | %VO |
| Output overcurrent protection | 150-200% of output load | A |
| Output short circuit protection | Direct short circuit during normal output, and automatically resume normal operation after the short circuit is removed |
4. Safety features:
4.1 product design conforms to UL, CE safety certification requirements.
4.2 Safety and Electromagnetic Compatibility
The input design adopts UL certification 0.5A insurance;
The PCB board is made of double-sided copper clad foil, and the fire rating of the material is 94-V0;
Safety standards compliant with UL1012,EN60950,UL60950
Insulation voltage I/P-O/P:2500VAC
Insulation resistance I/P-O/P>100M Ohms/500VDC 25 ℃ 70% RH
Conduction and radiation compliance EN55011, EN55022 (CISPR22)
Electrostatic Discharge IEC/EN 61000-4-2 level 4 8kV/15kV
See IEC/EN 61000-4-3 Application Note for RF Radiation Immunity
4.3 Temperature Rise Safety Gauge Design
Under normal temperature, the temperature rise of the inner surface of the power capacitor and main converter shall not exceed 90 ℃;
The temperature rise of the shell surface shall not exceed 60 ℃;
5. Marking, packaging, transportation and storage
5.1.1 Product Marking
In the appropriate position of the product is affixed with a logo, its content in line with national standards, industry standards.
5.1.2 Packing mark
The product packaging box is marked with the manufacturer's name, address, zip code, product model, delivery year, month and day;
Marked with "upward", "moisture-proof", "handle with care" and other transport signs, all signs are in line with GB 191
set.
5.3 transportation
The packaged product can be transported by any means of transportation, and there should be a canopy during transportation.
violent vibration, impact, etc
5.4. Storage
Product storage shall comply with GB 3873。
6. Weight and overall dimensions:
