MEGA2560 Prototype Shield Board with Screw Terminal Block | Double-Sided PCB Expansion Kit Compatible with Arduino Mega 2560 R3

MEGA2560 Prototype Shield Board with Screw Terminal Block | Double-Sided PCB Expansion Kit Compatible with Arduino Mega 2560 R3

$19.92 USD
$0.00 USD $19.92 USD
Save Liquid error (snippets/price line 136): divided by 0% Sold out
Taxes included. Shipping calculated at checkout.
Color
visa
View full details
  • ★Product Description
  • ★About us
  • ★Custom cable

SPECIFICATIONS

Application: Computer

Brand Name: PENGHEKEJI

Choice: yes

Condition: New

Dissipation Power: 1w

High-concerned chemical: None

Operating Temperature: 0-85

Origin: Mainland China

Package: TQFP

Supply Voltage: 3-5v

Type: Drive IC

is_customized: Yes

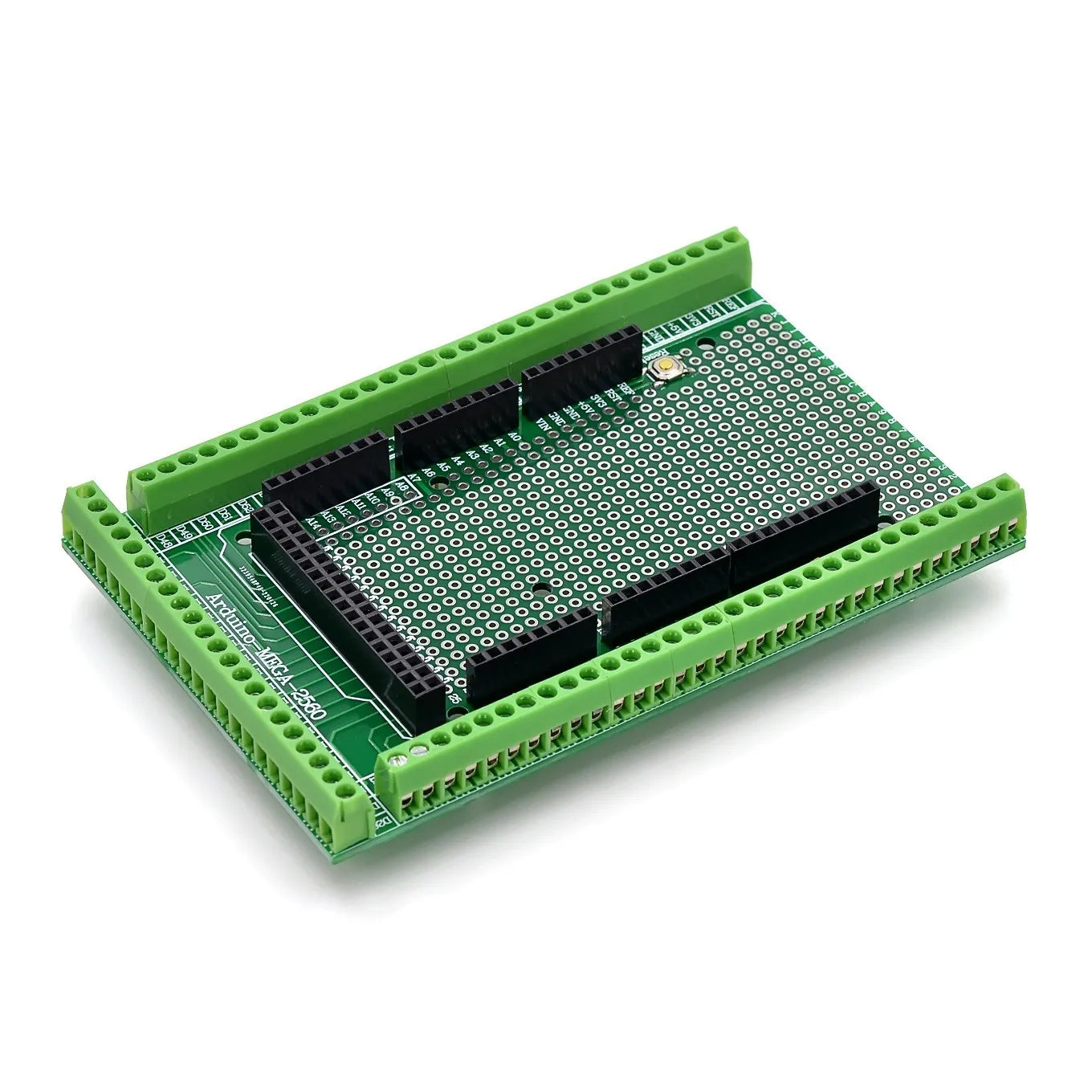

Prototype Screw/Terminal Block Shield Board Kit For ArduinoMEGA-2560 R3.


The Kit includePrototype PCB, Terminal Blocks, Female Header Sockets.
Unassembled, variety mount methods, you can make flexible use.
PCB:
        FR-4 fiber glass PCB, dual copper layers, size 120mm x 78mm.
        Pads grid / pitch 2.54mm / 0.1", hole diameter 0.8mm.
        Terminal block pitch 3.5mm / 0.138", hole diameter 1.2mm.
Terminal Block:
        Pitch 3.5mm / 0.138" mini terminal blocks, total 84 pins(3pole x24pcs, 2pole x6pcs ).
        Wire range 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass.
Female Header Socket:
        Pitch 0.1"/2.54mm, pin length 15mm / 0.59"
        Single row 10pin x1pcs, singal row 8pin x 5pcs, dual row 18pin x1pcs.






Features:








*MEGA-2560 R31 Prototype Screw Terminal Block Shield Board Kit for Arduino




*Includes prototype PCB, terminal blocks, female header sockets




*The terminal module adopts high quality material, fine workmanship treatment, durable to use




*Made up of screw terminal block, PCB carrier and FR-4 glass fiber PCB




*Not assembled yet, you can use variety ways to mount, flexible to use




*Durable and practical to use








Specifications:








*Color: As Pictures Show




*Terminal Block:




Pitch: 3.5mm mini terminal blocks, total 84 pins (3pole x24pcs, 2pole x6pcs)




Wire range: 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass




*PCB:




Pads grid /pitch: 2.54mm, hole diameter: 0.8mm (Approx.)




Terminal block pitch: 3.5mm, hole diameter: 1.2mm (Approx.)




Dimension: 12.024*7.72cm (Approx.)




*Female Header Socket:




Pitch: 2.54mm, pin length: 15mm (Approx.)




Single row 10pin x1pcs, single row 8pin x 5pcs, dual row 18pin x1pcs








Package Contents:








1*Terminal Block Shield Board Kit








Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
