↓↓↓ Module No.: MT3608 Type-C ↓↓↓
1. The whole network smallest adjustable boost module can be easily installed in a variety of small equipment.
2. The module supports Type-c input, a USB charger or mobile power supply can easily get to it 9V, 12V, 15V, 18V, 24V, easy to use.
3. Wide input and output voltage, high conversion efficiency.
4. Maximum output current: 2A (recommended for use within 1A)
5. Input voltage: 2V ~ 24V
6. Maximum output voltage: ≤28V (recommended for use within 26V)
7. Efficiency: > 93%
8. Size: 31mm * 17mm * 14mm (L * W * H)
9. This module is a step-up module, the output voltage is greater than the input voltage.
10. Peak current output current does not exceed 2A.

Note:
1. Input voltage should not exceed the maximum input voltage
2. Peak current output current does not exceed 2A
3. When the module output voltage can not be adjusted, always equal to the input voltage when the first 20 laps counterclockwise rotary potentiometer or more, then you can use the module properly regulate the voltage.
4. Surge mode: potentiometer face chest, counterclockwise turn boost!

↓↓↓ Module No.: MT3608 Micro USB ↓↓↓
1. The whole network smallest adjustable boost module can be easily installed in a variety of small equipment.
2. The module supports Micro USB input, a USB charger or mobile power supply can easily get to it 9V, 12V, 15V, 18V, 24V, easy to use.
3. Wide input and output voltage, high conversion efficiency.
4. Maximum output current: 2A (recommended for use within 1A)
5. Input voltage: 2V ~ 24V
6. Maximum output voltage:> 28 v (recommended for use within 26V)
7. Efficiency: >93%
8. Size: 30mm * 17mm * 14mm (L * W * H)
9. This module is a step-up module, the output voltage is greater than the input voltage.
10. Peak current output current does not exceed 2A.

Note:
1. Input voltage should not exceed the maximum input voltage
2. Peak current output current does not exceed 2A
3. When the module output voltage can not be adjusted, always equal to the input voltage when the first 20 laps counterclockwise rotary potentiometer or more, then you can use the module properly regulate the voltage.
4. Surge mode: potentiometer face chest, counterclockwise turn boost!

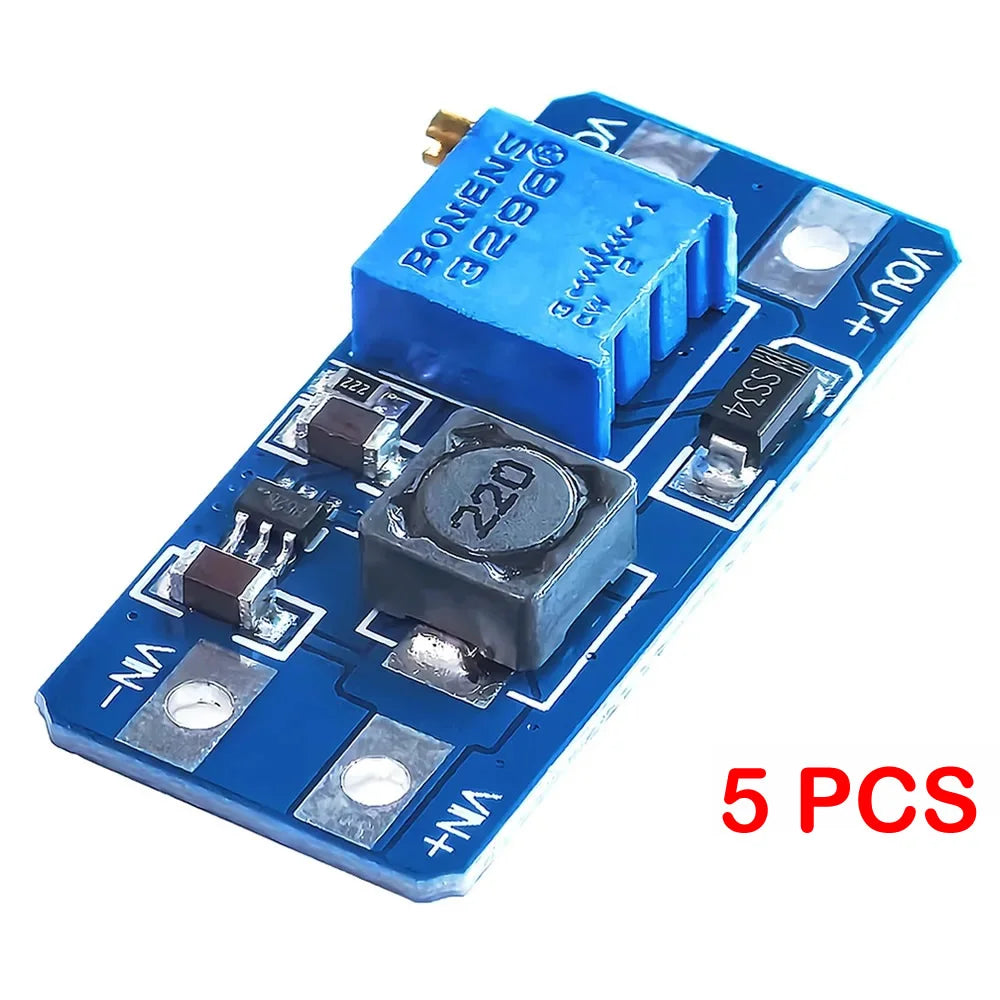

↓↓↓ Module No.: MT3608 ↓↓↓
1) Output Current: 2A
2) Input Voltage: 2V-24V
3) Output Voltage: 5V-28V (recommended to use within 26V)
4) Efficiency: >93% (efficiency is related to input and output pressure difference)
5) Dimensions: 37mm*17mm*7mm (Length*Width*Height)

Precautions
1) This module is a boost module, the output voltage is greater than the input voltage
2) The peak current output current does not exceed 2A
3) When the output voltage of the module cannot be adjusted and is always equal to the input voltage, please turn the potentiometer counterclockwise for more than 10 turns, and then use the module to adjust the voltage normally.
4) Voltage regulation method: the potentiometer is facing the chest, turn it counterclockwise to boost the voltage!
(When the output voltage of the module cannot be adjusted, the output voltage is always equal to the input voltage. Please adjust the potentiometer counterclockwise for more than 20 turns. (Let the potentiometer lean against the chest and turn counterclockwise to boost the voltage)
