PL 4-12mm Pneumatic Elbow Quick Connector with 1/8-1/2 Thread PL Series Air Hose Fittings for Industrial PL6/8/10

PL Series Pneumatic Elbow Push-to-Connect Quick Fittings — 4–12mm OD, 1/8"–1/2" BSPT

The PL series 90° elbow push-to-connect pneumatic fittings provide fast, tool-free tube connections for compressed air and vacuum systems. Simply push the tube in to connect — the internal collet grips and seals automatically. To release, press the release ring and pull the tube out. No thread tape, no wrenches, no leaks.

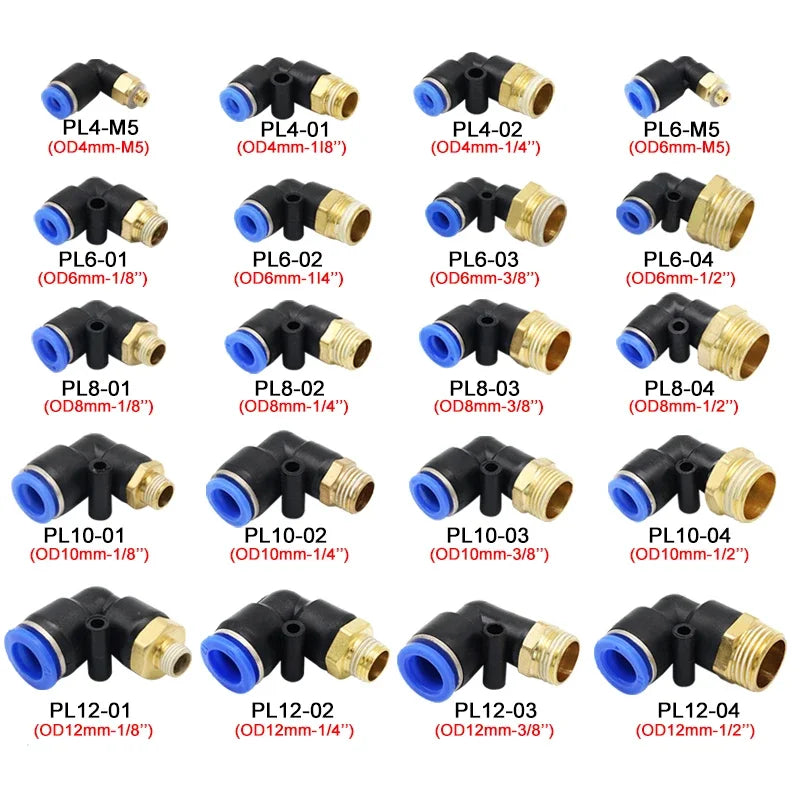

Available in 20 model combinations covering tube OD from 4mm to 12mm and thread sizes from 1/8" to 1/2" BSPT, this listing covers the full PL series range in packs of 5 pieces.

Model Number Decoder

• PL4-xx — fits 4mm OD tubing
• PL6-xx — fits 6mm OD tubing
• PL8-xx — fits 8mm OD tubing
• PL10-xx — fits 10mm OD tubing
• PL12-xx — fits 12mm OD tubing
• xx-M5 — M5 thread (≈5mm)
• xx-01 — 1/8" BSPT thread (≈9.7mm)
• xx-02 — 1/4" BSPT thread (≈12.7mm)
• xx-03 — 3/8" BSPT thread (≈16mm)
• xx-04 — 1/2" BSPT thread (≈20mm)

Technical Specifications

• Fitting Type: 90° elbow push-to-connect (one-touch)
• Thread Standard: BSPT (British Standard Pipe Taper)
• Tube OD Range: 4mm, 6mm, 8mm, 10mm, 12mm
• Thread Sizes: M5, 1/8", 1/4", 3/8", 1/2"
• Operating Pressure: 0 – 1.0 MPa (0 – 10.2 kgf/cm²)
• Vacuum Rating: −750 mmHg (10 Torr)
• Fluid Media: Compressed air, vacuum, inert gases
• Body Material: Brass or reinforced plastic (model dependent)
• Seal Material: NBR (nitrile rubber)
• Compatible Tubing: PU (polyurethane), nylon (PA), PTFE
• Quantity: 5 pieces per pack

Compatible Tube Types

• Polyurethane (PU) pneumatic tubing — most common, flexible
• Nylon (PA6, PA12) pneumatic tubing — higher pressure, more rigid
• PTFE tubing — chemical-resistant applications

Typical Applications

• Pneumatic automation and cylinder circuits
• Compressed air distribution manifolds
• Vacuum pick-and-place systems
• CNC router and laser cutter air assist lines
• Air compressor outlet connections
• Industrial machine tool pneumatic circuits
• DIY pneumatic projects and air tools

Installation

1. Ensure tube end is cut cleanly and squarely (use tube cutter for best results)
2. Apply PTFE thread tape to male thread (1–2 wraps)
3. Thread fitting into port and tighten by hand + 1–1.5 turns with wrench
4. Push tube firmly into fitting until it bottoms out — connection is complete
5. To release: press release ring toward fitting body, then pull tube out

Package Contents

• 5 × PL series elbow push-fit pneumatic connector (model as selected)
