Please note! ! The thread specification of this product is G thread.

Product Details
The product is made of 304 stainless steel, anti-oxidation and anti-rust
High temperature resistance, low temperature resistance, corrosion resistance, waterproof, abrasion resistance
Standard thread interface, integral processing and forming, high precision, no air leakage.
The fixed ring has good elasticity and is resistant to plugging and unplugging. Rubber ring seal to prevent air leakage
Wide range of applications: suitable for automatic machinery and equipment such as automobiles, food, chemicals, medicine, etc.
Material: 304 stainless steel
Sealing ring: ternary fluorine rubber

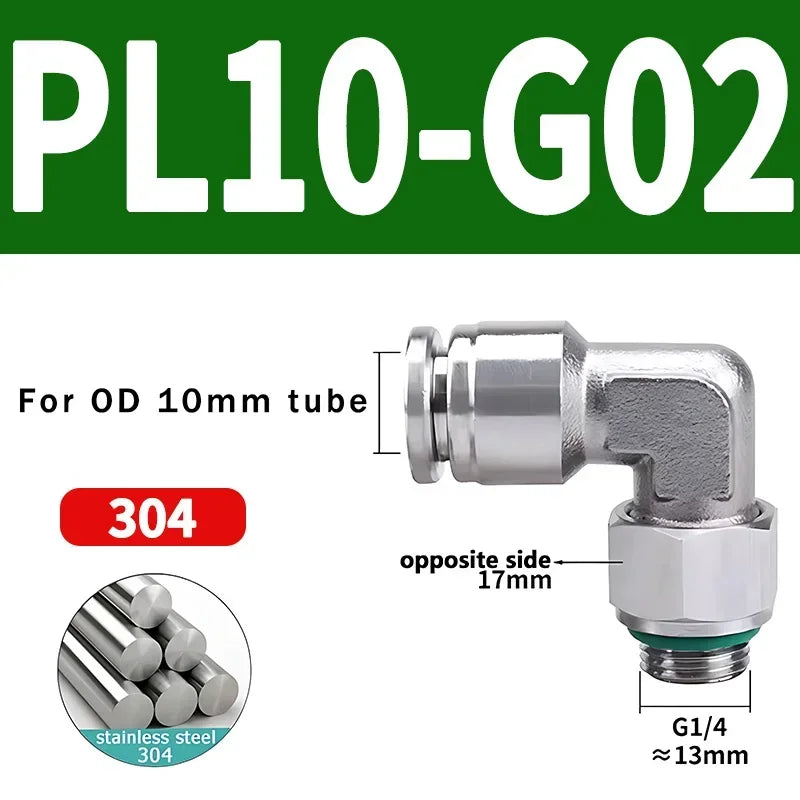

Model: PL G thread
Material: 304 stainless steel
Thread: M5, G1/8 G1/4 G3/8 G1/2 external thread
01=G1/8 External thread diameter≈9.5mm
02=G1/4 External thread diameter≈12.5mm
03=G3/8 Outer diameter of external thread≈16mm
04=G1/2 External thread diameter≈20mm
Use PU pipe size: 4/6/8/10/12mm
Maximum pressure: 40 bar
Working temperature: -20~200 degrees Celsius
Including packaging: 10/50/200 pcs connector
