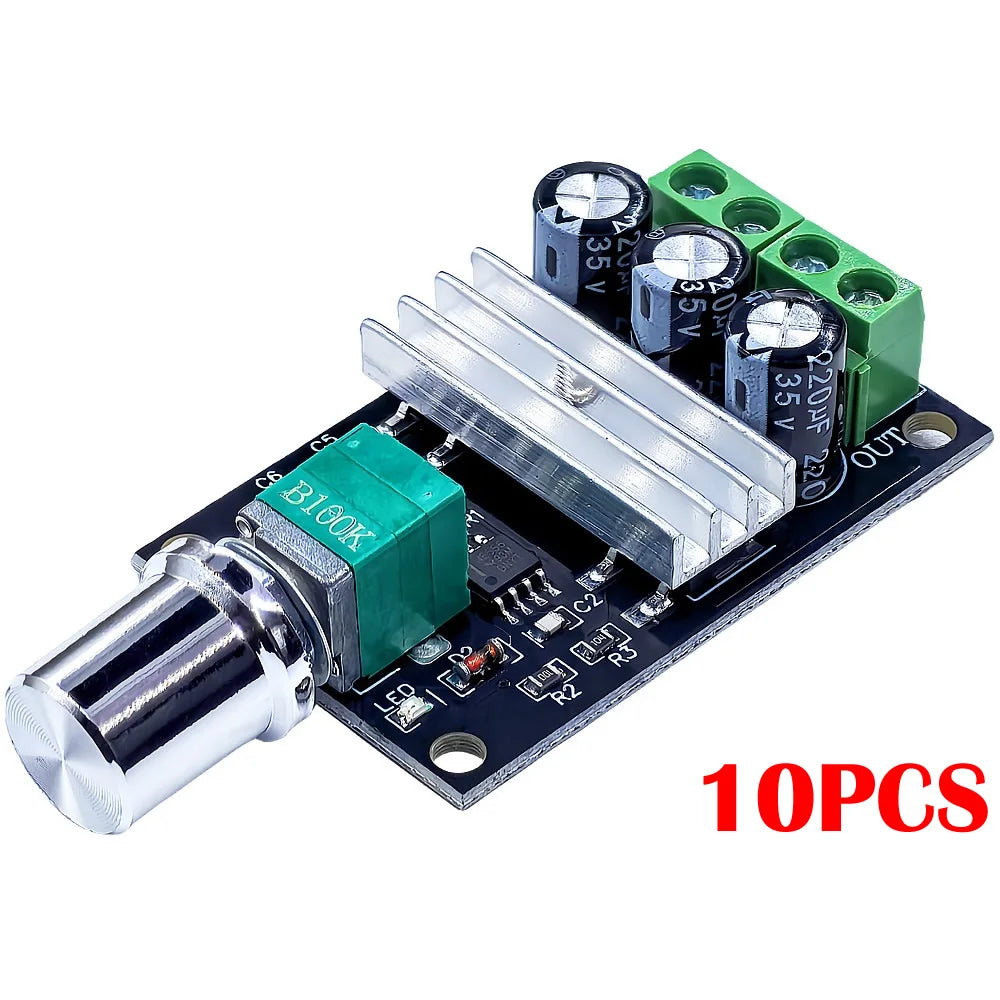

DC 6V 12V 24V 28VDC 3A 80W PWM Motor Speed Controller Regulator Adjustable Speed Controller Regulator With Potentiometer Switch

This DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-- Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.
The motor speed controller can easily provide a continuous current of3A to your DC motor or other DC load.

Main technical parameters:
Input supply voltage:6V-28VDC
The maximum output power: 80W
The maximum continuous output current :3A
Duty Cycle adjustable:5%-100%

Operating Instruction:
1. Connect your DC motor (or DC load) to the motor terminals as indicated on thewiring diagram.
2. Connect a voltage of 10V-36v DC to the circuit making sure of the correct polarityof the connection.
3. Note that the voltage applied to the motor will be supply voltageapplied to the circuit.
4. It is recommended to add an appropriately rated fuse inline withthe positive supply in order to protect the circuit from any possible short circuits.
5. You can now control the speed of the motor through potentiometer.
