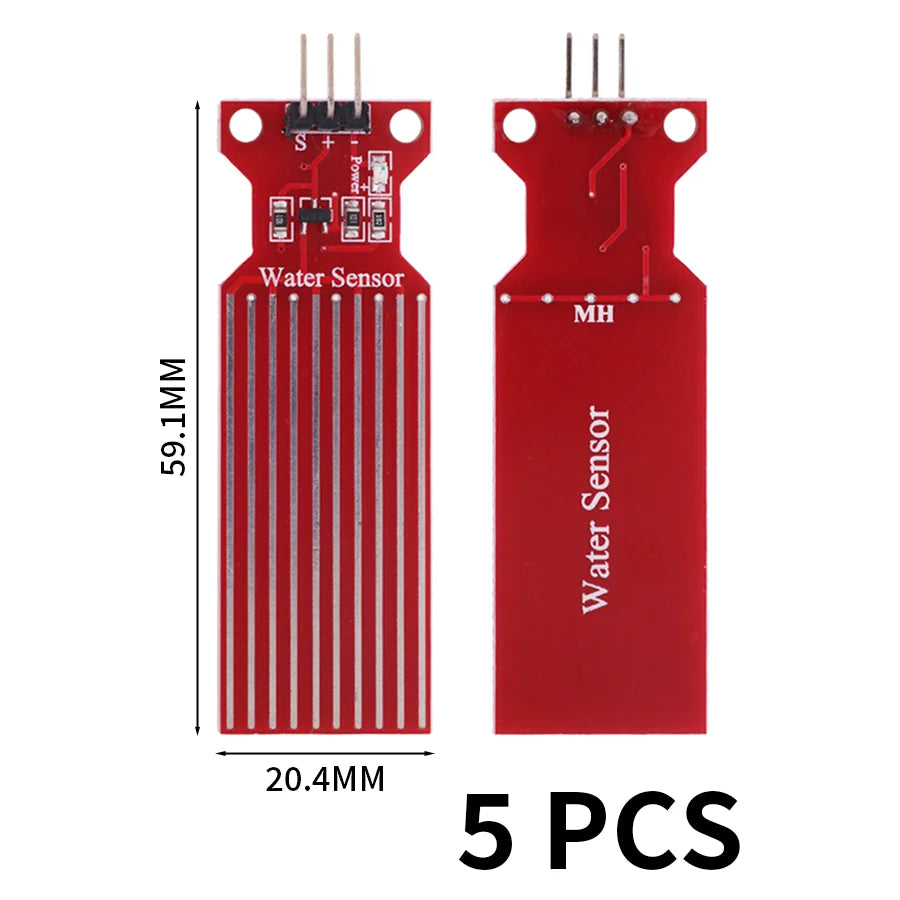

The Water Sensor is an easy-to-use, cost-effective water level/droplet detection sensor. It works by measuring the size of the water droplets or quantity through a series of exposed parallel conductive traces, which are used to determine the water level. The sensor converts water level into an analog signal, triggering water level alarms.

Specifications:

?Product Name: Water Level Sensor
?Operating Voltage: DC 3-5V
?Operating Current: Less than 20mA
?Sensor Type: Analog
?Detection Area: 40mm x 16mm
?Manufacturing Process: FR4 double-sided tin-plating
?Operating Temperature: 10¡æ-30¡æ
?Operating Humidity: 10%-90%, non-condensing
?Product Weight: 3.5g
?Product Dimensions: 62mm x 20mm x 8mm
?Packaging Method: Sealed in an anti-static bag

¡¤ High-Performance Detection:

The Rain Water Level Sensor Module detects liquid surface depth with precision, suitable for measuring rainwater levels or other liquid heights in DIY projects.

¡¤ Wide Voltage Range:

Operates at a versatile voltage range of DC 3V-5V, making it compatible with various Arduino boards like UNO and MEGA 2560, ideal for low-voltage applications.
