SPECIFICATIONS

Brand Name: OLNYLO

High-concerned chemical: None

Highlights 1: LED dimmer control switch

Highlights 2: LED strips for smart home

Highlights 3: Short-range scanning sensor

Highlights 4: Suitable for car smart home

Highlights 5: Hand sweep On/Off Switch

Highlights 6: Sensor detector

Material: Polymer

Model 1: PIR Motion Sensor

Model 2: Short Distance Scan Sensor Sweep

Model 3: Touch Sensor Switch

Origin: Mainland China

Output: Switching Transducer

Theory: Optical Sensor

Type: vibration sensor

Use: Position Sensor

is_customized: Yes

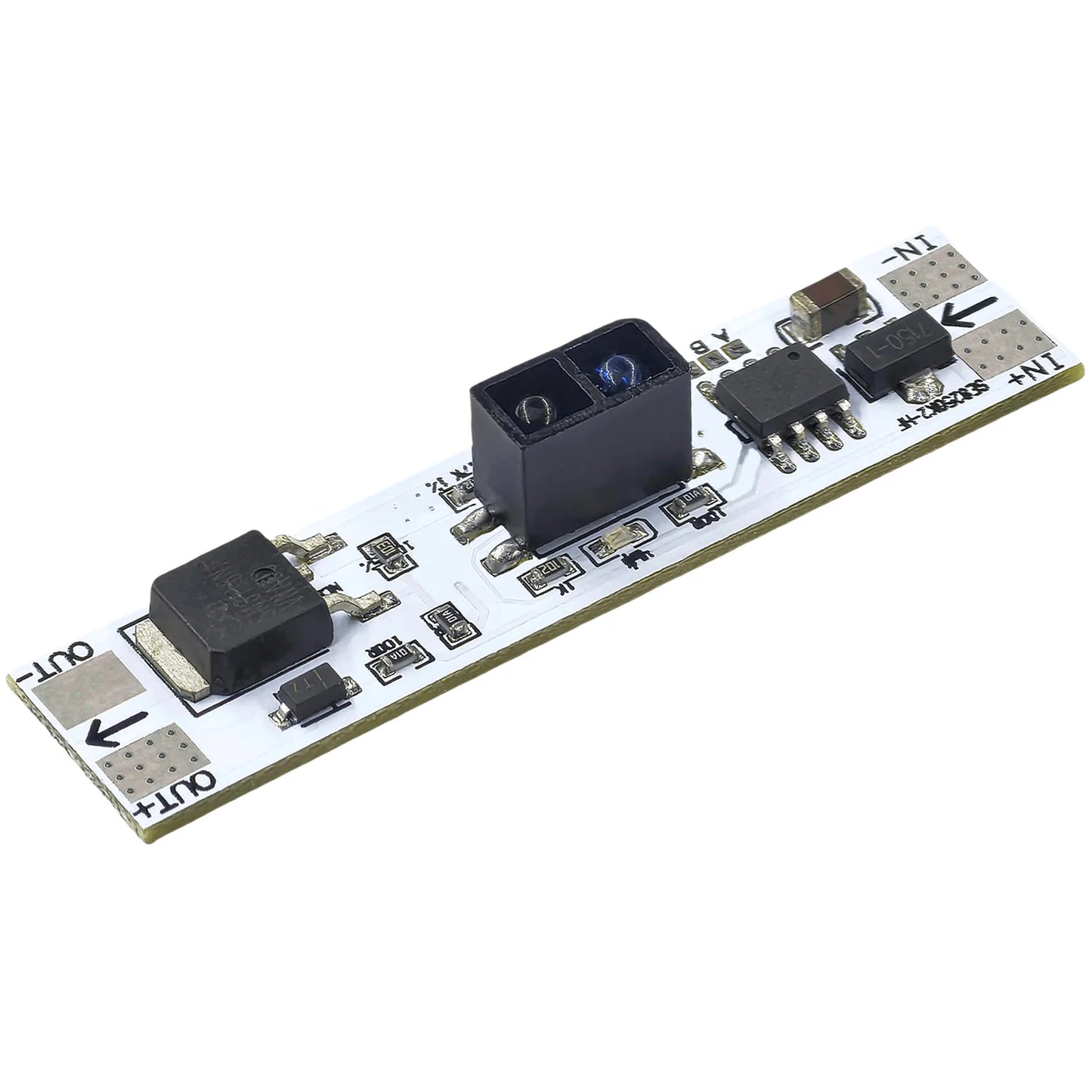

Sweep Hand Sensor PIR Motion Sensor Short Distance Scan Touch Switch Capacitive Module 5V-24V 5A 120W LED Dimming Control Lamps

Input Voltage: DC5-24V
Output Voltage: DC5-24V
Output Form: Switch+indicator light
Load Current: Resistive 5A
Load Power: 120W (MAX)
Standby Current: 10-15mA
Size: 50*12*7.9mm
Induction Principle: Infrared sensor
Sensing Range: 30-80mm
Scope of Use: DC, Constant voltage
Quantity: 1 PCS / 2 PCS

Introduction:
- The multi-function touch sensing module is an integrated circuit module designed for realizing a human touch interface.
- lt can replace the mechanical light touch button, using this module can realize the touch switch control and brightness adjustment of LED light.
- This module is simple in structure and easy to operate.
- The design circuit of the module can automatically overcome all kinds of interference caused by ambient temperature, humidity, surface debris, etc. And avoid key differences caused by resistance and capacitance errors. It is the perfect choice for your product development and upgrade.

Easy to Use: After installing the overhand sweep sensor switch, you can turn on or off the lights in your closet and cabinets with a gentle wave of your hand, without touching the panel.
Short Distance Recognition: Hand scan recognition distance is short, the induction range is from 30 to 80MM, saving energy and protecting the environment.
Highly Sensitive Lens Sensing: The hand sweep sensor switch has a highly sensitive lens sensing technology for quick recognition of motion.
Low Voltage Protection: The sensor switch module supports 5‑12V DC voltage input, which is stable and reliable, and has low voltage protection function to extend the service life.
Multifunctional Application: The wave sensor switch is suitable for lighting control in different fields such as home wardrobes, cabinets, showcases, bookcases, etc.
