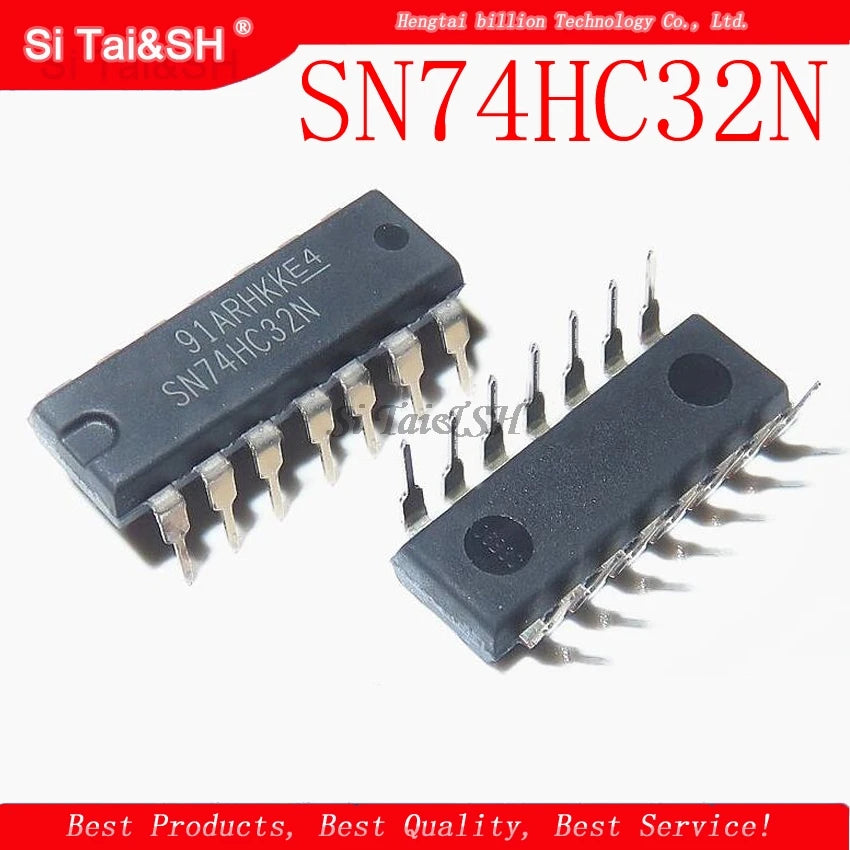

SN74HC32N — Quad 2-Input OR Gate, DIP-14 Through-Hole
The SN74HC32N contains four independent 2-input OR gates in a standard DIP-14 through-hole package. Part of the 74HC high-speed CMOS logic family, it operates from 2V to 6V and delivers fast propagation delays with low power consumption — a fundamental building block for digital logic design, combinational circuits, and microcontroller interfacing.
Key Specifications
| Parameter | Value |
|---|---|
| Part Number | SN74HC32N |
| Package | DIP-14 (Through-Hole) |
| Logic Function | Quad 2-Input OR Gate |
| Supply Voltage (VCC) | 2V – 6V |
| Propagation Delay (tpd) | ~7ns @ 5V |
| Output Current (IOH/IOL) | ±25mA |
| Logic Family | 74HC (High-Speed CMOS) |
| Operating Temperature | -40°C to +125°C |
| Condition | New, Original |
| Origin | Mainland China |
Why Choose SN74HC32N?
- DIP-14 package — breadboard-friendly, no SMD soldering required
- Wide supply range (2–6V) — works with 3.3V and 5V systems
- 74HC CMOS — low quiescent current, fast switching, high noise immunity
- ±25mA output drive — can directly drive LEDs and small loads
- 5-pack value — ideal for classroom labs, prototyping, and stock
Typical Applications
- Combinational logic design — OR function in digital circuits and truth table implementations
- Signal multiplexing — combine multiple enable signals into one
- Interrupt logic — OR multiple interrupt sources for microcontroller input
- Arduino / breadboard projects — logic gate experiments and digital design labs
- Address decoding — combine address lines in memory or peripheral selection circuits
- Alarm and detection circuits — trigger output when any of multiple conditions is true
Compatible With
Pin-compatible with 74HCT32, 74LS32, 74S32, CD4071 (verify voltage and timing). Works with Arduino UNO, Mega, Nano, STM32, ESP32, and any 2–6V logic system. Standard 2.54mm DIP-14 footprint fits all common breadboards.
FAQ
Q: How many OR gates are in one SN74HC32N?
A: Four independent 2-input OR gates. Each gate has two inputs (A, B) and one output (Y = A OR B).
Q: Is SN74HC32N compatible with 3.3V Arduino or ESP32?
A: Yes. The 74HC family operates from 2V to 6V, making it fully compatible with 3.3V logic systems.
Q: What is the difference between 74HC32 and 74HCT32?
A: The 74HCT32 has TTL-compatible input thresholds (VIH = 2.0V), while 74HC32 uses CMOS thresholds. Use 74HCT32 when interfacing with 5V TTL outputs.
Package Contents
- 5× SN74HC32N DIP-14 Quad 2-Input OR Gate IC (new, original)
