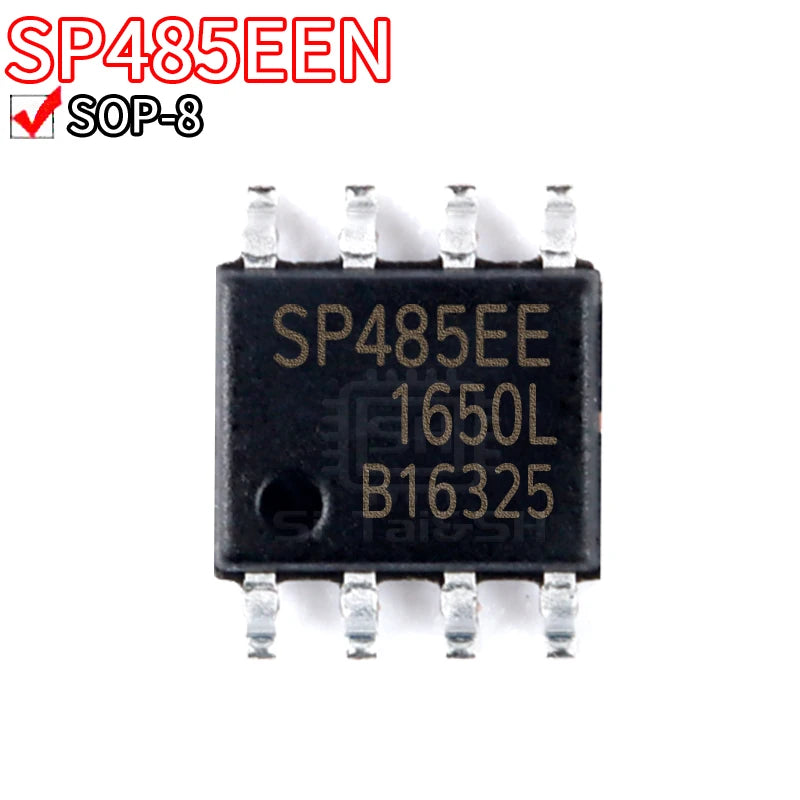

SP485EEN / SP485REN Half-Duplex RS-485/RS-422 Transceiver IC — SOP-8, 5Mbps, 128 Nodes (10-Pack)

SP485EEN / SP485REN Half-Duplex RS-485 / RS-422 Transceiver IC — SOP-8, 5Mbps, 128 Nodes (10-Pack)

The SP485EEN / SP485REN are half-duplex RS-485 / RS-422 transceiver ICs in SOP-8 package from Sipex (now MaxLinear). With 5Mbps data rate, 1/4 unit load (up to 128 devices per bus), ±5kV ESD protection, and failsafe receiver outputs, they are a direct drop-in replacement for the MAX485 with superior ESD protection and extended temperature range (SP485REN: -40°C to +85°C). This 10-pack is ideal for Modbus RTU, industrial serial networks, and RS-485 PCB design.

Key Specifications

Parameter	Value
IC Variants	SP485EEN (0°C–70°C) / SP485REN (-40°C–85°C)
Package	SOP-8
Interface Standard	RS-485 / RS-422 (half-duplex)
Supply Voltage	4.75V – 5.25V
Max Data Rate	5Mbps
Bus Load	1/4 unit load — up to 128 devices
Driver Output	±1.5V differential (min)
Receiver Sensitivity	±200mV
ESD Protection	±5kV (HBM) on bus pins
Failsafe	Yes (receiver output HIGH when bus open/shorted)
Pack Quantity	10 pieces

SP485 vs MAX485 vs SP3485

Feature	SP485EEN/REN	MAX485	SP3485
Supply Voltage	5V	5V	3.3V
ESD Protection	±5kV	±2kV	±15kV
Bus Nodes	128	32	128
Failsafe	Yes	No	Yes
Temp Range (R grade)	-40°C to +85°C	-40°C to +85°C	-40°C to +85°C

Why Choose SP485?

• ✅ 128 nodes per bus — 4× more devices than standard MAX485 (32 nodes)
• ✅ ±5kV ESD protection — superior to MAX485's ±2kV for industrial environments
• ✅ Failsafe receiver — prevents false data on open or shorted bus
• ✅ 5Mbps data rate — supports high-speed Modbus and industrial protocols
• ✅ 10-pack value — ideal for multi-node RS-485 network design and repair stock

Typical Applications

• Modbus RTU master/slave serial network
• Industrial sensor and actuator RS-485 bus
• Building automation (BACnet MS/TP)
• PLC / HMI serial communication
• Long-distance RS-422 point-to-point link

Package Contents

• 10 × SP485EEN or SP485REN RS-485/RS-422 Transceiver IC (SOP-8)
