SPW35N60C3 TO-247 N-Channel Power MOSFET 600V 35A (5-Pack)
SPW35N60C3 TO-247 N-Channel Power MOSFET 600V 35A (5-Pack)
Regular price
$5.20 USD
Sale price
$5.20 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

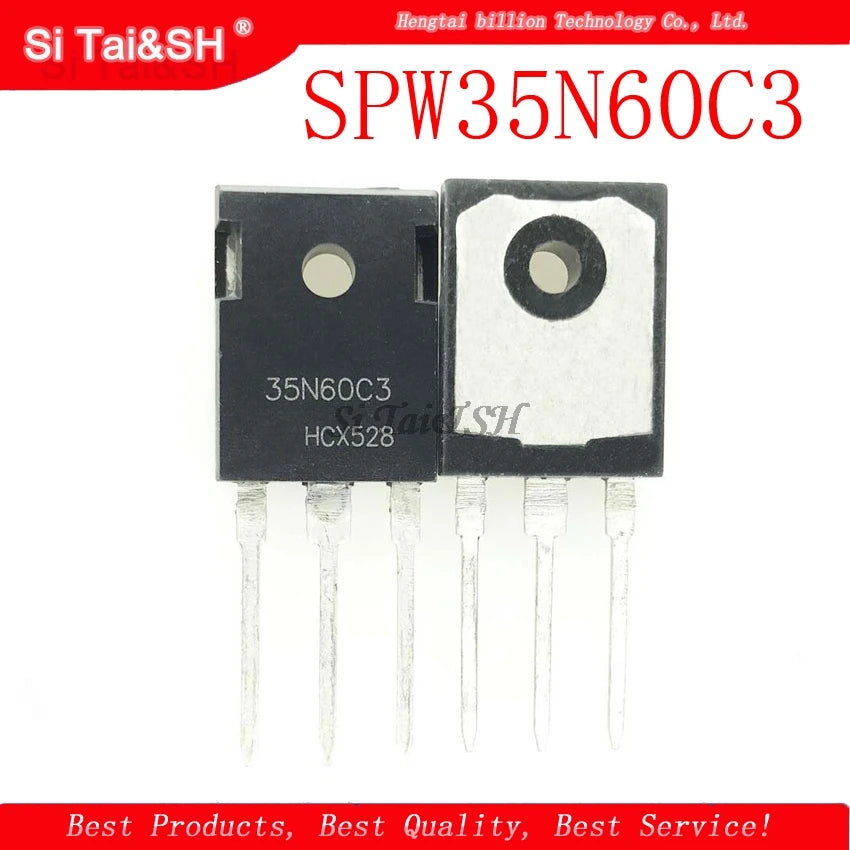

SPW35N60C3 TO-247 N-Channel Power MOSFET — 600V / 35A
The SPW35N60C3 is an Infineon CoolMOS™ N-channel power MOSFET in a robust TO-247 package, rated at 600V drain-source voltage and 35A continuous drain current. Its ultra-low RDS(on) of 0.12Ω makes it a top choice for high-efficiency power conversion designs.
Key Specifications
| Parameter | Value |
|---|---|
| Part Number | SPW35N60C3 |
| Package | TO-247 |
| Channel Type | N-Channel |
| V(DS) Max | 600V |
| I(D) Continuous | 35A @ 25°C |
| RDS(on) Max | 0.12Ω @ VGS=10V |
| VGS(th) | 3–5V |
| Qg (Total Gate Charge) | ~130nC |
| Technology | CoolMOS™ C3 |
| Quantity | 5 pieces |
Why Choose SPW35N60C3?
- Ultra-low RDS(on) — 0.12Ω minimizes conduction losses in high-power circuits
- CoolMOS™ C3 Technology — Infineon's proven platform for high-voltage switching
- TO-247 Package — Excellent thermal dissipation, easy heatsink mounting
- Fast Switching — Suitable for high-frequency SMPS and PFC stages
- Avalanche Rated — Enhanced ruggedness for demanding industrial environments
Typical Applications
- Switch-Mode Power Supplies (SMPS) — flyback, forward, LLC topologies
- Power Factor Correction (PFC) circuits
- Solar inverters and UPS systems
- Motor drives and servo controllers
- High-voltage DC-DC converters
- Induction heating and welding equipment
Compatible With
Gate drivers: IR2110, UCC27524, TLP250. Pairs well with fast recovery diodes (e.g., HER308, MUR860) in half-bridge and full-bridge topologies.
FAQ
Q: Can SPW35N60C3 replace SPW47N60C3?
A: Yes in most cases — same TO-247 footprint, lower current rating (35A vs 47A). Verify thermal derating for your load.
Q: What gate voltage is recommended?
A: Drive with VGS = 10–12V for full enhancement. Avoid exceeding ±20V absolute maximum.
Package Contents
- 5× SPW35N60C3 TO-247 N-Channel MOSFET
