Special Reminder:

Pay close attention to the orientation during installation. Incorrect installation may damage the driver or even the motherboard.

Name:

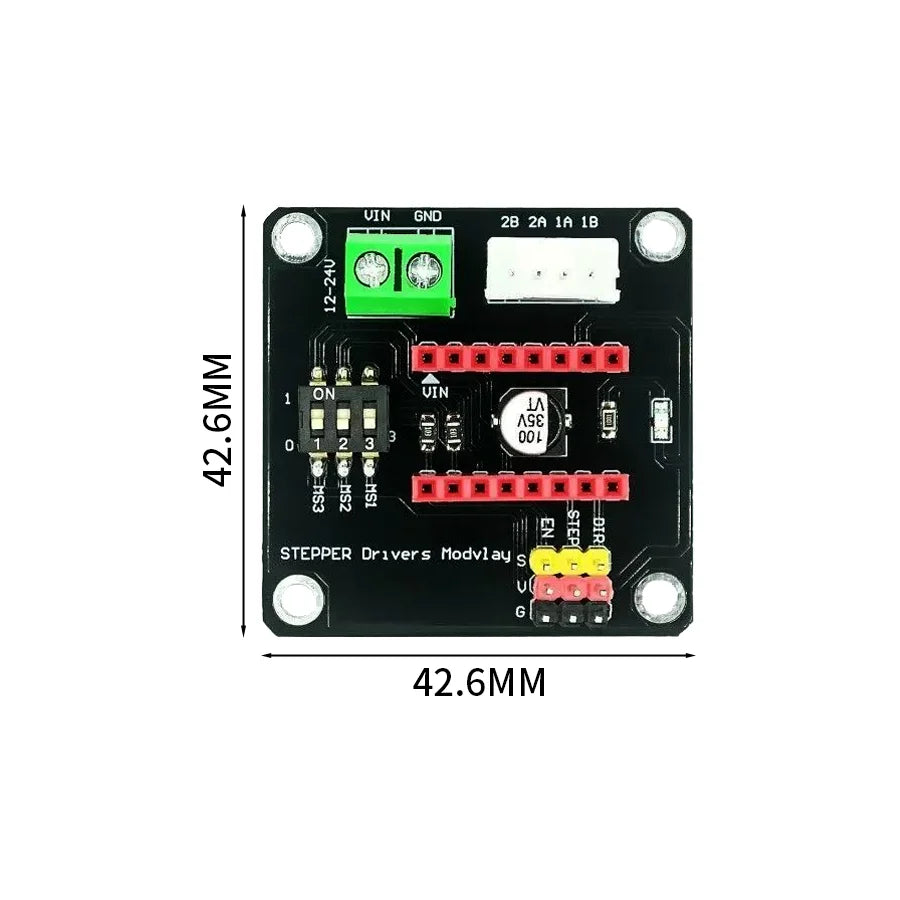

4988/8825 Stepper Motor Driver Module Expansion Board
Specifications:
?Size: 42 ¡Á 42 ¡Á 15 mm
?Mounting: 3 mm
?Hole Spacing: 1400 ¡Á 1400 mil (35.56 ¡Á 35.56 mm)
?Logic Voltage: 5V
?Input Voltage: 12-30V
?Port Type: Digital
?Interface: Direction, Enable, Speed
?Compatible Modules: A4988, DRV8825

Note:

When installing the driver module, ensure correct orientation to avoid damaging the module.
This product is an expansion board only and does not include 4988/8825 driver modules.

Product Introduction:

1.Compatible with A4988/DRV8825 drivers. Pay attention to the direction when inserting, as incorrect orientation may damage the driver.
2.Set all jumpers to the ON DP position for 16 microsteps (A4988) or 32 microsteps (DRV8825).
3.Connect the motor to JM.
4.Connect the 5V and 12V-24V power supply to JV.
5.JC's E\S\D\G correspond to Enable\Step\Dir\GND for driver signal output.
