STR-A6351 LCD Power Management IC DIP-8 – Pack of 5 (A6351A)
STR-A6351 LCD Power Management IC DIP-8 – Pack of 5 (A6351A)
Couldn't load pickup availability
STR-A6351 LCD Power Management IC - DIP-8 (5-Pack)

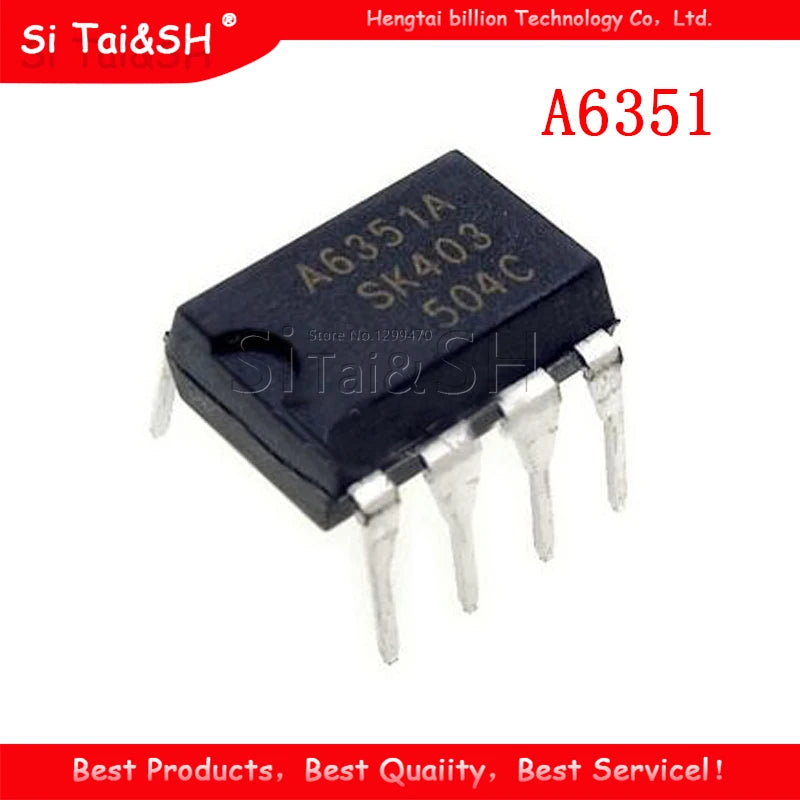

The STR-A6351 (also marked A6351A) is an integrated power management IC from Sanken Electric in a DIP-8 through-hole package, designed for LCD monitor and TV power supply circuits. It integrates a PWM controller and power MOSFET in a single package, simplifying the design of flyback converters used in LCD display power stages.
Key Specifications
| Parameter | Value |
|---|---|
| Part Number | STR-A6351 / A6351A |
| Package | DIP-8 |
| Type | Integrated PWM controller + Power MOSFET |
| Topology | Quasi-resonant flyback |
| Drain Voltage (Max) | 650V |
| Output Power | Up to ~30W (typical LCD application) |
| Startup Method | Built-in high-voltage startup |
| Protections | OVP, OCP, OTP, auto-restart |
| Quantity | 5 pieces |
Why Choose STR-A6351?
- Integrated MOSFET + Controller - Reduces component count vs. discrete PWM controller + external MOSFET
- Quasi-Resonant Operation - Lower switching losses and EMI vs. hard-switching flyback
- 650V Drain Rating - Safe margin for 230V AC mains-connected LCD power supplies
- Built-in Startup - No external startup resistor chain needed
- Auto-Restart Protection - Automatically recovers from fault conditions
Typical Applications
- LCD monitor power supply repair (15-27 inch displays)
- LCD TV auxiliary power supply replacement
- Flyback converter design for display applications
- Industrial display power supply
FAQ
Q: How do I identify a failed STR-A6351? Common failure symptoms: no power output, blown fuse, shorted drain-source (measure with multimeter in diode mode). Replace with new STR-A6351 and check surrounding components (optocoupler, feedback resistors) before powering on.
Q: Is STR-A6351 the same as A6351A? Yes - A6351A is the short marking used on the IC body. Full part number is STR-A6351.
Package Contents
- 5x STR-A6351 DIP-8 LCD Power Management IC
