Note:

1.Please allow 1-3mm errors due to manual measurement.

2.Due to the difference between different monitors,there are color differences,pls take the real product as the standard!



Description:

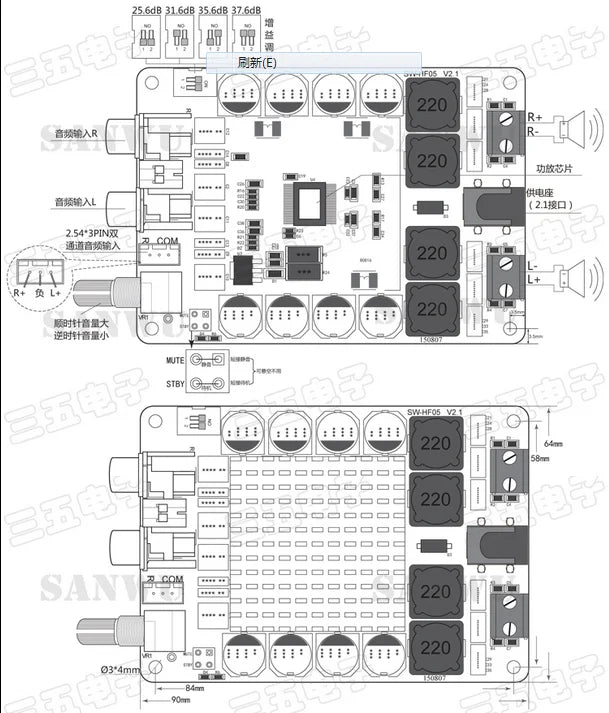

High-Power Class D digital amplifier

1.It requires an 8-ohm speaker, input voltage 34V DC output power 80W + 80W (dual-channel).

2.Operating voltage: 15 - 34VDC (generally using the recommended voltage 24V).

3.Efficiency: 90%

4.It requires a lot of power to use recommended power supply: 24V voltage output current over 5A (power shortage in power is a major dynamic phenomenon will appear when the staccato).

5.Recommended speaker impedance: 8 ohms Best (4 ohms or 6ohms in Europe also work).



Specification:

Color:As the picture shows

Size:Approx.90*64mm

Origina Box:No



Attention:



Size may be slight inaccuracy due to different batches of the products, or hand measurement;

Color may be little different due to monitors. Please take real product as standard, thanks for your understanding!
