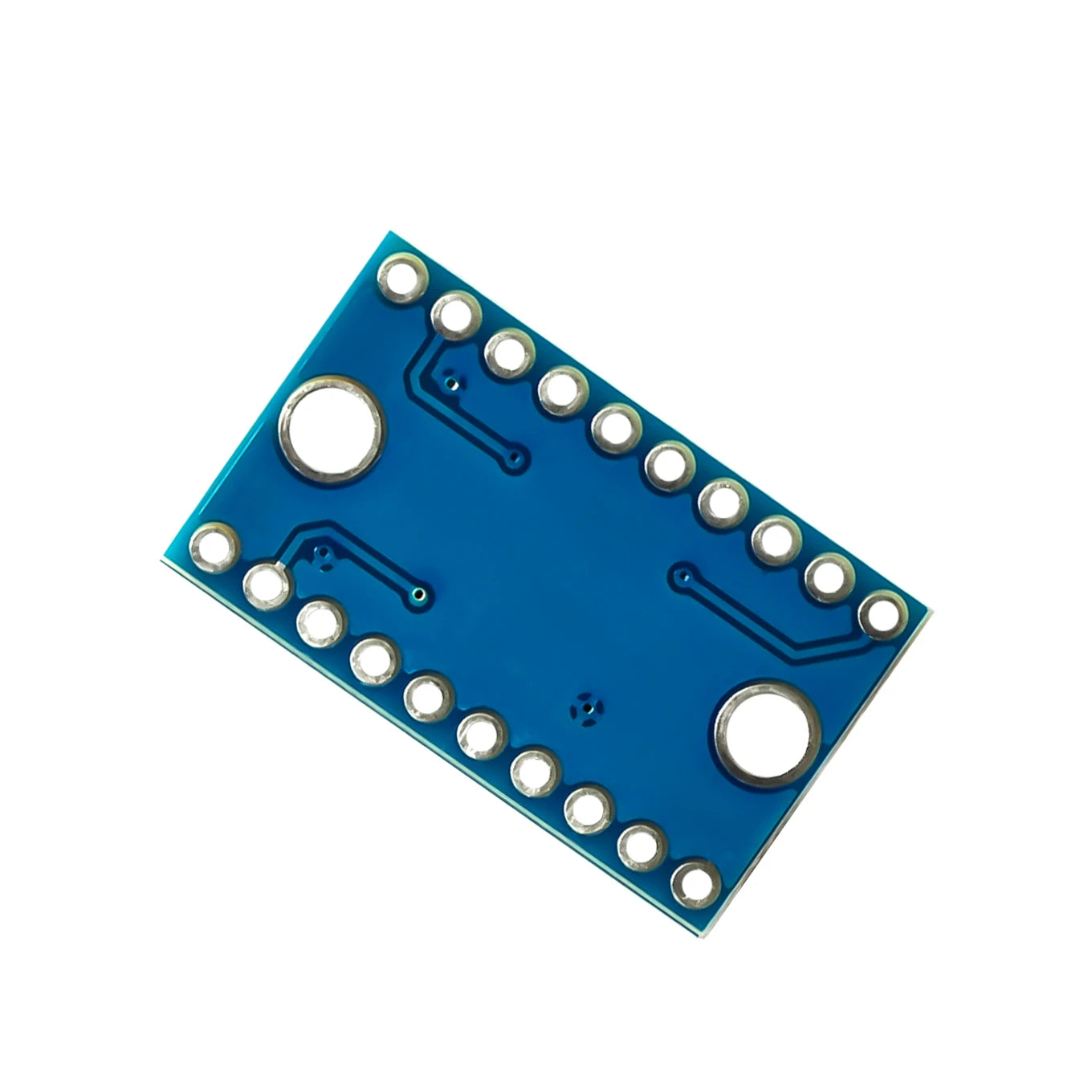

TXS0108E 8-Channel Bi-Directional Logic Level Converter 3.3V/5V TTL

$4.84 USD

~~$0.00 USD~~ $4.84 USD

Save Liquid error (snippets/price line 136): divided by 0% Sold out

Taxes included. Shipping calculated at checkout.

Default Title Default Title

Quantity

View full details

★Product Description
★About us
★Custom cable

SPECIFICATIONS

Application: Computer

Brand Name: Si Tai&SH

Condition: New

Dissipation Power: 1

High-concerned chemical: None

Origin: Mainland China

Supply Voltage: 1

Type: Voltage Regulator

is_customized: Yes

Warm prompt: Dear buyer, Our cheapest transportation services Economic category logistics (SunYou Economic Air Mail ,China Post Ordinary Small Packet Plus ) can be traced only befor it arrive your country,please choose Standard category logistics if you want a full tracking info.

Features

8 channels bidirectional voltage translation between different logic level, translate between Ax and Bx automatically
Voltage level: 1.8V-6V
Dimension: 21mm x 15mm

How to Use

In the case of translating between 3.3V and 5V system:

VCCA connects to 3.3V power supply
VCCB connects to 5V power supply
GND connects to power negative pole respectively, the two power supply should be common-grounded with each other
When Ax has TTL 3.3V input, Bx will get TTL 5V output
When Bx has TTL 5V input, Ax will get TTL 3.3V output
NO direction control required
