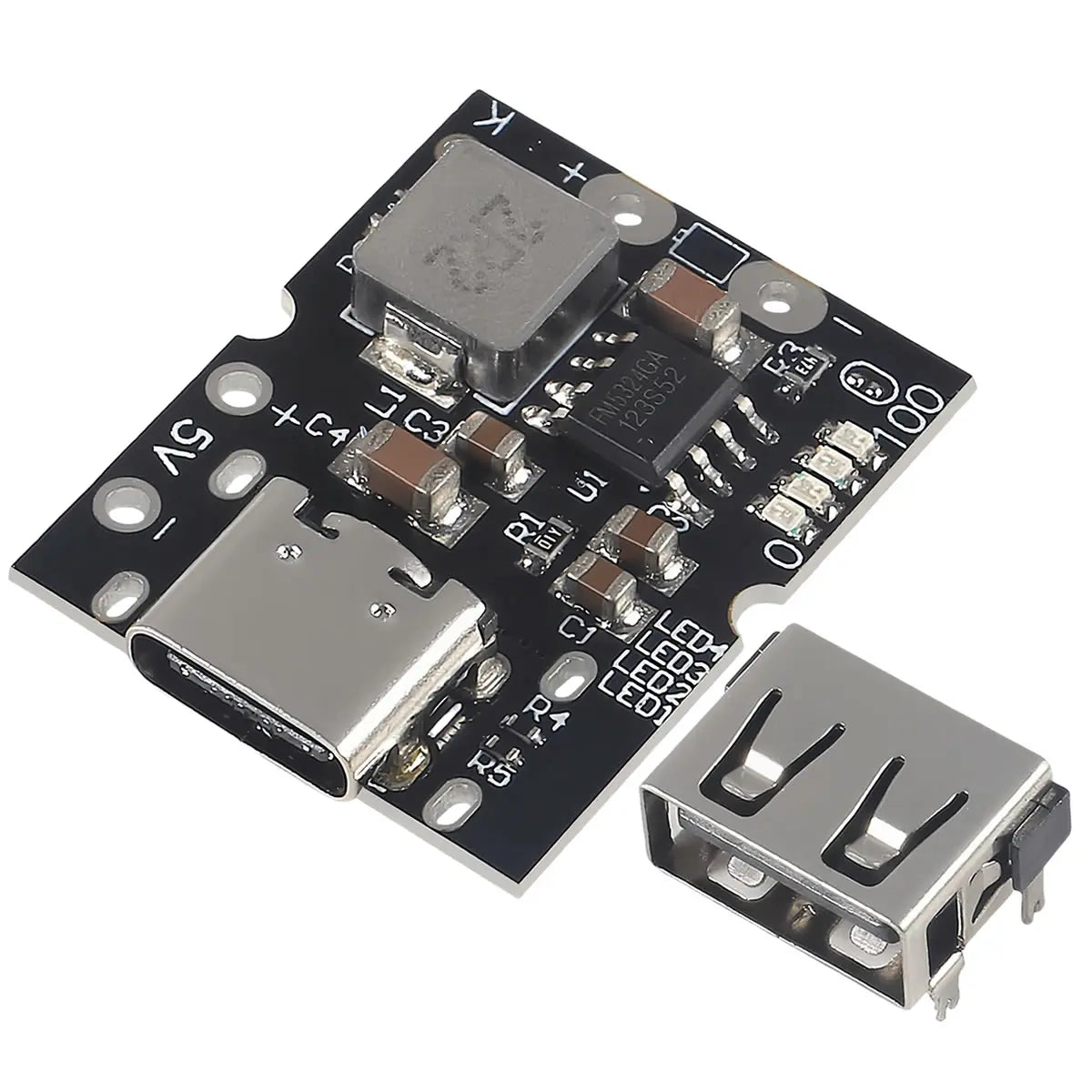

Type-C USB 5V 2A Boost Converter Step-Up Power Module with Lithium Battery Charging Protection and LED Display
Type-C USB 5V 2A Boost Converter Step-Up Power Module with Lithium Battery Charging Protection and LED Display
Regular price
$4.16 USD
Sale price
$4.16 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
Application: MOBILE PHONE
Brand Name: Keszoox
Condition: New
Dissipation Power: --
High-concerned chemical: None
Operating Temperature: -40-+85
Origin: Mainland China
Package: SMD
Quantity: 1
Supply Voltage: 5V - 5.5V
Type: Voltage Regulator
is_customized: Yes
1-3PCS Type-C USB Boost Converter 5V 2A Step-Up Power Module Lithium Battery Charging Protection Board USB Charger LED Display
Basic parameters
- Input voltage range: 5 ~ 5.5V
- Charging cut-off voltage: (4.2v/4.35v) ± 0.5%
- Charging current: 2.4a ± 5%
- Boost output voltage: 5V ~ 5.15v (line loss compensation)
- Boost output voltage ripple: 100mV
- Boost output current: 2A
- Boost conversion efficiency: 92.5% (3.6V input, 5v2a output)
- Static current at battery end: < 30uA
- Quantity: 1 PCS / 3 PCS
1. When the load current is less than 50mA continuously, the output will be turned off.
2. It supports the external key, which is connected to the K point and the output negative pole.
3. Short press to turn on the power display and turn on the 5V output.
4. Two consecutive short presses will turn off the power display and turn off the 5V output.
5. It supports discharging while charging.
6. The usb-a base weldingposition is provided on the back of the product, which can be installed manually.
7. When the battery voltage drops below 4.1V, the charging cycle starts again.
