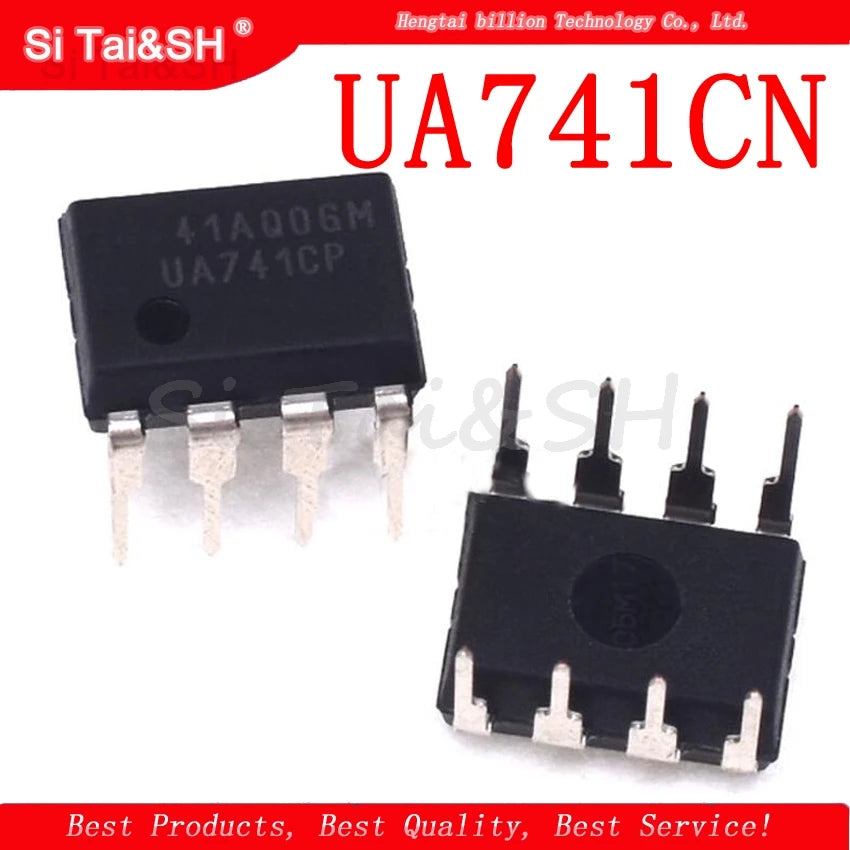

UA741 / LM741 DIP-8 General Purpose Operational Amplifier IC (10-Pack)
The UA741 (also known as LM741) is the classic single general-purpose operational amplifier in a DIP-8 through-hole package. With a 1MHz gain-bandwidth product and internal frequency compensation, it requires no external compensation capacitors and is the foundational op-amp for learning analog circuit design, comparators, integrators, and signal conditioning.
Key Specifications
| Parameter | Value |
|---|---|
| Part Number | UA741 / LM741 / uA741 |
| Package | DIP-8 |
| Number of Amplifiers | 1 (single) |
| Input Type | Bipolar (NPN differential pair) |
| Supply Voltage | +/-5V to +/-18V (dual supply) |
| Gain-Bandwidth Product | 1MHz |
| Slew Rate | 0.5V/us |
| Input Bias Current | 80nA typical |
| Input Offset Voltage | 1mV typical |
| Open-Loop Gain | 200V/mV (106dB) |
| Output Short-Circuit Protected | Yes |
| Quantity | 10 pieces |
UA741 vs Modern Op-Amps
| Feature | UA741 | TL072 | NE5532 |
|---|---|---|---|
| GBW | 1MHz | 3MHz | 10MHz |
| Slew Rate | 0.5V/us | 13V/us | 9V/us |
| Input Bias | 80nA | 65pA (JFET) | 200nA |
| Single Supply | No | Yes | Yes |
| Best For | Education, DC circuits | Audio, high-Z sources | Low-noise audio |
Why Choose UA741?
- Internal Compensation - No external capacitor needed; stable at unity gain out of the box
- Short-Circuit Protected - Output withstands indefinite short to supply rails
- Industry Classic - Extensive textbook coverage; ideal for learning op-amp fundamentals
- DIP-8 Package - Breadboard-friendly for prototyping and education
- Pack of 10 - Sufficient for classroom labs and multiple projects
Typical Applications
- Inverting and non-inverting amplifier circuits
- Voltage comparator (without hysteresis)
- Integrator and differentiator circuits
- Summing amplifier for signal mixing
- Active filter design (low-frequency, below 10kHz)
- Electronics education and lab exercises
FAQ
Q: Can UA741 operate on a single supply? No - UA741 requires a dual supply (+/-5V to +/-18V). For single-supply operation, use LM358 or TL072 which include ground in their common-mode input range.
Q: Why is UA741 slew rate so low (0.5V/us)? The internal 30pF compensation capacitor limits slew rate. This makes UA741 unsuitable for audio above ~10kHz or fast signal processing. Use TL072 or NE5532 for audio applications.
Package Contents
- 10x UA741 DIP-8 General Purpose Op-Amp IC
