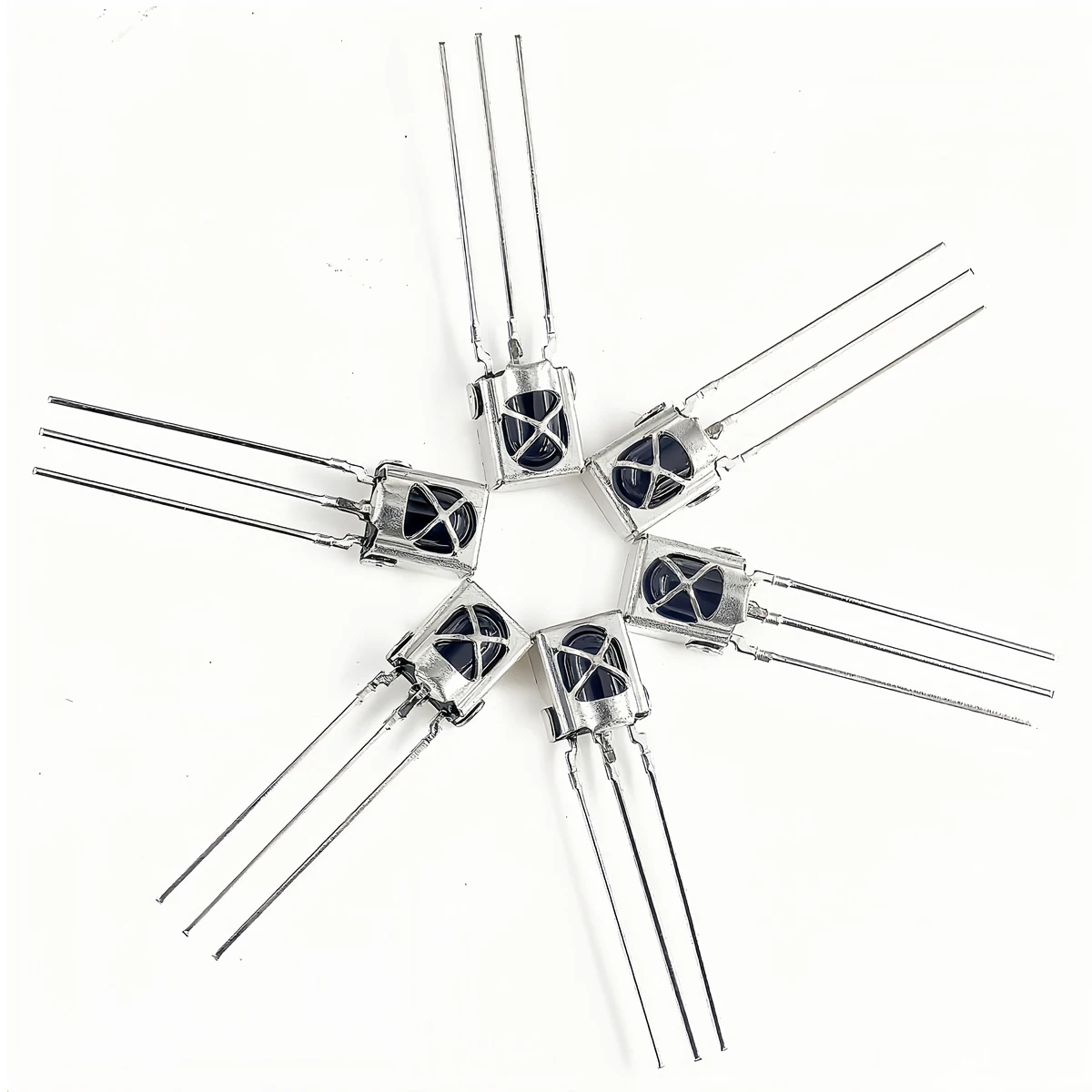

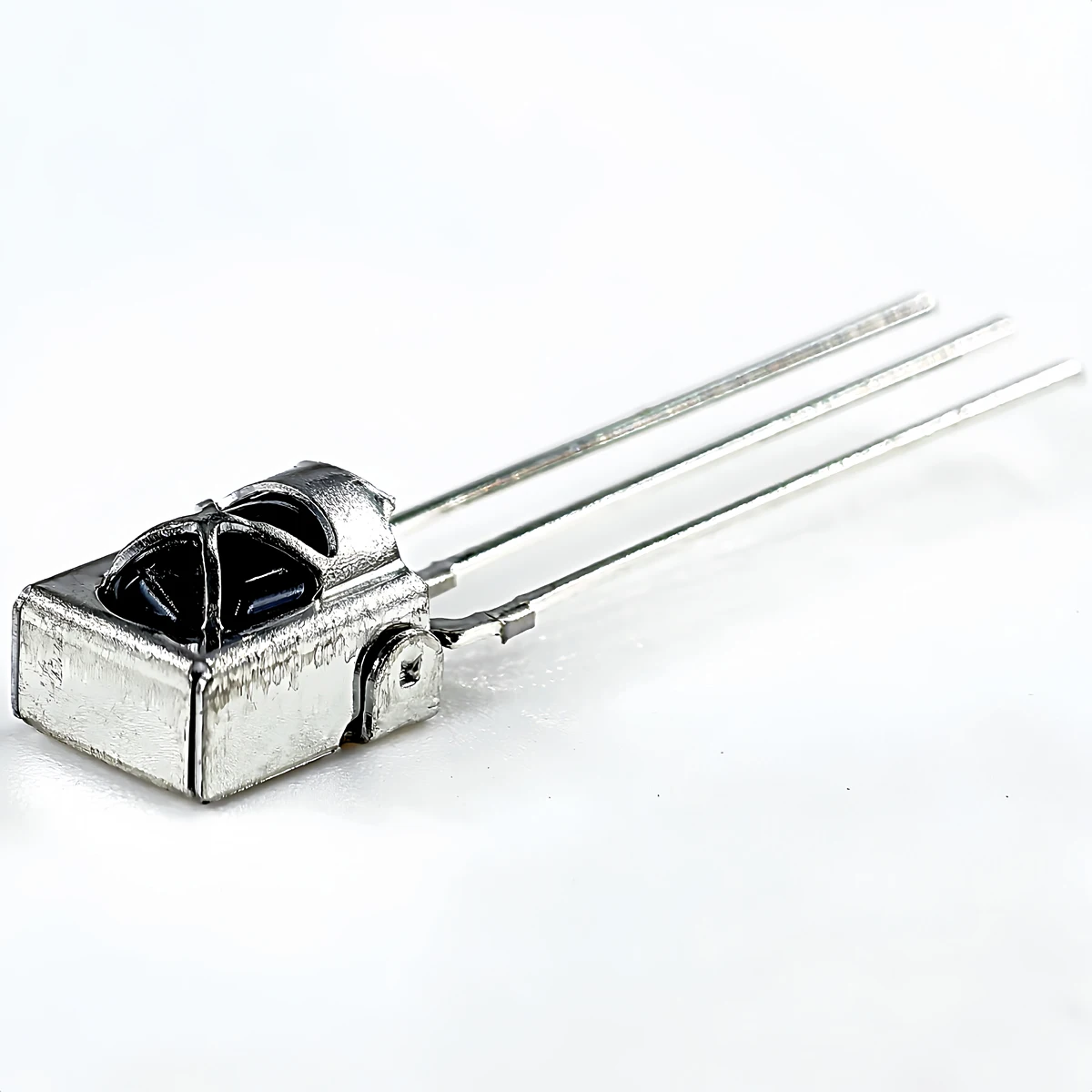

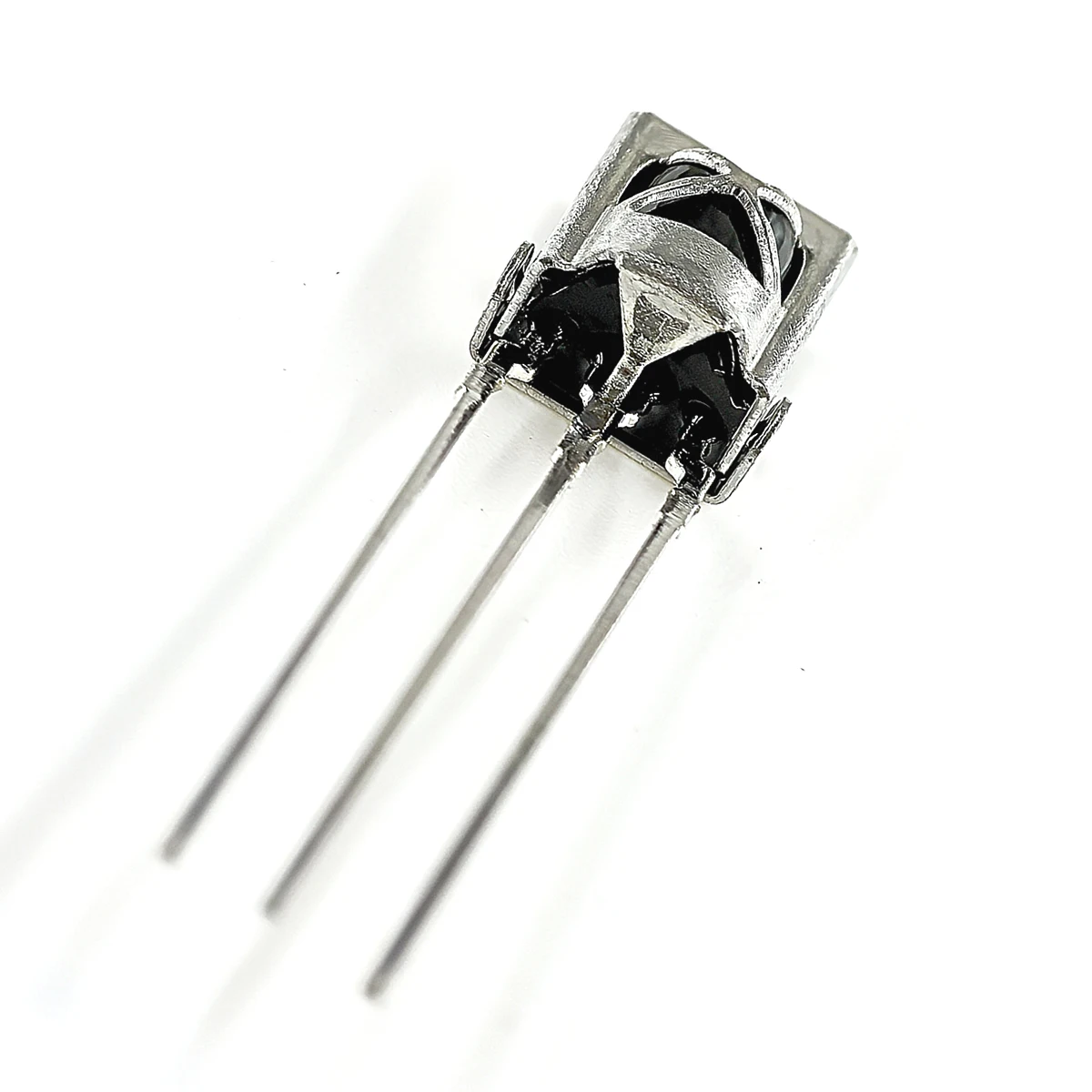

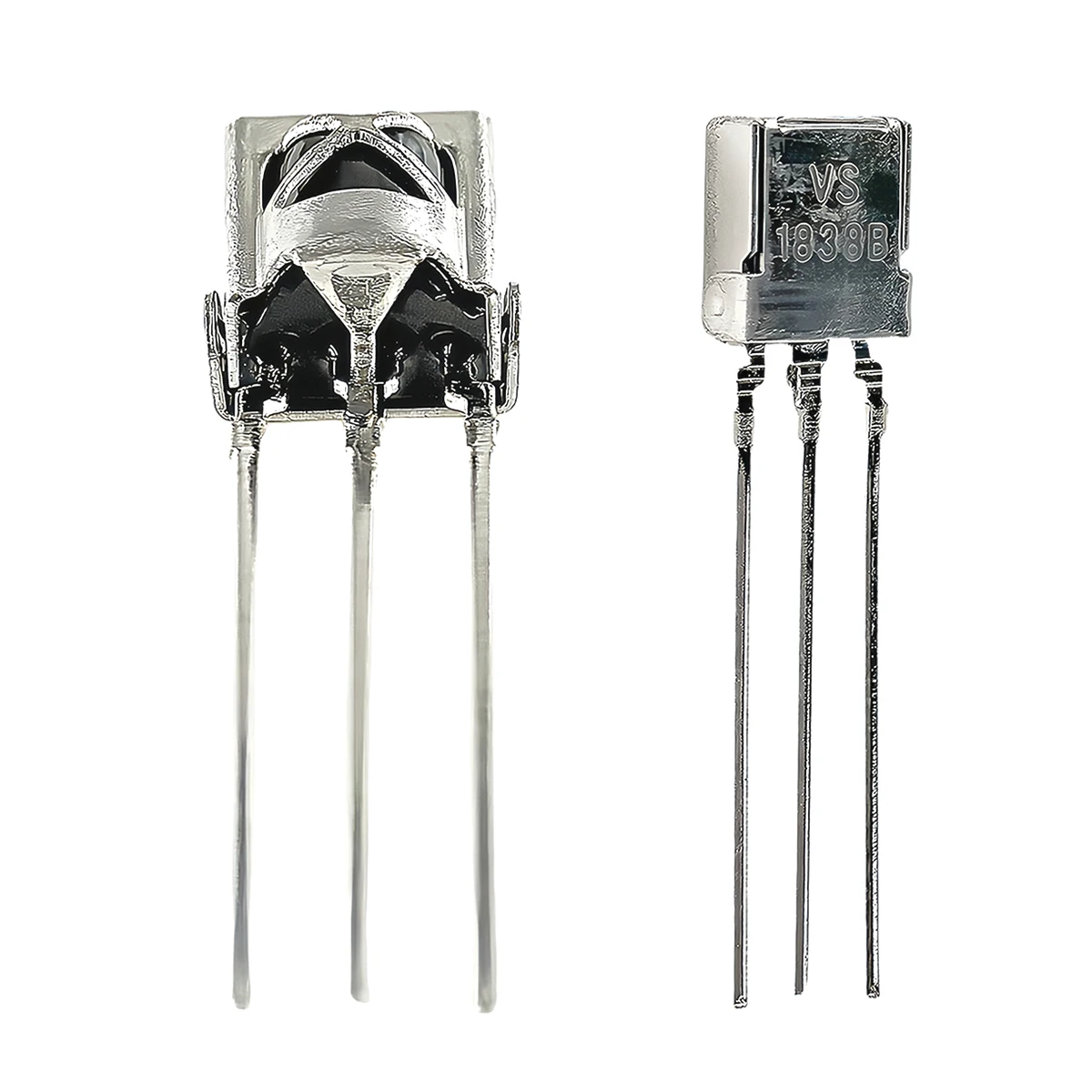

Universal IR Infrared Receiver Sensor Module TL1838 VS1838B 38kHz for Arduino & Raspberry Pi

$39.12 USD

Save Liquid error (snippets/price line 138): divided by 0% Sold out

Taxes included. Shipping calculated at checkout.

Color

Quantity

SPECIFICATIONS

Application: Computer

Brand Name: Keszoox

Condition: New

High-concerned chemical: None

Model Number: TL1838 VS1838B

Operating Temperature: -40-+85

Origin: Mainland China

Package: SMD

Type: Module

is_customized: Yes

10-100PCS Universal IR Infrared Receiver Sensor Module TL1838 VS1838B 38Khz for Arduino Raspberry LED Infrared Receiver Tube

1. 100% new, never used

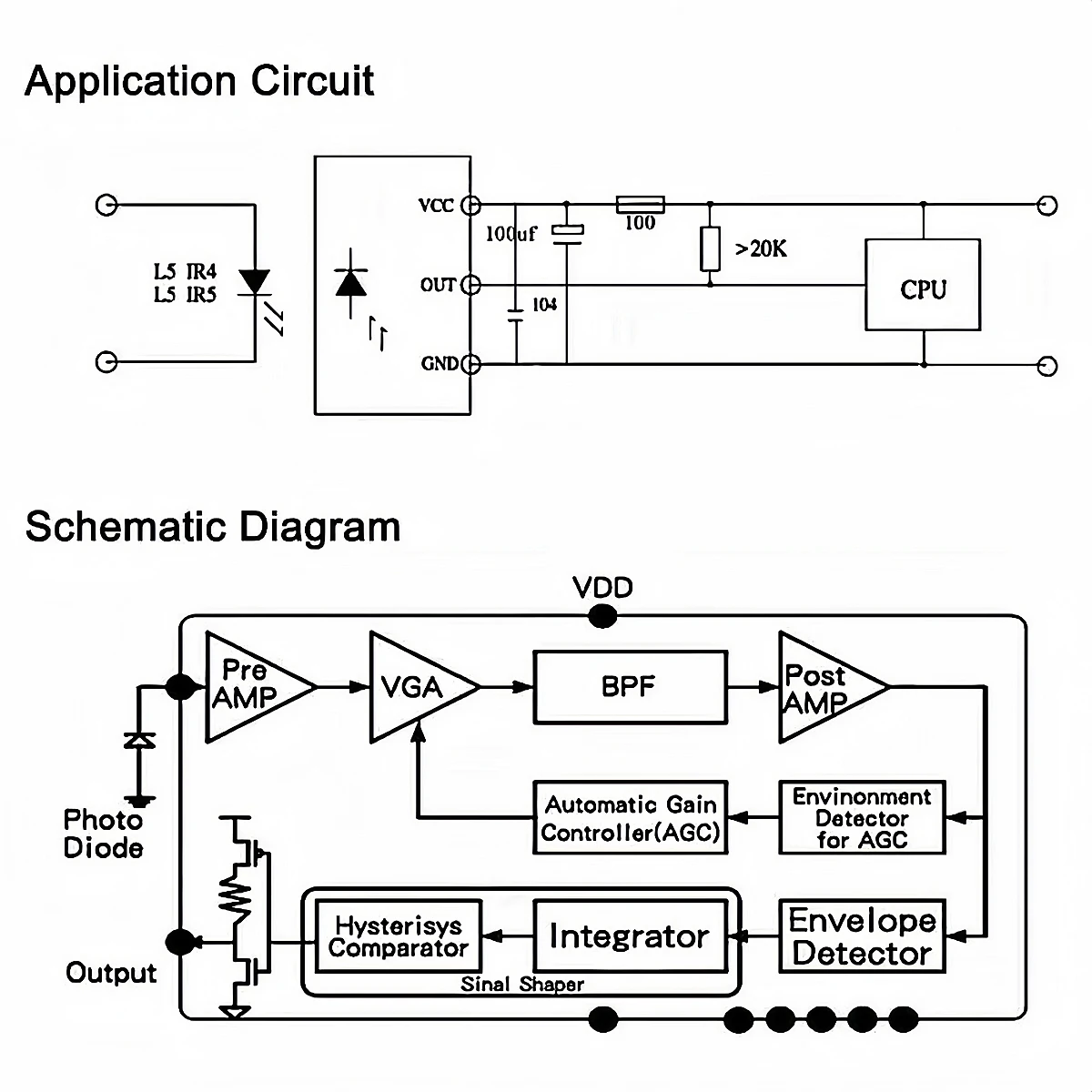

2. Includes high-speed high-sensitivity PIN photodiode and a low -power, high-gain preamplifier IC, plus the use of epoxy resin dry outer shield anti- scratch design, the product has been part of environmentally friendly products through REACH and SGS certification, infrared remote control system used as a receiver .

3. Low power consumption; wide-angle and long distance reception

4. Strong anti-interference ability, able to withstand environmental disturbances

5. Outside interference shielding design

6. Ultra- compact design package with outer shield anti-jamming capability, built-in CMOSlC

7. Voltage: 2.7V-5.5 V

8. Receiving distance: 13-15M

Characteristics
- Small design
- Built-in dedicated IC
- Wide Angle and long distance reception
- Strong anti-interference ability
- It can withstand the influence of ambient light
- Low voltage operation

Application
1. Audio-visual equipment (stereo, TV, VCR, DVD player, set-top box, DVB)
2. Home appliances (air conditioners, electric fans, lights)
3. Other wireless remote control products
