USB Touch Screen & Camera Terminal Cable — Motherboard Connection, XH2.54 / PH2.0 / MX1.25 / SH1.0

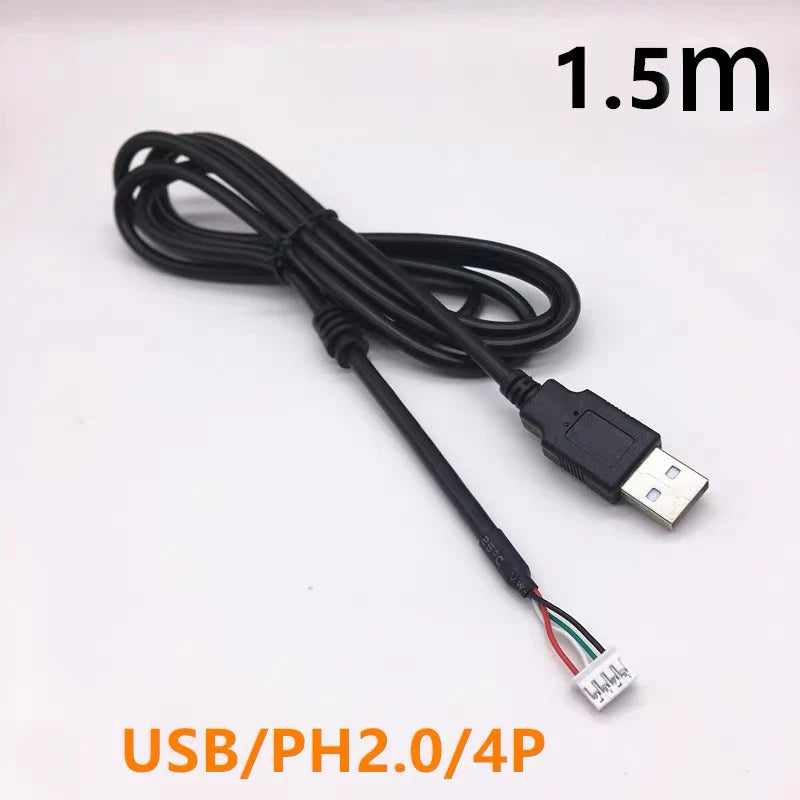

A multi-connector internal cable for connecting USB touch screens, cameras, and peripheral modules to motherboard or development board headers. Available with XH2.54mm, PH2.0mm, MX1.25mm, and SH1.0mm connector options on one or both ends, providing compatibility with a wide range of single-board computers, embedded systems, and DIY electronics projects. Suitable for connecting USB touch screen panels, USB cameras, and USB peripheral modules to internal USB headers on Raspberry Pi, Arduino, and custom PCB designs.

Technical Specifications

Parameter	Value
Cable Type	USB data + power (4-wire: VCC, D−, D+, GND)
Connector Options	XH2.54mm / PH2.0mm / MX1.25mm / SH1.0mm
Wire Gauge	28AWG (data) / 26AWG (power)
USB Standard	USB 2.0 (480Mbps)
Rated Voltage	5V DC
Rated Current	Up to 500mA (USB 2.0 standard)
Certification	RoHS

Connector Pitch Reference

Connector	Pitch	Common Use
XH2.54	2.54mm	Arduino, standard PCB headers
PH2.0	2.0mm	JST PH, Raspberry Pi HAT, small modules
MX1.25	1.25mm	JST MX, compact embedded boards
SH1.0	1.0mm	JST SH, ultra-compact wearables, drones

Typical Applications

Touch Screen Connection: Connect a USB touch screen panel to an internal USB header on a Raspberry Pi, mini PC, or custom embedded board
USB Camera: Connect a USB camera module to an internal USB header for embedded vision and machine vision applications
Embedded USB Peripheral: Connect USB barcode scanners, RFID readers, and USB HID devices to internal USB headers in kiosk and industrial panel PC builds
DIY Electronics: Custom USB cable assembly for connecting USB modules to development boards with non-standard connector pitches

FAQ

Q: Is this cable suitable for USB 3.0 devices?
A: No. This cable supports USB 2.0 (480Mbps) only. For USB 3.0 devices, use a cable with the additional SuperSpeed data pairs (SS+, SS−, GND_DRAIN).
