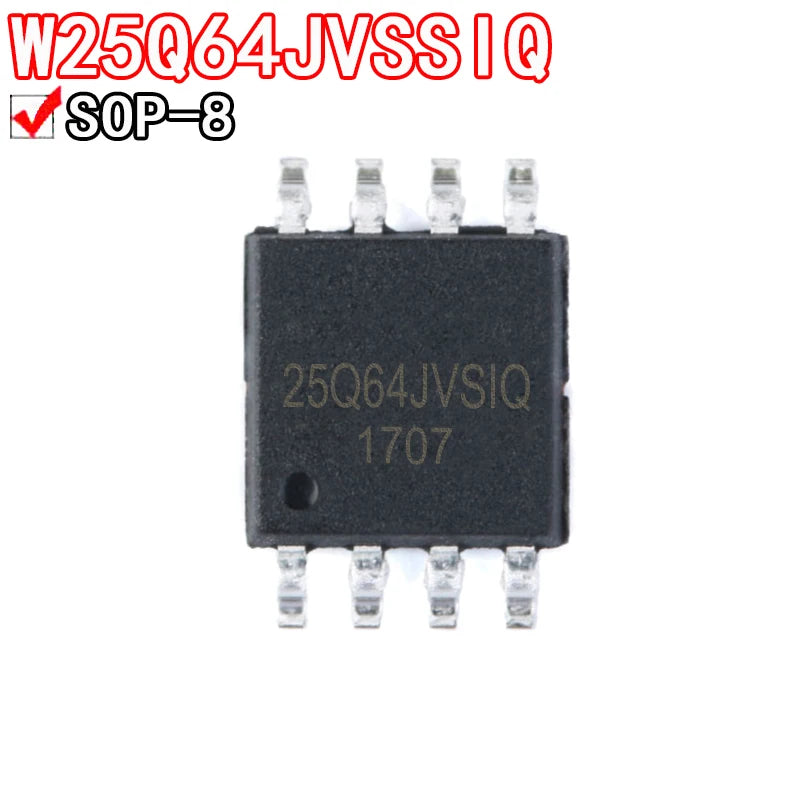

W25Q64JV 64Mbit SPI NOR Flash Memory IC SOP-8 – Pack of 5 (W25Q64JVSSIQ / W25Q64JVSIQ)
W25Q64JV 64Mbit SPI NOR Flash Memory IC SOP-8 – Pack of 5 (W25Q64JVSSIQ / W25Q64JVSIQ)
Couldn't load pickup availability
W25Q64JV 64Mbit (8MB) SPI NOR Flash Memory IC — SOP-8, 133MHz, QSPI (5-Pack)
The W25Q64JVSSIQ / W25Q64JVSIQ is a 64Mbit (8MB) serial NOR flash memory IC from Winbond in a SOP-8 SMD package. Operating at up to 133MHz with standard SPI, Dual SPI, and Quad SPI (QSPI) interfaces, it is the industry-standard flash chip used in BIOS/UEFI firmware storage, router firmware, ESP32/ESP8266 program storage, and embedded data logging applications.
Key Specifications
| Parameter | Value |
|---|---|
| Capacity | 64Mbit (8MB) |
| Part Numbers | W25Q64JVSSIQ (SOP-8), W25Q64JVSIQ (SOP-8) |
| Interface | SPI / Dual SPI / Quad SPI (QSPI) |
| Max Clock Frequency | 133MHz (Standard SPI), 80MHz (Dual/Quad) |
| Supply Voltage | 2.7–3.6V |
| Page Size | 256 bytes |
| Sector Size | 4KB (erasable) |
| Endurance | 100,000 erase/write cycles |
| Data Retention | 20 years |
| Package | SOP-8 (SMD) |
| Quantity | 5 pieces |
Why Choose W25Q64JV?
- Industry-standard BIOS chip — direct replacement for failed W25Q64 in motherboards, routers, and industrial controllers
- QSPI support — 4× faster than standard SPI for code execution in XIP (execute-in-place) mode
- 133MHz max clock — high-speed data transfer for demanding embedded applications
- 100K erase cycles — long service life for firmware update and data logging use
- Winbond W25Q series — most widely supported flash IC in open-source firmware tools (flashrom, esptool, OpenOCD)
Compatible With
- BIOS/UEFI repair: Laptop and desktop motherboard BIOS chip replacement (verify exact part number match)
- ESP32 / ESP8266: External program and data storage via SPI
- STM32: External flash via QSPI or SPI interface
- Raspberry Pi: SPI flash via spidev / flashrom
- Programmer tools: CH341A, RT809H, T48, XGecu TL866II Plus
Frequently Asked Questions
Q: What is the difference between W25Q64JVSSIQ and W25Q64JVSIQ?
A: Both are 64Mbit SOP-8 NOR flash. The W25Q64JVSSIQ supports standard/dual/quad SPI; the W25Q64JVSIQ additionally supports QPI (Quad Peripheral Interface) mode for even faster quad I/O. For most BIOS replacement and ESP32 use, either variant works identically.
Q: Can I use this to replace a BIOS chip on my laptop motherboard?
A: Yes, if the original chip is a W25Q64 variant in SOP-8. Read the original chip first with a CH341A programmer to back up the firmware, then write to the new chip. Verify the exact part number and voltage (2.7–3.6V) matches your board.
Q: Is this compatible with the Arduino SPI Flash library?
A: Yes. The W25Q64JV is supported by the SPIMemory and SerialFlash Arduino libraries. Use the standard SPI pins (MOSI, MISO, SCK, CS) and initialize with the correct chip size (8MB / 64Mbit).
Package Contents
- 5× W25Q64JV 64Mbit SPI NOR Flash Memory IC (SOP-8)
