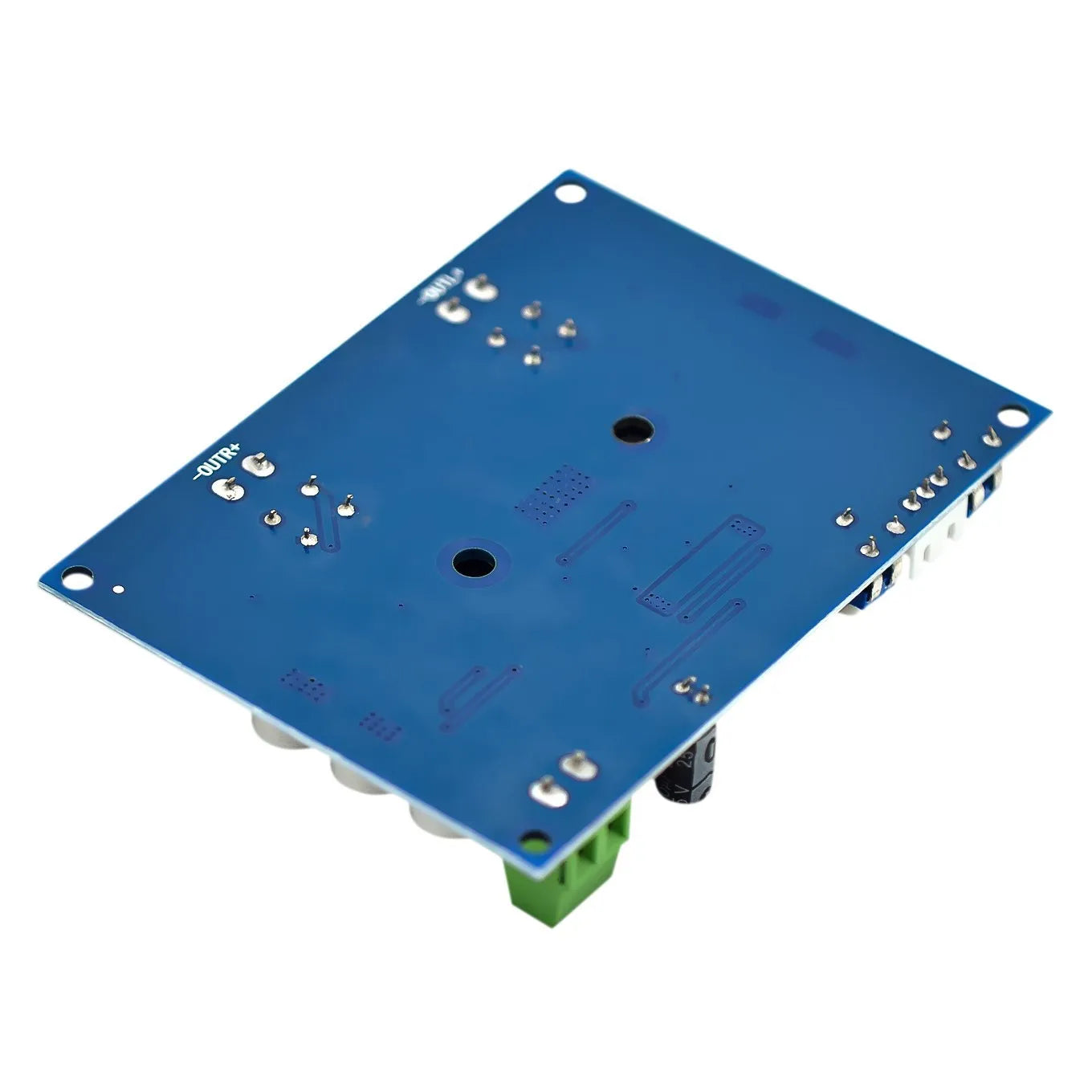

XH-M543 TPA3116D2 Class D Digital Audio Amplifier Board — 2×120W Dual Channel
The XH-M543 is a high-power digital audio amplifier board built around the Texas Instruments TPA3116D2 Class D IC. Delivering up to 120W per channel (2×120W total) with over 90% power efficiency, it is engineered for DIY speaker builds, home audio systems, and embedded audio applications requiring clean, high-output sound with minimal heat dissipation.
Key Specifications
| Parameter | Value |
|---|---|
| Model | XH-M543 |
| Amplifier Chip | TPA3116D2 (Texas Instruments) |
| Amplifier Class | Class D |
| Output Power | 2×120W (dual channel stereo) |
| Supply Voltage | DC 12V–24V (center-positive) |
| Minimum Supply Current | >3A recommended |
| Bluetooth Module | CSR8635 v4.0 |
| Bluetooth Range | Up to 10 m (line of sight) |
| Channels | 2 (stereo, treble/bass adjustment) |
| Power Efficiency | >90% |
| Protection | Overvoltage, undervoltage, overheating, DC detection, short circuit |
| Origin | CN |
Why Choose the XH-M543?
- TPA3116D2 chip — Texas Instruments' industry-standard Class D IC, trusted in professional and consumer audio equipment worldwide
- 90%+ power efficiency — Minimal heat generation vs Class AB; runs cool at sustained high output
- Integrated Bluetooth 4.0 (CSR8635) — Stream audio wirelessly from smartphones, tablets, or laptops up to 10 m away
- Full protection circuit — Overvoltage, undervoltage, overheating, DC offset detection, and short-circuit protection
- Treble and bass adjustment — Onboard tone controls for tuning to your speaker and room
- Wide voltage range — DC 12V–24V accommodates car batteries, laptop adapters, and bench supplies
Typical Applications
- DIY bookshelf and floor-standing speaker builds
- Home theater subwoofer and satellite speaker amplification
- Bluetooth speaker enclosure projects
- Automotive audio upgrades (12V/24V compatible)
- Embedded audio in kiosk, retail display, and industrial HMI systems
- Makerspace and electronics lab audio output modules
Compatible With
- 4Ω–8Ω passive speakers (bookshelf, woofer, full-range drivers)
- 12V car battery / 19V laptop adapter / 24V DC bench power supply
- Bluetooth audio sources: iOS, Android, Windows, macOS
- 3.5mm AUX input sources (smartphones, DACs, media players)
- Raspberry Pi, Arduino, and other SBC/MCU audio output (via AUX)
Frequently Asked Questions
Q: What is the difference between TPA3116D2 and TPA3118D2?
The TPA3116D2 is a stereo (2-channel) Class D amplifier IC; the TPA3118D2 is a mono variant. The XH-M543 uses the stereo TPA3116D2 in a dual-channel layout delivering 2×120W peak output.
Q: Can I use the XH-M543 via AUX only without Bluetooth?
Yes. The board includes a 3.5mm AUX input jack. Connect your audio source via a standard 3.5mm stereo cable. Bluetooth and AUX inputs can be switched independently.
Q: What power supply do I need for full 2×120W output?
Use a DC 24V supply rated at 10A or higher for maximum output. At 12V, output is reduced but suitable for most bookshelf speaker applications. Ensure center-positive polarity.
Q: Is the XH-M543 suitable for car audio?
Yes. The 12V–24V input range is compatible with standard 12V automotive systems. Use appropriate fusing and ensure the supply delivers >3A sustained current.
Package Contents
- 1× XH-M543 TPA3116D2 Class D Audio Amplifier Board
Power supply, speakers, and cables not included.
