SPECIFICATIONS

Application: MOBILE PHONE

Brand Name: OLNYLO

Condition: New

Dissipation Power: -

High-concerned chemical: None

Operating Temperature: -40-+85

Origin: Mainland China

Package: SMD

Quantity: 1

Supply Voltage: 5V-80V to 5V-20V

Type: Voltage Regulator

is_customized: Yes

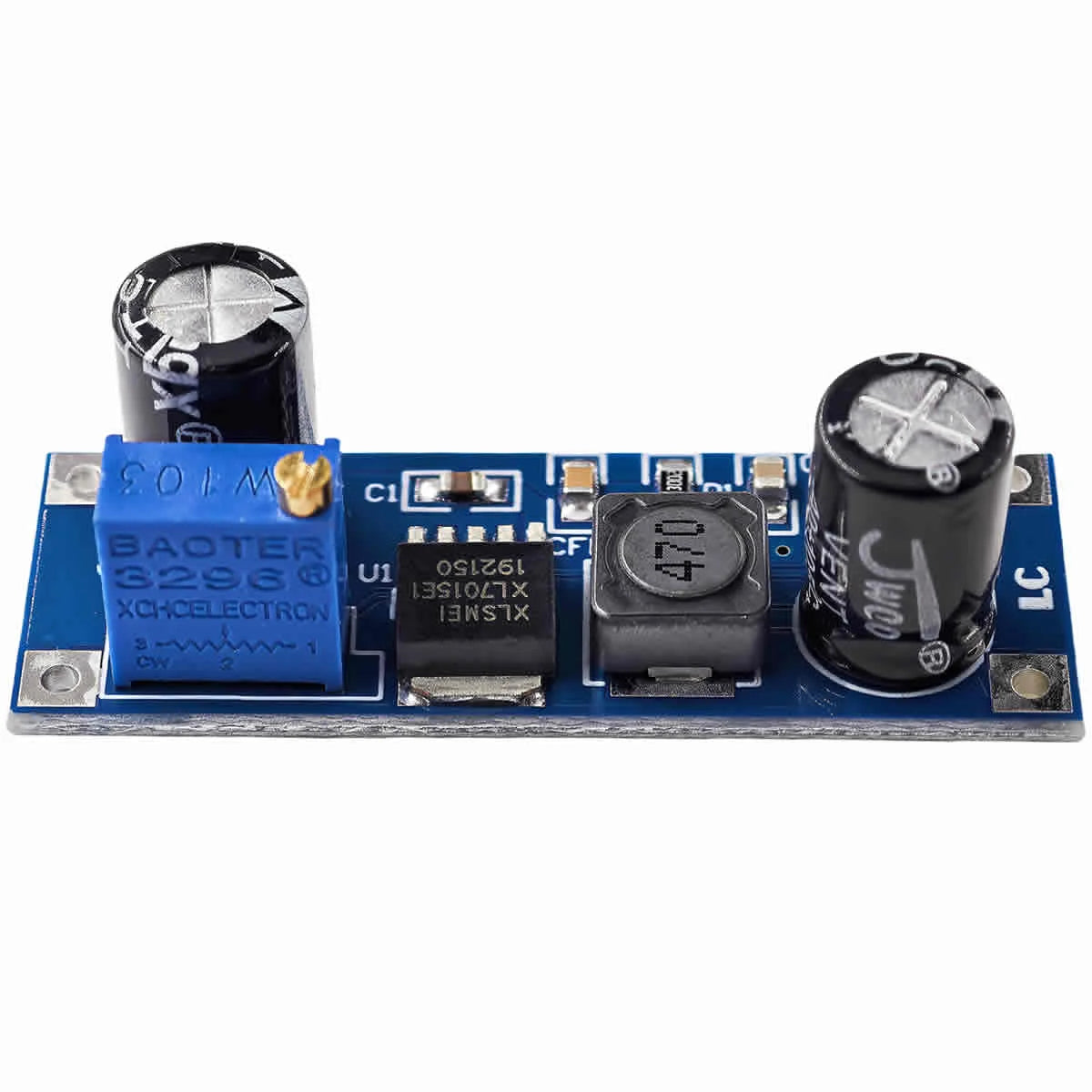

XL7015 DC-DC DC Converter Step-down Module Buck Module 5V-80V to 5V-20V Adjustable Wide Voltage Input 7005A LM2596

Warm Tips:
Our store support wholesale, the more quantity the more discount.
If you want to bulk order, please feel free to contact seller for wholesale price, looking forward to receive your inquiry, thanks! ^_^


XL7015 DC-DC step-down module is a highly efficient, high-voltage step-down DC- DC converter that can deliver up to 0.8A output current capability, low ripple, excellent line regulation and load regulation, input voltage to a maximum of 80V, far more than 2596 modules. Chip built a variety of protection mechanisms. It can be applied to electric vehicle controllers.


1. 5V to 80V wide input voltage range;

2. The output voltage is adjustable from 5V to 20V;

3. The minimum pressure drop 1V;

4. The maximum switching current of 0.8A;

5. Recommended output power less than 7W;

6. Built-in thermal shutdown protection, output short circuit protection, overcurrent protection;

7. The excellent linearity and load regulation;

8. Weight: 5.8g

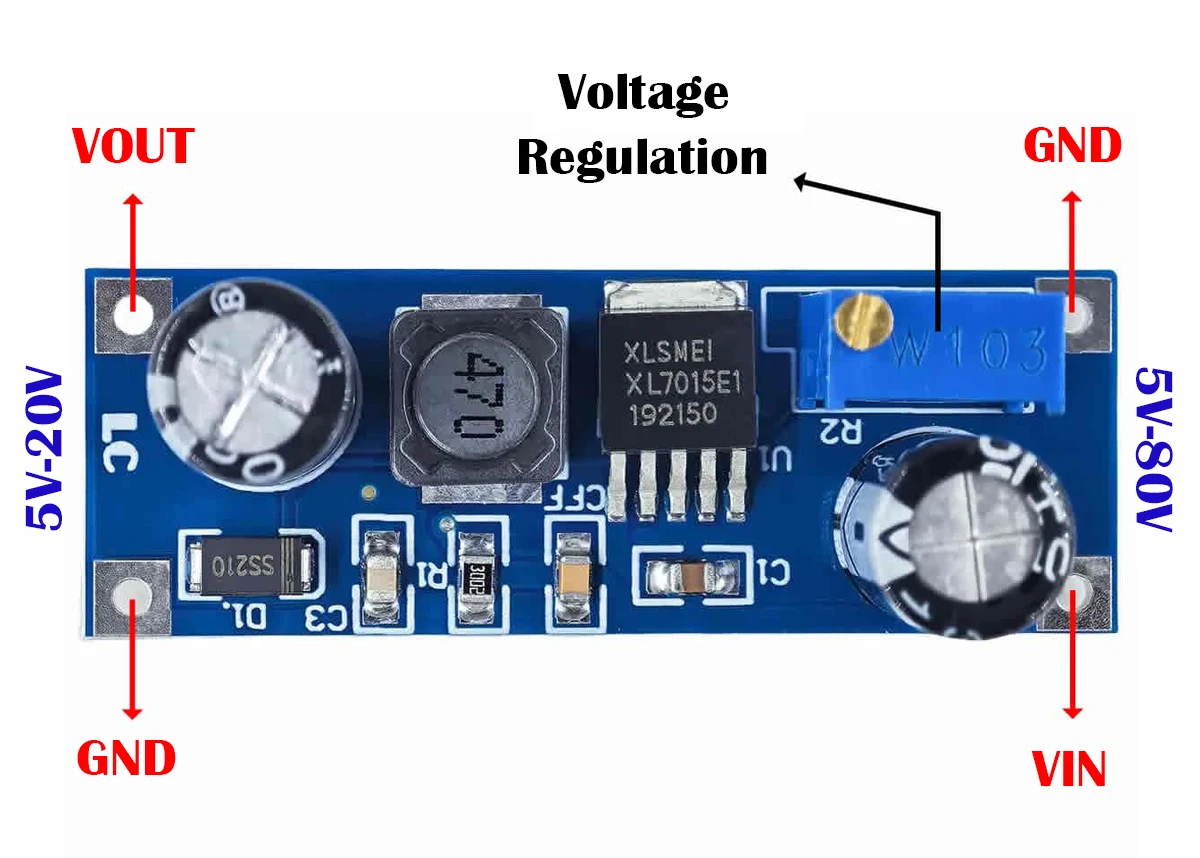

Wiring

1. VIN: input voltage (5V-80V);

2. GND: the input voltage ground terminal;

3. VOUT: Output voltage terminal (5V-20V);

4. GND: output voltage of the ground terminal;
