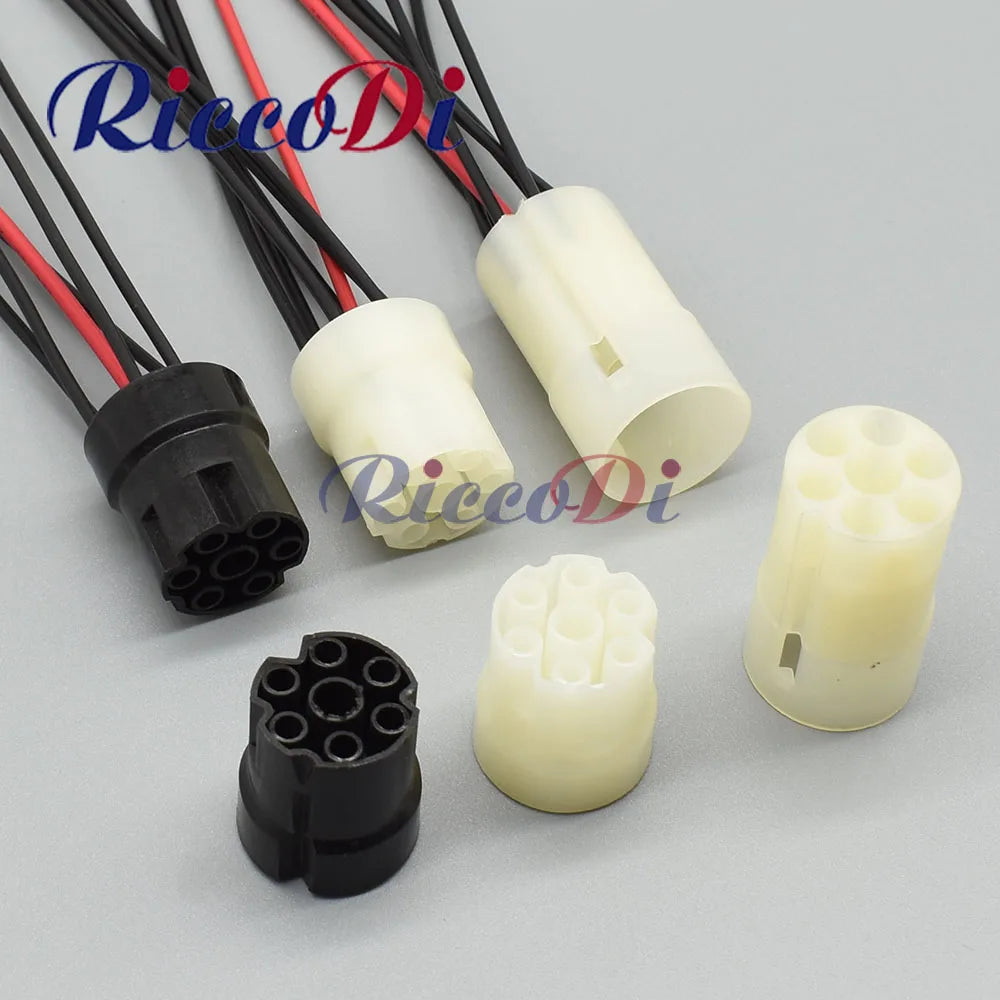

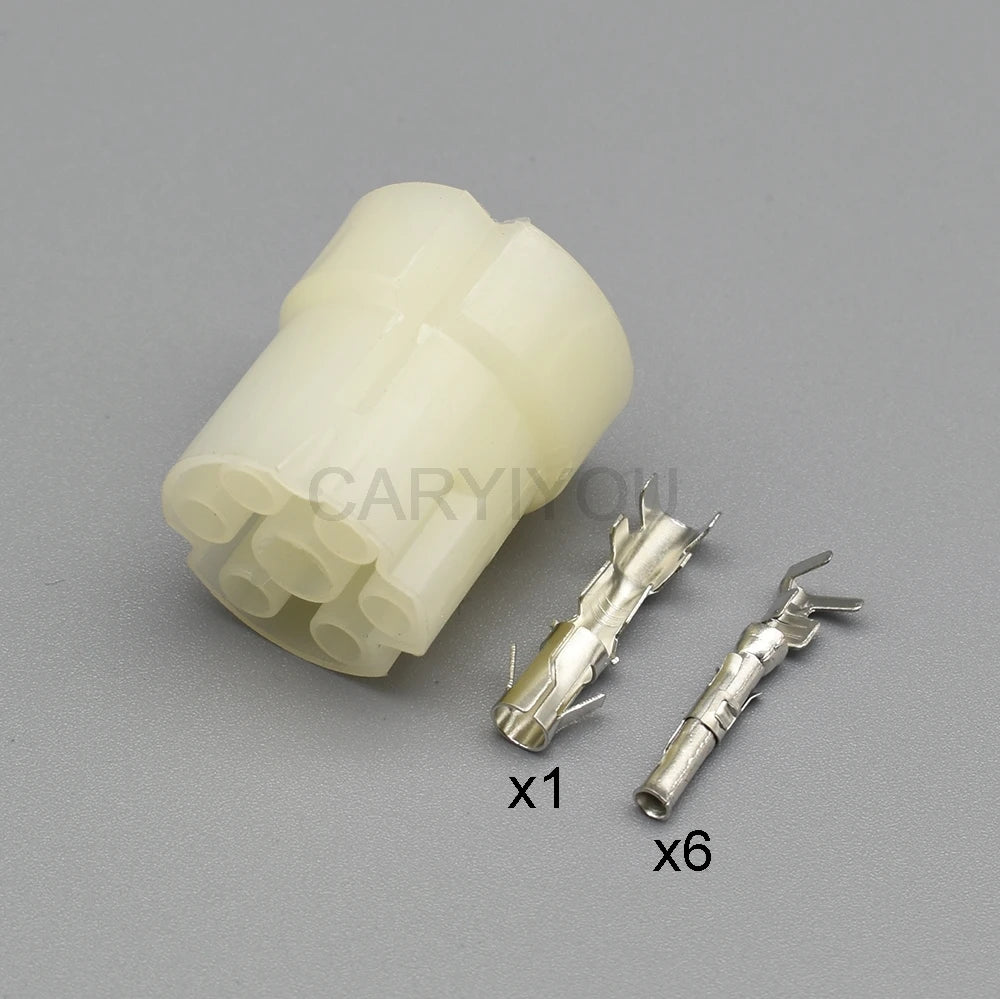

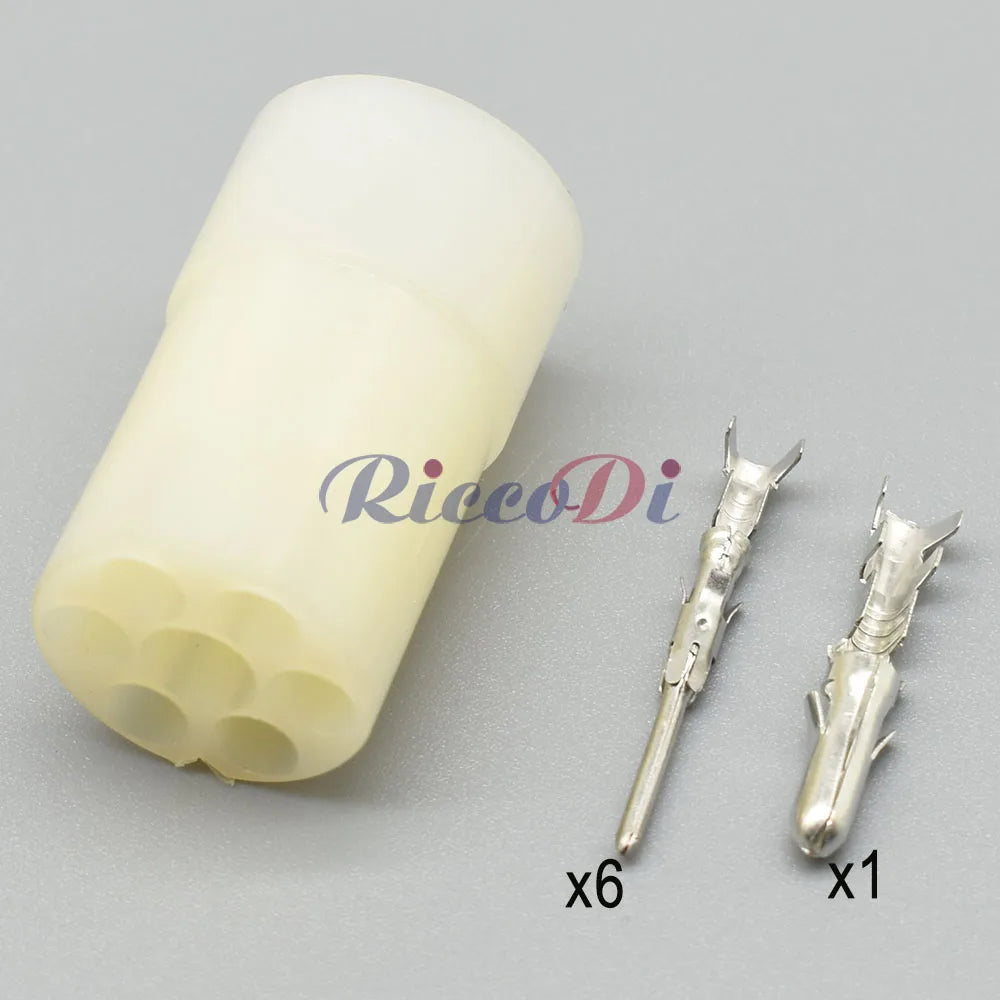

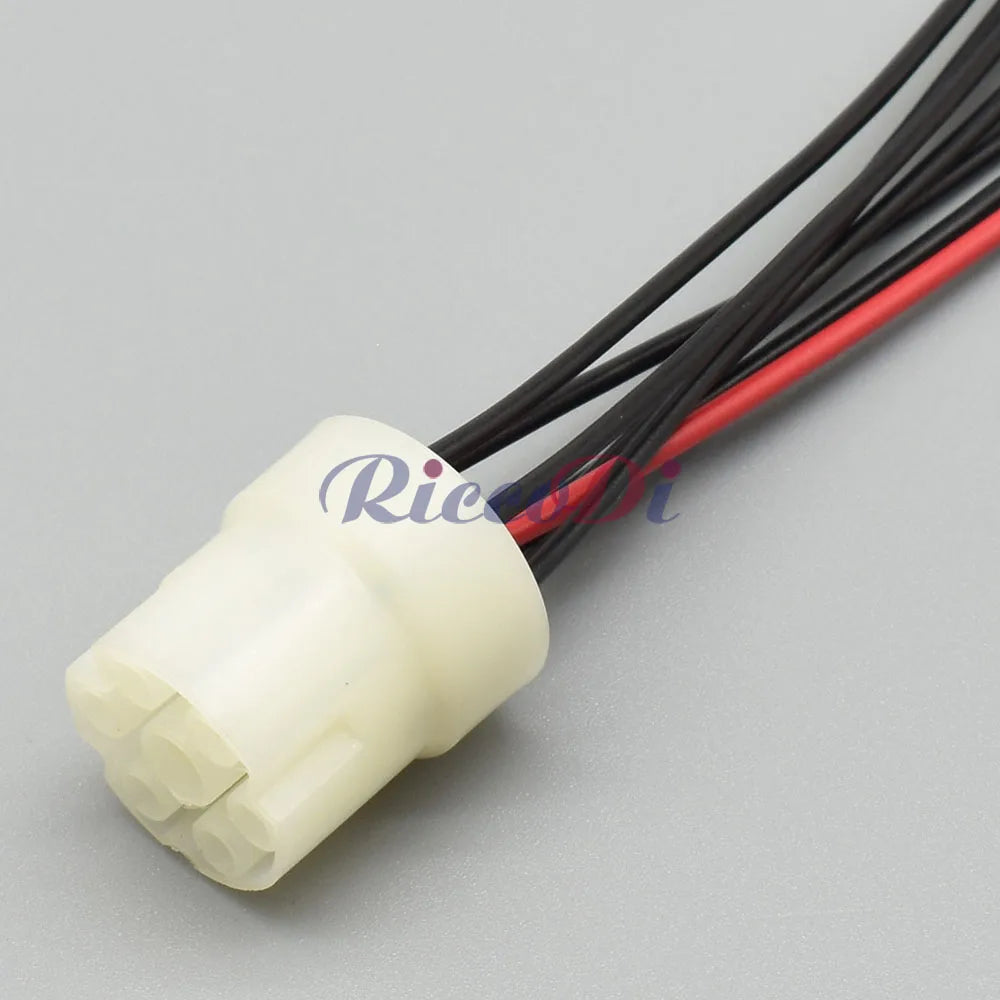

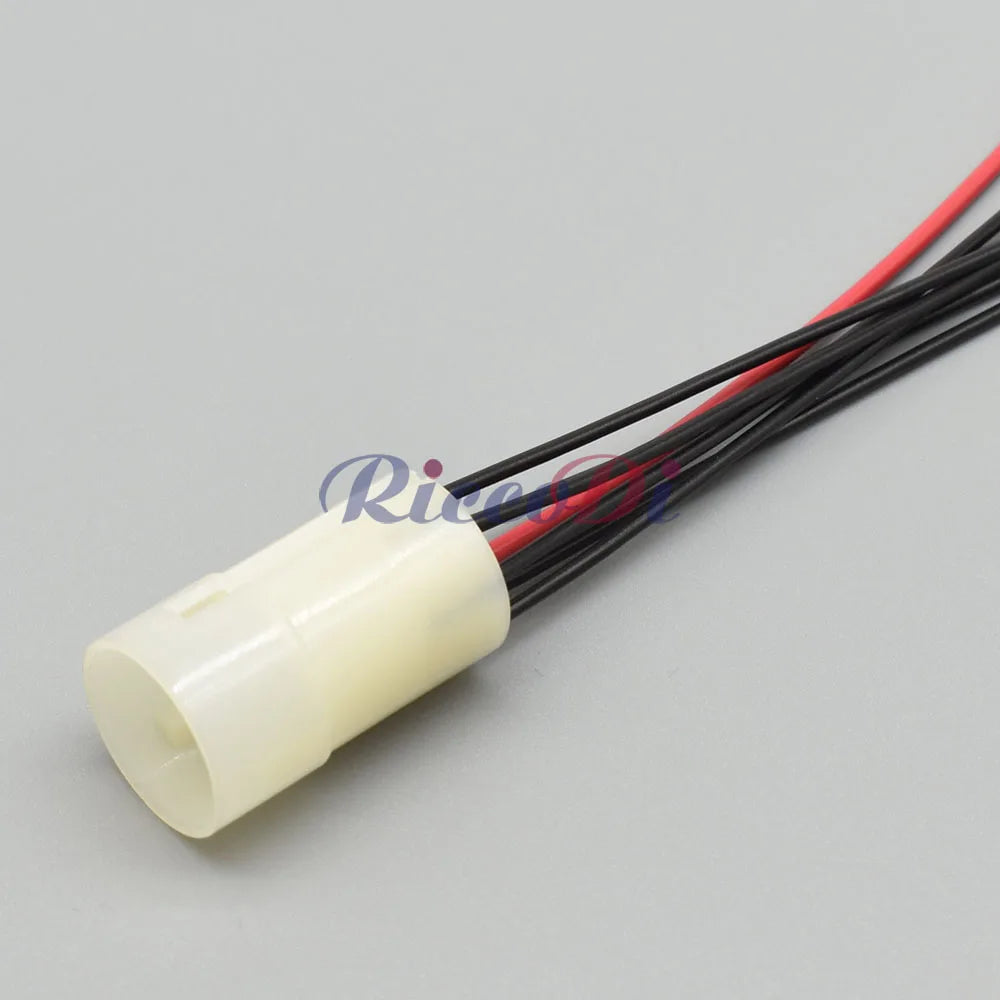

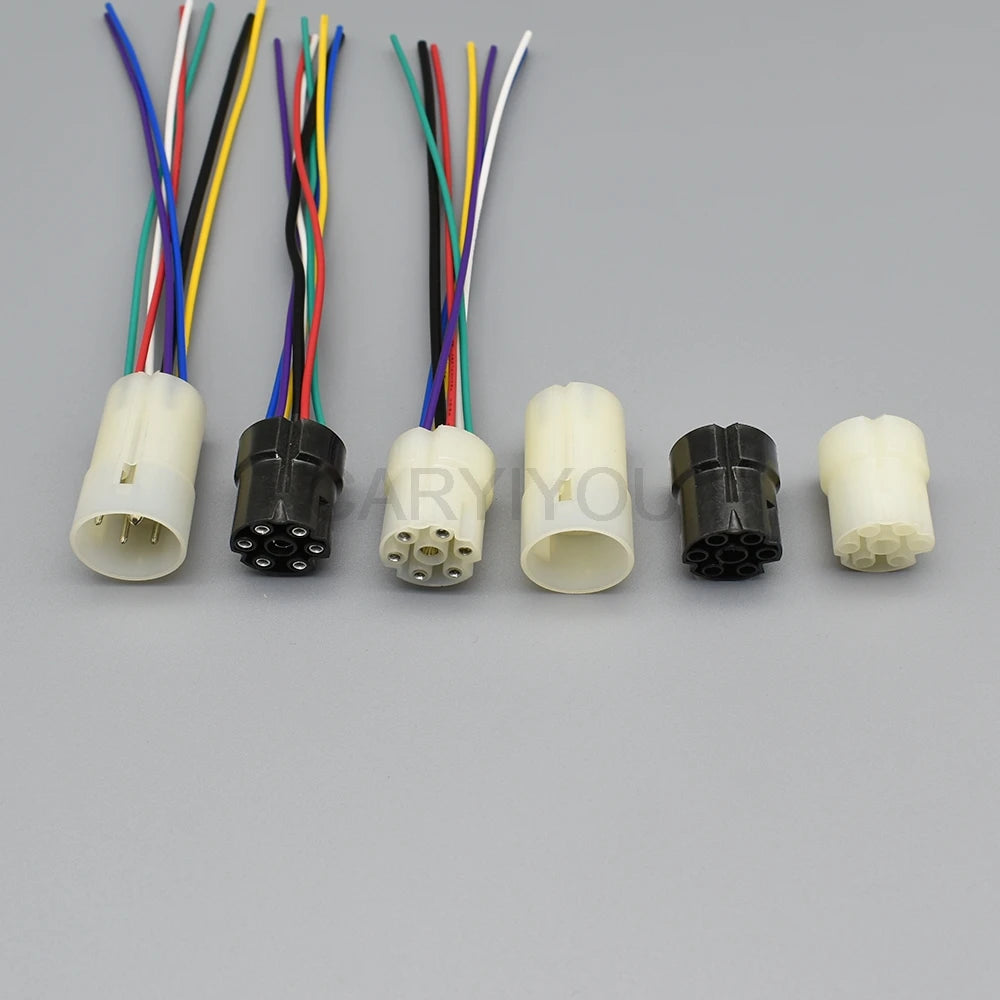

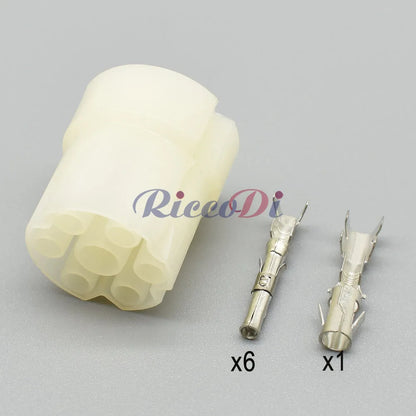

DJ3071-1.5/3.5-11 / DJ3071-1.5/3.5-21 White Automotive 7-Pin Composite Connector — Male Female with 15cm Pre-wired Harness
DJ3071-1.5/3.5-11 / DJ3071-1.5/3.5-21 White Automotive 7-Pin Composite Connector Male Female with 15cm Pre-wired Harness
Couldn't load pickup availability
DJ3071-1.5/3.5-11 / DJ3071-1.5/3.5-21 White Automotive 7-Pin Composite Connector — Male Female with 15cm Pre-wired Harness
Composite pitch connectors combine multiple contact pitches in a single housing — a design approach used in automotive wiring harness applications where both fine-pitch signal circuits and larger-pitch power circuits must be consolidated into one compact connector body. The DJ3071-1.5/3.5-11 (male plug) / DJ3071-1.5/3.5-21 (female socket) white 7-pin composite automotive connector is supplied with a 15cm pre-wired harness for direct plug-and-play installation or harness repair, combining 1.5mm and 3.5mm pitch contacts in a single white housing.
Built from PA66 nylon housing with tin-plated copper alloy contacts in both 1.5mm and 3.5mm pitch positions, and supplied with a 15cm pre-terminated wire harness, this connector simplifies mixed-pitch circuit harness repair without custom wire termination in the field.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Numbers | DJ3071-1.5/3.5-11 (male) / DJ3071-1.5/3.5-21 (female) |
| Pin Count | 7 pins |
| Pitch | 1.5mm / 3.5mm composite |
| Color | White |
| Connector Type | Composite pitch automotive connector with pre-wired harness |
| Cable Length | 15cm pre-wired |
| Housing Material | PA66 nylon |
| Contact Material | Tin-plated copper alloy |
| Certification | CE |
| Origin | Mainland China |
Key Features
- ✅ 1.5/3.5mm composite pitch design — combines fine-pitch signal contacts and standard-pitch power contacts in a single 7-pin white housing for mixed-circuit automotive wiring harness applications
- ✅ 15cm pre-wired harness included — connector supplied with pre-terminated 15cm wire harness for direct plug-and-play installation or splice-in harness repair
- ✅ White housing color — standard color coding for easy connector identification during harness assembly and repair

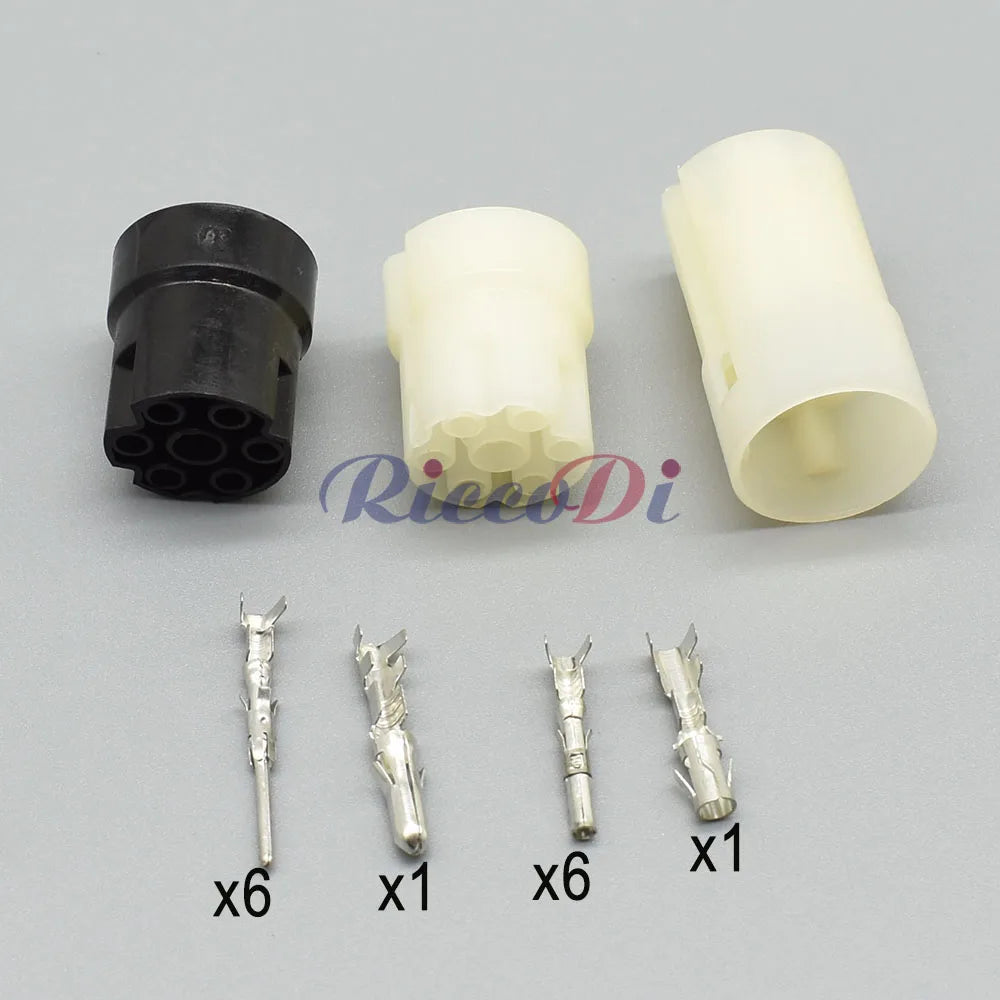

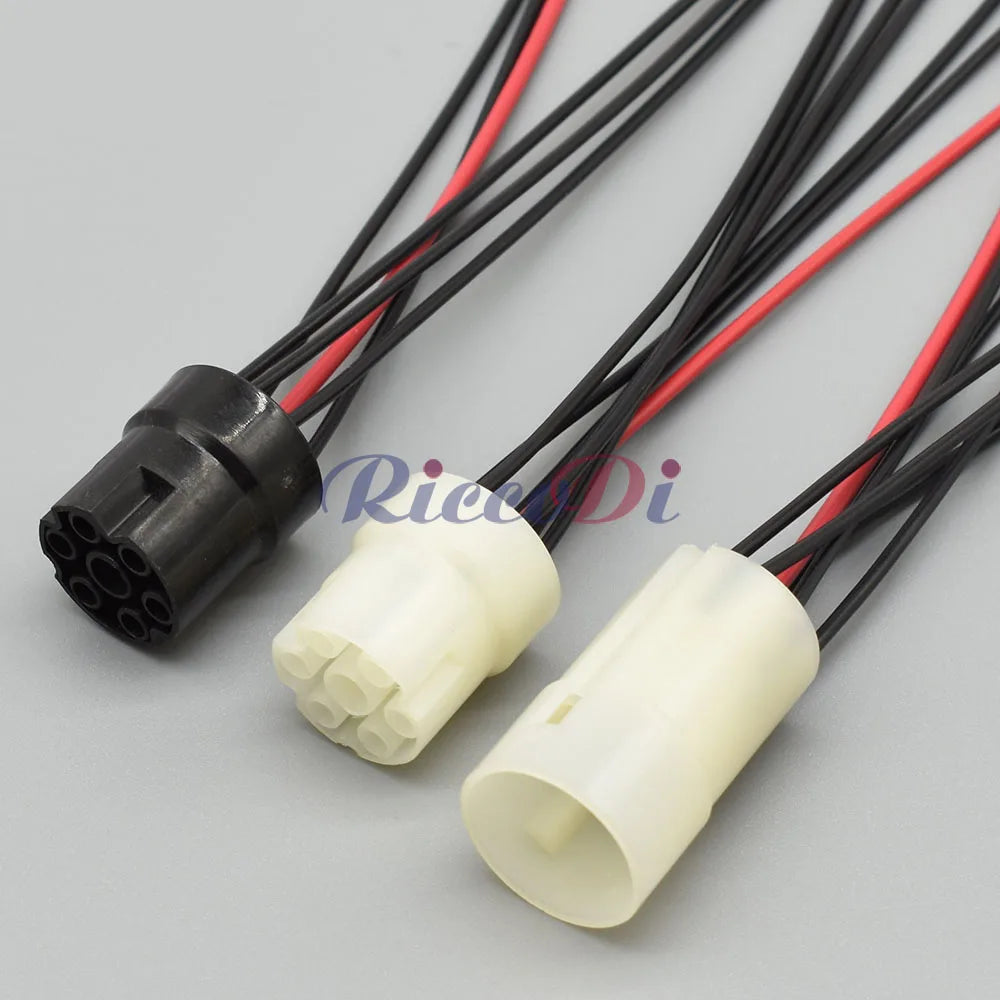

- ✅ Male (-11) and female (-21) available — select the correct gender for your harness repair or fabrication project
- ✅ PA66 nylon housing — dimensionally stable under automotive temperature cycling; resistant to automotive fluids and cleaning chemicals
- ✅ CE certified — meets European automotive electrical component standards
Common Applications
- Automotive mixed-pitch wiring harness composite connector repair
- Body electronics and sensor circuit wiring harness repair using composite pitch connectors
- Custom automotive wiring harness fabrication for mixed signal and power circuit applications
FAQ
Q: What is the length of the pre-wired harness?
A: The connector is supplied with a 15cm pre-terminated wire harness.
Package Contents
- 1× DJ3071-1.5/3.5-11 / DJ3071-1.5/3.5-21 7-Pin White Composite Automotive Connector with 15cm Pre-wired Harness (male or female as selected)
