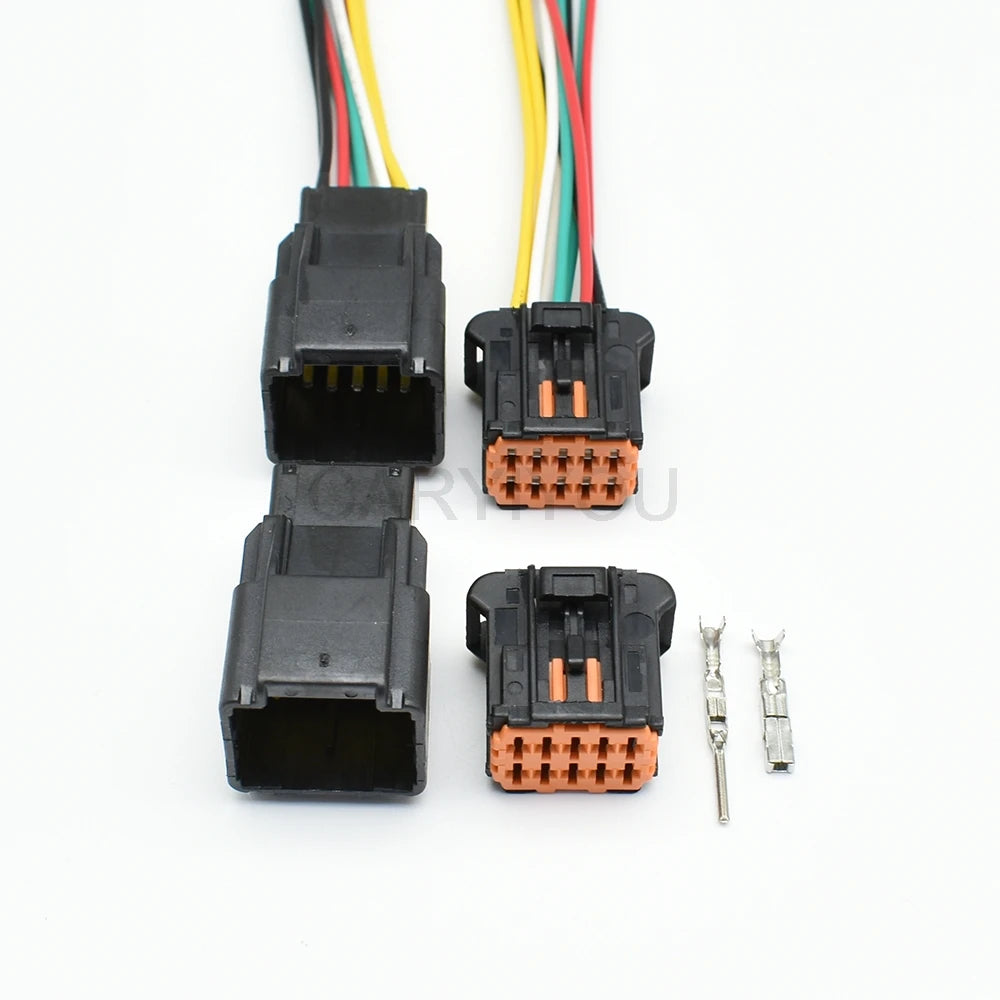

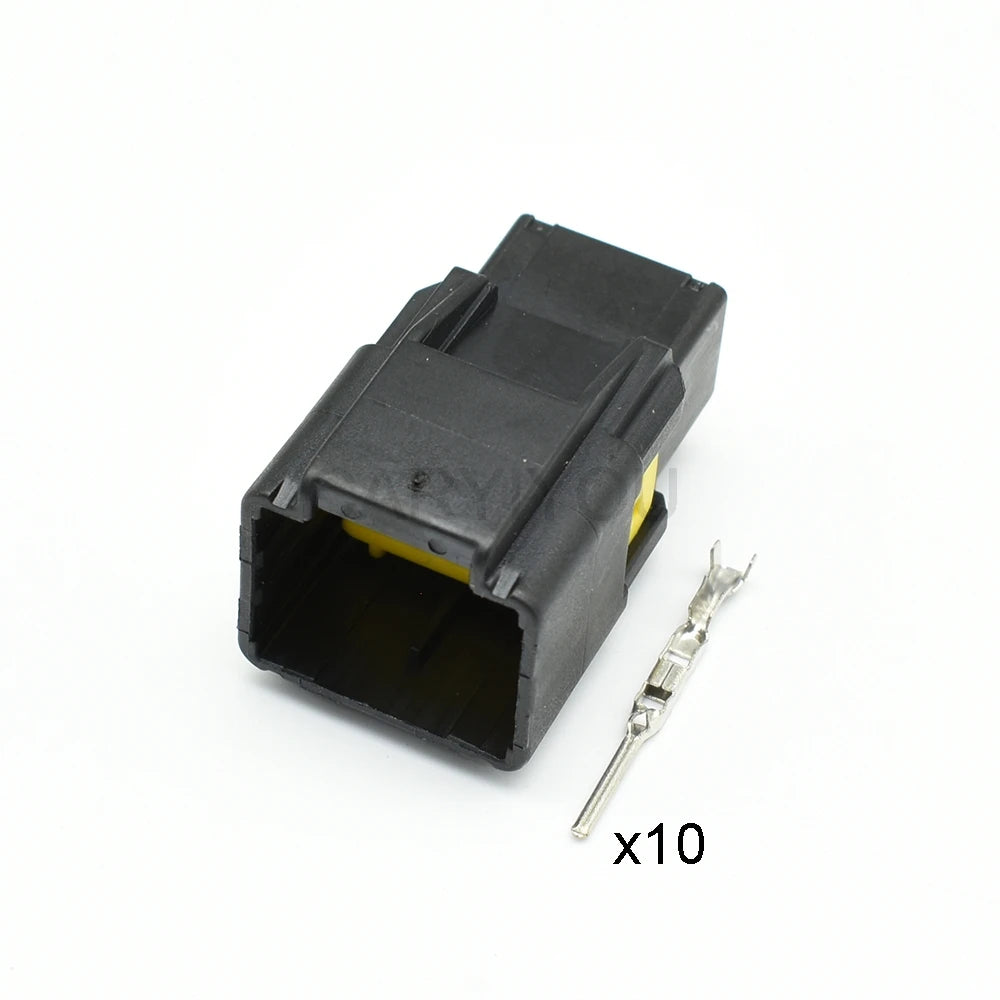

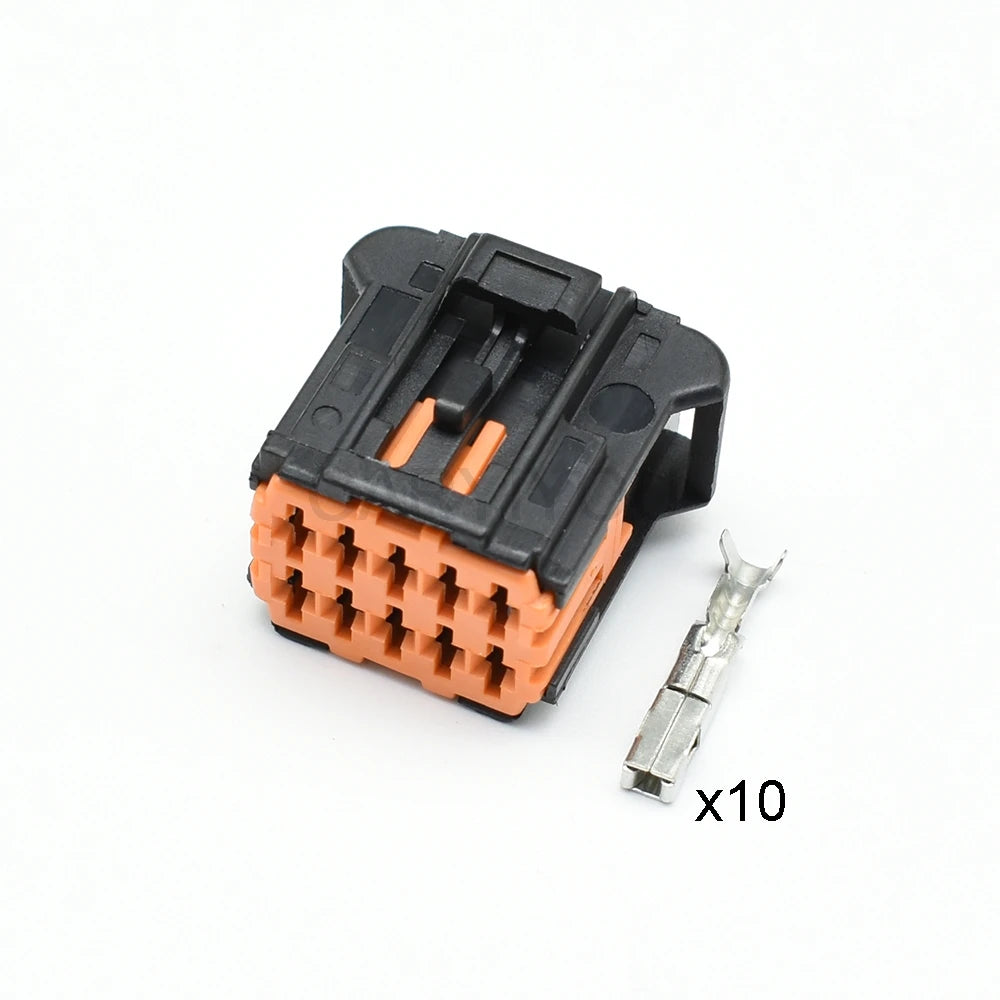

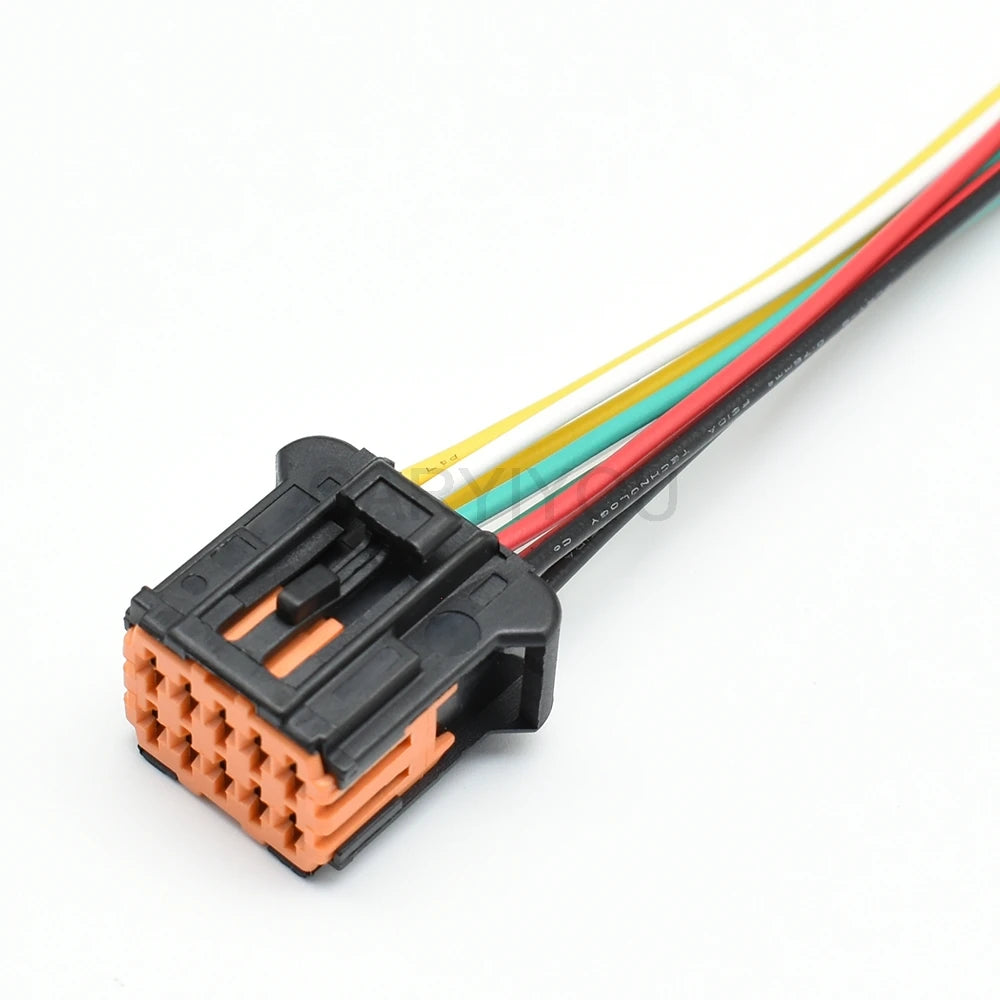

98823-1011 / 98816-1011 Automotive 10-Pin Electrical Connector — Wire Harness Plug for Chevrolet & Peugeot
98823-1011 / 98816-1011 Automotive 10-Pin Electrical Connector Wire Harness Plug for Chevrolet & Peugeot
Couldn't load pickup availability

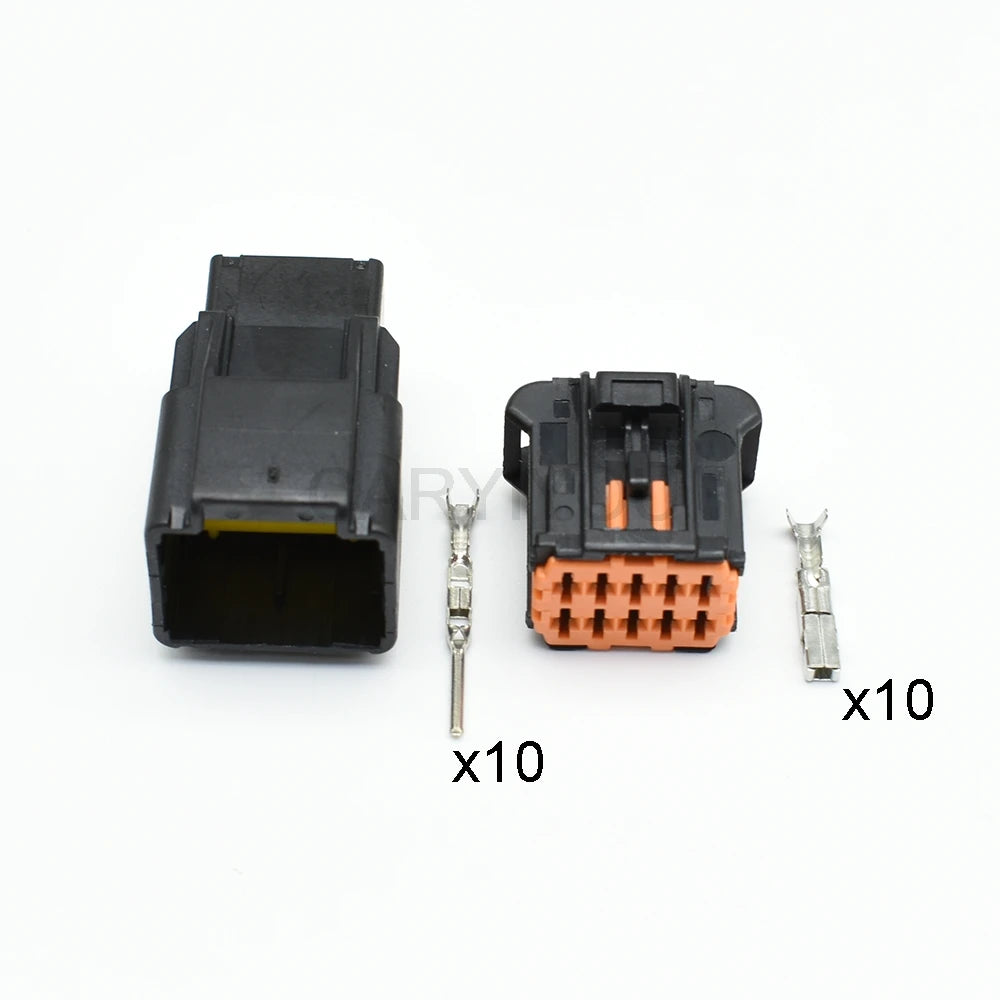

98823-1011 / 98816-1011 Automotive 10-Pin Electrical Connector — Chevrolet & Peugeot

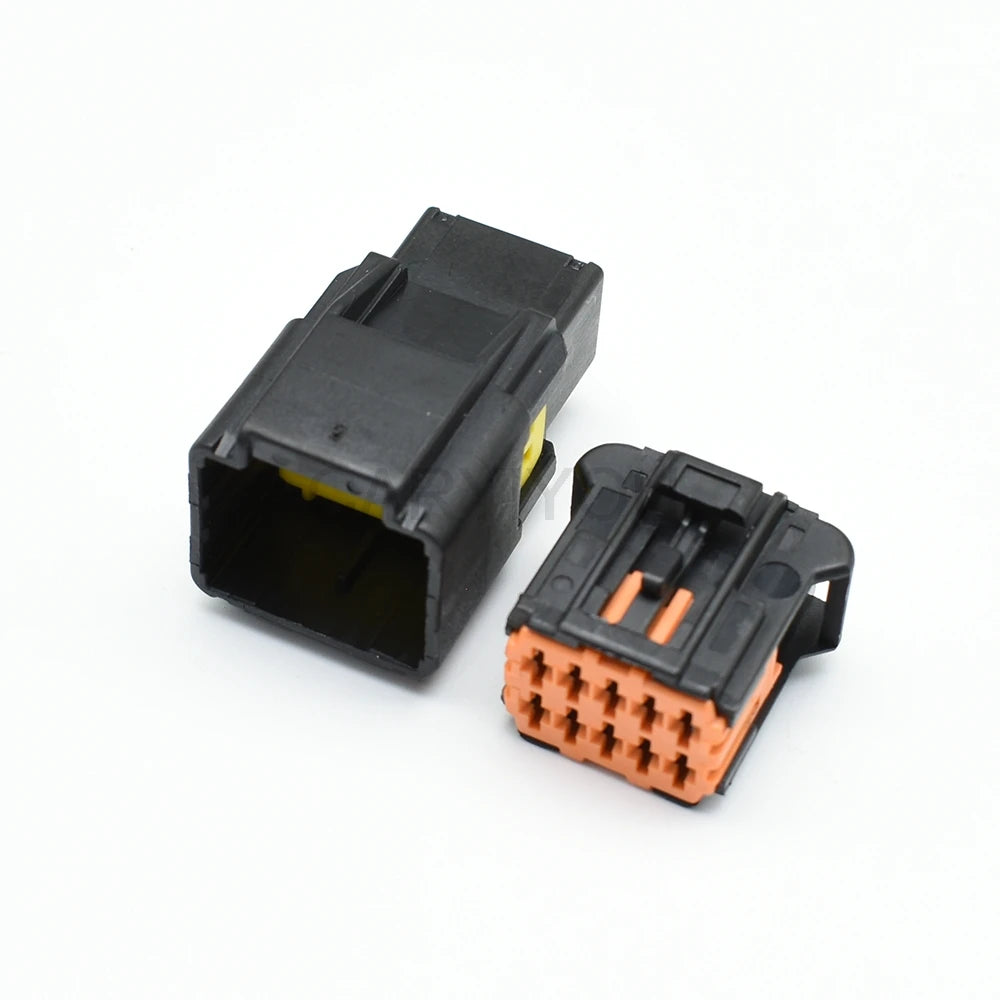

The 98823-1011 (female socket) and 98816-1011 (male plug) are 10-pin automotive electrical connectors used in Chevrolet and Peugeot wiring harness applications. These Molex-series connectors are used in ECU, body control module, and sensor wiring harnesses on GM-platform Chevrolet vehicles and PSA-platform Peugeot vehicles. The 10-pin configuration provides a versatile circuit count for sensor assemblies, BCM interfaces, and multi-function actuator connectors.
The use of the same connector part numbers across both Chevrolet (GM) and Peugeot (PSA) platforms reflects the global standardization of automotive connector systems — Molex connectors are used by multiple OEMs, and the same housing part number may appear in vehicles from different manufacturers. This cross-platform compatibility simplifies the aftermarket parts supply chain for service repair.
Key Specifications
| Parameter | Value |
|---|---|
| Part Numbers | 98823-1011 (female) / 98816-1011 (male) |
| Manufacturer | Molex |
| Pin Count | 10-pin |
| Sealing | Unsealed |
| Housing Material | PA66 glass-filled nylon |
| Terminal Material | Tin-plated copper alloy |
| Operating Temperature | -40°C to +125°C |
| Compatible Platforms | Chevrolet (GM), Peugeot (PSA) |
| Compliance | RoHS |
Molex Automotive Connector System
- Molex OEM standard — Molex is one of the world’s largest connector manufacturers, supplying automotive connector systems to GM, Ford, PSA, and many other OEMs
- Cross-platform compatibility — the same Molex connector part number is used across multiple OEM platforms; the 98823-1011/98816-1011 appears in both GM and PSA wiring harnesses
- 10-pin for versatile applications — the 10-pin configuration is used for ECU signal connectors, BCM interfaces, and sensor assemblies across both platforms
- OEM dimensions — manufactured to Molex mating specifications for direct replacement compatibility
Typical Applications
- Chevrolet ECU and BCM connector repair
- Peugeot sensor and control module connector replacement
- GM-platform body control module wiring harness repair
- PSA-platform ECU connector replacement
Frequently Asked Questions
Q: Which Chevrolet and Peugeot models use 98823-1011 / 98816-1011?
These connectors are used across multiple Chevrolet models (Cruze, Malibu, Trax, Captiva) and Peugeot models (208, 308, 2008, 3008) from the 2010s. The exact application varies by model year and equipment level. Consult the GM or PSA parts catalog with your vehicle’s VIN to confirm the connector part number for your specific model and application.
Q: What is the difference between 98823-1011 (female) and 98816-1011 (male)?

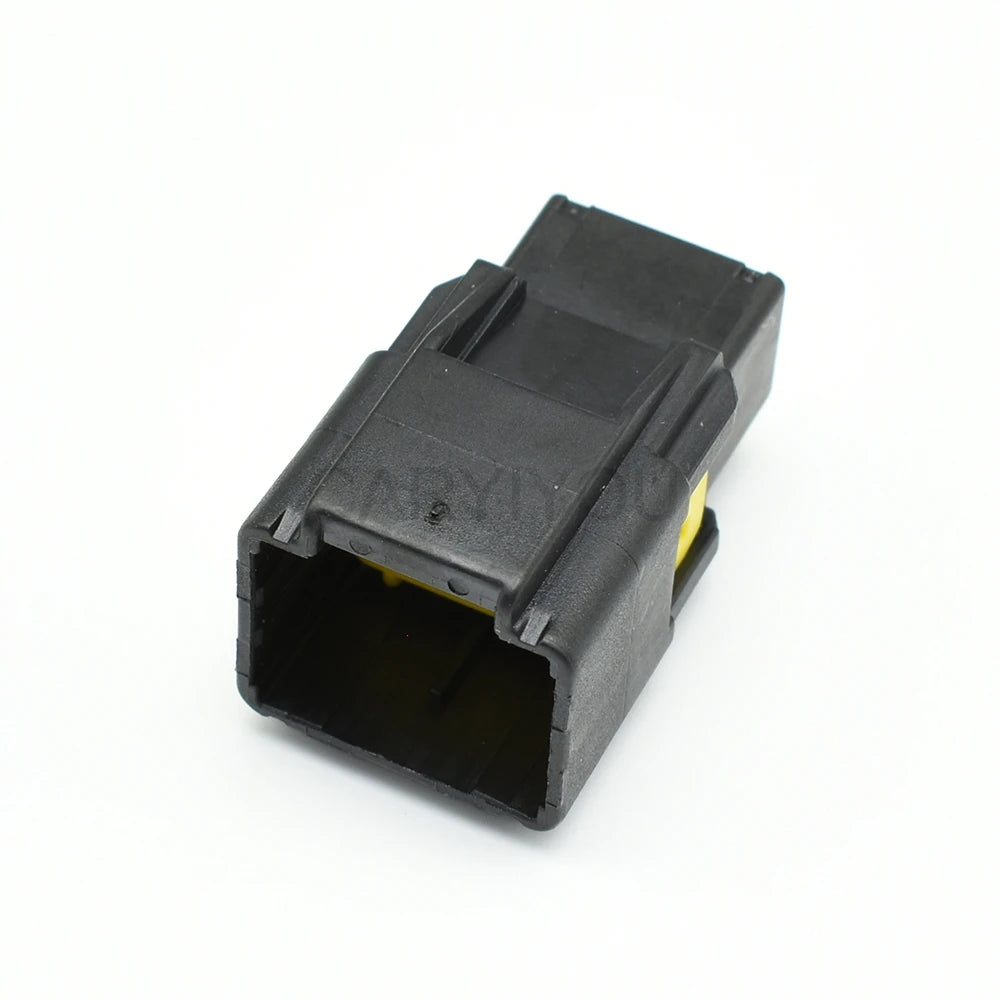

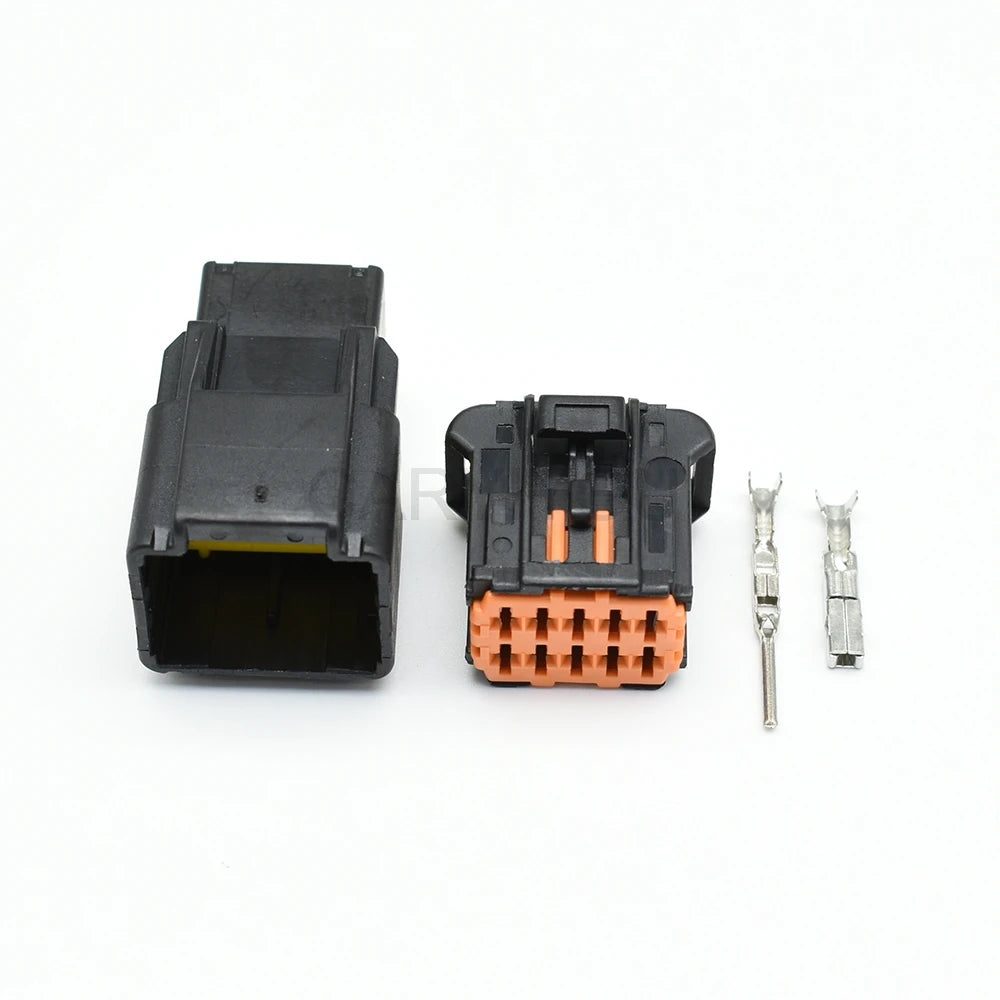

98823-1011 is the female socket — it has socket terminals and is typically on the wiring harness side. 98816-1011 is the male plug — it has pin terminals and is typically on the component (ECU, sensor) side. Always verify the gender of your original connector before ordering.
Q: How do I find the compatible terminal for Molex 98823-1011?
Look up the part number in the Molex connector catalog (available at molex.com) to find the compatible terminal part number, wire gauge range, and crimping tool specification. Molex provides detailed product specifications and application tooling information for all connector series. The catalog lists all compatible terminals and accessories for each housing variant.
