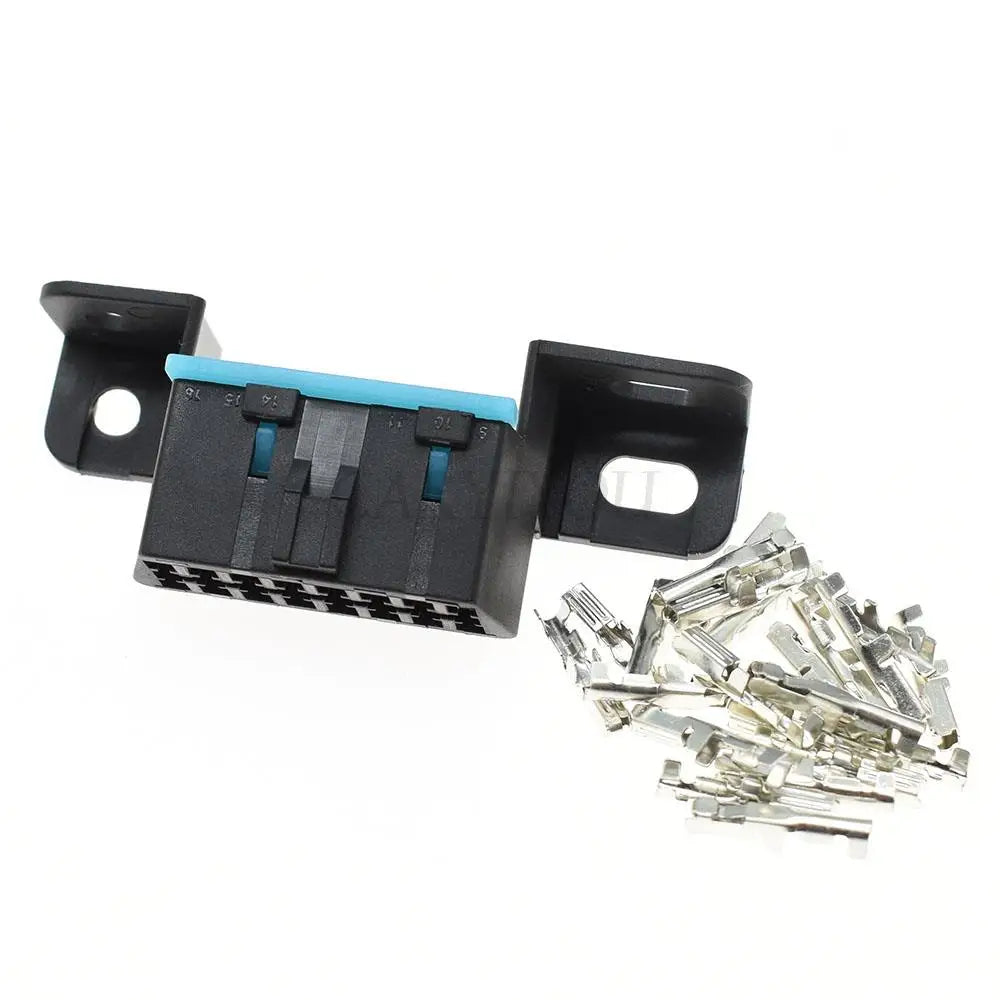

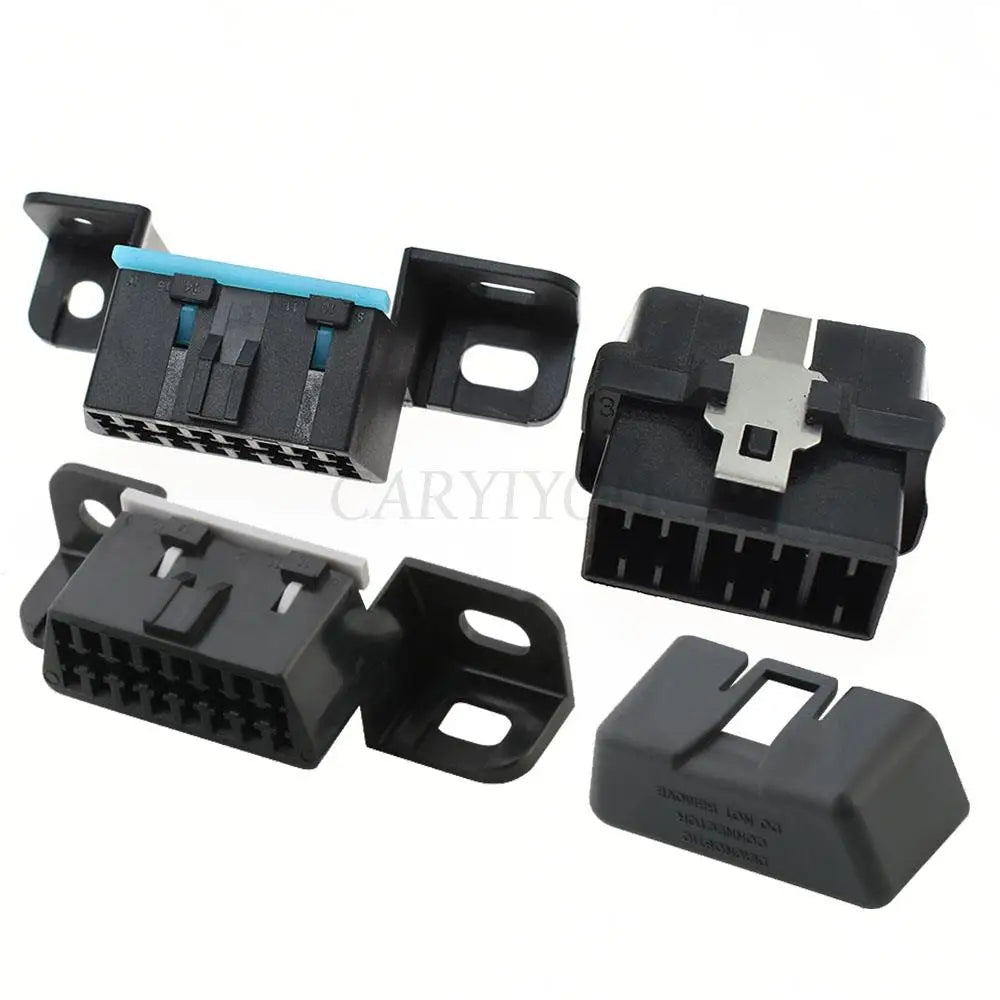

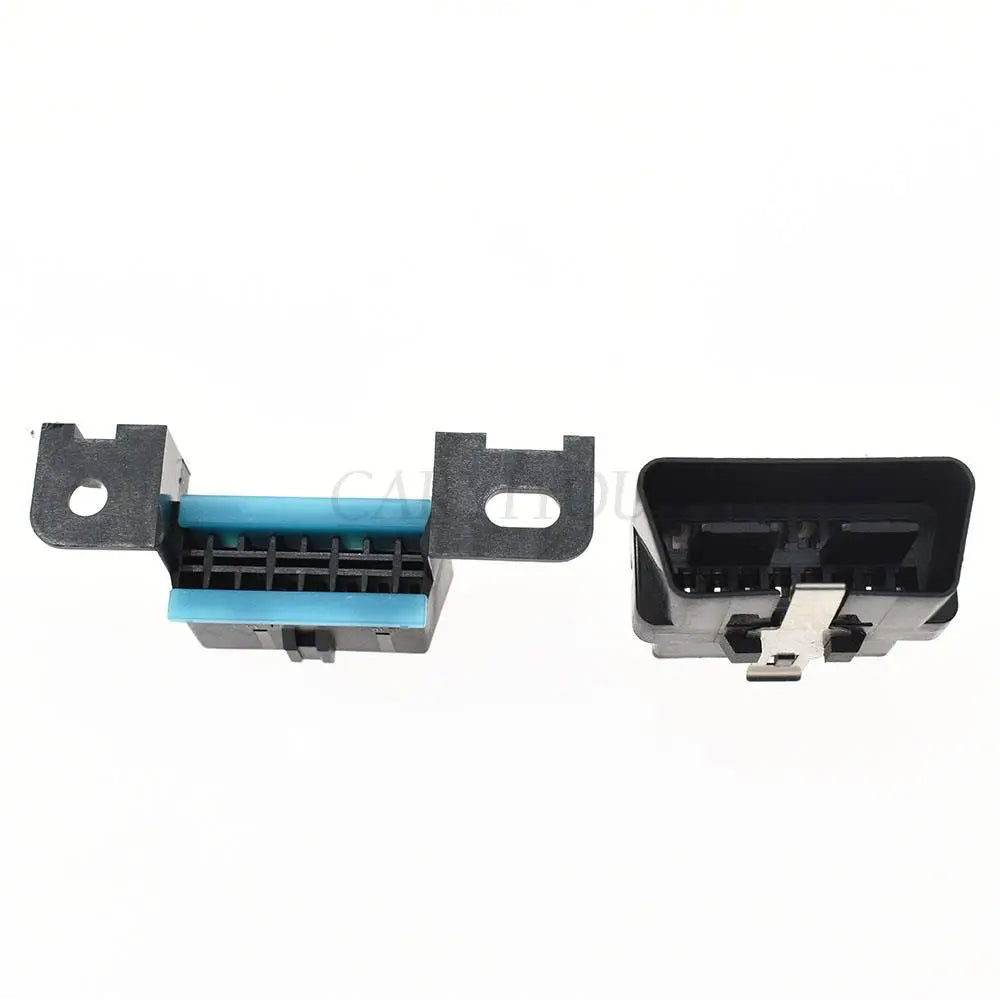

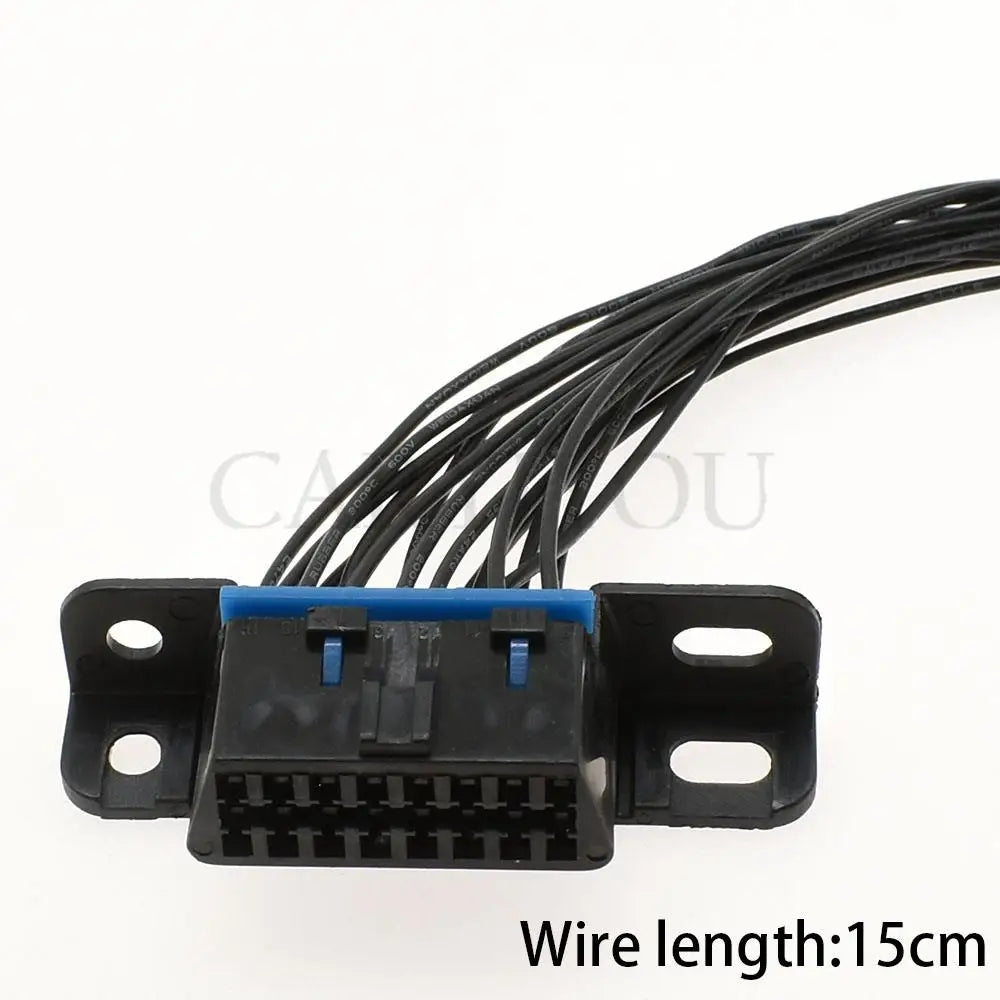

MG610761-5 Automotive 16-Pin OBD2 Diagnostic Connector — Black Female Wire Socket with 20cm Cable
MG610761-5 Automotive 16-Pin OBD2 Diagnostic Connector Black Female Wire Socket with 20cm Cable
Couldn't load pickup availability
MG610761-5 Automotive 16-Pin OBD2 Diagnostic Connector — Black Female Wire Socket with 20cm Cable

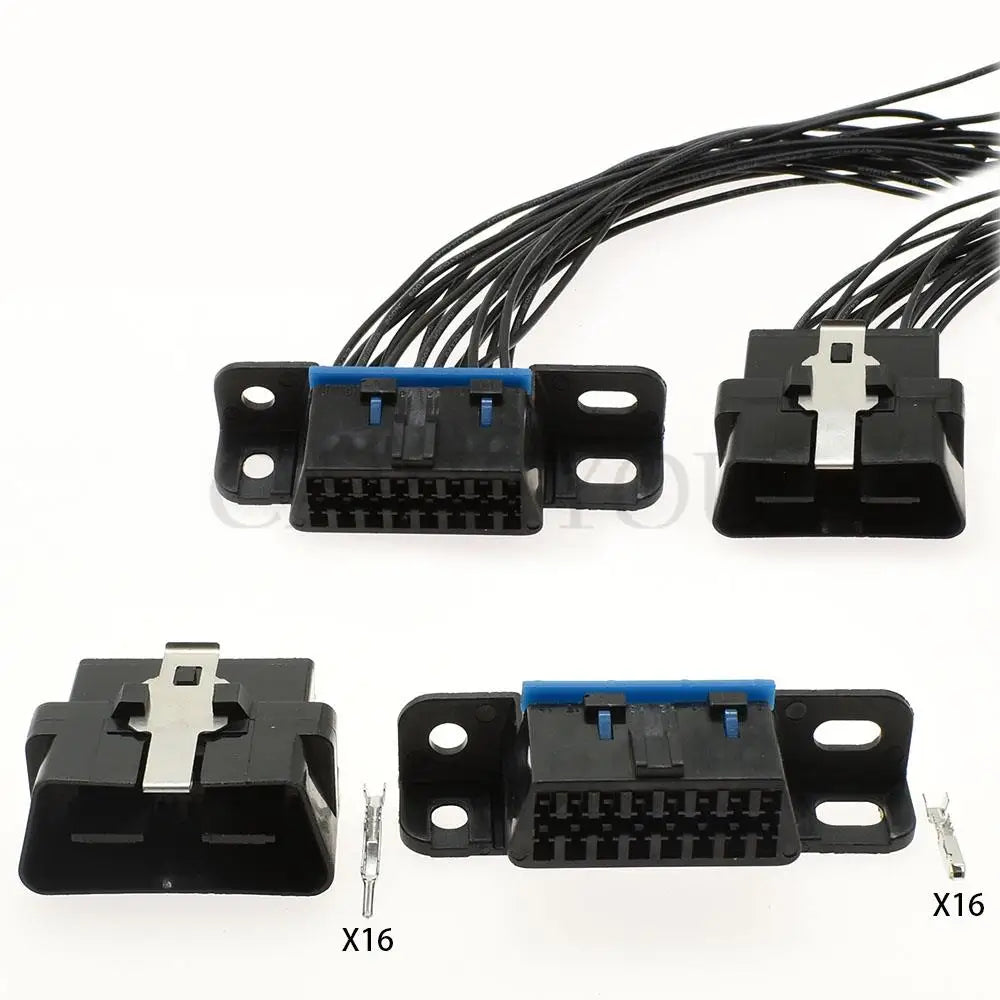

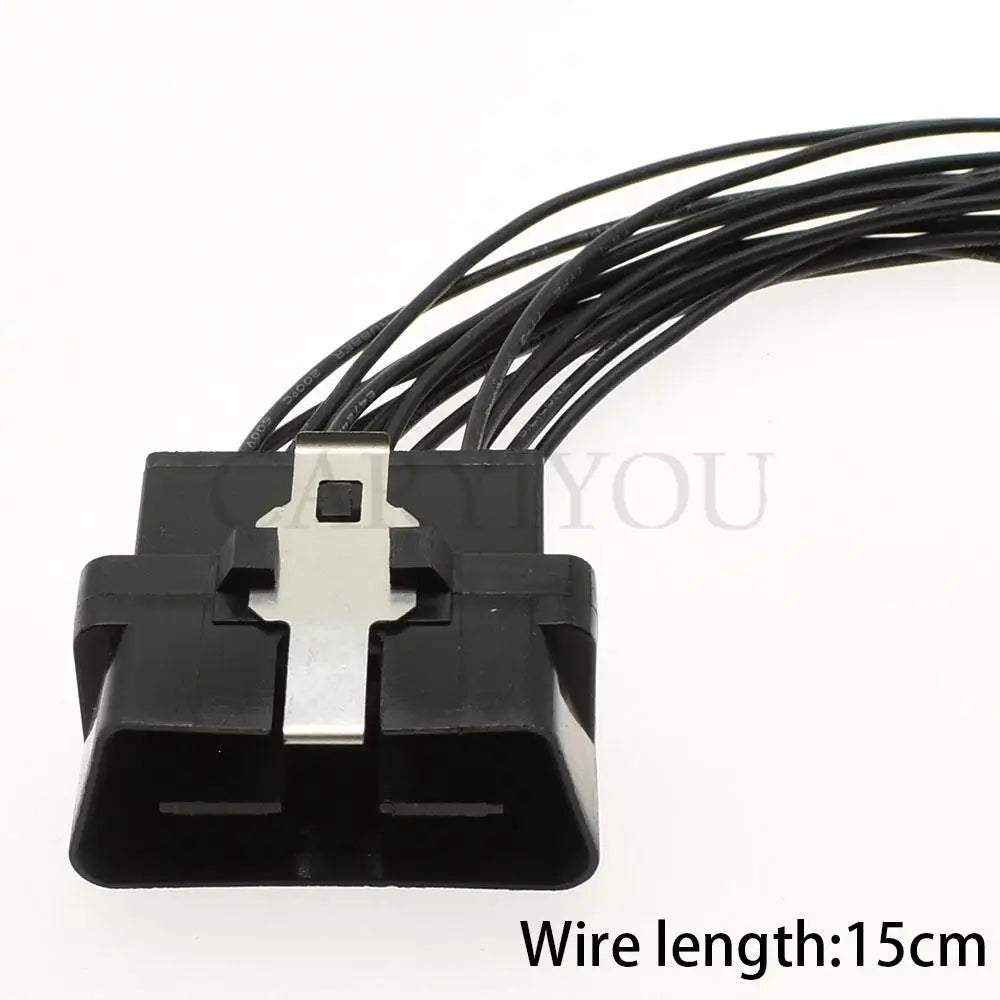

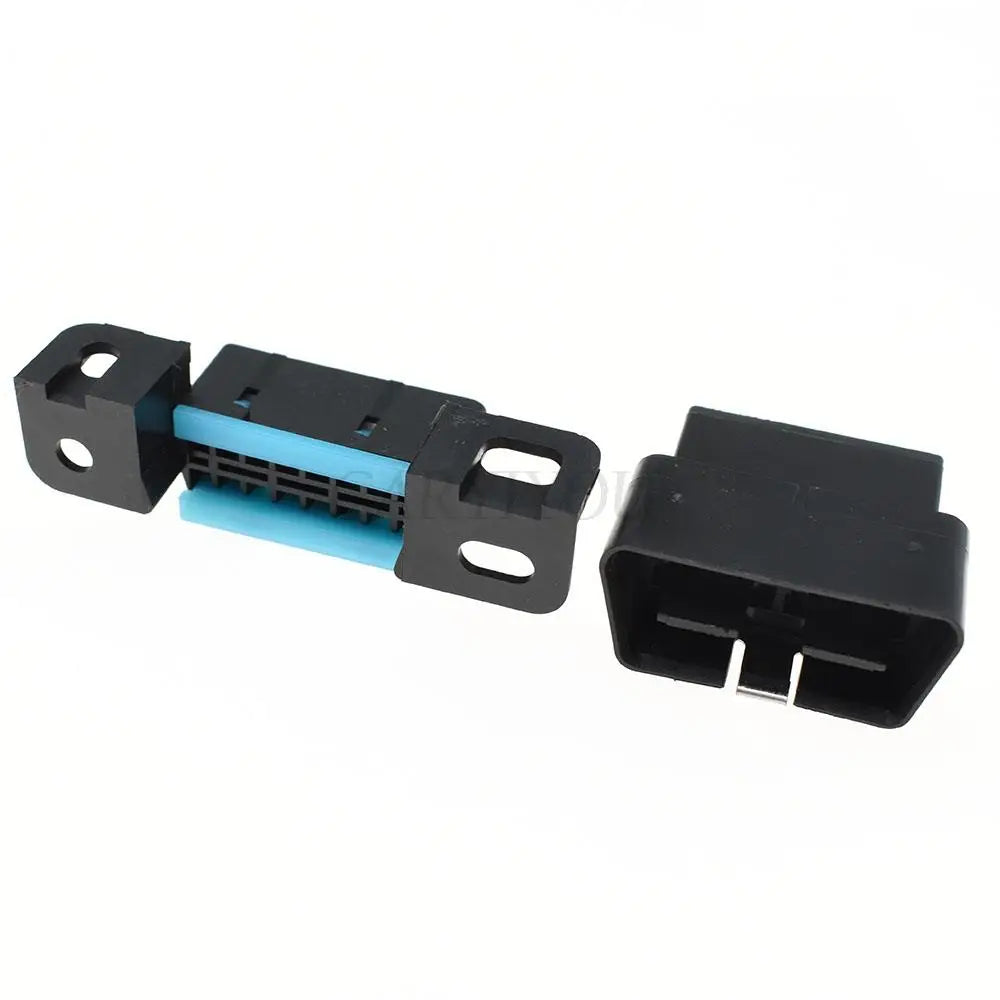

OEM-specification 16-pin OBD2 diagnostic connector (part number MG610761-5) for automotive diagnostic tool wiring harness applications. This black female socket is pre-wired with a 20cm cable for direct integration into OBD2 diagnostic adapters, scan tools, and custom automotive diagnostic harnesses. Compliant with OBD-II (SAE J1962) Type A 16-pin interface standard.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | MG610761-5 |
| Pin Count | 16 pins |
| Type | OBD2 diagnostic female socket |
| Cable Length | 20cm pre-wired |
| Color | Black |
| Standard | OBD-II / SAE J1962 Type A |
| Material | PA66 housing, tin-plated copper alloy contacts |
| Origin | Mainland China |
Key Features
- ✅ 16-pin OBD2 female socket — SAE J1962 Type A compliant for universal OBD-II diagnostic tool compatibility
- ✅ Pre-wired 20cm cable — ready for direct integration into diagnostic adapters and scan tool harnesses
- ✅ Part number MG610761-5 — OEM-specification connector for reliable diagnostic signal integrity
- ✅ PA66 housing — high-temperature, chemical-resistant nylon for automotive environments
- ✅ Black color — standard OBD2 Type A socket color for easy identification
Common Applications
- OBD2 diagnostic adapter and scan tool harness fabrication
- Automotive diagnostic cable assembly and repair
- Custom OBD-II interface wiring for ECU tuning and data logging
- Automotive workshop diagnostic tool wiring harness replacement
FAQ
Q: Is this compatible with standard OBD2 scan tools?
A: Yes. This connector follows the SAE J1962 Type A 16-pin OBD-II standard and is compatible with all standard OBD2 diagnostic scan tools and adapters.
Q: What is the cable length?
A: The connector comes pre-wired with a 20cm cable for direct integration into your diagnostic harness or adapter assembly.
Package Contents
- 1× MG610761-5 16-Pin OBD2 Black Female Diagnostic Socket with 20cm Pre-wired Cable
