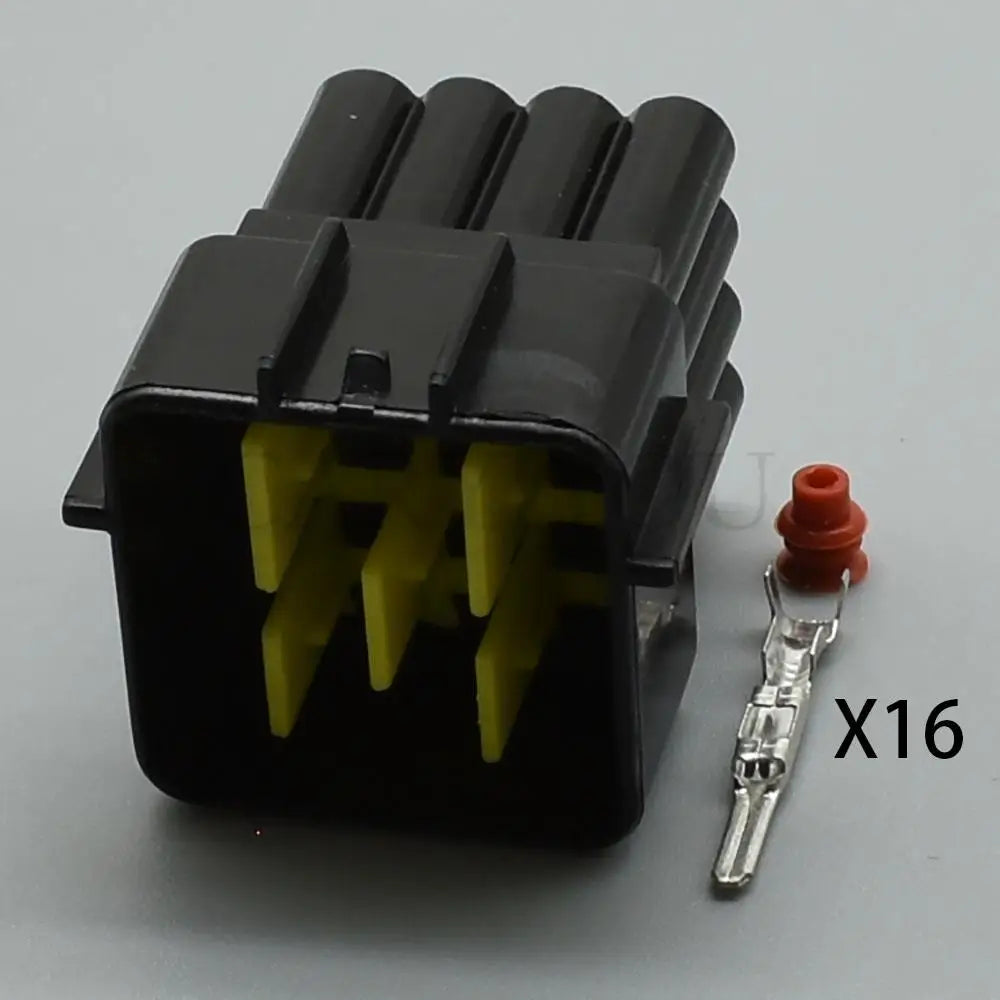

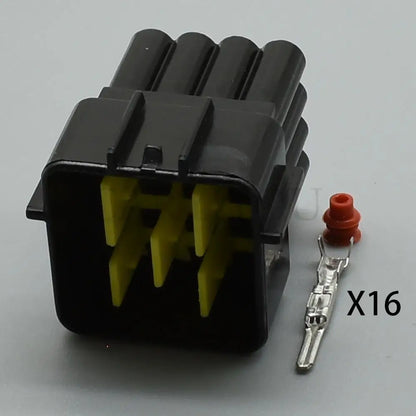

FW-C-16M-B / FW-C-16F-B Automotive 16-Pin Waterproof Connector — Furukawa Series

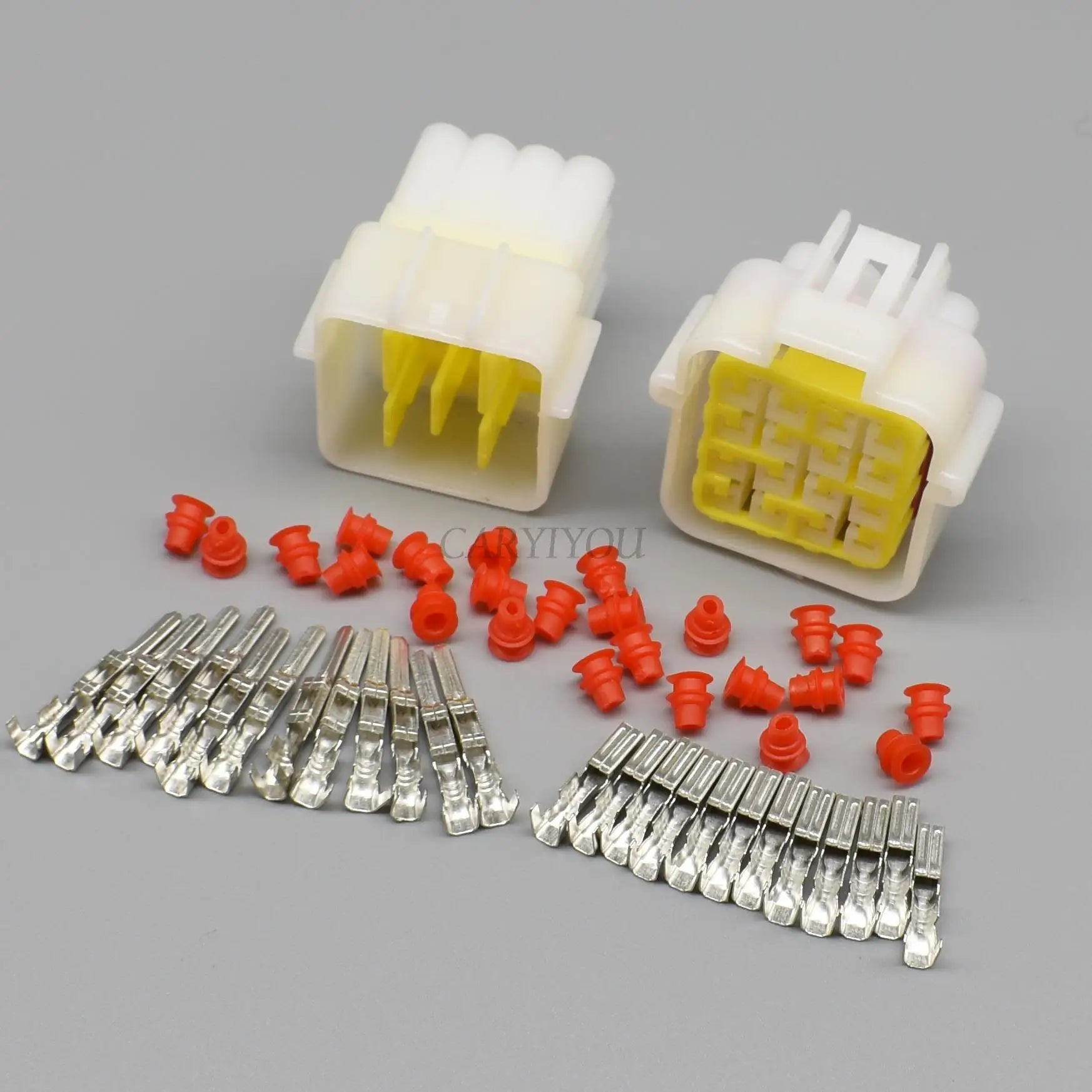

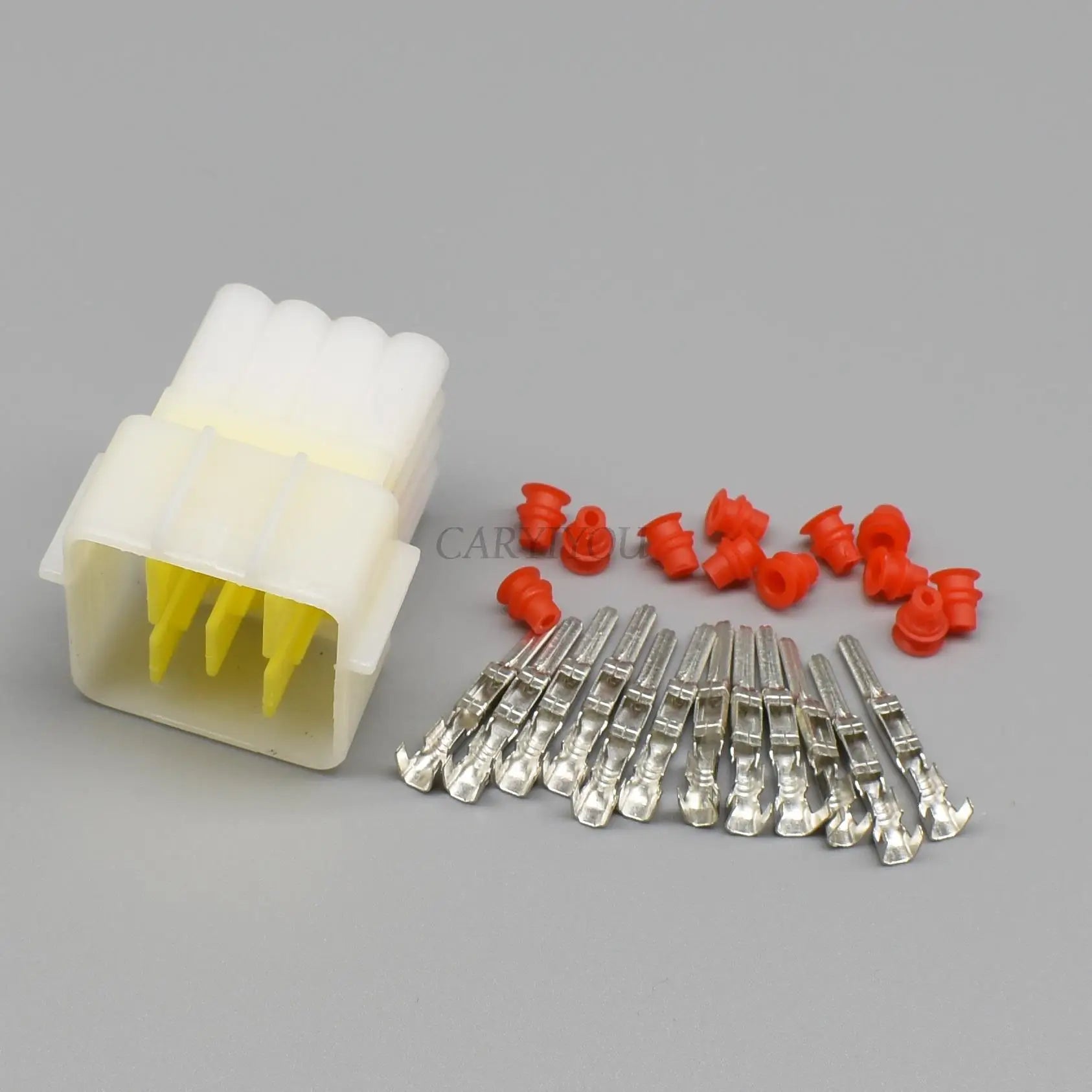

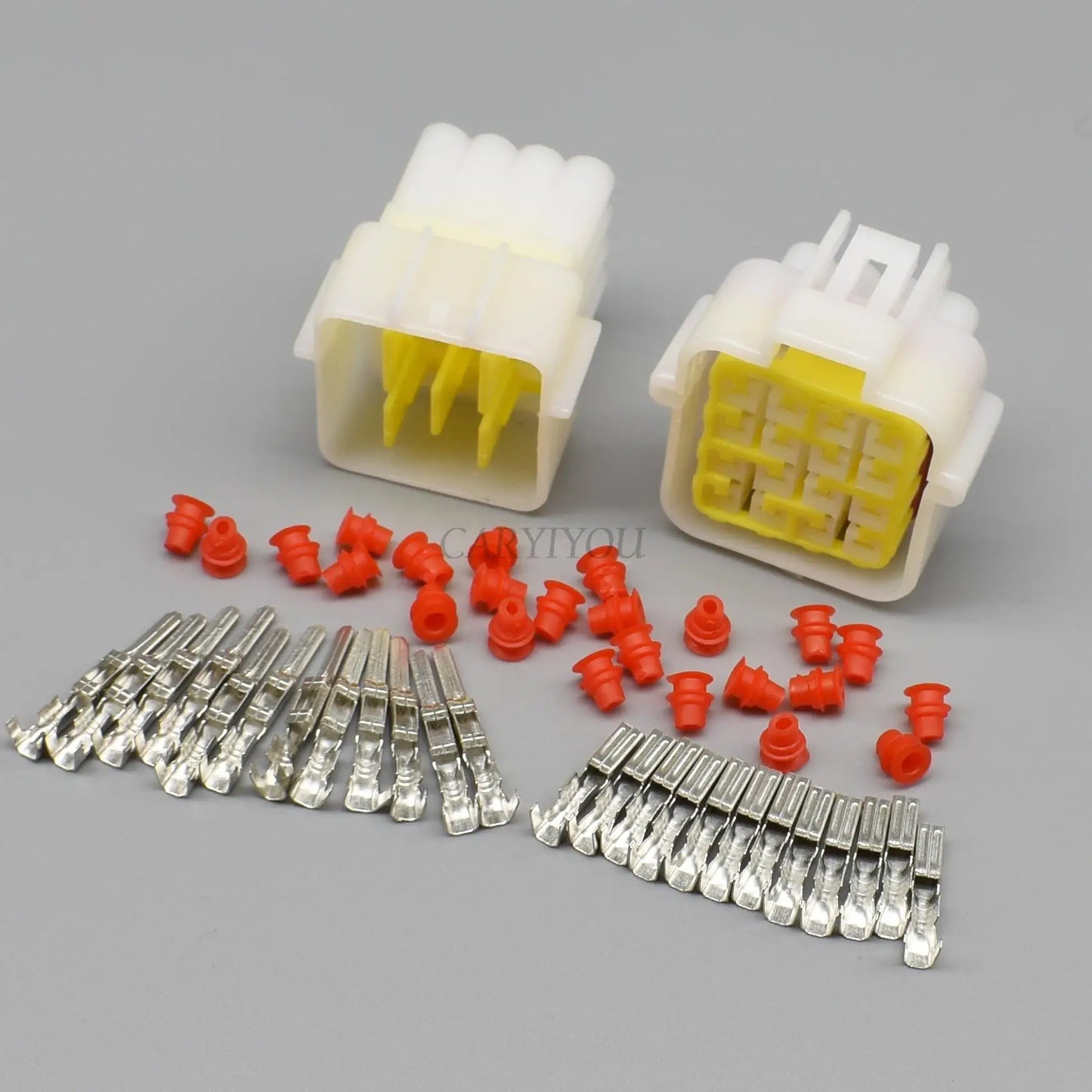

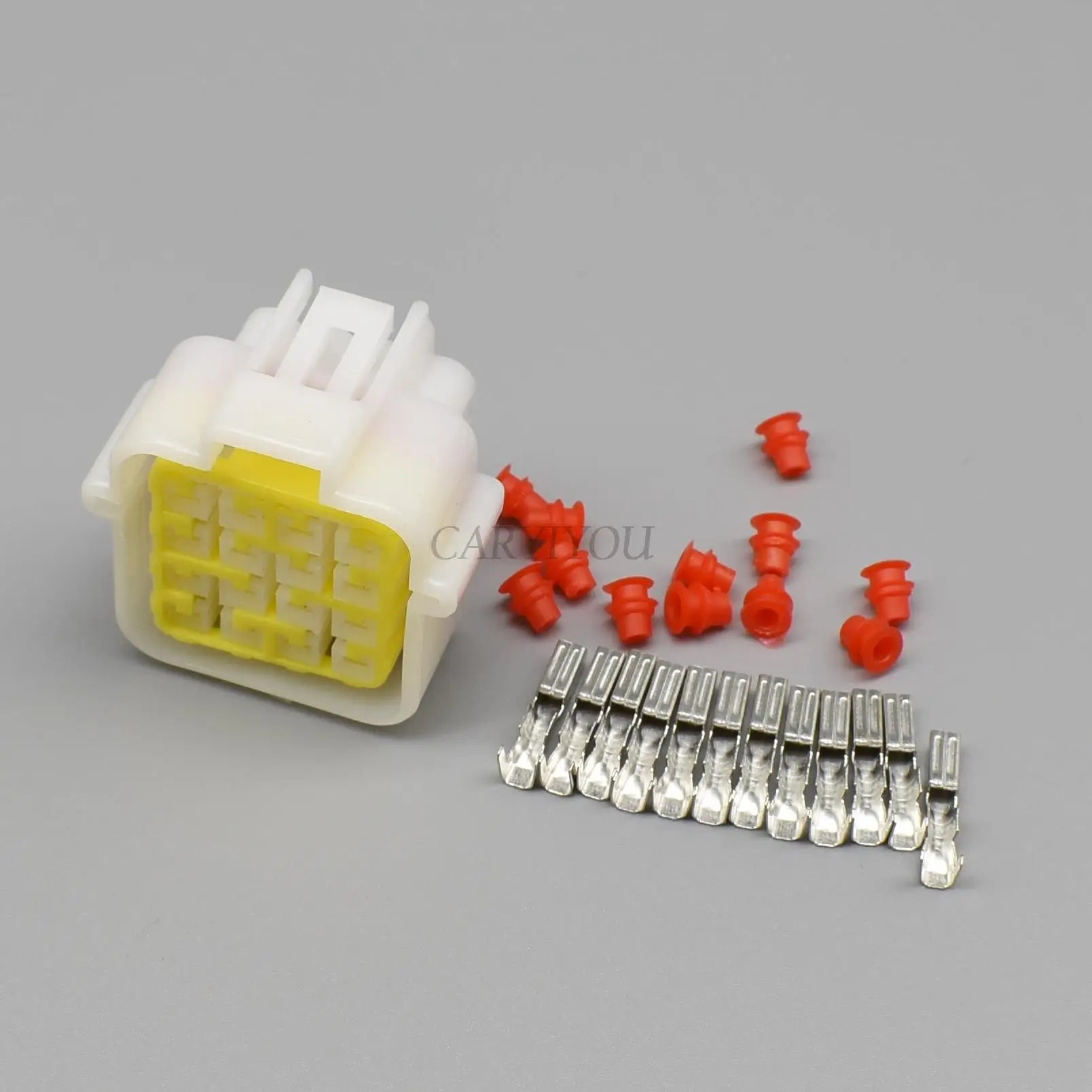

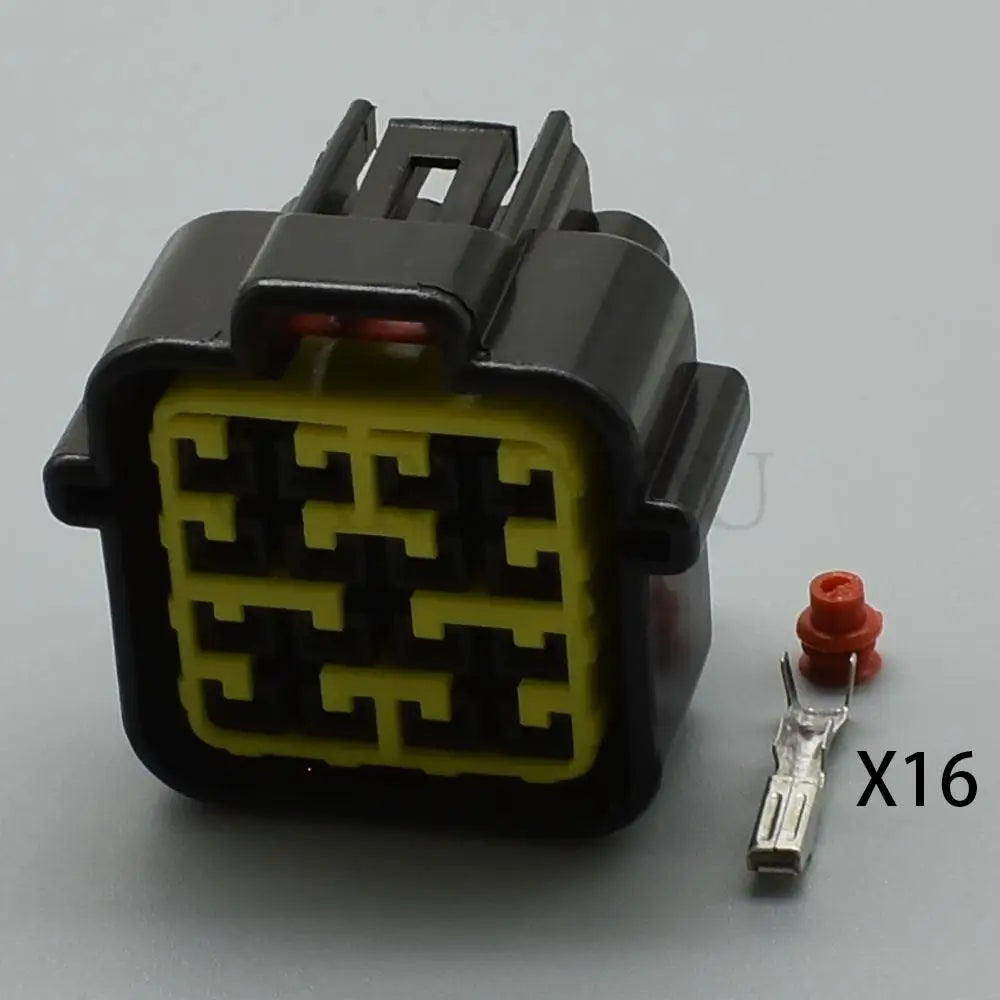

The FW-C-16M-B (male) and FW-C-16F-B (female) are 16-pin waterproof automotive connectors from the Furukawa Electric (FW-C) series, supplied with pre-crimped cable pigtails for direct wiring harness integration. Furukawa Electric is a major Japanese automotive wiring harness manufacturer supplying OEM harnesses to Honda, Nissan, Mitsubishi, and other Japanese vehicle brands. The FW-C series sealed connectors are used for ECU, body control, and sensor applications requiring moisture protection.
Key Specifications
| Parameter | Value |
|---|---|
| Part Numbers | FW-C-16M-B (male) / FW-C-16F-B (female) |
| Manufacturer | Furukawa Electric |
| Pin Count | 16-pin |
| Sealing | Waterproof (sealed) |
| Housing Material | PA66 glass-filled nylon |
| Terminal Material | Tin-plated copper alloy |
| Cable | Pre-crimped pigtail cables included |
| Operating Temperature | -40°C to +125°C |
| Compatible Platforms | Honda, Nissan, Mitsubishi (Furukawa harness) |
| Compliance | RoHS |
Furukawa FW-C Series — Key Features
- Pre-crimped cable pigtails — supplied with pre-crimped wires for direct splice-in installation; eliminates the need for a separate crimping tool for basic harness repair
- Waterproof sealed design — sealed housing with wire seals provides moisture protection for underhood and chassis applications
- Furukawa OEM standard — FW-C series connectors are used in Furukawa-supplied harnesses across Honda, Nissan, and Mitsubishi platforms
- 16-pin for complex circuits — suitable for multi-circuit sensor assemblies, body control modules, and lighting control units
Typical Applications
- Honda / Nissan / Mitsubishi ECU and BCM connector repair
- Multi-circuit sensor assembly connector replacement
- Body control module wiring harness repair
- Lighting control unit connector replacement
Frequently Asked Questions
Q: What is the cable length on the pre-crimped pigtails?

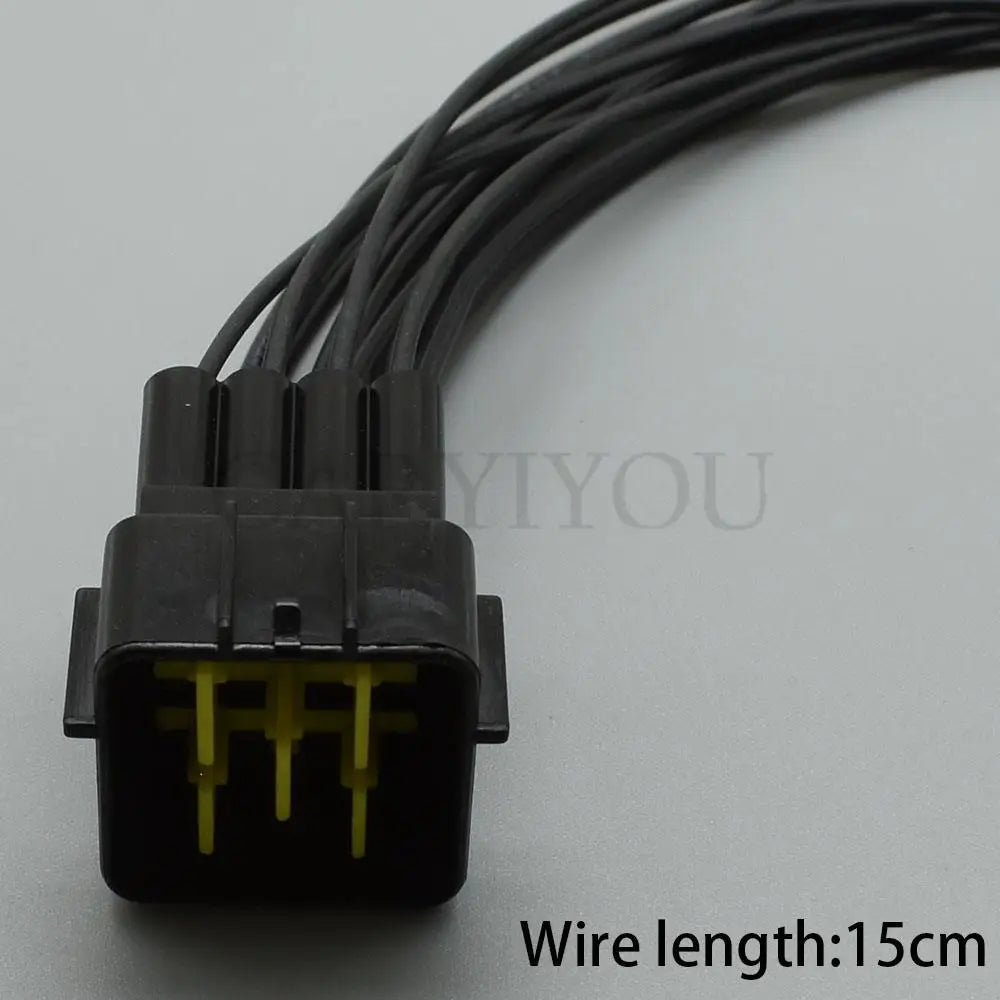

The pre-crimped cable length is typically 150–200mm per wire. This provides sufficient length for most splice-in repairs. If additional length is needed, extend the wires using heat-shrink solder sleeves or butt connectors before connecting to the vehicle harness.
Q: Can I use FW-C-16M-B and FW-C-16F-B together as a connector pair?
Yes — the FW-C-16M-B (male) and FW-C-16F-B (female) are a matched connector pair that mate together. They can be used to create a new connector junction in a wiring harness, add a disconnect point for a custom accessory, or replace a damaged connector pair.
