8100-3068 / 8100-3067 / 6810208KSS Automotive 1mm HV/HVG Sealed Wire Splice Terminal — 50PCS
8100-3068 / 8100-3067 / 6810208KSS Automotive 1mm HV/HVG Sealed Wire Splice Terminal 50PCS
Couldn't load pickup availability

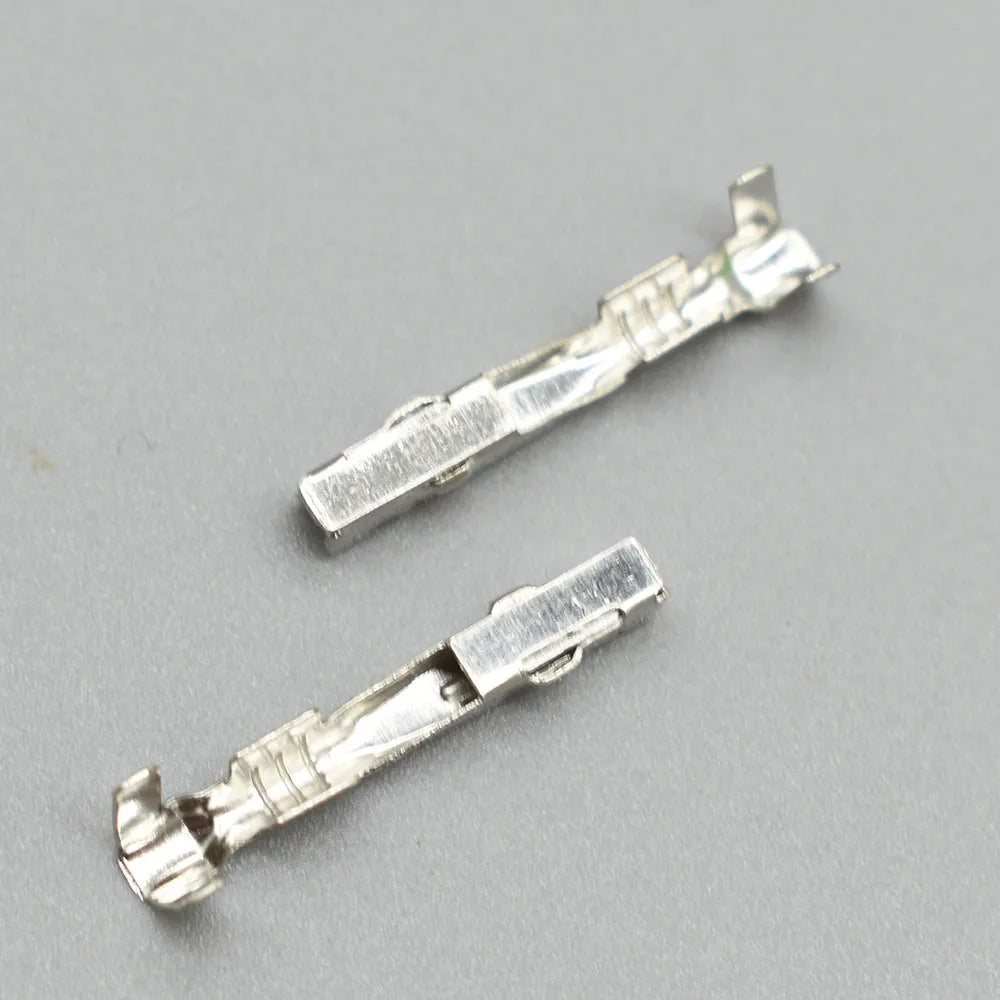

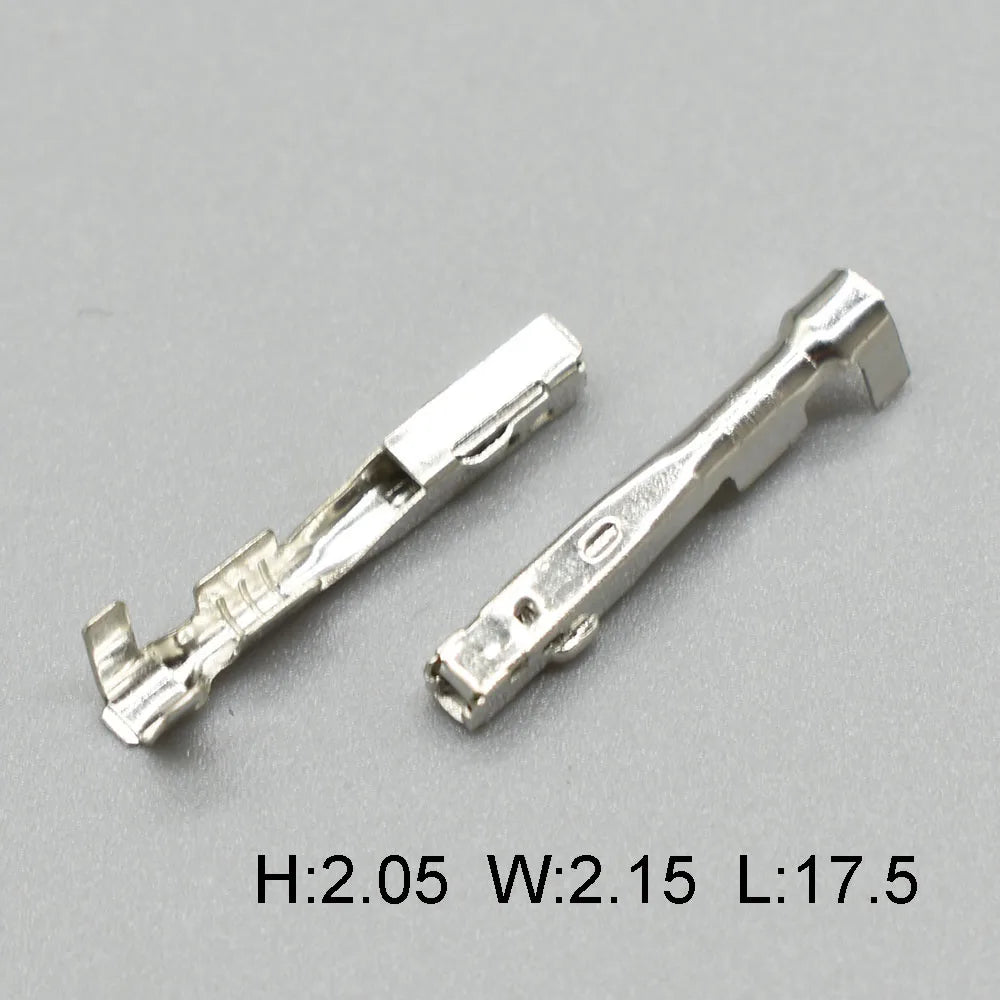

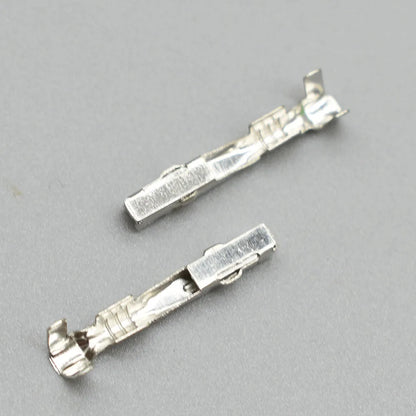

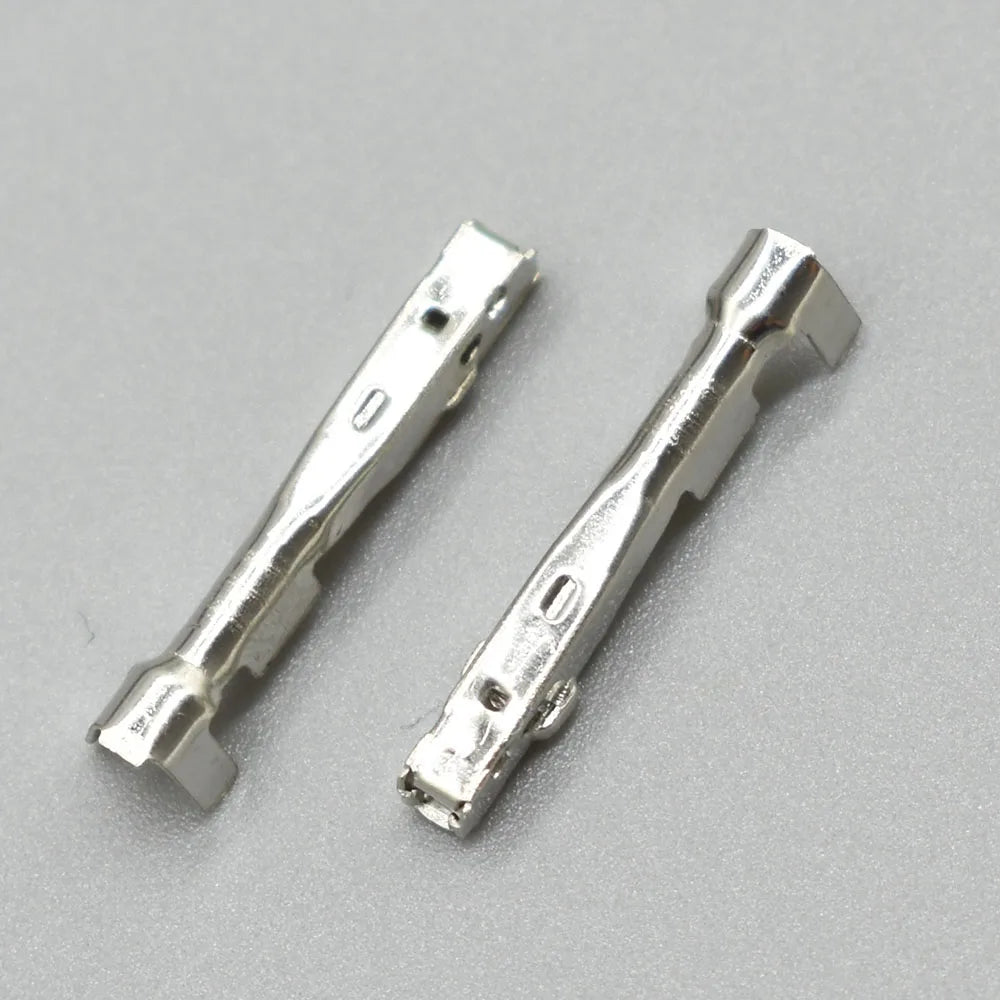

8100-3068 / 8100-3067 / 6810208KSS Automotive 1mm HV/HVG Sealed Wire Splice Terminal
OEM-specification 1mm series HV/HVG sealed wire splice terminals (part numbers 8100-3068, 8100-3067, 6810208KSS) for automotive waterproof wiring harness applications. These sealed splice terminals create a reliable, moisture-resistant inline wire splice without the need for heat-shrink tubing or additional sealing materials. The integrated silicone seal provides IP67-rated environmental protection at the splice point, making them ideal for under-hood, underbody, and exterior lighting wiring harness repair and fabrication. Supplied in a 50PCS pack.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Numbers | 8100-3068 / 8100-3067 / 6810208KSS |
| Series | 1mm HV/HVG automotive sealed splice terminal |
| Wire Range | 0.5–1.0mm² (AWG 20–18) |
| Sealing | Integrated silicone seal (IP67) |
| Material | Tin-plated brass with silicone seal |
| Pack Quantity | 50PCS |
| Certification | CE |
| Origin | Mainland China |
Key Features
- ✅ Integrated silicone seal — IP67-rated moisture and dust protection at the splice point without additional sealing materials
- ✅ 1mm series HV/HVG — OEM-specification terminal for automotive waterproof wiring harness splice applications
- ✅ Tin-plated brass — low contact resistance, corrosion-resistant, reliable long-term electrical performance
- ✅ CE certified — meets European automotive electrical component standards
- ✅ 50PCS pack — sufficient for multiple harness repair and fabrication jobs
Common Applications
- Automotive wiring harness inline splice repair (waterproof)
- Under-hood and underbody wiring harness fabrication
- Exterior lighting (headlight, fog light, DRL) wiring harness repair
- Sensor circuit waterproof splice connections
- OEM and aftermarket automotive electrical repair
Installation Guide
- Strip 8–10mm of insulation from each wire end to be spliced.
- Insert both wire ends into the splice terminal from opposite ends, ensuring conductors overlap in the center crimp zone.
- Crimp the terminal using a ratchet crimping tool with the appropriate 1mm series die.
- Verify the silicone seals are fully seated at both wire entry points.
- The completed splice is ready for installation — no additional heat-shrink or sealing required.
FAQ
Q: What wire gauge is compatible?
A: The 8100-3068 / 8100-3067 terminal is designed for 0.5–1.0mm² (AWG 20–18) wire, typical for automotive sensor and signal circuits.
Q: Do I need heat-shrink tubing?
A: No. The integrated silicone seal provides IP67-rated environmental protection at the splice point without any additional sealing materials.
Package Contents
- 50× 8100-3068 / 8100-3067 / 6810208KSS 1mm HV/HVG Sealed Wire Splice Terminal
