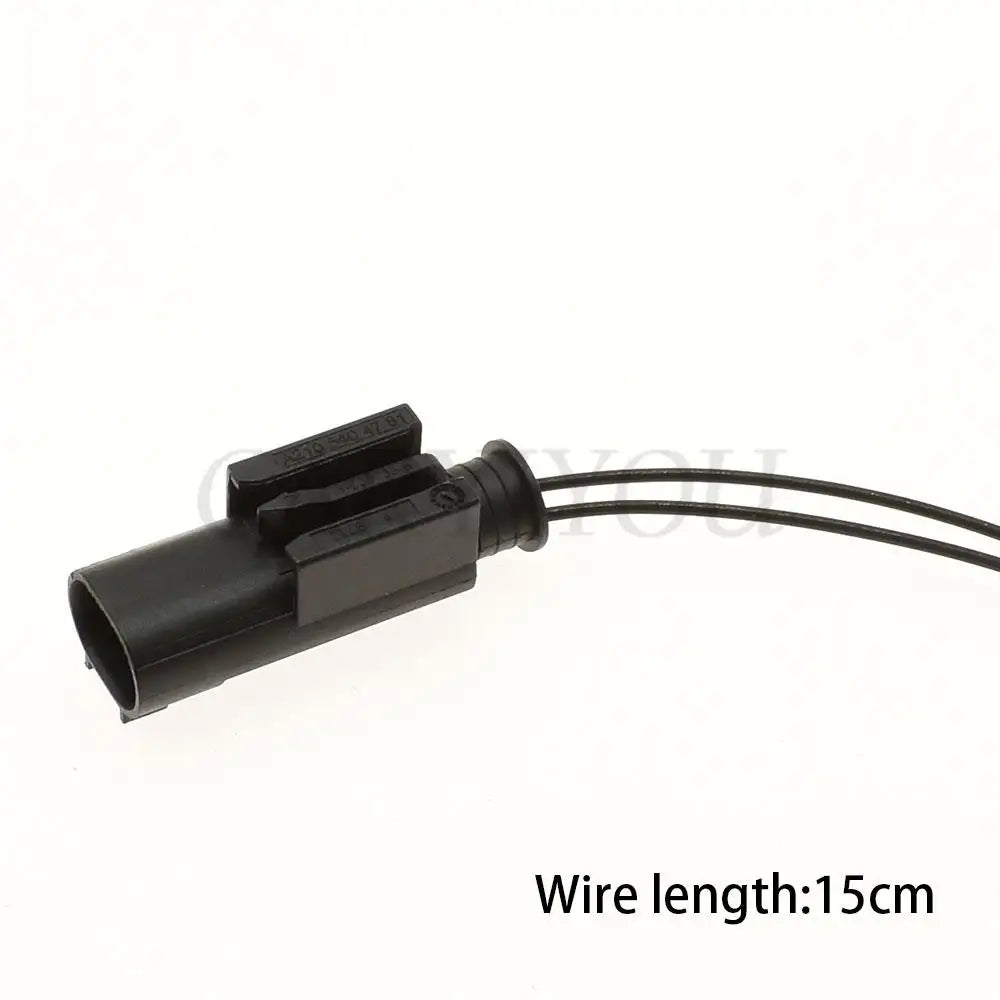

2-Pin Automotive Sensor Wire Harness Connector — DJ7023YA-0.6-11 / 1-967570-3 | TE Connectivity
OEM-compatible TE Connectivity-spec 2-pin 0.6mm micro-pitch waterproof sensor connector. Cross-references TE Connectivity part 1-967570-3 — used for ultra-compact sensor and signal circuits across European and Asian vehicles where the 0.6mm pitch provides the smallest standard automotive connector footprint for high-density harness applications.
Specifications
| Parameter | Value |
|---|---|
| Pin Count | 2 |
| Pitch | 0.6 mm (micro-pitch) |
| OEM Part Numbers | DJ7023YA-0.6-11 / 1-967570-3 |
| Connector Brand | TE Connectivity (OEM-spec) |
| Housing Material | PA66 (Nylon 66) |
| Sealing | Rubber wire seal (waterproof) |
| Waterproof Rating | IP67 |
| Locking | Single-tab (-11) |
| Operating Temperature | -40°C to +125°C |
| Application | Micro-pitch sensor, signal, ECU sub-harness |
| Certification | CE |
Compatible Applications
- ECU sub-harness micro-pitch 2-pin sensor connectors on European vehicles
- TCM signal connector for transmission control module circuits
- ABS / ESP module micro-pitch 2-wire signal wiring
- Body control module (BCM) 2-pin signal circuit connectors
- General automotive applications requiring IP67 sealed 0.6mm pitch 2-pin connectors
Why Choose This Connector?
- ✅ TE Connectivity OEM part 1-967570-3 — confirmed micro-pitch sensor fitment
- ✅ 0.6mm ultra-compact pitch — smallest standard automotive connector pitch for high-density harnesses
- ✅ IP67 rubber wire seal — full moisture protection despite ultra-compact size
- ✅ PA66 housing — heat-resistant for engine bay sensor applications
- ✅ CE certified — meets EU automotive electrical standards
Comparison: 0.6mm vs Larger Pitch 2-Pin Connectors
| Pitch | Part Example | Application | Sealing |
|---|---|---|---|
| 0.6mm (this) | DJ7023YA-0.6-11 | ECU / TCM micro-pitch signal | IP67 |
| 1.5mm | 6N0973702 / DJ7022F-1.5 | ABS wheel speed sensor | IP67 |
| 2.2mm | DJ7023YB-2.2-21 | General sensor / actuator | IP67 |
FAQ
Q: What terminals are compatible?
A: TE Connectivity 0.6mm series female terminals for 0.13–0.35mm² (AWG 26–22) wire. Terminals are sold separately.
Q: Is this connector compatible with the DJ7031YA-0.6 3-pin series?
A: The DJ7023YA-0.6 (2-pin) and DJ7031YA-0.6 (3-pin) share the same 0.6mm pitch terminal family but have different housing geometries. Terminals are compatible but housings are not interchangeable.
Package Contents
- 1× 2-Pin 0.6mm Waterproof Sensor Connector Housing (DJ7023YA-0.6-11 / 1-967570-3)
- Terminals not included
