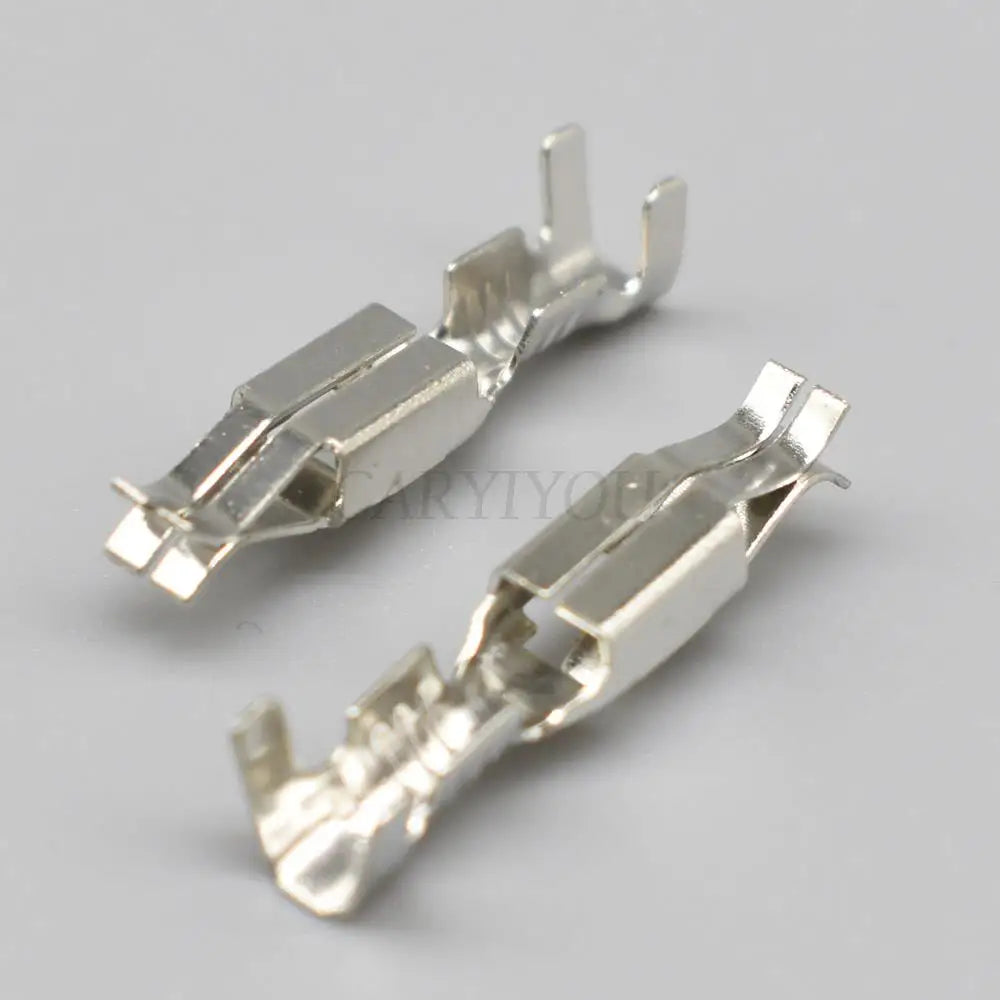

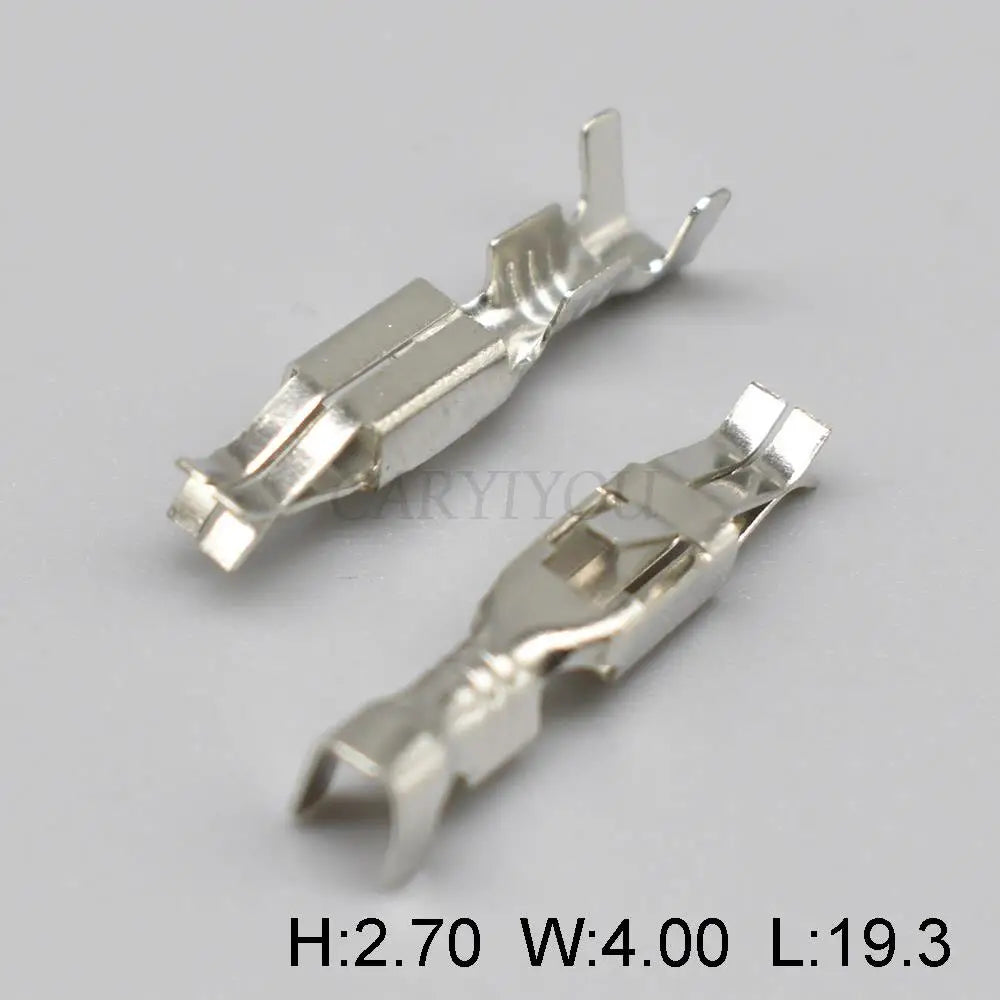

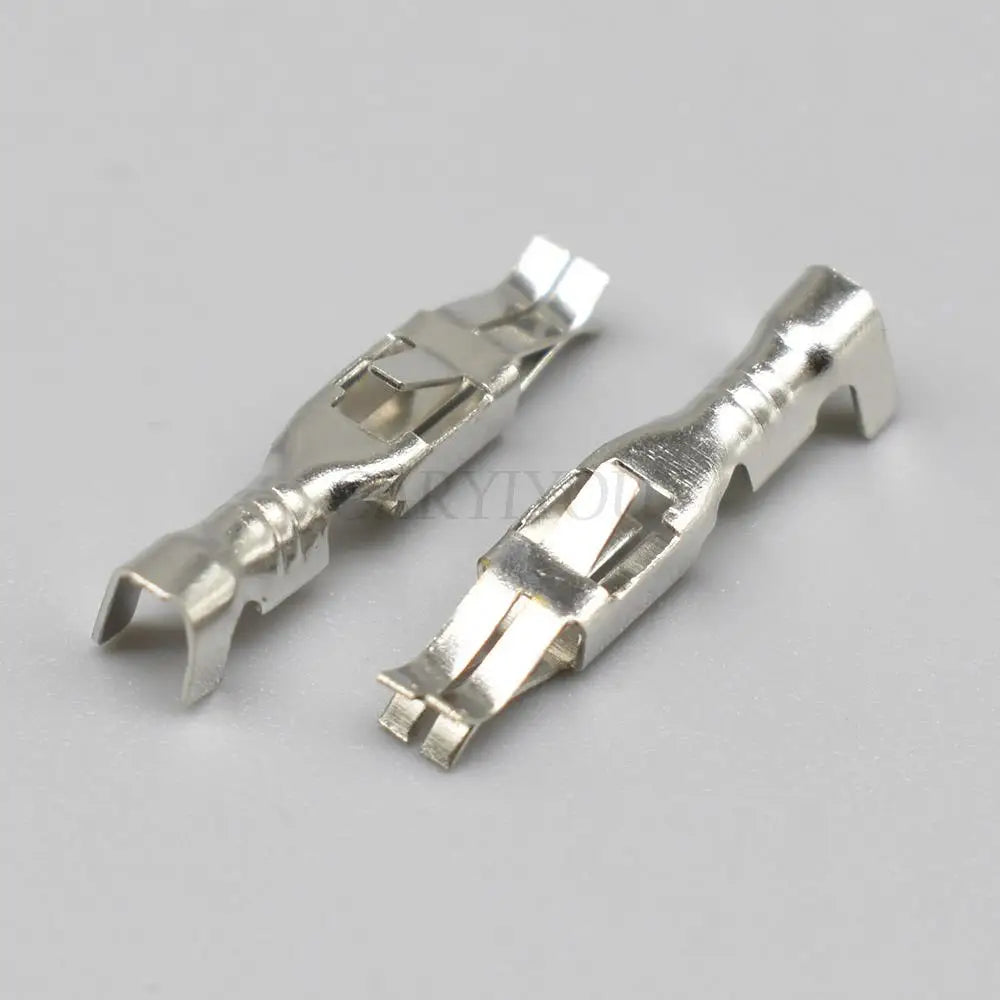

3.5mm DJ622-E3.5A Automotive Fuse Box Wire Harness Connector Plug — Soft Jacket
OEM-specification 3.5mm pitch automotive wiring terminal connector plug in DJ622-E3.5A series with soft jacket (flexible PVC overmould) for fuse box and wire harness applications. The soft jacket provides strain relief and environmental protection for the wire entry point, preventing wire fatigue and moisture ingress at the connector rear. Used in automotive fuse box wiring, relay socket wiring, and general-purpose automotive electrical circuit connections requiring a compact 3.5mm pitch connector.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | DJ622-E3.5A |
| Terminal Pitch | 3.5mm |
| Jacket Type | Soft jacket (flexible PVC overmould) |
| Housing Material | PA66 (Nylon 66) |
| Terminal Material | Copper alloy, tin-plated |
| Rated Voltage | 12V / 24V DC |
| Rated Current | Up to 10A per pin (3.5mm terminal) |
| Wire Range | 0.5–1.5mm² (AWG 20–16) |
| Operating Temperature | −40°C to +105°C |
| Certification | CE, RoHS |
Typical Applications
- Fuse Box Wiring: 3.5mm pitch connector for automotive fuse box input and output wiring harness connections
- Relay Socket Wiring: Connector for relay socket wiring in automotive fuse and relay boxes
- Wiring Harness Repair: Replace damaged or corroded DJ622-E3.5A connectors in automotive wiring harnesses
- Custom Harness: Build custom automotive wiring harness connections for fuse box, relay, and power distribution applications
FAQ
Q: What is the current rating for the 3.5mm terminal?
A: The 3.5mm terminal is rated for up to 10A per pin with 1.5mm² wire. For higher current applications (>10A), use a 4.8mm or 6.3mm terminal connector.
Q: Are terminals included?
A: Terminals are not included unless specified. Compatible 3.5mm terminals must be crimped onto the wire and inserted into the housing.
Package Contents
- DJ622-E3.5A 3.5mm automotive fuse box connector plug with soft jacket (pin count as selected)
