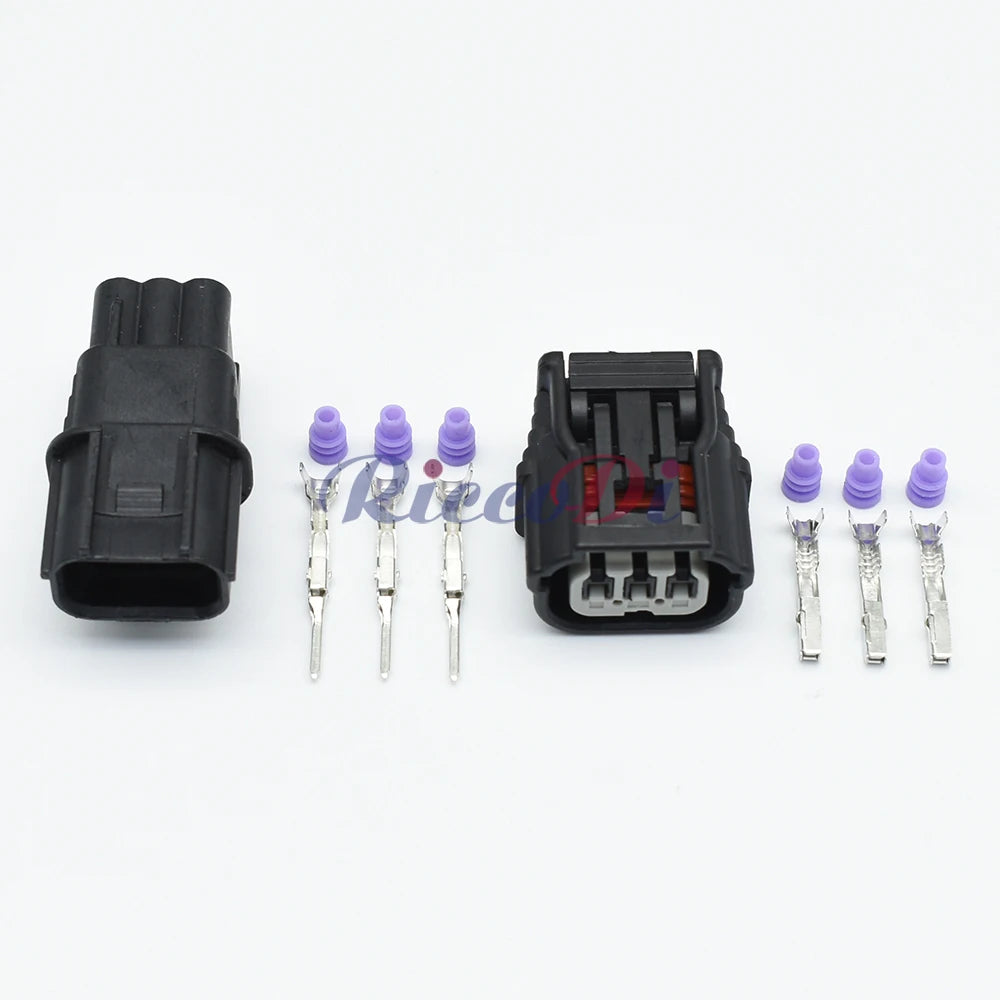

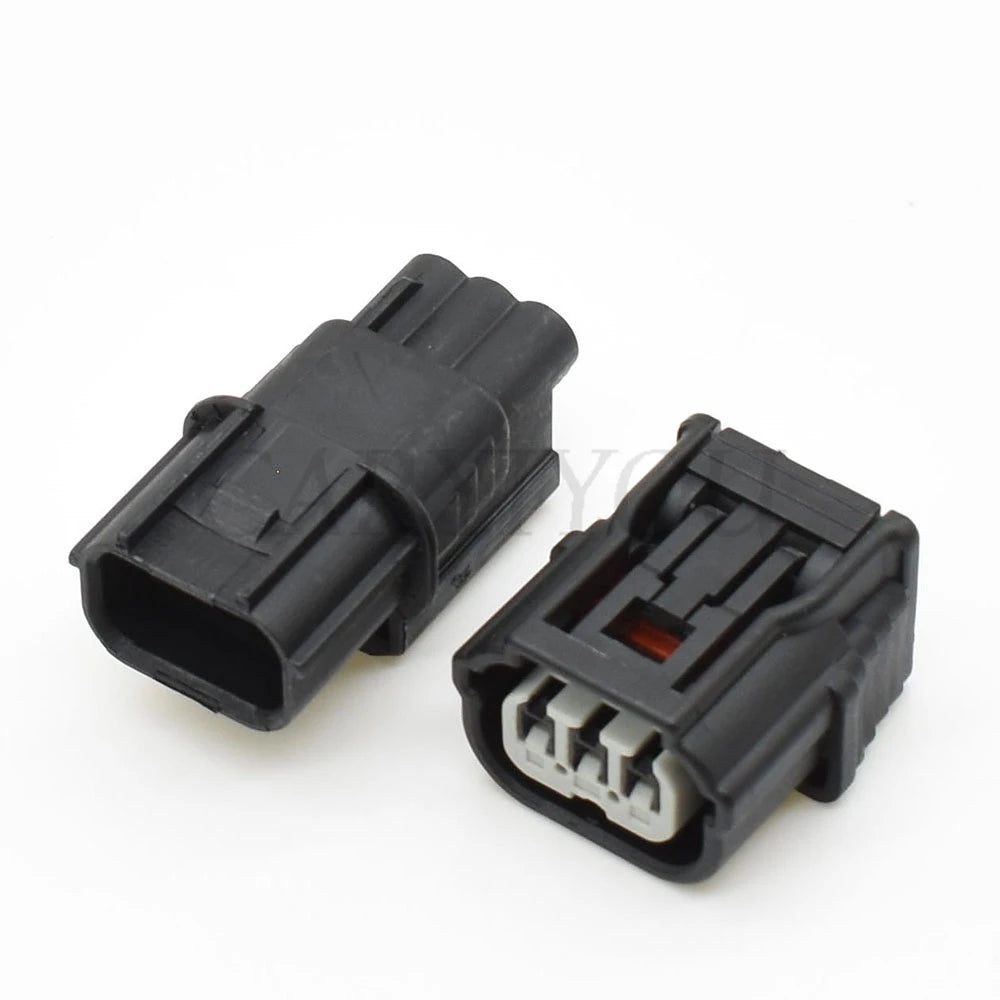

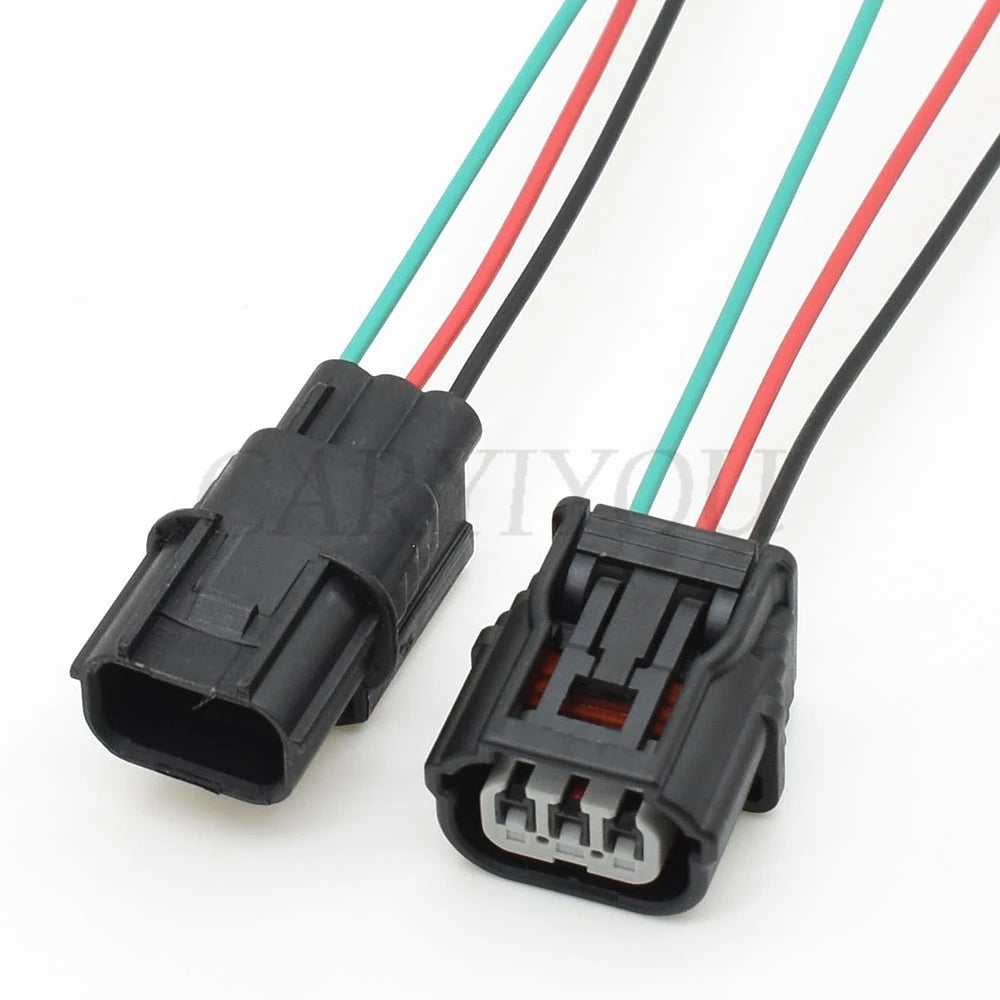

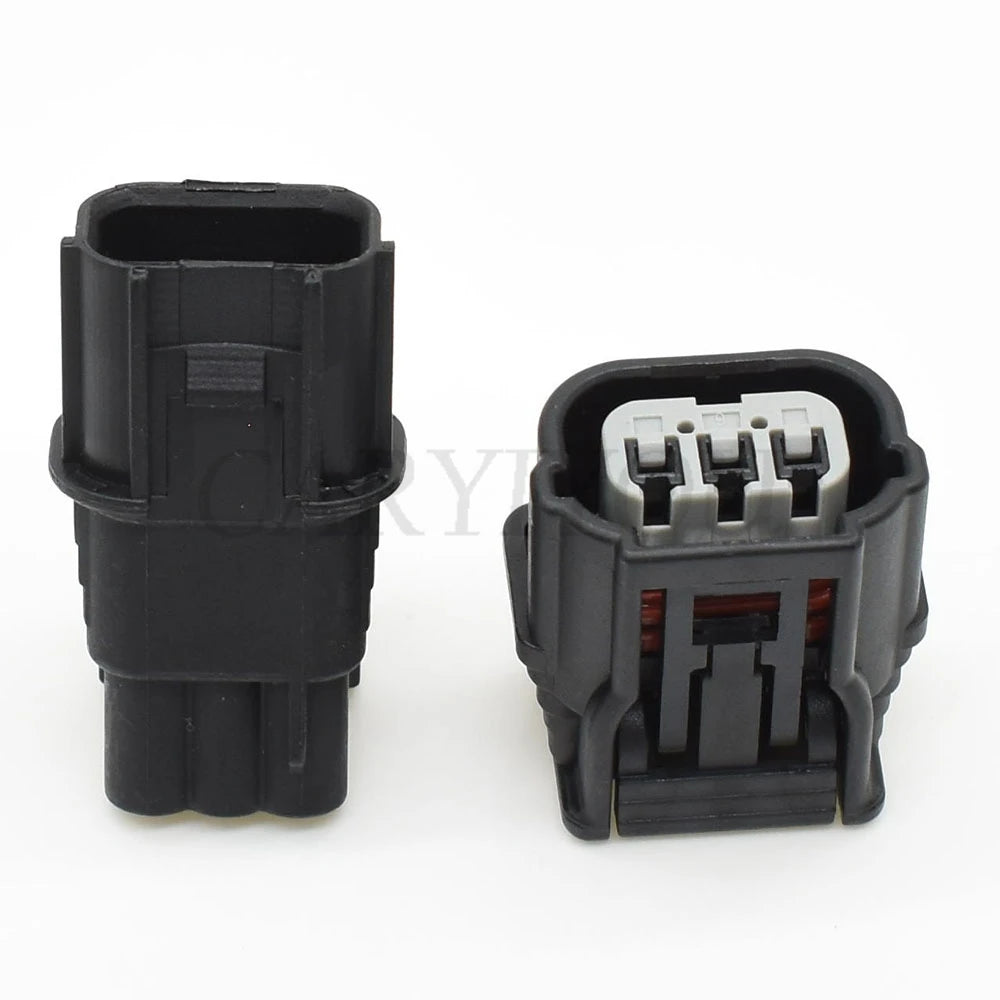

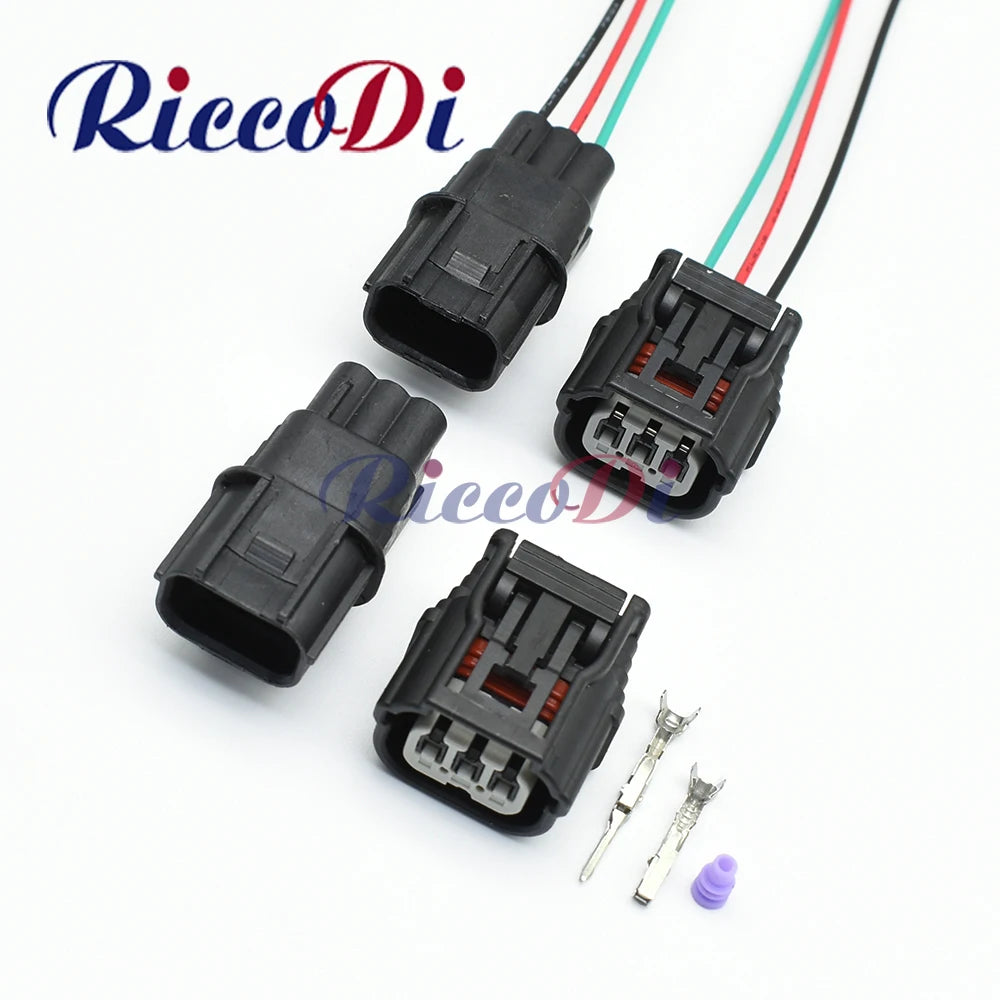

3-Pin 1.2mm Waterproof Ignition Coil Connector — OEM 6189-7037 / 6188-4775 / DJ7032A-1.2
This 3-pin 1.2mm waterproof automotive connector is compatible with OEM part numbers 6189-7037 and 6188-4775, also cross-referenced as DJ7032A-1.2. Used for ignition coil and car light socket applications on Honda, Toyota, and other Asian vehicle platforms requiring compact sealed connectors with 1.2mm pin pitch.
Key Specifications
| Parameter | Value |
|---|---|
| OEM Part Numbers | 6189-7037 / 6188-4775 / DJ7032A-1.2 |
| Pin Count | 3-pin |
| Pin Pitch | 1.2mm |
| Gender | Male (plug) or Female (socket) — select variant |
| Housing Material | PA66 nylon + rubber seal |
| Sealing | Waterproof (rubber wire seals + connector seal) |
| Terminal Material | Copper alloy, tin-plated |
| Wire Gauge | 0.35mm² – 0.5mm² (AWG 22–20) |
| Temperature Rating | -40°C to +125°C |
| Certification | CE |
OEM Cross-Reference
| Part Number | Gender | Application |
|---|---|---|

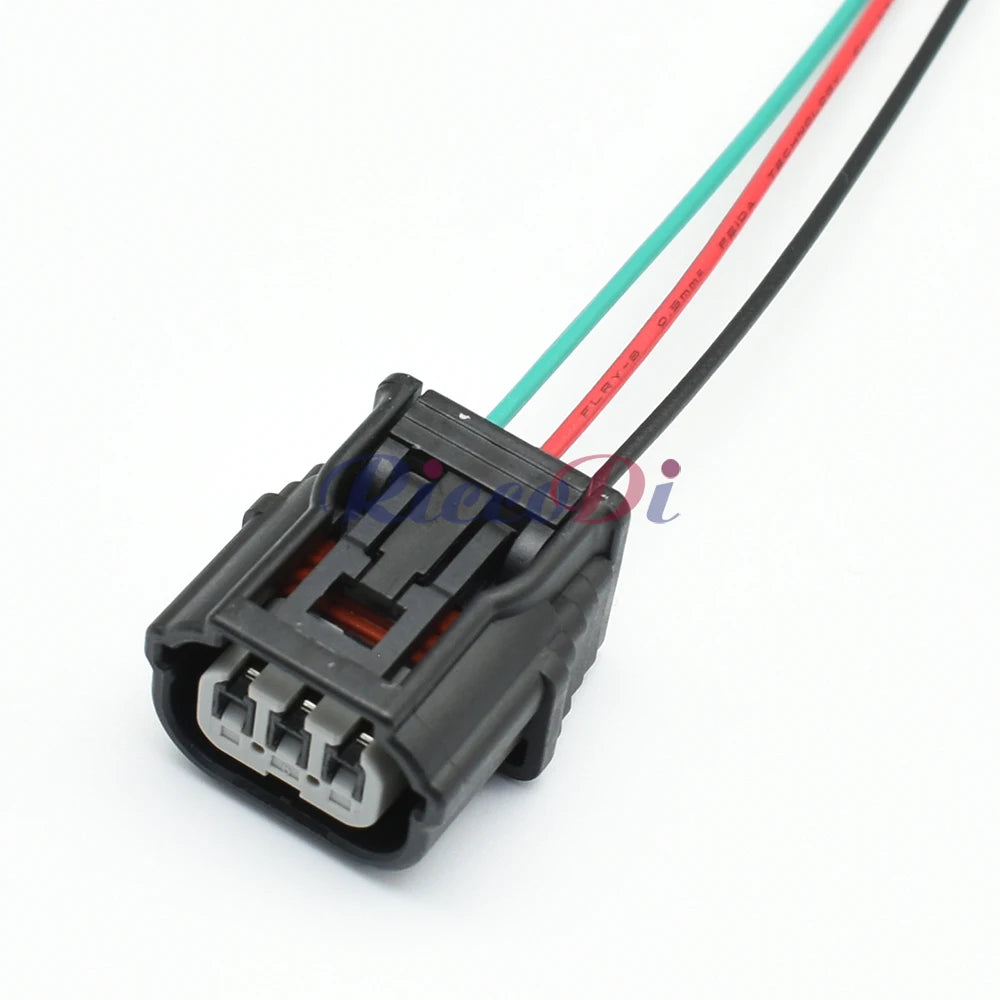

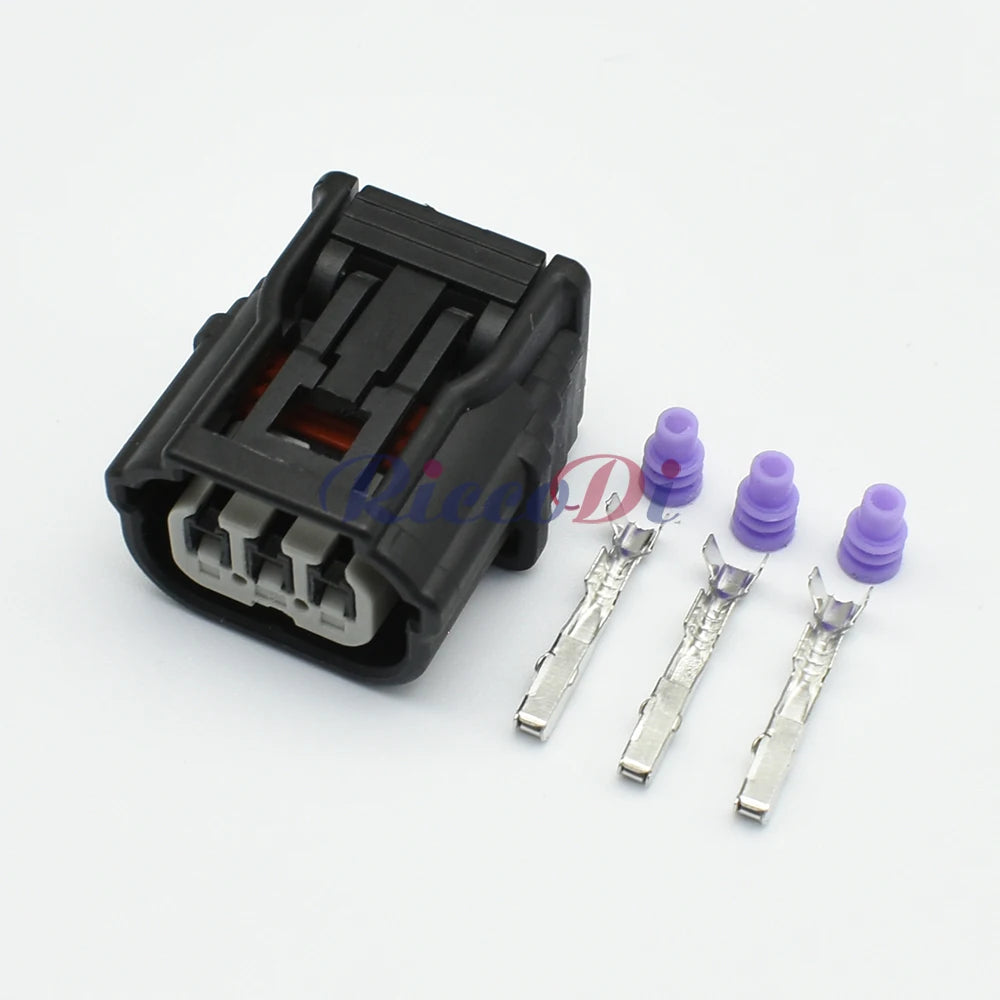

| 6189-7037 | Female (socket) | Harness side |

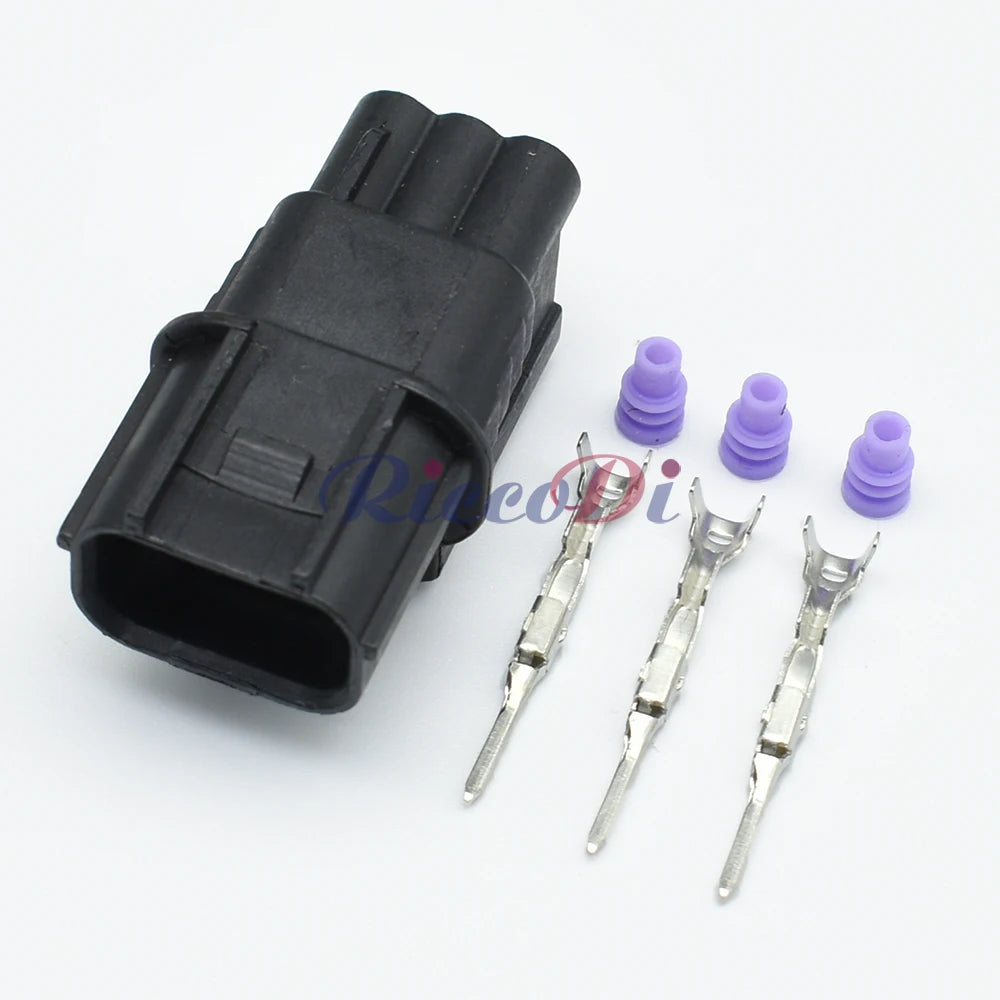

| 6188-4775 | Male (plug) | Component side |
| DJ7032A-1.2 | Both | Chinese OEM cross-reference |
Why Choose This Connector?
- 1.2mm Compact Pitch — High-density sealed connector for ignition coil and lighting applications
- Waterproof Sealed — Rubber seals protect against moisture, oil, and engine bay contaminants
- PA66 High-Temp Housing — Withstands ignition coil proximity heat up to +125°C
- CE Certified — Meets European automotive electrical standards
Typical Applications
- Ignition coil connector repair on Honda/Toyota platforms
- Automotive lighting socket connector replacement
- Sensor wiring harness repair (compact 1.2mm pitch)
- Custom ignition wiring for engine swaps
- Aftermarket ignition coil installation
FAQ
Q: What is the difference between 1.0mm, 1.2mm, and 1.5mm pitch connectors?
A: Pin pitch determines connector size and current capacity. 1.0mm (HX040): 3A, signal only. 1.2mm (this): 5A, compact sensor/ignition. 1.5mm (GT150): 8A, general sensor/actuator. Always match the pitch to the original connector.
Q: Can I use this connector for LED lighting circuits?
A: Yes — suitable for automotive LED lighting with current under 5A per pin. The waterproof seal makes it ideal for exterior lighting applications.
Package Contents
- 1× 3-Pin 1.2mm Waterproof Connector (male or female, per selected variant)
