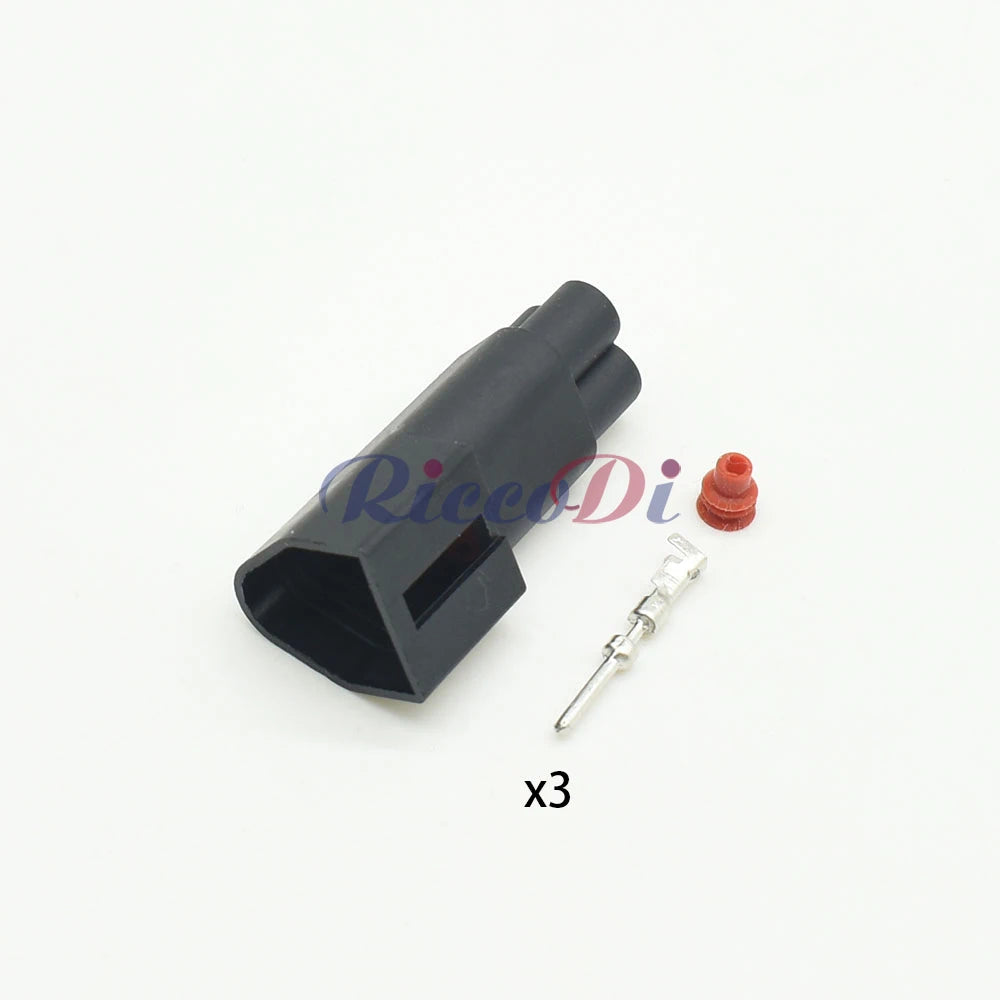

3-Pin 1.5mm Triangle Wire Harness Connector 7-1437710-9 3-1437712-1 DJ7032Q-1.5 for Ford

$15.90 USD

Save Liquid error (snippets/price line 138): divided by 0% Sold out

Taxes included. Shipping calculated at checkout.

Color

Pins 1P

Insert Type female

Quantity

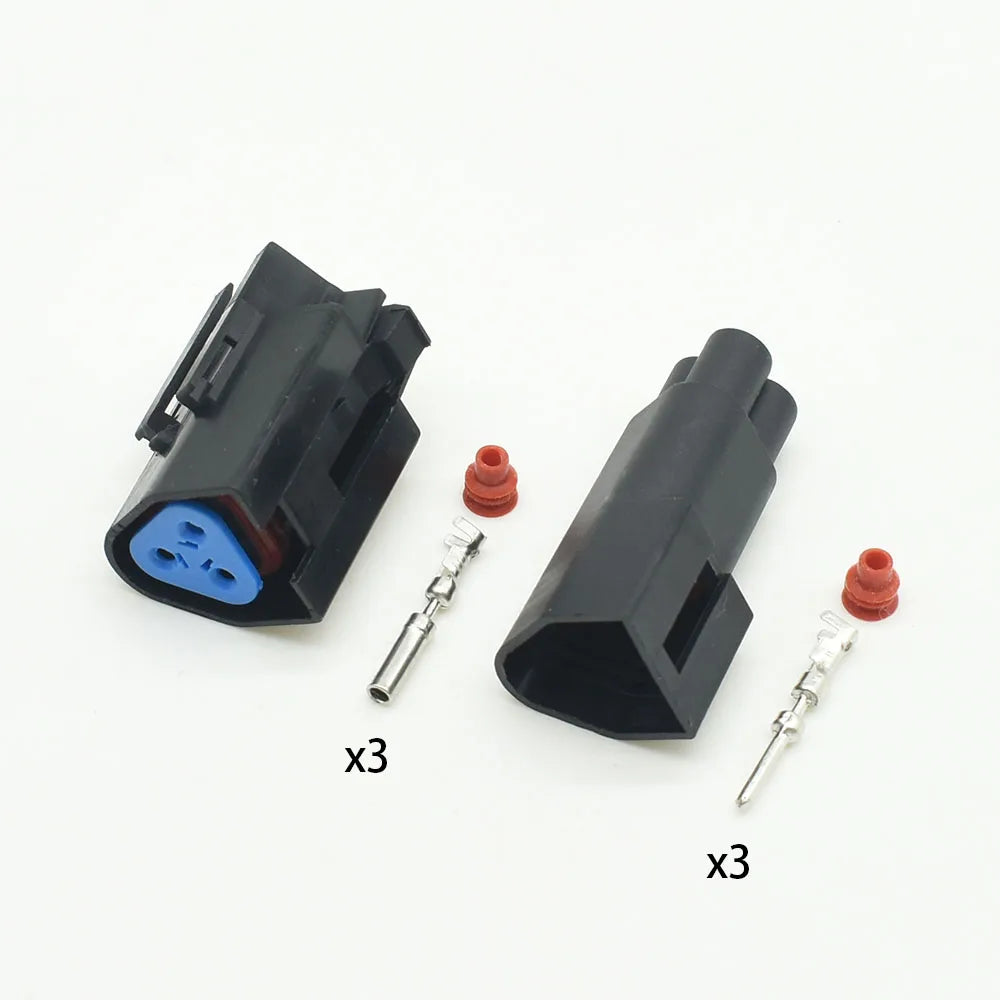

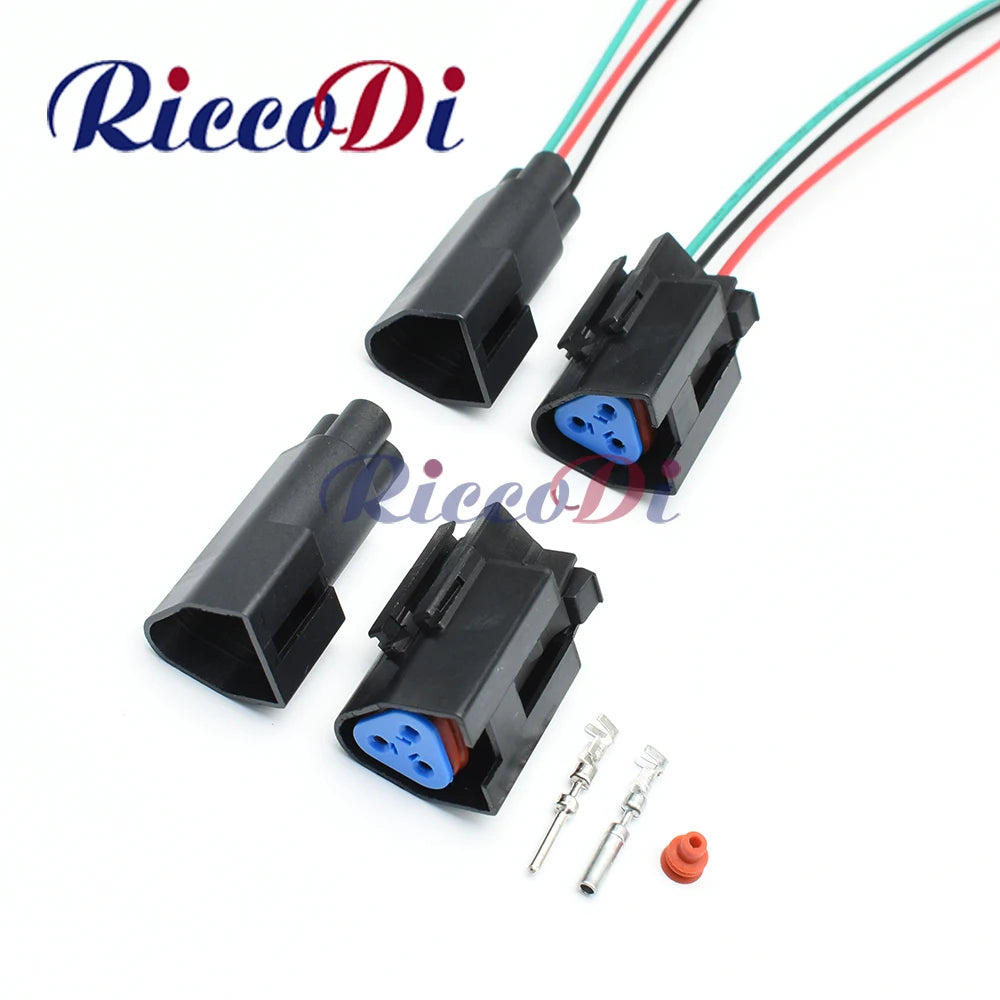

3-Pin 1.5mm Triangle Wire Harness Connector — 7-1437710-9 / 3-1437712-1 / DJ7032Q-1.5 for Ford

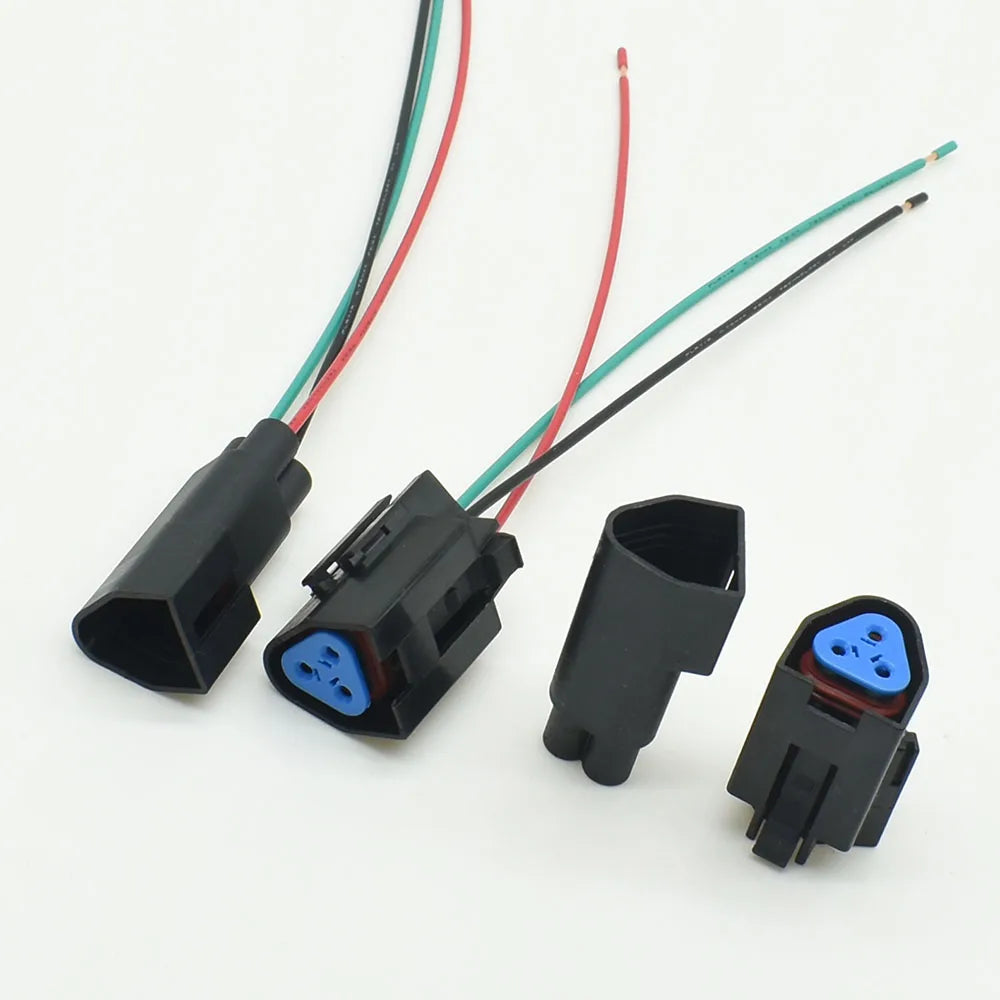

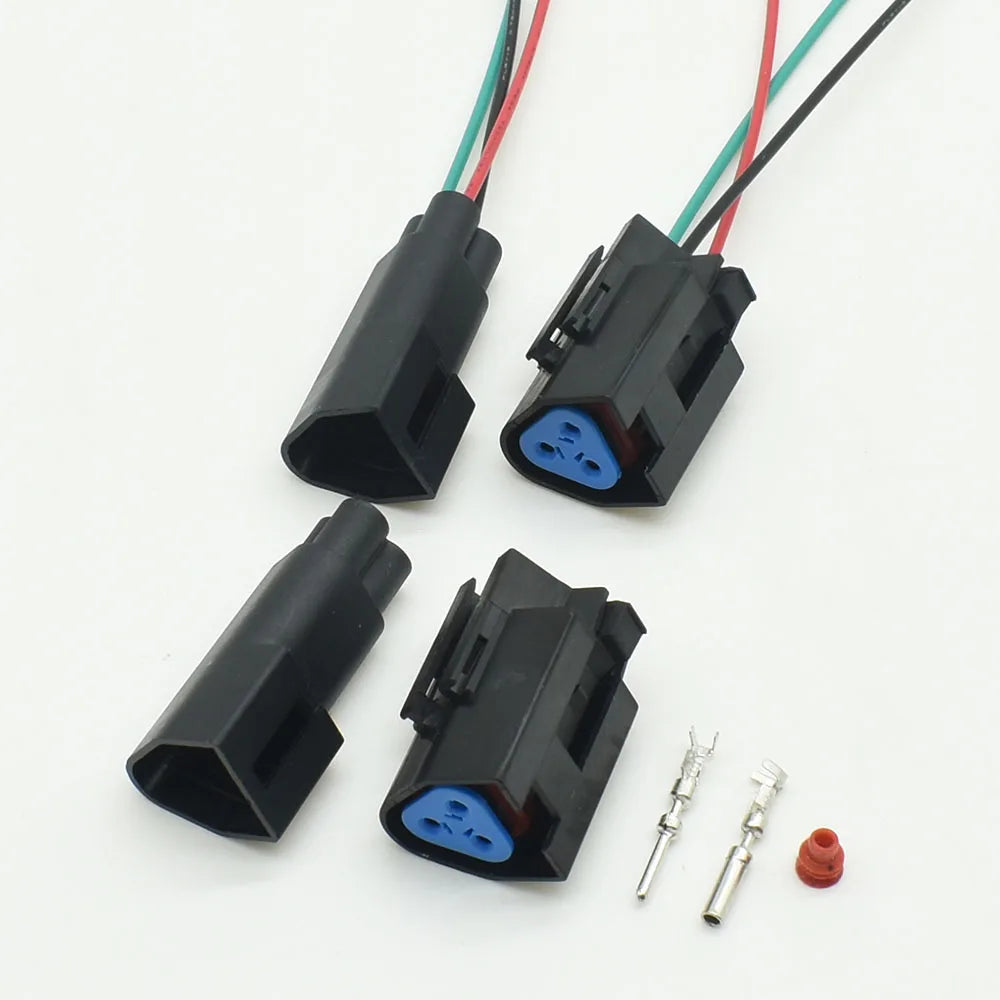

OEM-specification 3-pin triangular-layout wire harness connector in 1.5mm pitch, cross-referencing TE Connectivity / AMP part numbers 7-1437710-9 (male) and 3-1437712-1 (female), with Chinese OEM equivalent DJ7032Q-1.5. The triangular pin arrangement provides anti-mismatch keying, preventing incorrect connector orientation during assembly. Designed for Ford engine management and body control wiring harnesses.

Part Number Cross-Reference

Standard	Part Number	Side
TE Connectivity / AMP	7-1437710-9	Male (plug)
TE Connectivity / AMP	3-1437712-1	Female (receptacle)
DJ / Chinese OEM	DJ7032Q-1.5	Both sides

Technical Specifications

Parameter	Value
Pin Count	3 (triangular layout)
Pitch	1.5mm
Housing Material	PA66, UL94 V-0
Seal Rating	IP67 (rubber-sealed)
Rated Voltage	12V DC
Rated Current	≤5A per pin
Operating Temperature	−40°C to +125°C
Terminal Material	Copper alloy, tin-plated
Wire Range	0.35–0.75mm² (AWG 22–20)
Keying	Triangular anti-mismatch
Certification	CE, RoHS

Typical Applications

Engine Management Sensors: Crankshaft position sensor (CKP), camshaft position sensor (CMP), and knock sensor connectors on Ford Duratec and EcoBoost engines
Transmission Control: Gear selector position sensor and solenoid valve connectors in Ford PowerShift and SelectShift transmissions
ABS / Wheel Speed Sensor: Replacement connector for ABS wheel speed sensor wiring on Ford Focus, Fiesta, and Mondeo
Body Control Module (BCM): Low-current signal connectors in Ford BCM and PATS (Passive Anti-Theft System) wiring
Custom Harness: Engine swap and motorsport harness builds using Ford OEM sensor connectors

Compatible Vehicles

Ford Focus Mk2 / Mk3 / Mk4 (Duratec, EcoBoost)
Ford Fiesta Mk6 / Mk7 / Mk8
Ford Mondeo Mk4 / Mk5
Ford Kuga Mk1 / Mk2
Ford Transit Connect (1.5mm pitch sensor harness)

FAQ

Q: Why is the pin layout triangular instead of linear?
A: The triangular arrangement provides a unique keying geometry that prevents incorrect mating with other 3-pin connectors in the same harness, reducing assembly errors in high-density wiring environments.

Q: What wire gauge does this connector accept?
A: The 1.5mm pitch terminals accept 0.35–0.75mm² wire (AWG 22–20). Use a TE Connectivity 91516-1 or equivalent ratchet crimping tool.

Q: Is DJ7032Q-1.5 the same as 7-1437710-9?
A: Yes. DJ7032Q-1.5 is the Chinese OEM cross-reference with identical dimensions and terminal pitch to the TE Connectivity 7-1437710-9 / 3-1437712-1 pair.
