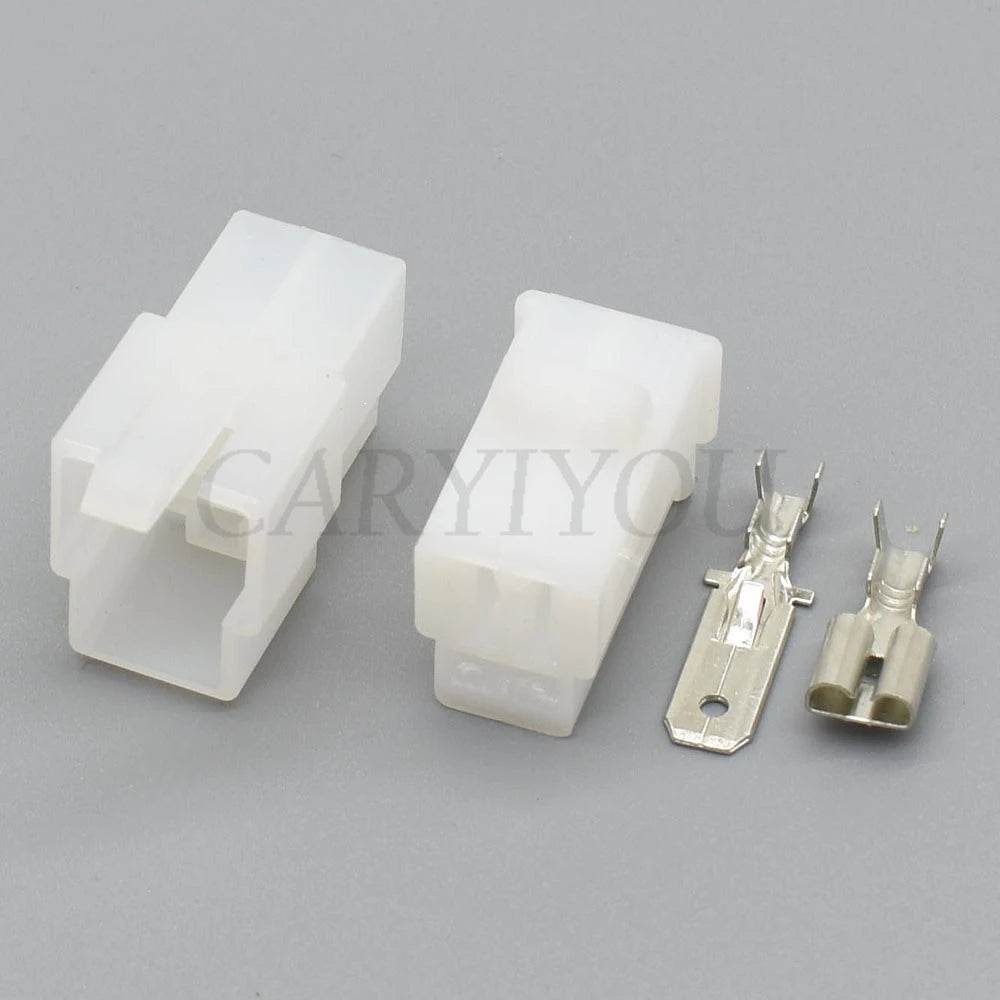

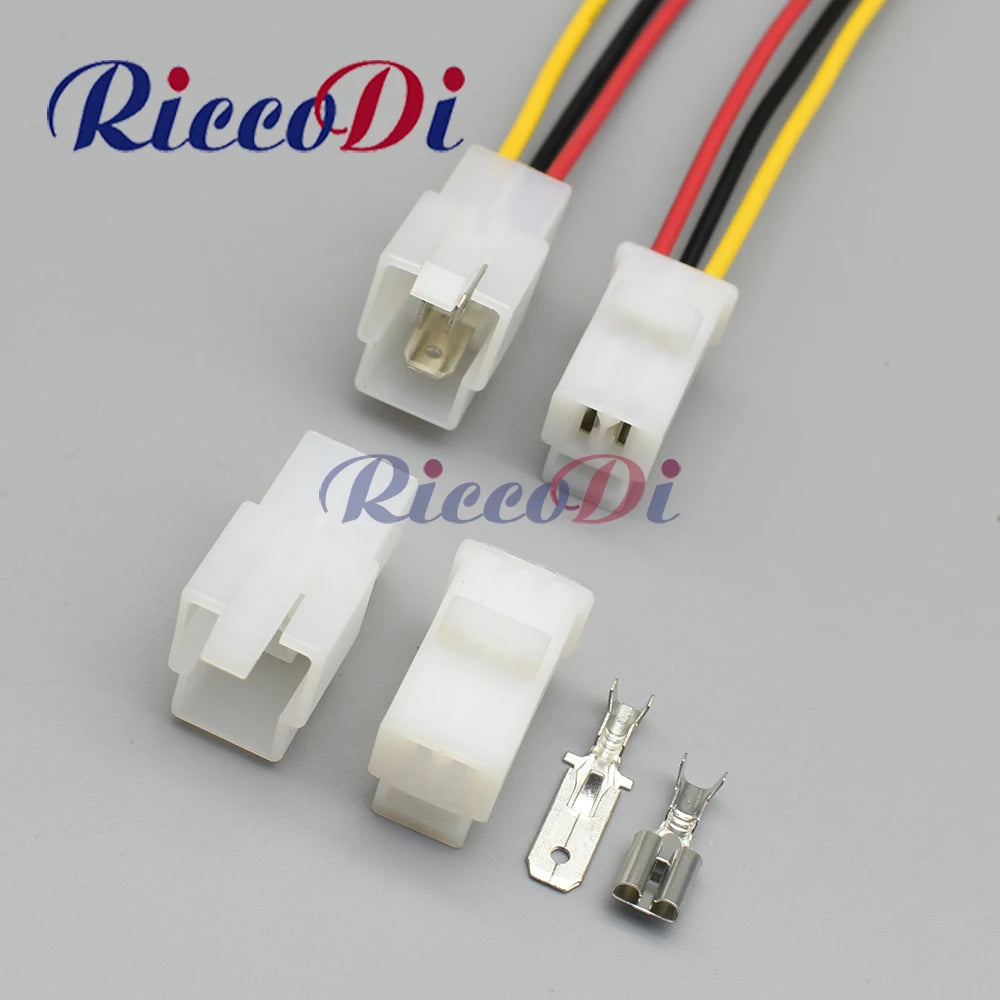

3-Pin 6.3mm Sealed Connector — 6110-4533 / 6120-2033 / DJ7031A-6.3 PA66 | CDI & Battery Charger
OEM-compatible Honda/Yazaki-spec 3-pin 6.3mm sealed high-current connector. Cross-references 6110-4533 (female) and 6120-2033 (male) — used for CDI (Capacitor Discharge Ignition) unit wiring, battery charger circuits, and high-current power connections on Honda motorcycles, scooters, and automotive applications requiring sealed 6.3mm pitch connections.
Specifications
| Parameter | Value |
|---|---|
| Pin Count | 3 |
| Pitch | 6.3 mm (high-current) |
| OEM Part Numbers | 6110-4533 (female) / 6120-2033 (male) / DJ7031A-6.3 |
| Connector Family | Honda / Yazaki 6.3mm series |
| Housing Material | PA66 (Nylon 66) |

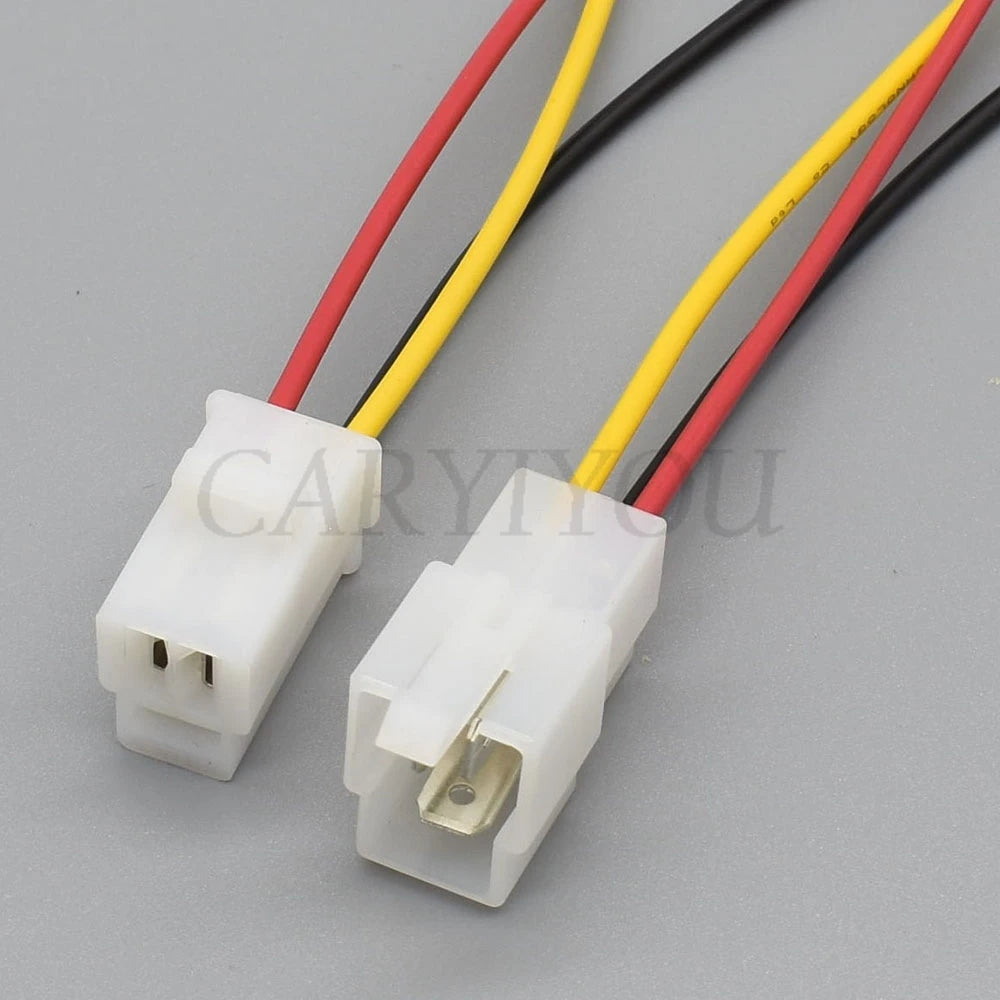

| Sealing | Rubber wire seal (waterproof) |
| Waterproof Rating | IP67 |
| Current Rating | Up to 25A per pin |
| Gender | Male (6120-2033) + Female (6110-4533) |
| Operating Temperature | -40°C to +105°C |
| Application | CDI unit, battery charger, high-current power circuit |
| Certification | CE |
Compatible Vehicles & Applications
- Honda CBR / CB / CRF motorcycles — CDI unit wiring harness connector
- Honda PCX / Forza / ADV scooters — battery charger and CDI connector
- Honda Civic / Accord / CR-V — high-current automotive power connector
- General Honda / Yamaha / Kawasaki motorcycles using Yazaki 6.3mm CDI connectors
- Aftermarket CDI unit installation requiring sealed 3-pin 6.3mm high-current connectors
Why Choose This Connector?
- ✅ Honda/Yazaki OEM cross-reference: 6110-4533 / 6120-2033 — confirmed CDI and battery charger fitment
- ✅ IP67 rubber wire seal — protects against rain and moisture for motorcycle outdoor use
- ✅ 6.3mm pitch — supports up to 25A per pin for CDI and battery charger high-current demands
- ✅ Male + female pair — complete connector set for both harness sides
- ✅ CE certified — meets EU automotive and motorcycle electrical standards
Comparison: Honda 6.3mm High-Current Connectors
| Part Number | Application | Sealing | Current |
|---|---|---|---|
| 6110-4533 / 6120-2033 / DJ7031A-6.3 | CDI / battery charger | IP67 | ~25A/pin |
| 1J0972752 / DJ70339B-6.3 | VW/Audi AC blower motor | Non-sealed | ~25A/pin |
| DJ7032-6.3-21 | General high-current automotive | Non-sealed | ~25A/pin |
Application Scenarios
- CDI unit connector replacement on Honda CBR600RR / CBR1000RR during ignition service
- Battery charger wiring connector repair on Honda PCX / Forza scooter
- High-current power connector restoration on Honda CB500 / CB650 motorcycle
- Aftermarket CDI installation using OEM-spec sealed 3-pin 6.3mm connector
FAQ
Q: What is the difference between 6110-4533 and 6120-2033?
A: 6110-4533 is the female connector (socket/receptacle side). 6120-2033 is the male connector (plug/pin side). They are mating halves of the same Honda/Yazaki 3-pin 6.3mm sealed connector.
Q: Is this connector suitable for CDI units on motorcycles?
A: Yes. The 6110-4533 / 6120-2033 / DJ7031A-6.3 is the OEM-spec connector used for CDI unit wiring on Honda motorcycles and scooters. The IP67 seal and 25A current rating are appropriate for CDI power circuits.
Q: What terminals are compatible?
A: Honda/Yazaki 6.3mm series female terminals for 1.0–6.0mm² (AWG 18–10) wire. Terminals are sold separately.

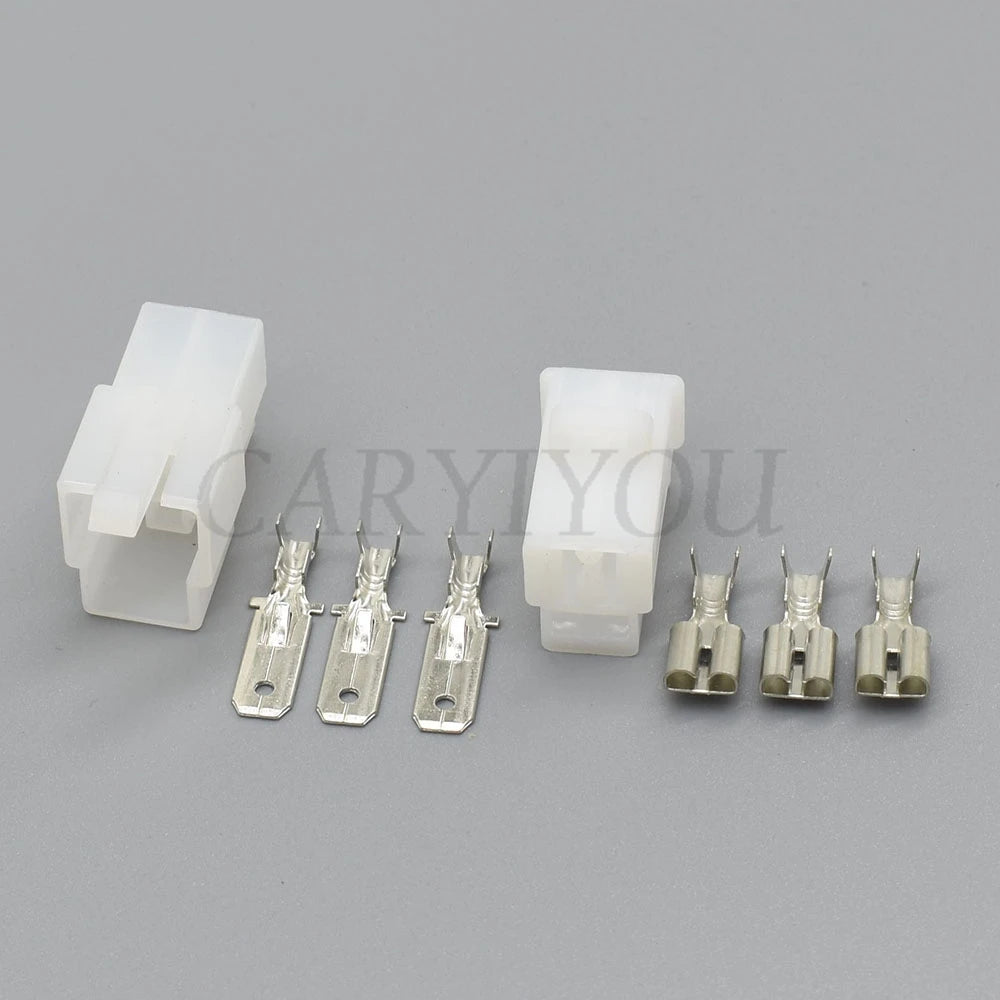

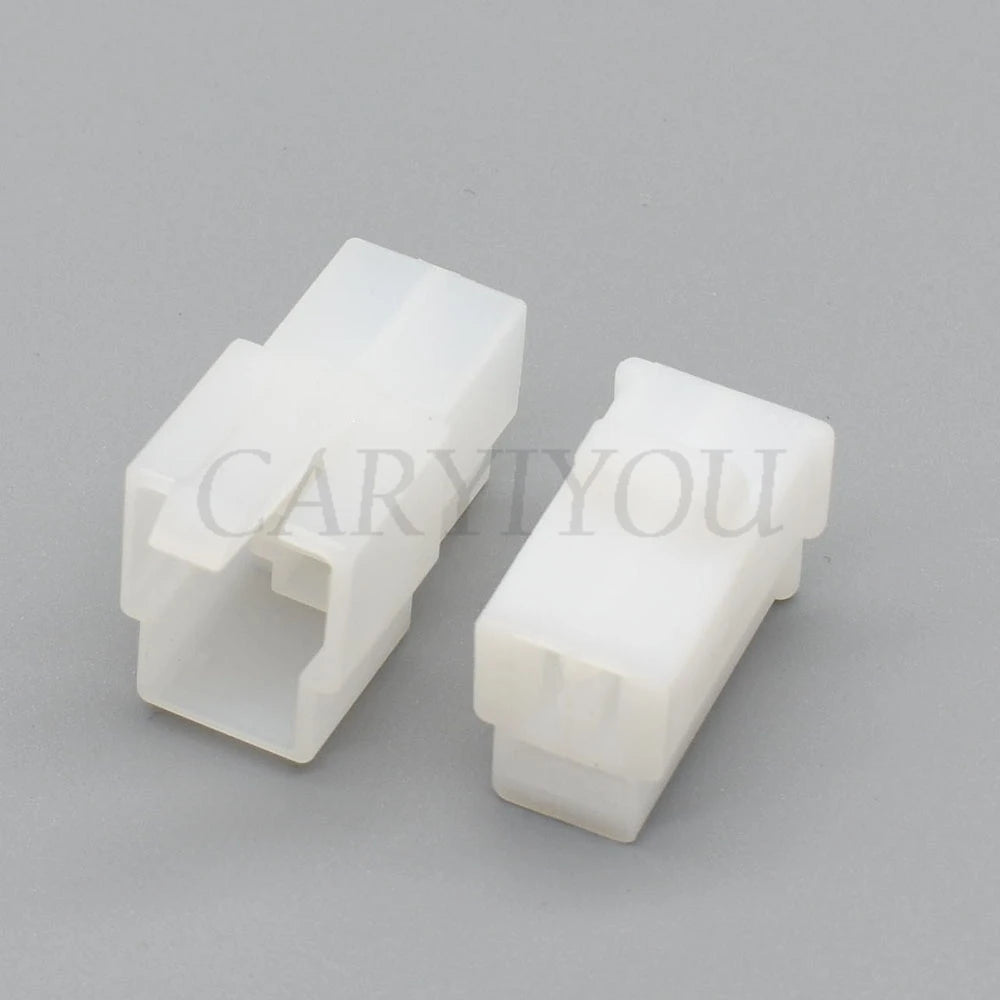

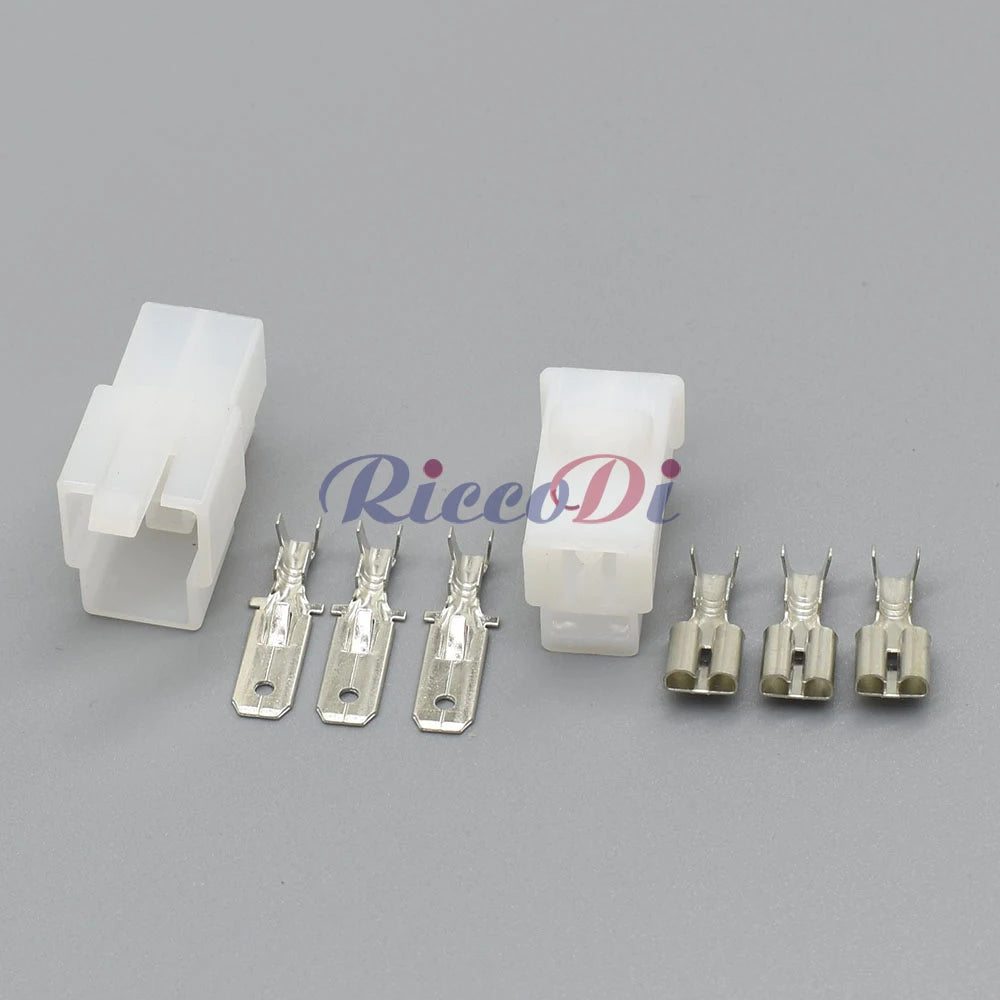

Package Contents
- 1× Female Connector Housing (6110-4533)
- 1× Male Connector Housing (6120-2033)
- Terminals not included
