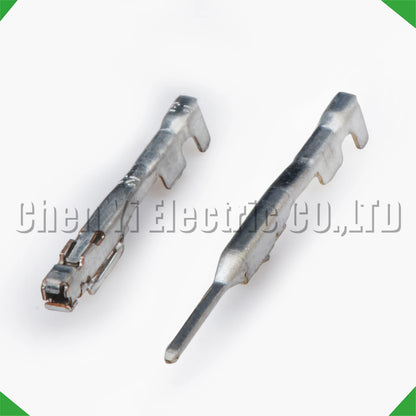

50 Pcs 0.6 mm Male or Female Wire Crimp Pins for 1674742-1 1123343-1 Sheath Automotive Connectors Wire Harness Plug

$18.33 USD

Save -29% Sold out

Taxes included. Shipping calculated at checkout.

Color

Quantity

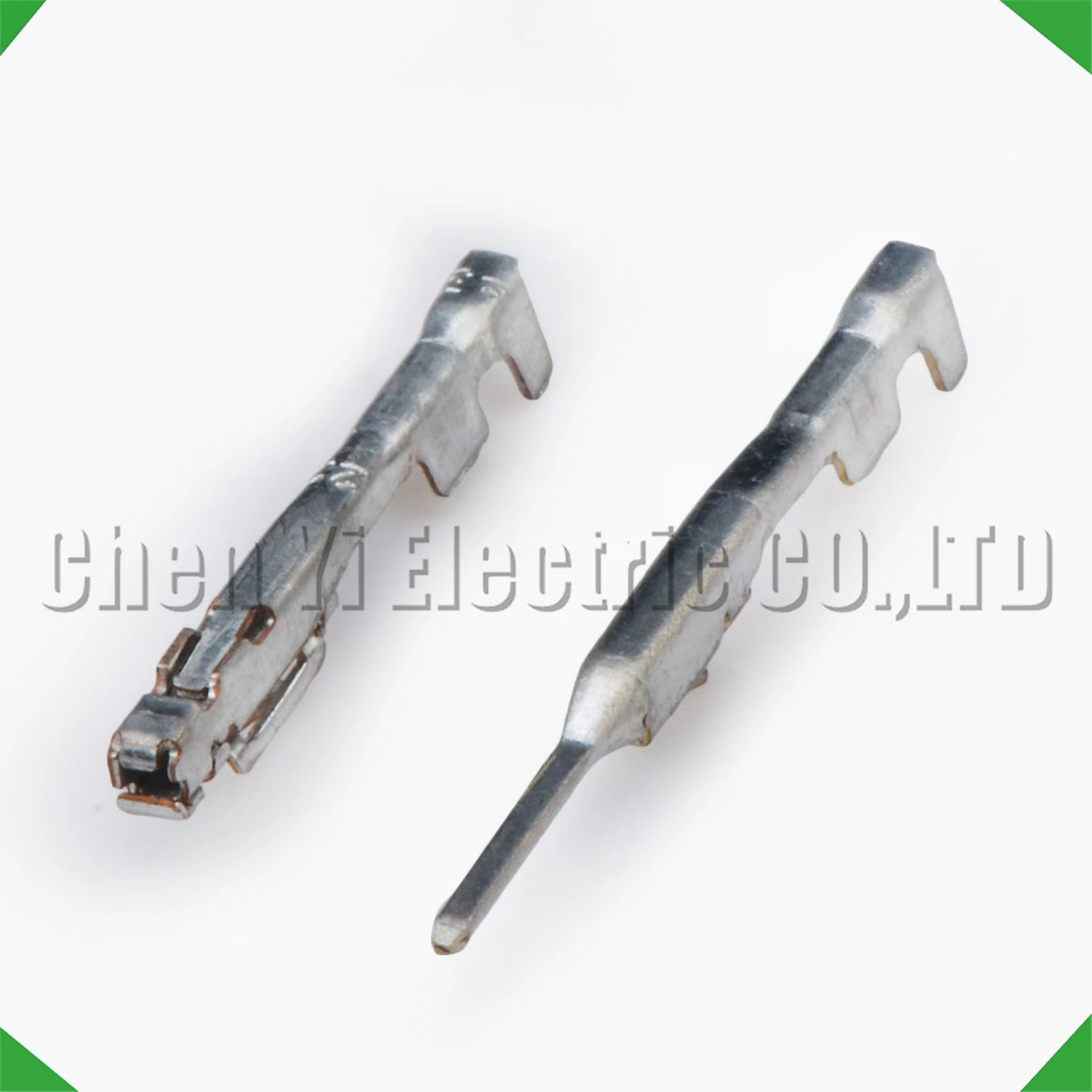

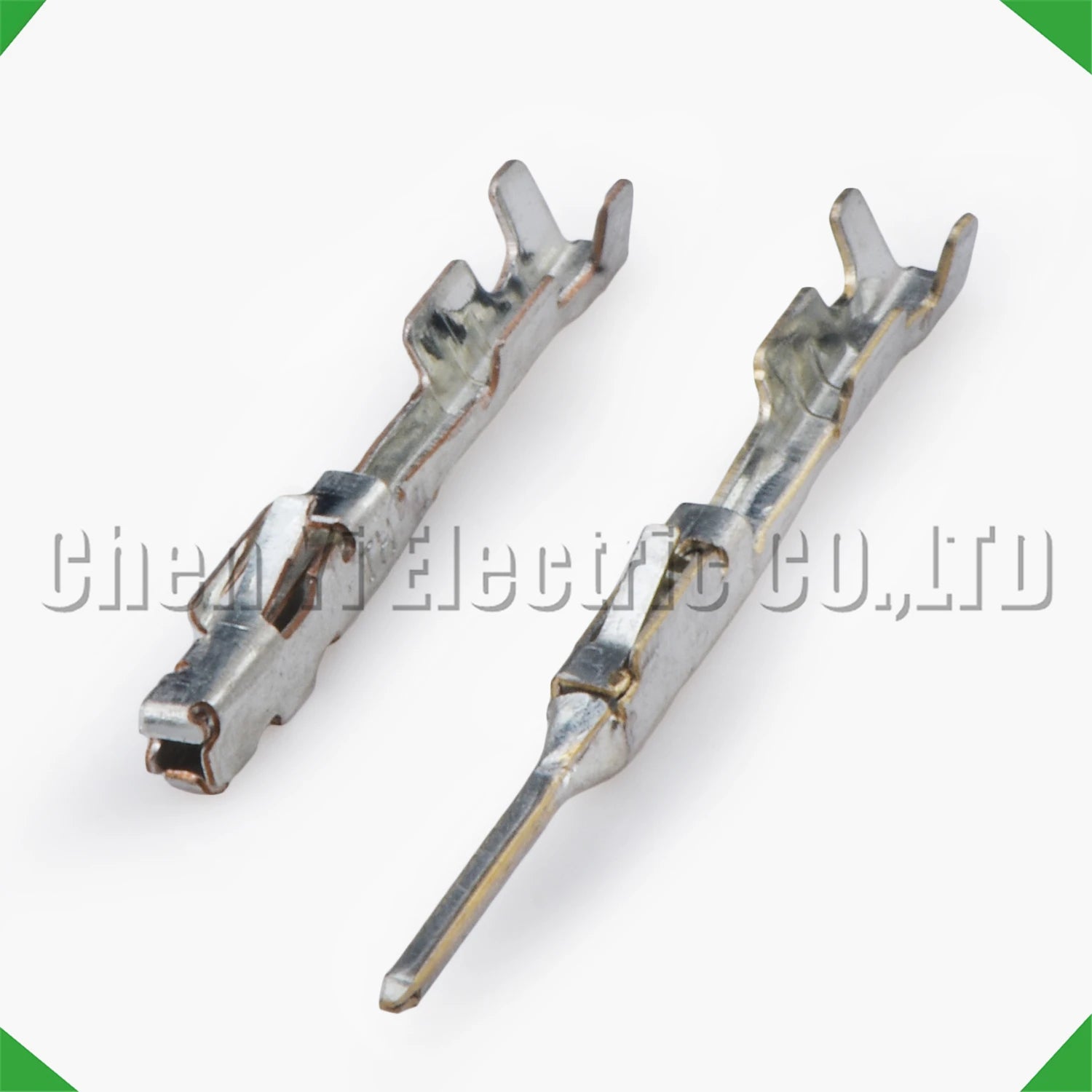

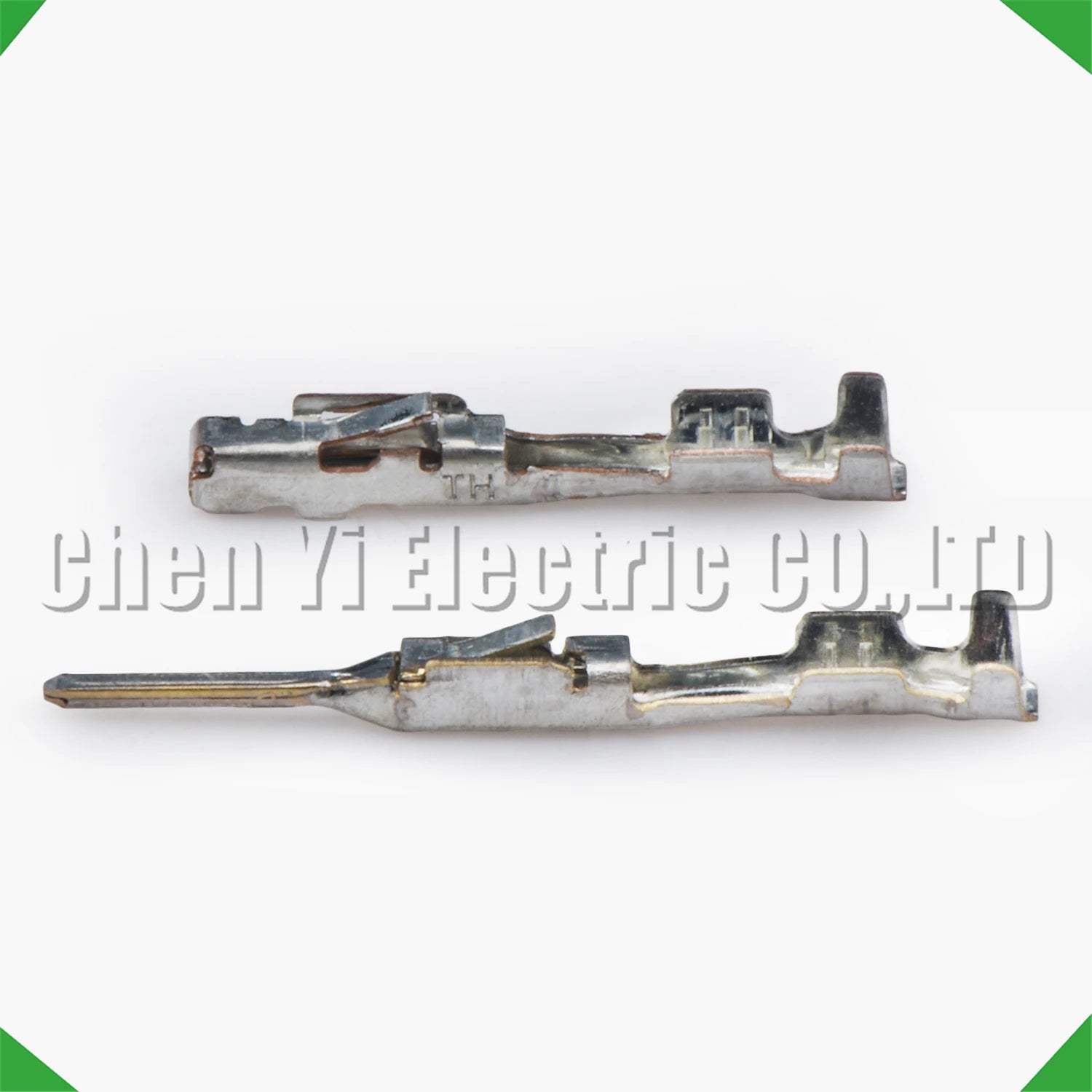

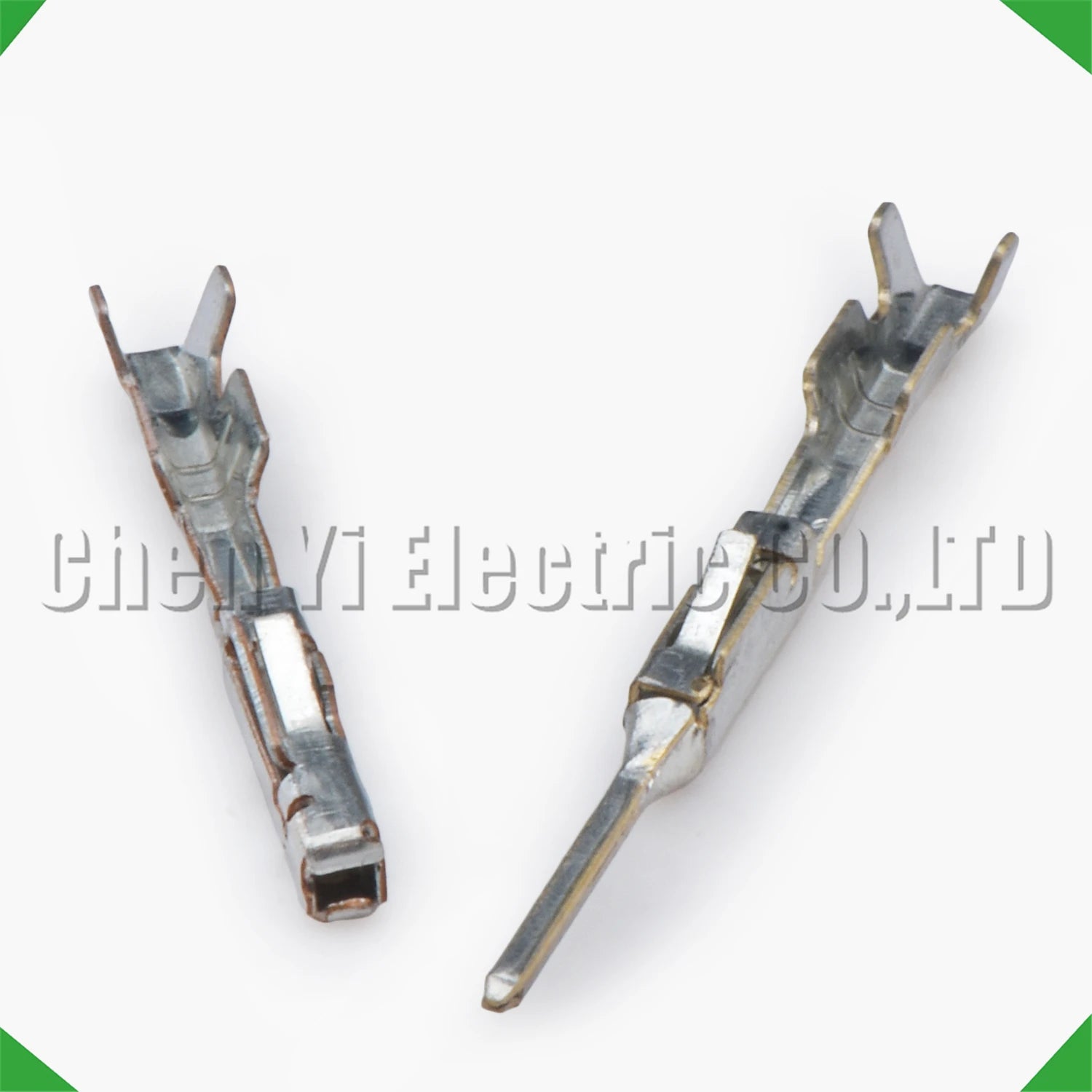

50pcs 0.6mm Male / Female Wire Crimp Pins — For 1674742-1 / 1123343-1 Sheath Automotive Connectors

A pack of 50 OEM-specification 0.6mm pitch wire crimp terminals (pins) compatible with 1674742-1 and 1123343-1 series automotive connector sheaths. These ultra-fine pitch crimp terminals are used in high-density automotive wiring harness connectors for ECU, body control module (BCM), and instrument cluster wiring where space is at a premium and a large number of signal circuits must be routed through a compact connector. Tin-plated copper alloy construction for reliable electrical contact and corrosion resistance.

Part Number Cross-Reference

Compatible Sheath	Part Number
Connector Sheath A	1674742-1
Connector Sheath B	1123343-1

Technical Specifications

Parameter	Value

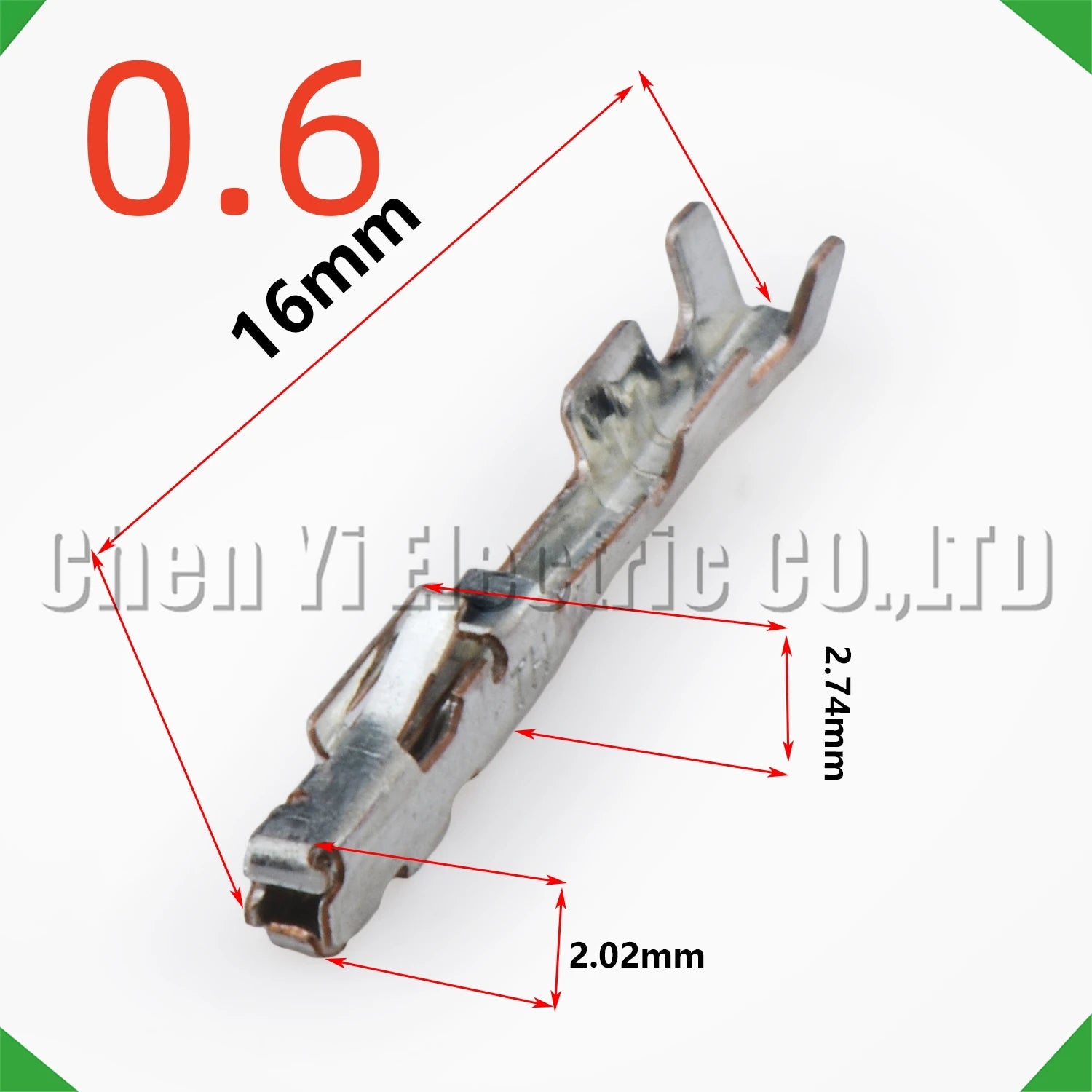

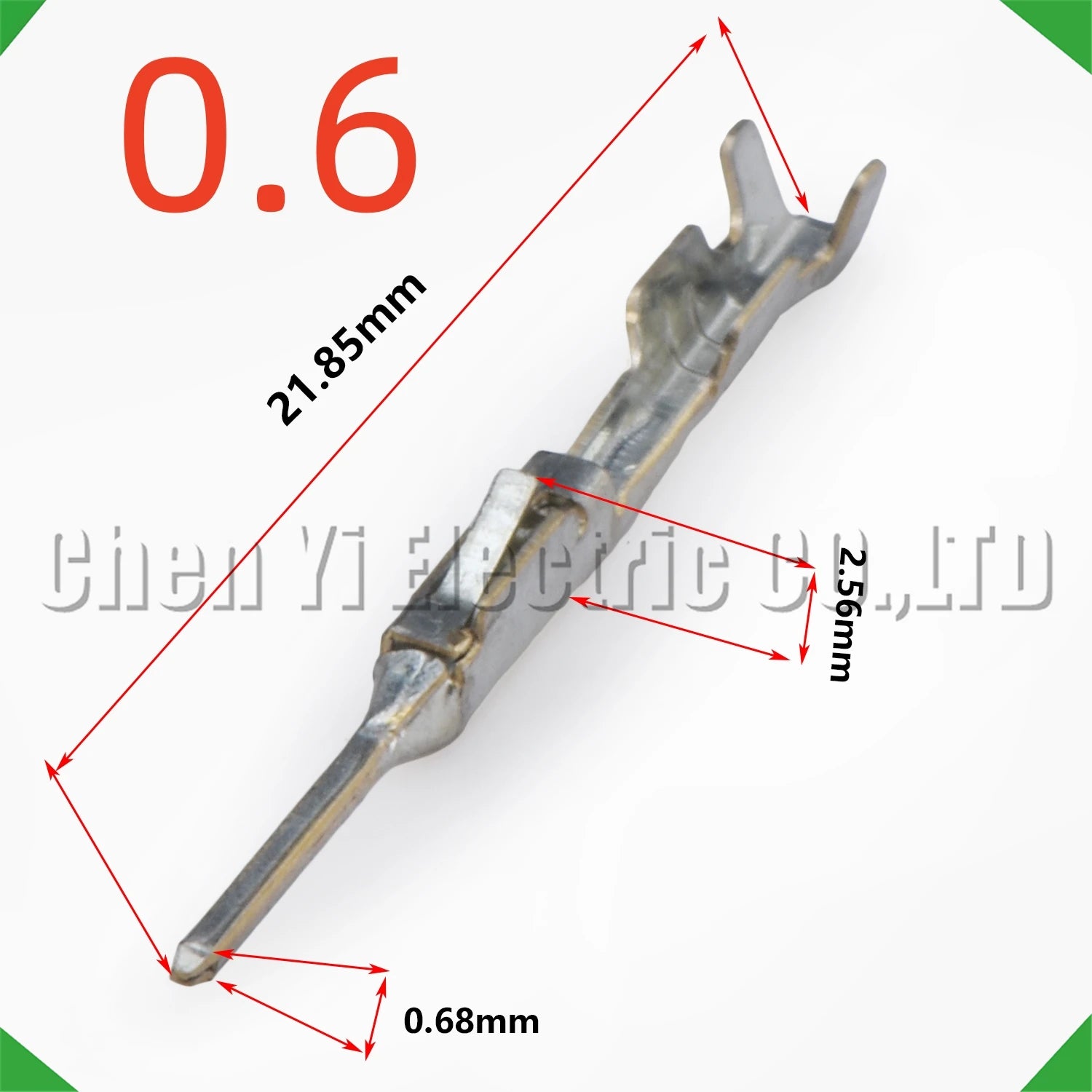

Terminal Pitch	0.6mm
Configuration	Male or female (select variant)
Material	Copper alloy, tin-plated
Wire Range	0.13–0.35mm² (AWG 26–22)
Rated Current	Up to 2A per pin
Rated Voltage	12V / 24V DC
Pack Quantity	50pcs
Certification	CE, RoHS

Typical Applications

ECU Wiring Repair: Replace damaged or corroded 0.6mm terminals in ECU connector sheaths for engine management, transmission control, and ABS module wiring
BCM Wiring: Repair body control module connector terminals for door lock, window, lighting, and HVAC control wiring
Instrument Cluster: Replace damaged terminals in instrument cluster and dashboard wiring harness connectors
High-Density Harness Assembly: Assemble high-density automotive wiring harness connectors for OEM-spec vehicle wiring repair and custom harness builds

FAQ

Q: What crimping tool is required for 0.6mm terminals?
A: Use a precision micro-terminal crimping tool rated for 0.6mm pitch terminals (e.g., Engineer PA-09, PA-20, or equivalent). Standard automotive crimping tools are not suitable for 0.6mm terminals.

Q: Can I use these terminals with a standard wire stripper?
A: Use a precision micro-wire stripper for AWG 26–22 wire. Strip 2–3mm of insulation. Avoid nicking the conductor strands, as this reduces the effective cross-section and increases resistance at the crimp joint.
