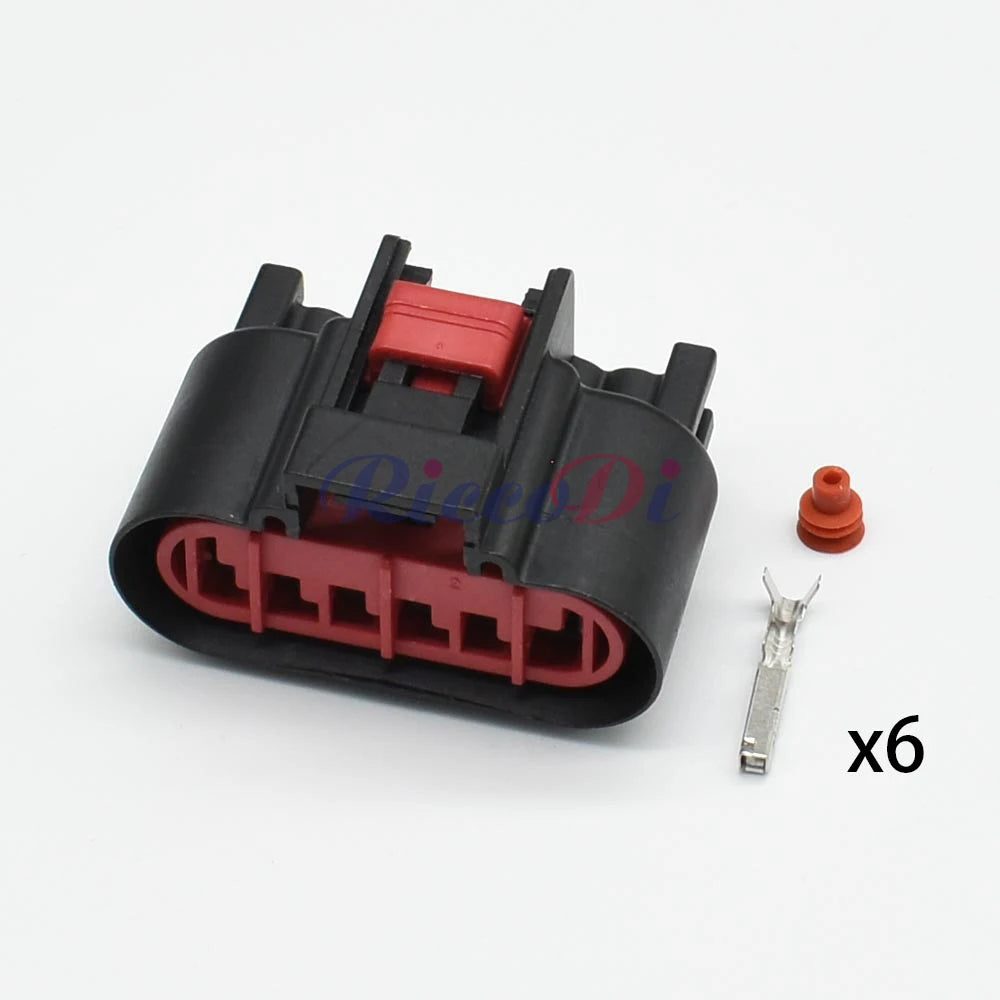

6-Pin Waterproof Connector DJ7063F-1.5-11/21 — 1.5mm Sealed Automotive Wiring Plug

6-Pin Waterproof Connector DJ7063F-1.5-11/21 — 1.5mm Sealed Automotive Wiring Plug

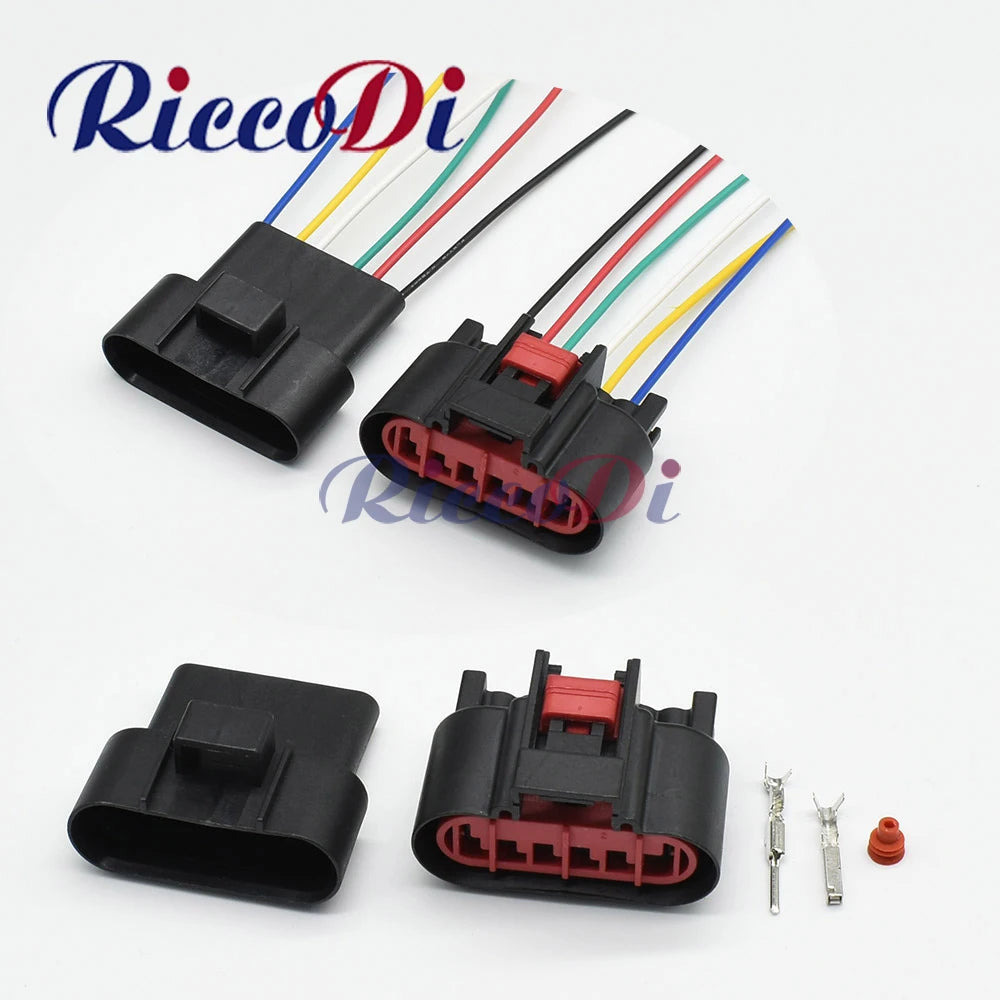

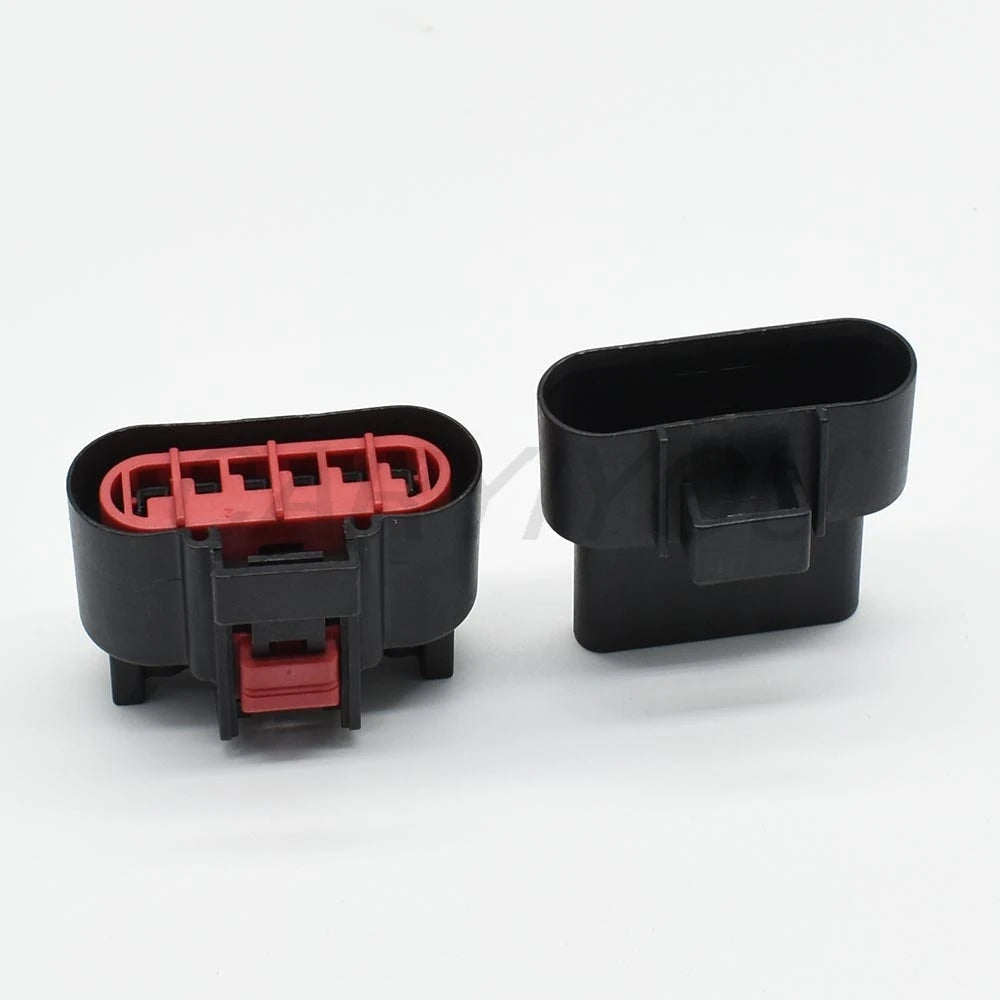

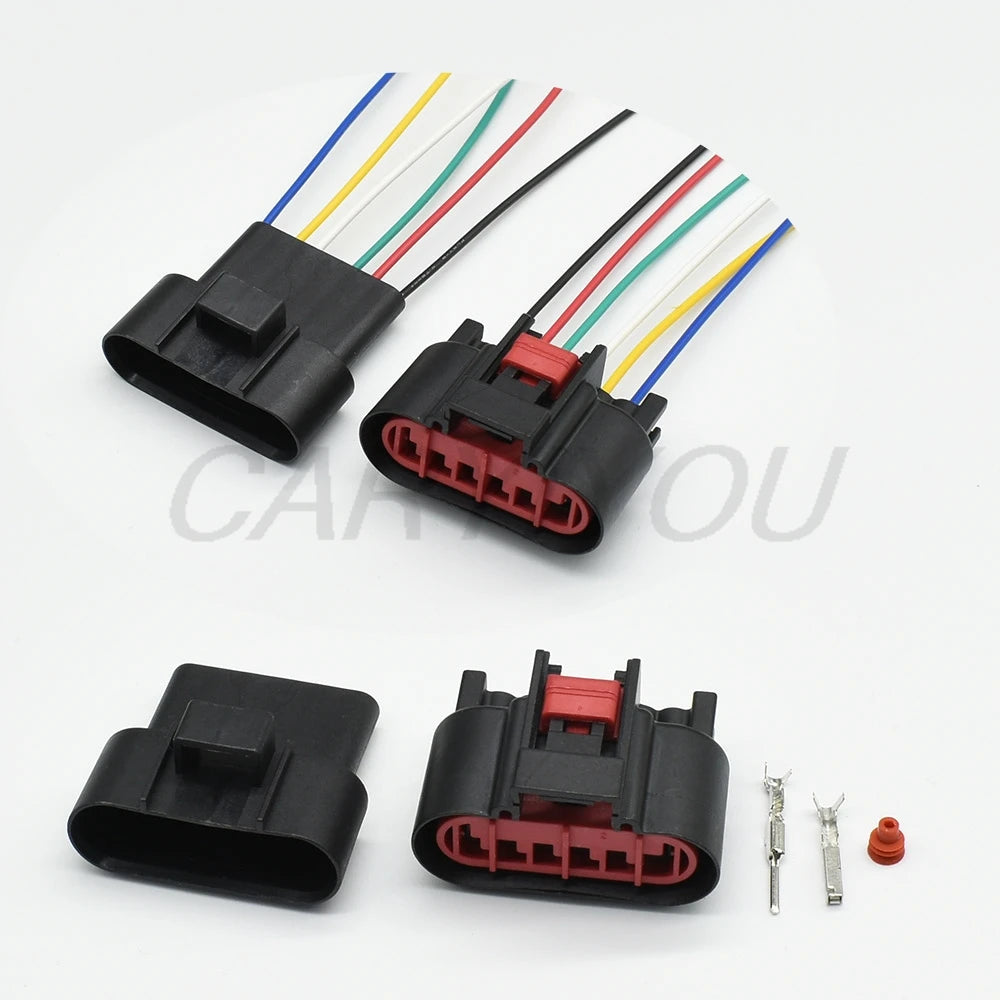

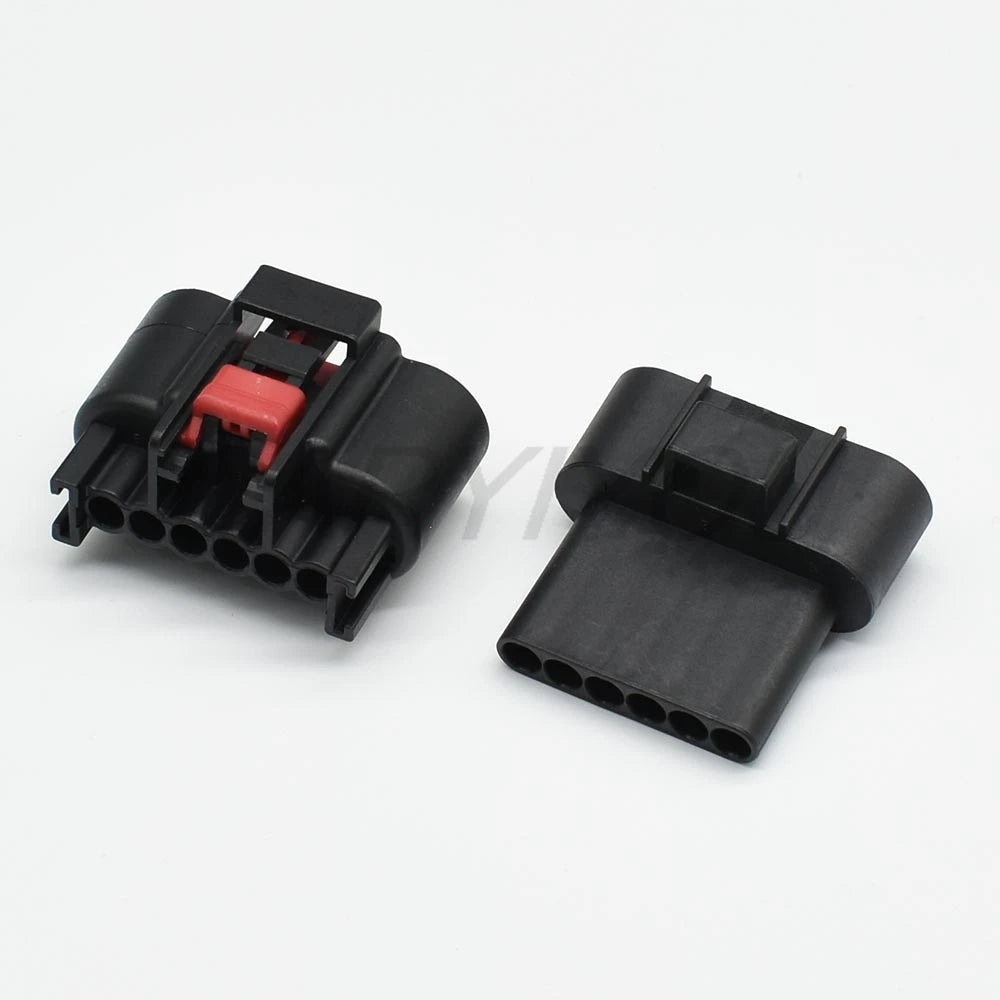

Part Numbers: DJ7063F-1.5-11 (female/receptacle) / DJ7063F-1.5-21 (male/plug)

The DJ7063F-1.5-11/21 is a 6-pin sealed waterproof connector from the DJ (Delphi-Japan) 1.5mm series — the most widely used sealed connector pitch in automotive sensor and signal wiring applications across Asia. The "F" designation indicates a fully sealed variant with individual wire seals and an interface seal, providing IP67-rated protection against water, dust, and chemical ingress. This connector is used extensively in underhood sensor harnesses, exterior lighting circuits, and any application where a compact, sealed, multi-pin connection is required in an exposed environment. Its 1.5mm terminal pitch makes it ideal for signal-level wiring where space is at a premium but environmental protection is non-negotiable.

Technical Specifications

• Part Numbers: DJ7063F-1.5-11 (female) · DJ7063F-1.5-21 (male)
• Pin Count: 6-pin
• Terminal Pitch: 1.5mm
• Sealing: Fully sealed ("F" series) — individual wire seals + interface seal; IP67-rated when mated
• Housing Material: PA66 — heat-stabilized, UV-resistant, chemical-resistant
• Terminal Material: Copper alloy, tin-plated
• Operating Temperature: -40°C to +120°C
• Current Rating: Up to 5A per pin (1.5mm terminal)
• Voltage Rating: 12V / 24V DC
• Wire Gauge: 0.3–0.85 mm² (AWG 22–18)
• Locking: Positive-latch retention tab

Common Applications

• Oxygen (lambda) sensor connectors — upstream and downstream O2 sensor wiring harness plugs
• Coolant temperature sensor (CTS) connectors — engine coolant temp sensor wiring plug
• Crankshaft / camshaft position sensor connectors — CKP/CMP sensor harness plugs in underhood environments
• Knock sensor connectors — sealed knock sensor wiring plug
• Exterior lighting harness connectors — tail light, fog light, and DRL wiring plugs in exposed locations
• Transmission speed sensor connectors — sealed harness plug for underbody transmission sensors
• ABS wheel speed sensor connectors — sealed wiring plug for underbody ABS sensors

Vehicle Compatibility

The DJ7063F-1.5-xx series is used across Chinese OEM and Japanese-compatible vehicle platforms:

• Chinese domestic market vehicles: BYD (Han, Tang, Song, Qin), Geely (Emgrand, Boyue, Atlas), Chery (Tiggo, Arrizo), SAIC (Roewe, MG), GAC (Trumpchi), Changan (CS75, CS55, Eado) — sensor harness connectors throughout
• Chinese commercial vehicles: Dongfeng, FAW, Foton, SAIC Maxus — engine and transmission sensor connectors
• Japanese vehicles sold in Asian markets: Toyota, Honda, Nissan models with DJ-compatible sensor connectors in Asian-market harness variants
• Heavy equipment: SANY, XCMG, SDLG — engine sensor harness connectors on Cummins, Perkins, and Yuchai-powered machines

Why Sealed Sensor Connectors Fail

Despite their IP67 rating, sealed connectors in underhood and underbody locations face relentless degradation: thermal cycling causes the wire seals to harden and crack, road salt and cleaning chemicals attack the interface seal, and vibration causes fretting corrosion on the terminal faces behind the seal. On Chinese-market vehicles — which often operate in high-humidity tropical climates (Southeast Asia) or high-salt coastal environments (coastal China, Middle East) — sealed connector degradation is accelerated. The result is moisture-induced sensor faults, fault codes, and the kind of intermittent engine management issues that are difficult to diagnose without knowing the connector's condition.

Global Market & Regional Notes

The DJ7063F-1.5-xx series is the standard sealed sensor connector for Chinese OEM vehicles, which are now sold in significant volumes across Southeast Asia (Indonesia, Vietnam, Thailand, Malaysia, Philippines), the Middle East (UAE, Saudi Arabia, Iran, Iraq, Kuwait), Africa (South Africa, Nigeria, Kenya, Ethiopia, Egypt), Eastern Europe (Russia, Kazakhstan, Ukraine), and Latin America (Brazil, Chile, Mexico, Colombia). As Chinese vehicle exports continue to grow — BYD, Geely, Chery, and SAIC are all expanding aggressively into these markets — demand for DJ-series sealed connector replacements is growing in parallel.

Installation Notes

• Disconnect the vehicle battery before working on sensor wiring
• Use a 1.5mm terminal extraction pick — do not pull on the wire
• Inspect wire seals before re-use; replace if cracked or hardened
• Ensure wire seals are fully seated before inserting terminals to maintain IP67 rating
• Apply dielectric grease to the interface seal face before mating
• Clear fault codes after replacement and verify sensor operation with a diagnostic tool

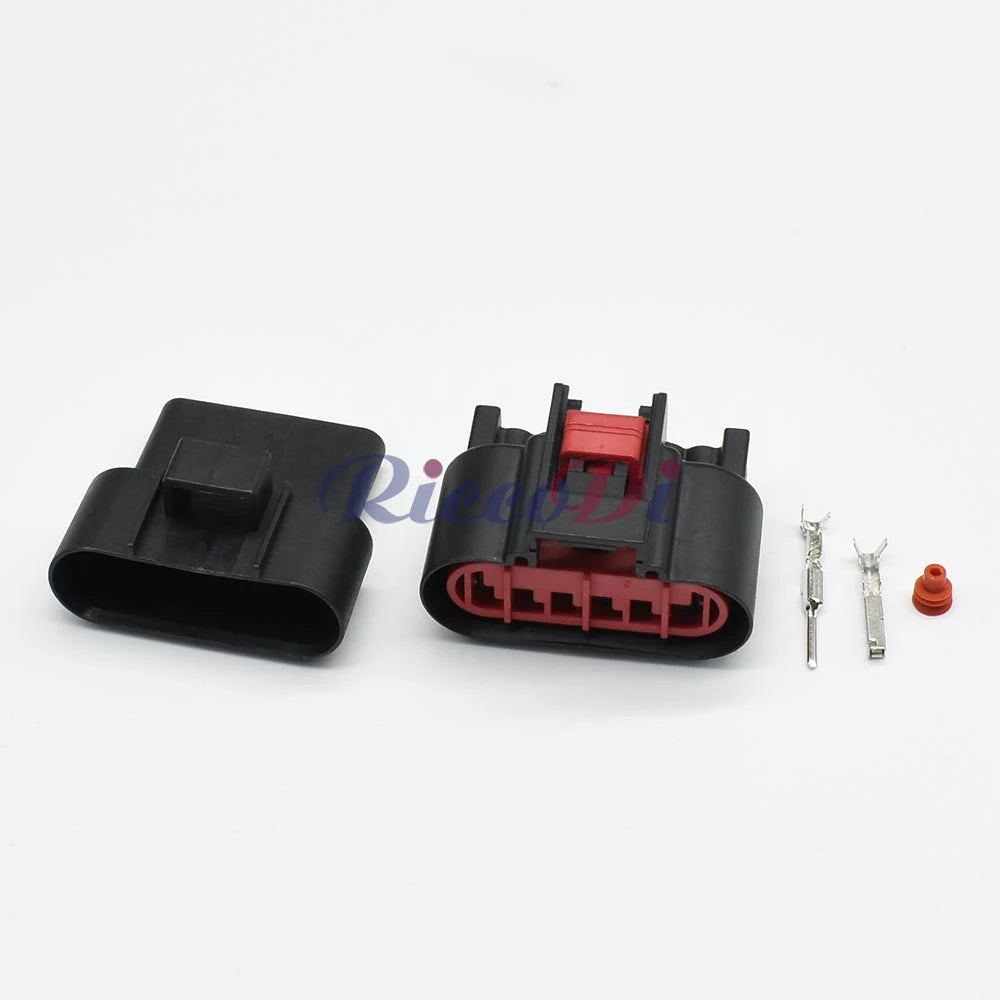

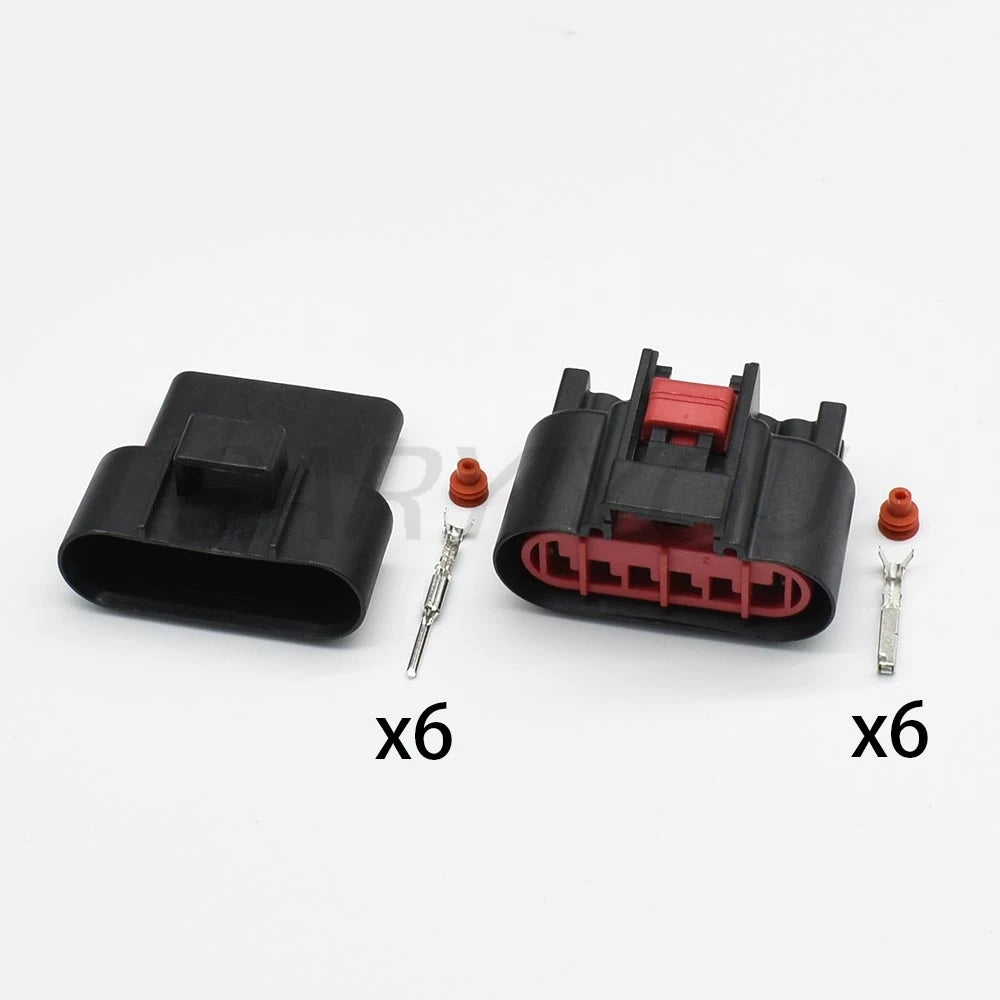

Package Contents

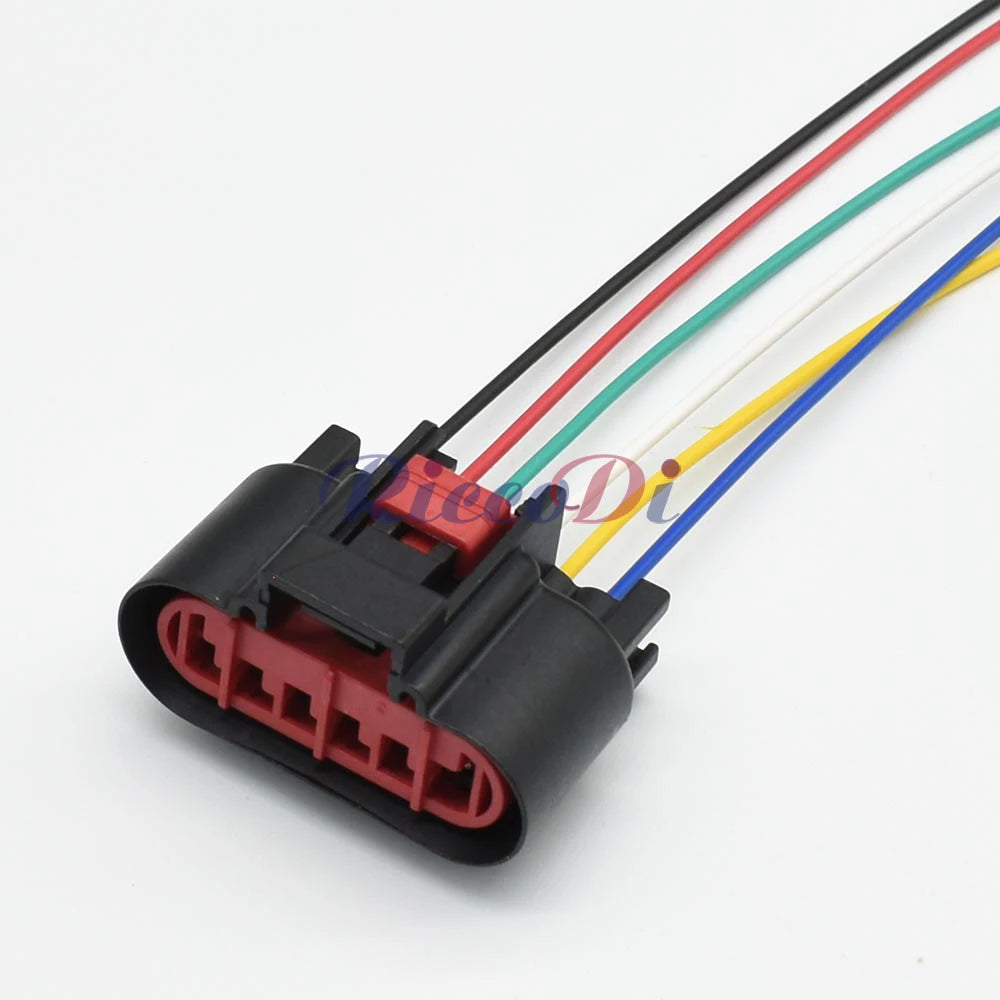

• 1 × DJ7063F-1.5-11 6-Pin Female Sealed Connector Housing

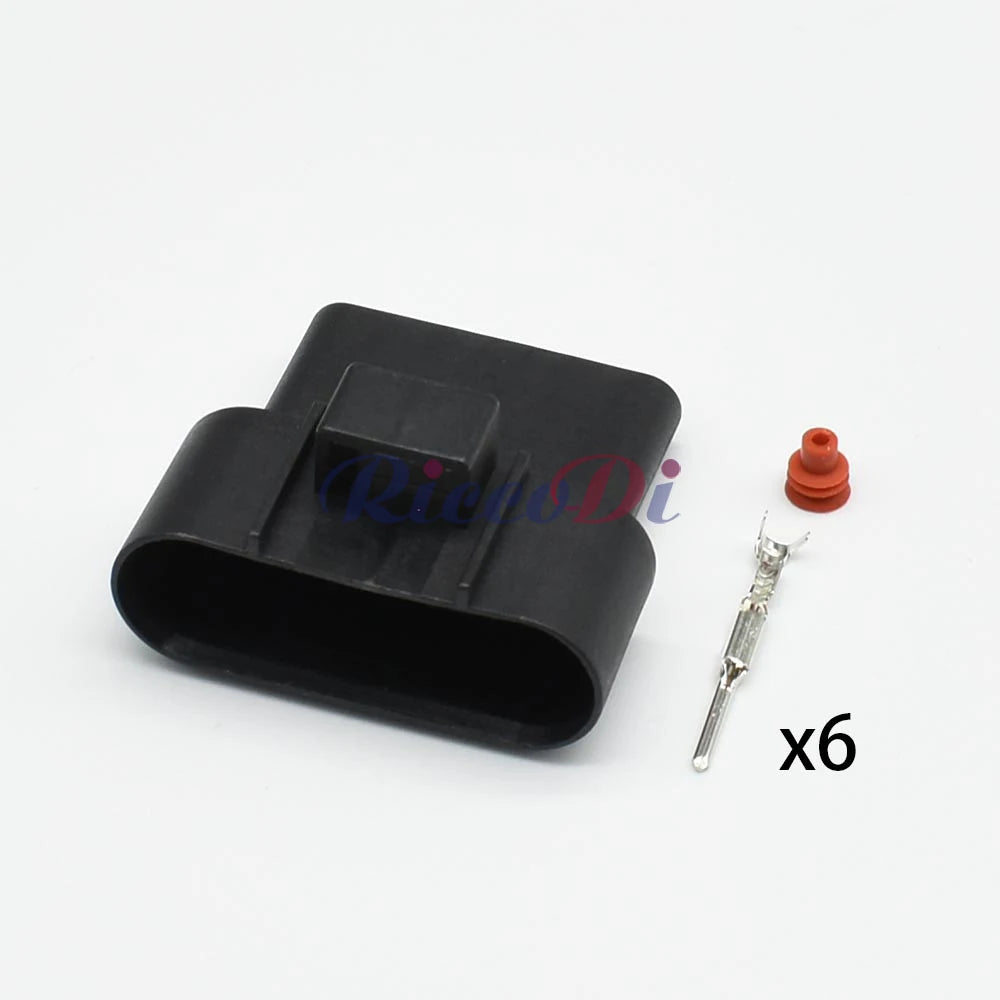

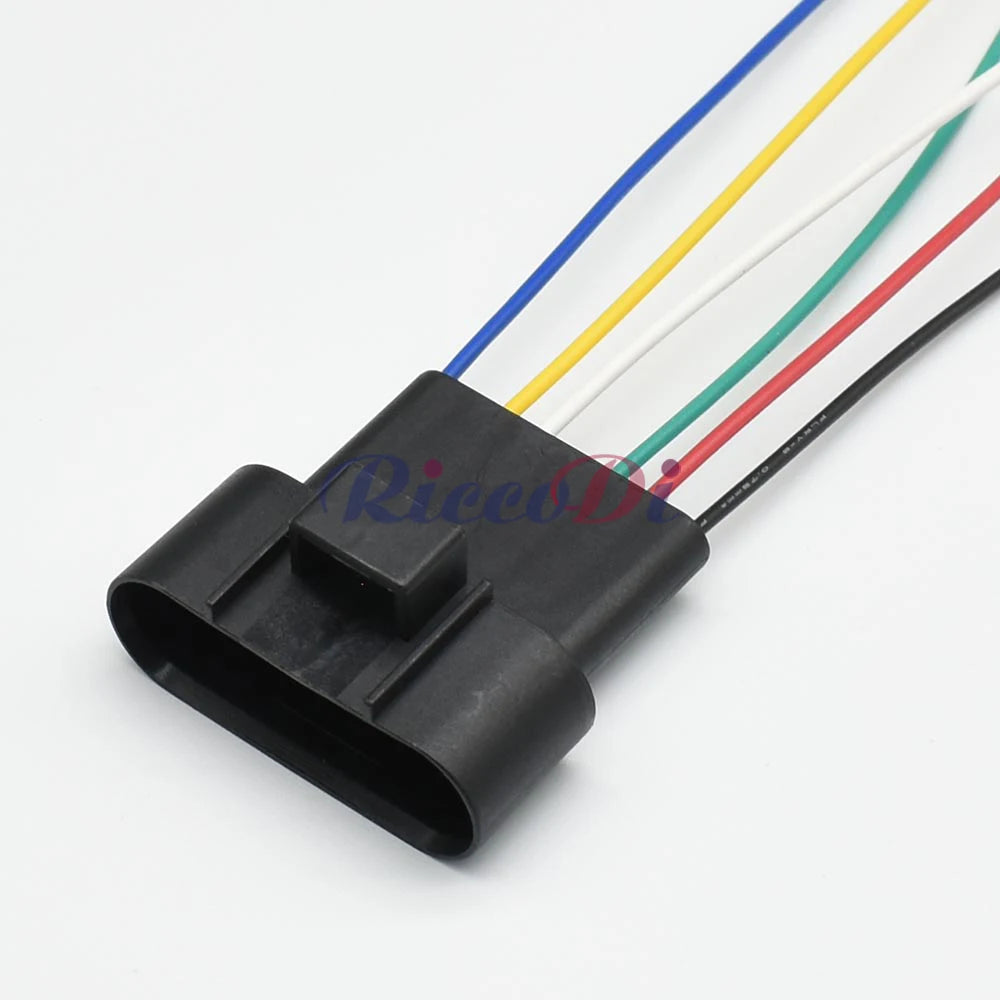

• 1 × DJ7063F-1.5-21 6-Pin Male Sealed Connector Housing
• Wire seals and terminals included (confirm variant at checkout)

Available individually or as a matched pair. Ideal for sensor harness repair on Chinese OEM vehicles and heavy equipment.
