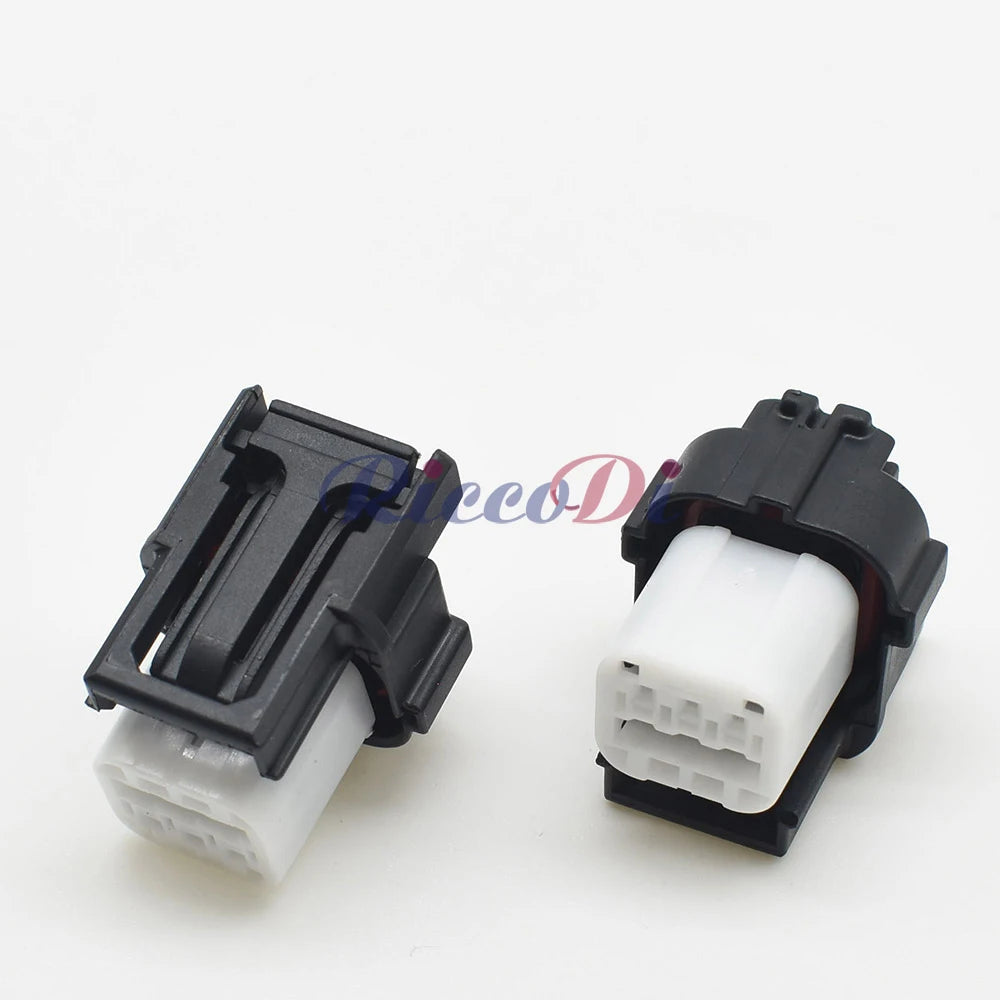

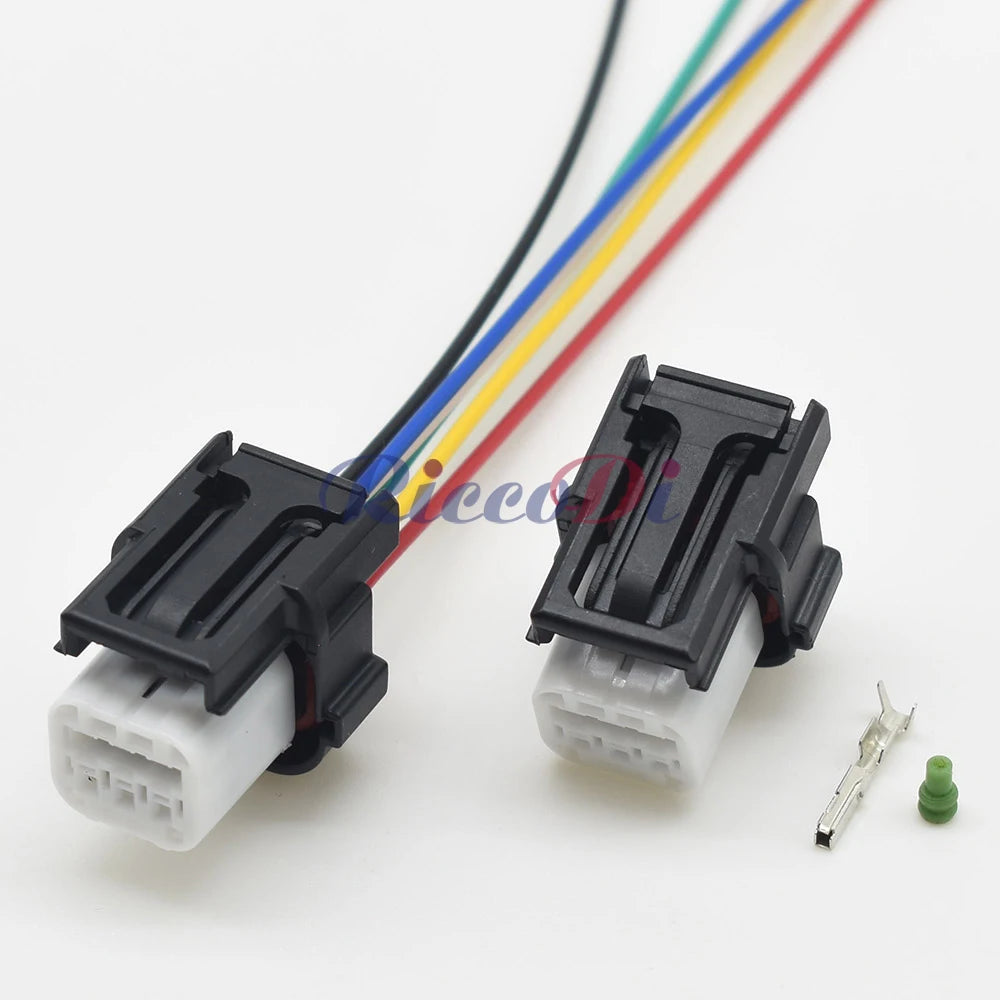

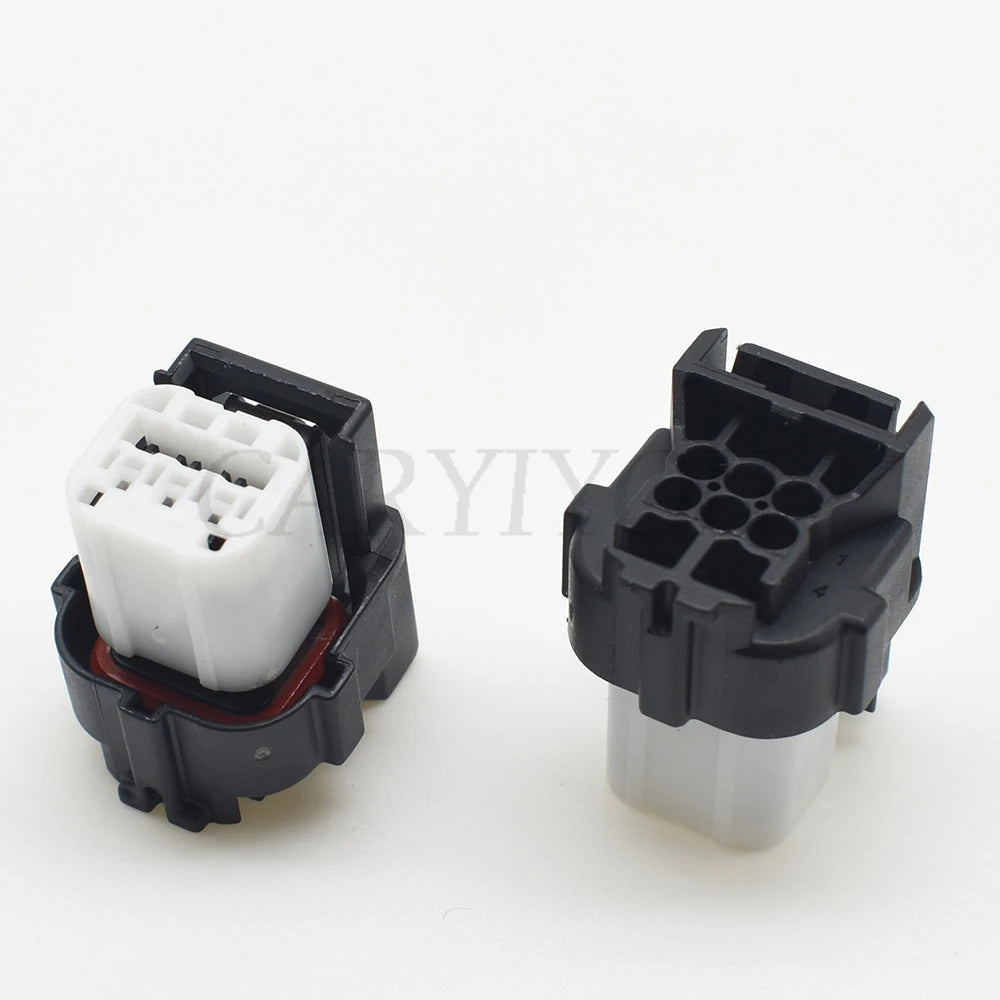

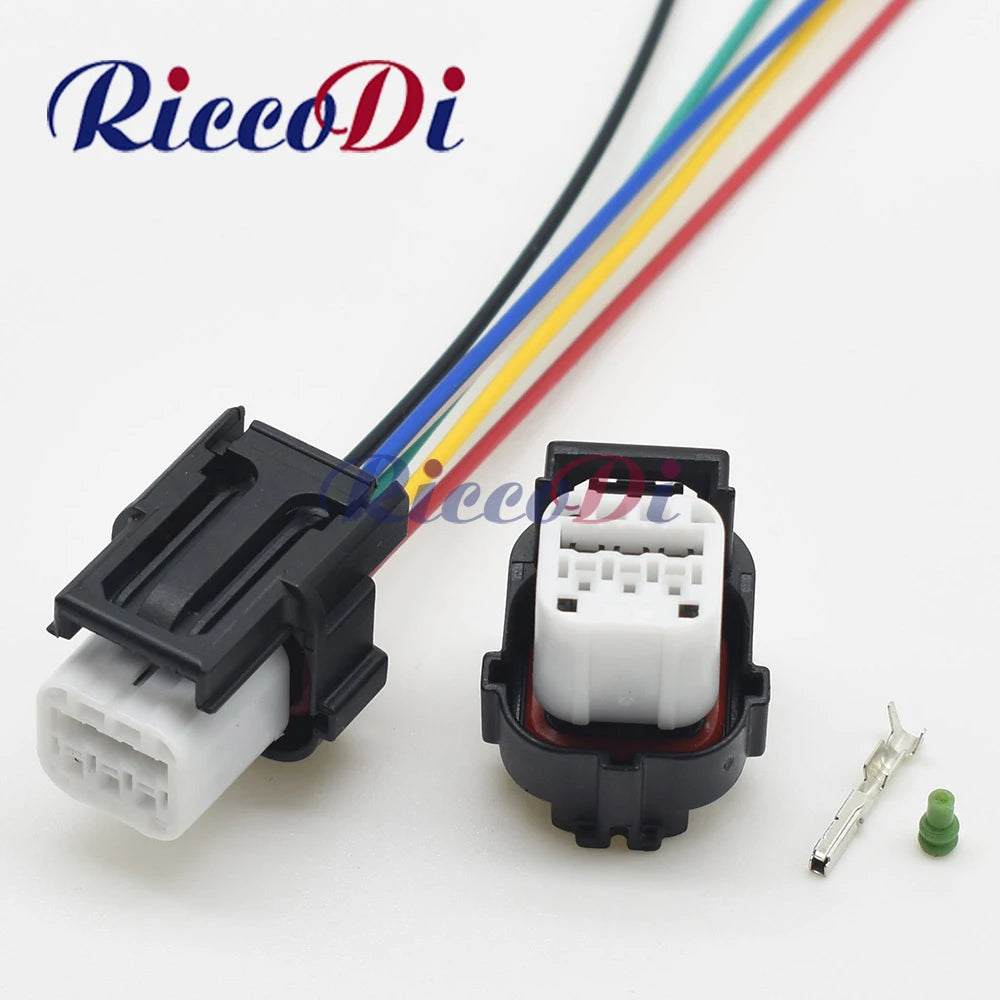

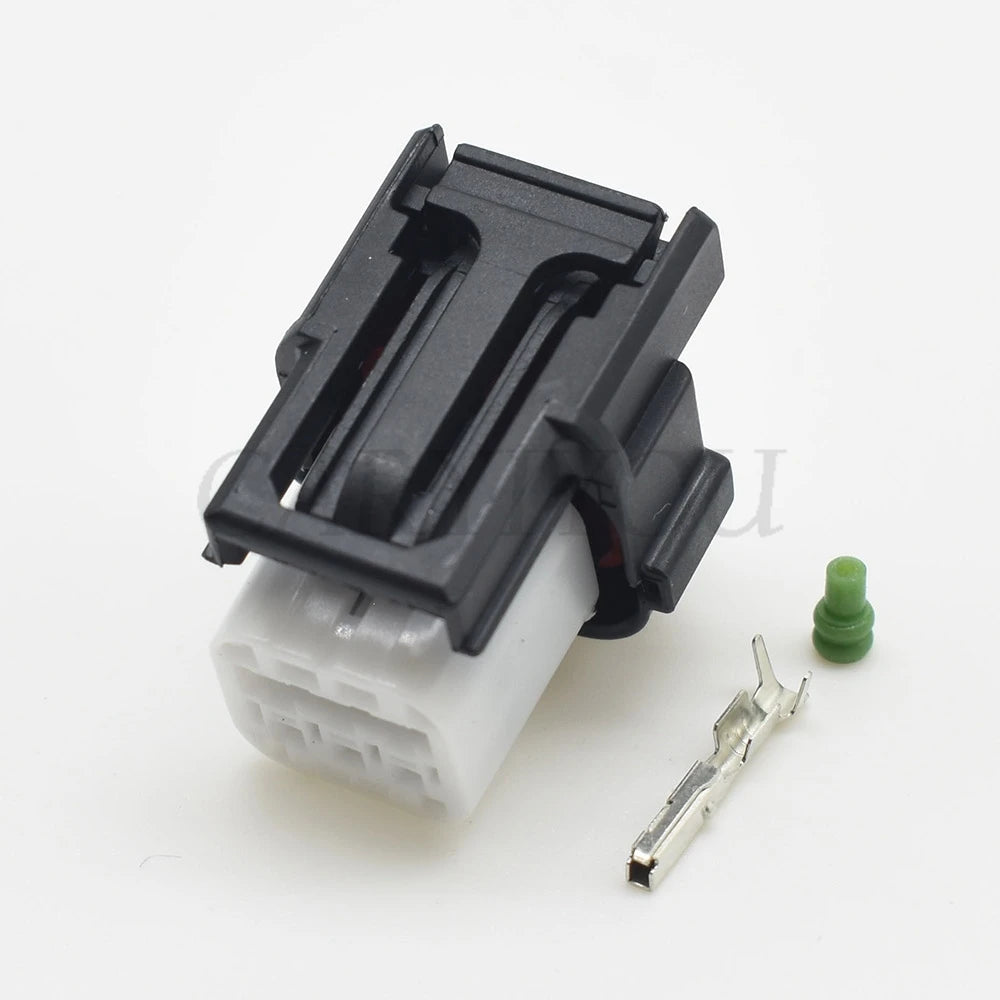

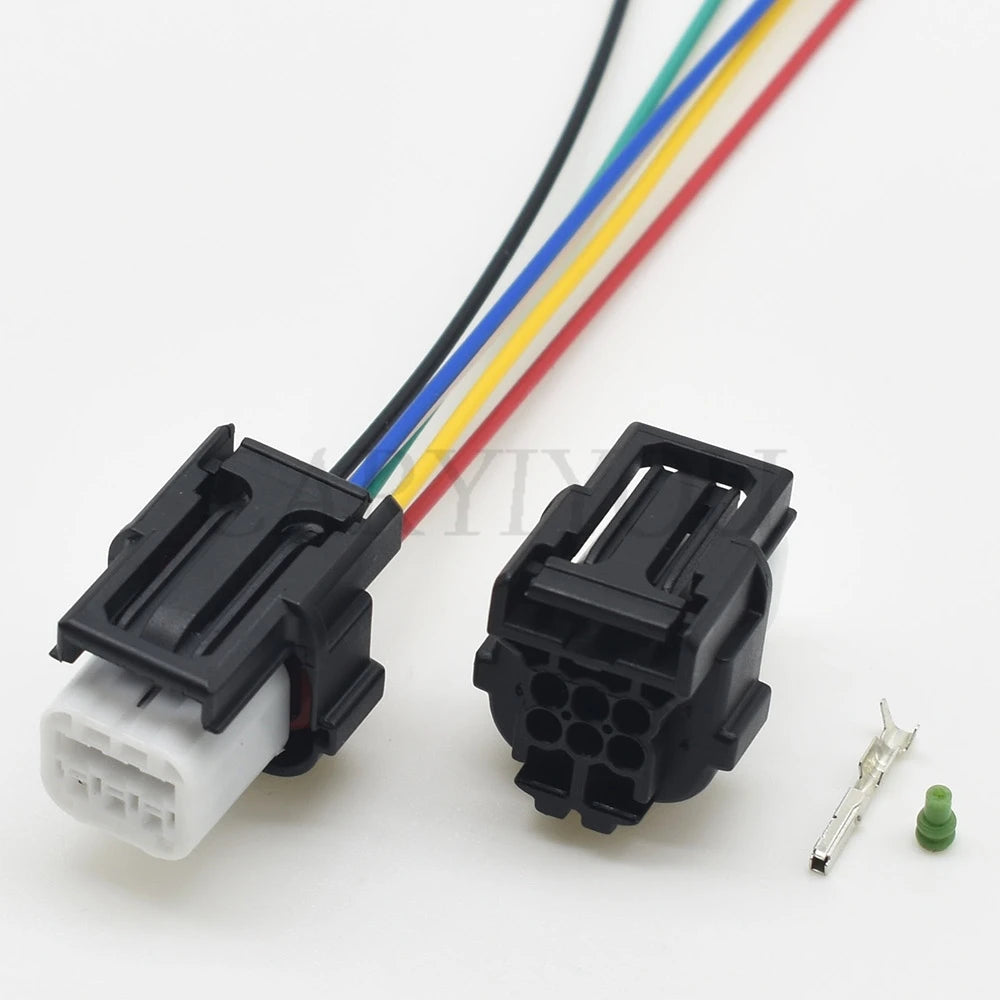

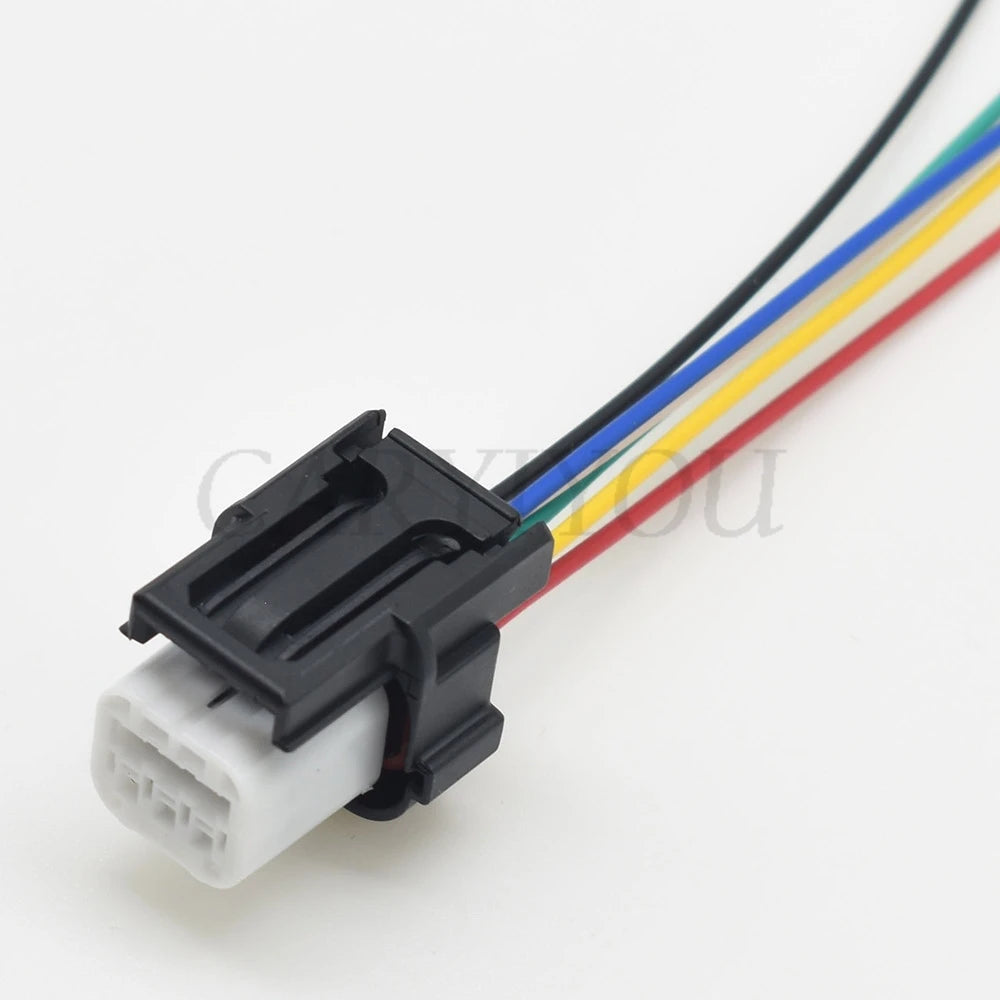

7289-9553-30 Automotive 6-Pin AC Assembly OBD Connector — Small Current Wire Harness Socket Plug
Small current signal connectors in automotive OBD and AC assembly wiring harnesses must deliver consistent contact resistance and reliable locking engagement across thousands of mating cycles and years of thermal cycling. The 7289-9553-30 6-pin AC assembly automotive OBD connector is the OEM-specification small current wire harness socket for automotive OBD diagnostic and AC assembly circuit applications, providing a direct-fit replacement for the factory connector used in these low-current signal wiring harness positions.
Built from PA66 nylon housing with tin-plated copper alloy contacts, this connector delivers reliable electrical continuity for OBD diagnostic signal, AC assembly control, and small current sensor circuits. Whether you're repairing a damaged OBD harness connector or replacing a corroded AC assembly socket, the 7289-9553-30 provides OEM-grade dimensional accuracy and contact retention force.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 7289-9553-30 |
| Pin Count | 6 pins |
| Connector Type | AC assembly / OBD small current wire harness socket |
| Circuit Type | Small current signal circuits |
| Housing Material | PA66 nylon |
| Contact Material | Tin-plated copper alloy |
| Certification | CE |
| Origin | Mainland China |
Key Features
- ✅ OEM part number 7289-9553-30 — direct-fit dimensional match for automotive AC assembly and OBD small current wire harness connector positions
- ✅ 6-pin small current configuration — optimized for low-current OBD diagnostic signal and AC assembly control circuit applications
- ✅ PA66 nylon housing — dimensionally stable under automotive temperature cycling; resistant to automotive fluids and cleaning chemicals
- ✅ Tin-plated copper alloy contacts — low contact resistance for reliable small current signal transmission; resists oxidation in automotive environments
- ✅ Positive locking latch — secure engagement prevents accidental disconnection from vibration and thermal cycling
- ✅ CE certified — meets European automotive electrical component standards
Common Applications
- Automotive OBD diagnostic wiring harness small current connector repair
- AC assembly control circuit wire harness socket replacement
- Automotive small current sensor and signal circuit connector repair
- Custom OBD and AC assembly wiring harness fabrication
FAQ
Q: Are terminals included?
A: Terminal availability depends on the variant selected. Complete kits including OEM-specification crimp terminals are available — check the product options before ordering.
Package Contents
- 1× 7289-9553-30 6-Pin Automotive AC Assembly OBD Small Current Wire Harness Socket
- Crimp terminals included in complete kit variants
