6189-0940 / 6188-0657 Automotive Waterproof Connector Socket — Air Pump & Generator Wiring

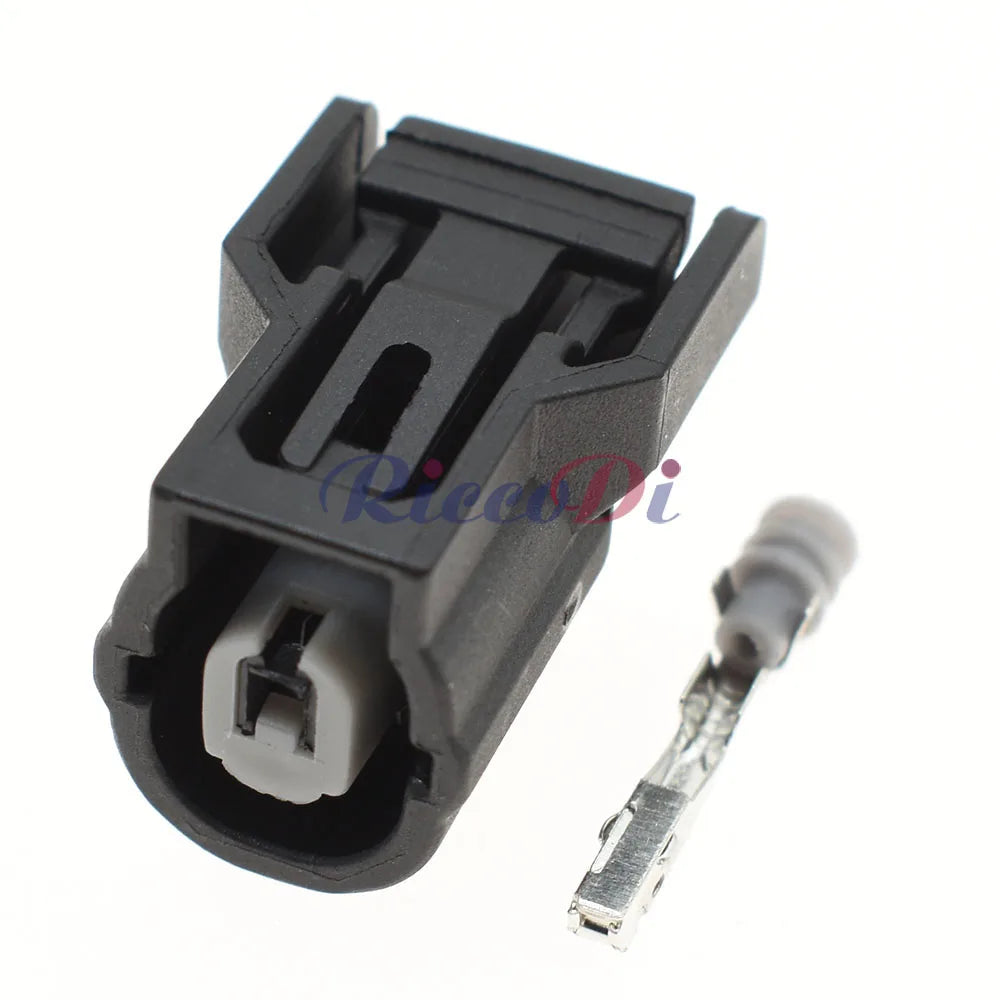

The 6189-0940 (housing) and 6188-0657 (terminal) are Sumitomo-series waterproof automotive connector components for air pump and generator (alternator) wiring harness applications on Toyota, Lexus, and affiliated OEM platforms. The sealed housing with individual wire seals provides reliable moisture protection for underhood circuits subject to water splash and condensation. These part numbers are widely referenced in Toyota/Lexus service documentation for secondary air injection pump connectors, alternator sense connectors, and related high-current underhood circuits.
Key Specifications
| Parameter | Value |
|---|---|
| OEM Part Numbers | 6189-0940 (housing) / 6188-0657 (terminal) |
| Series | Sumitomo sealed series |
| Sealing | Waterproof (sealed housing + wire seals) |
| Housing Material | PA66 glass-filled nylon |
| Terminal Material | Tin-plated copper alloy |
| Operating Temperature | -40°C to +125°C |
| Compatible Platforms | Toyota, Lexus, Daihatsu (Sumitomo harness) |
| Compliance | RoHS |
| Origin | Mainland China |
Why This Connector Fails — and How to Fix It Right
- Heat cycling causes terminal oxidation — air pump and alternator circuits run hot; over time, terminal oxidation increases contact resistance, causing voltage drop and intermittent faults
- Moisture ingress through cracked seals — aged wire seals harden and crack, allowing moisture to wick into the connector and accelerate terminal corrosion
- Replace housing AND terminal together — a corroded terminal in a new housing (or vice versa) will fail again quickly; replace both components for a lasting repair

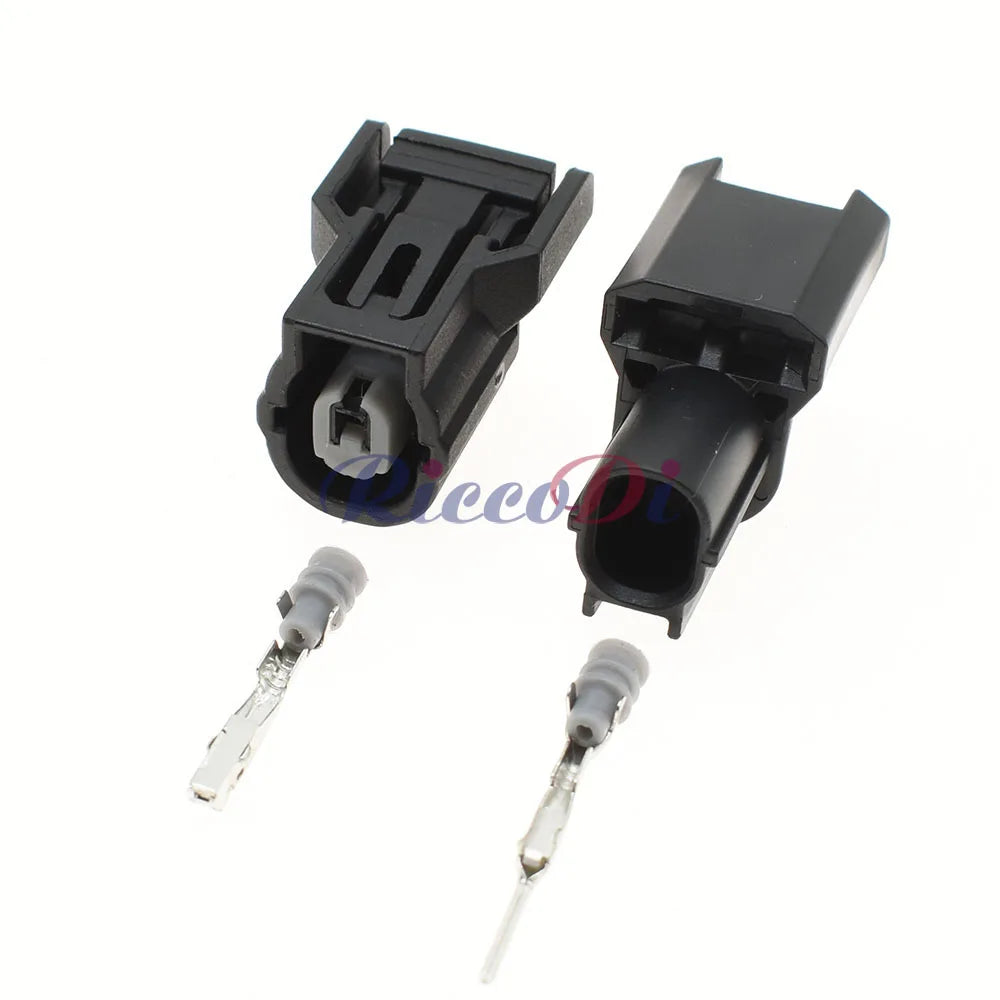

- OEM Sumitomo dimensions — manufactured to Sumitomo mating specifications; mates directly with the original counterpart connector on the vehicle harness
Package Options
| Option | Contents |
|---|---|
| Housing only | 1× 6189-0940 housing |
| Terminal only | 1× 6188-0657 terminal |

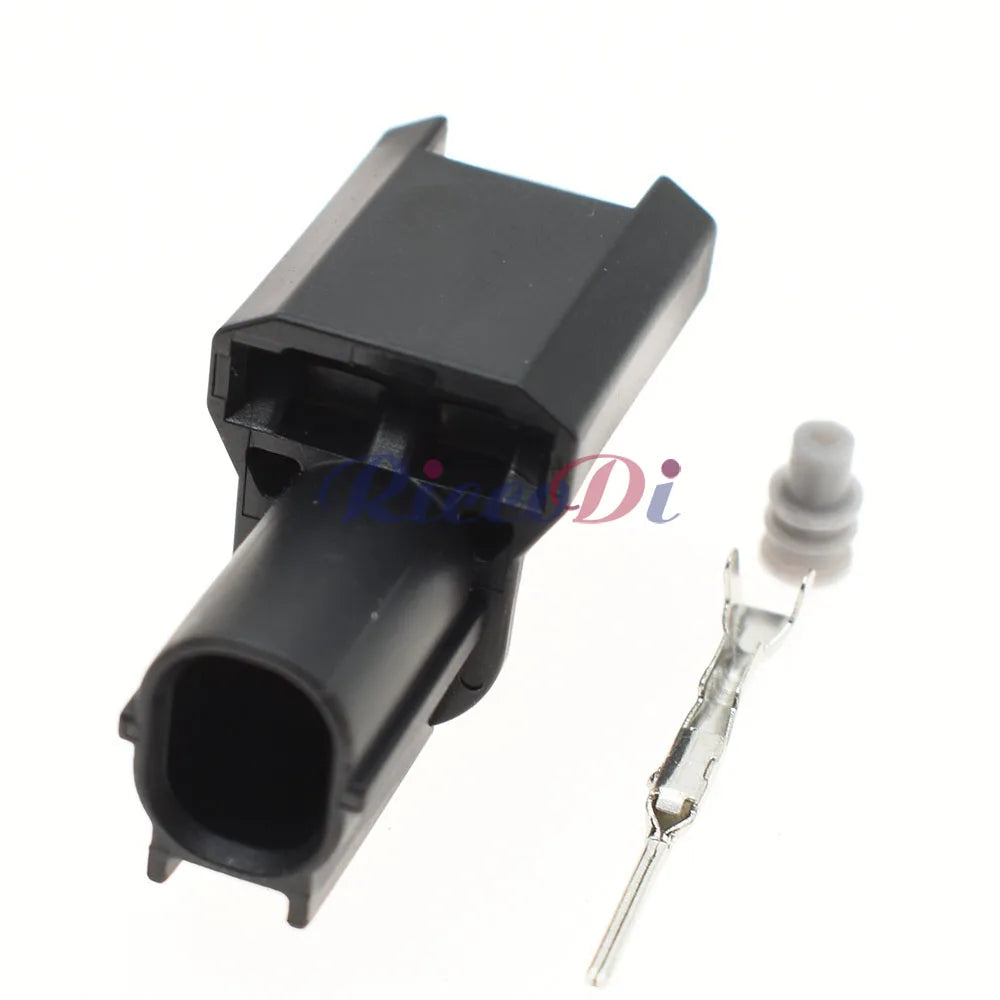

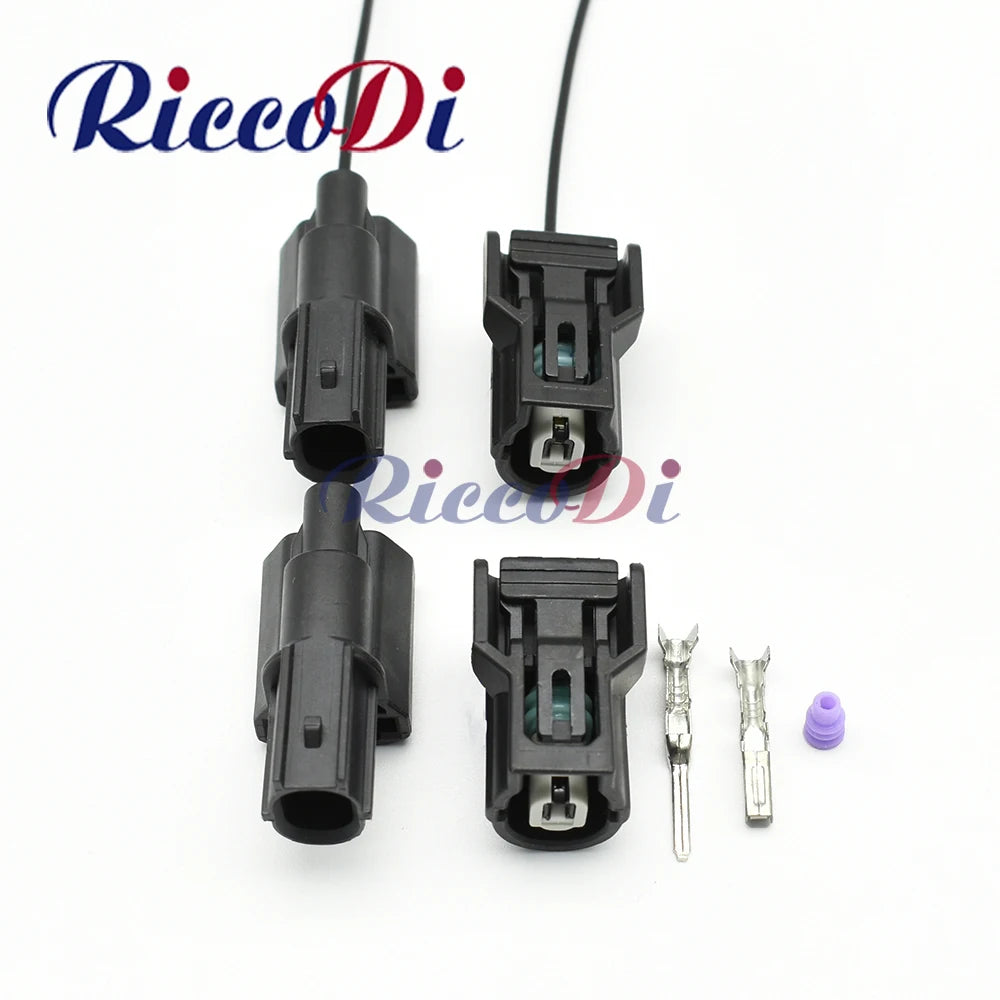

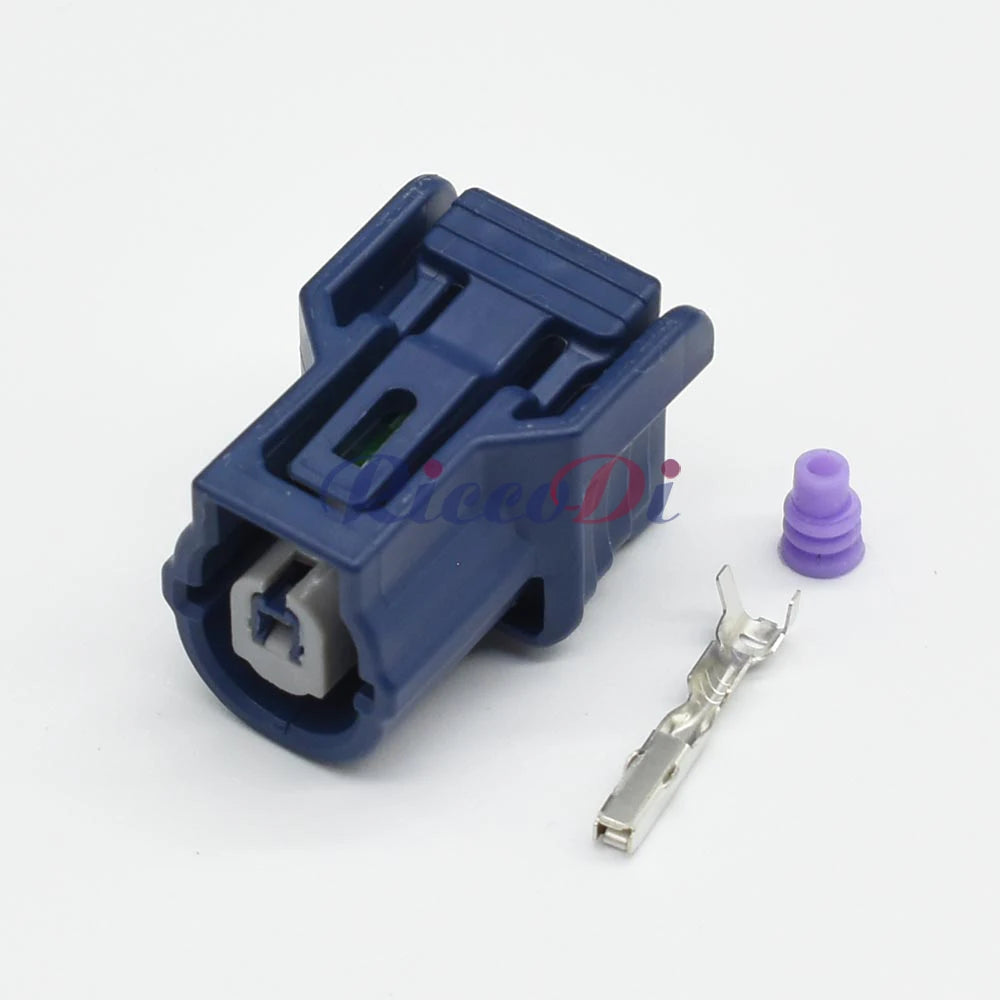

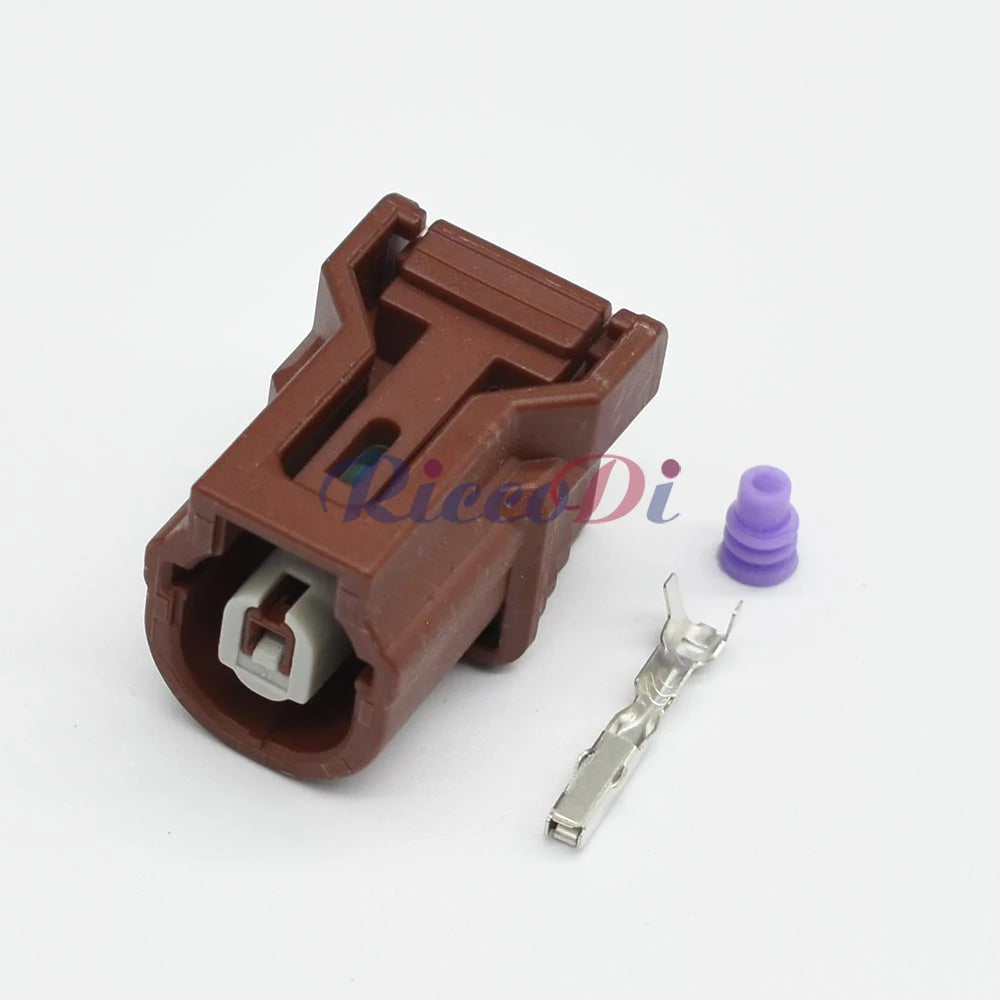

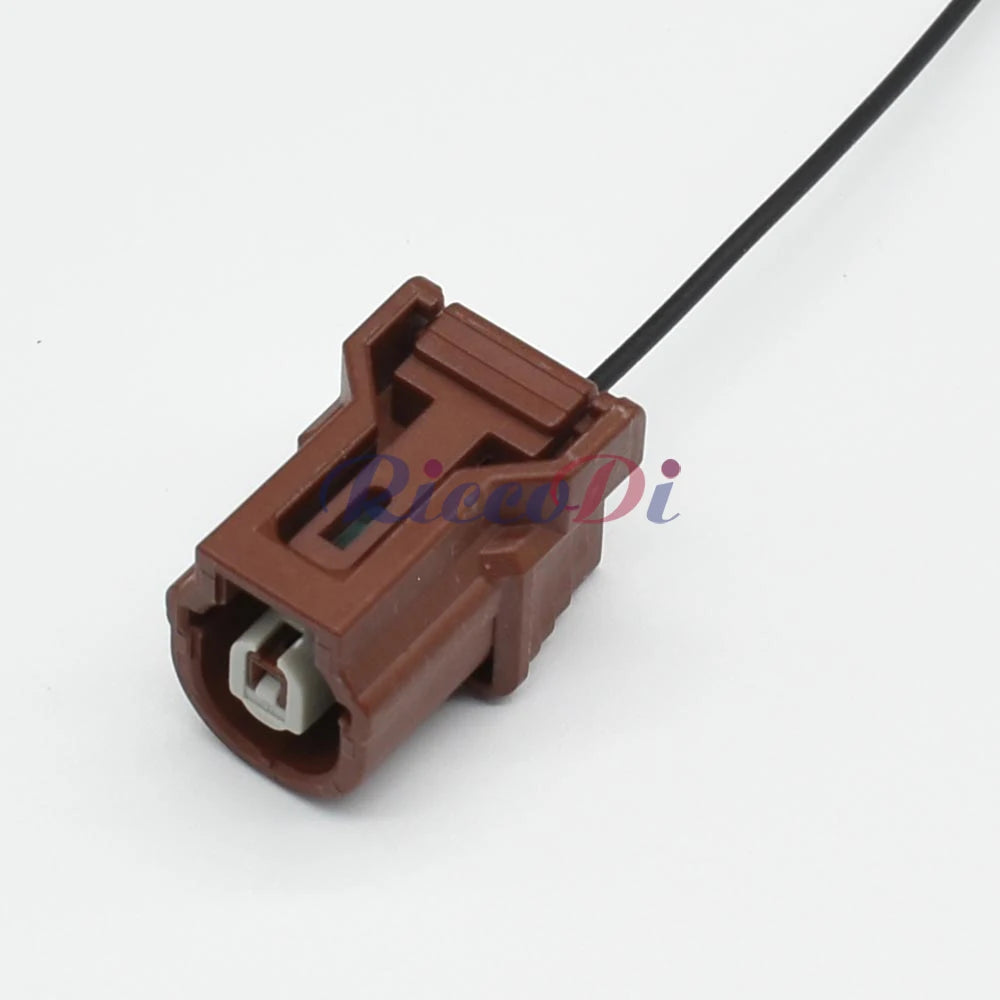

| Housing + terminal | 1× housing + 1× terminal + wire seal |

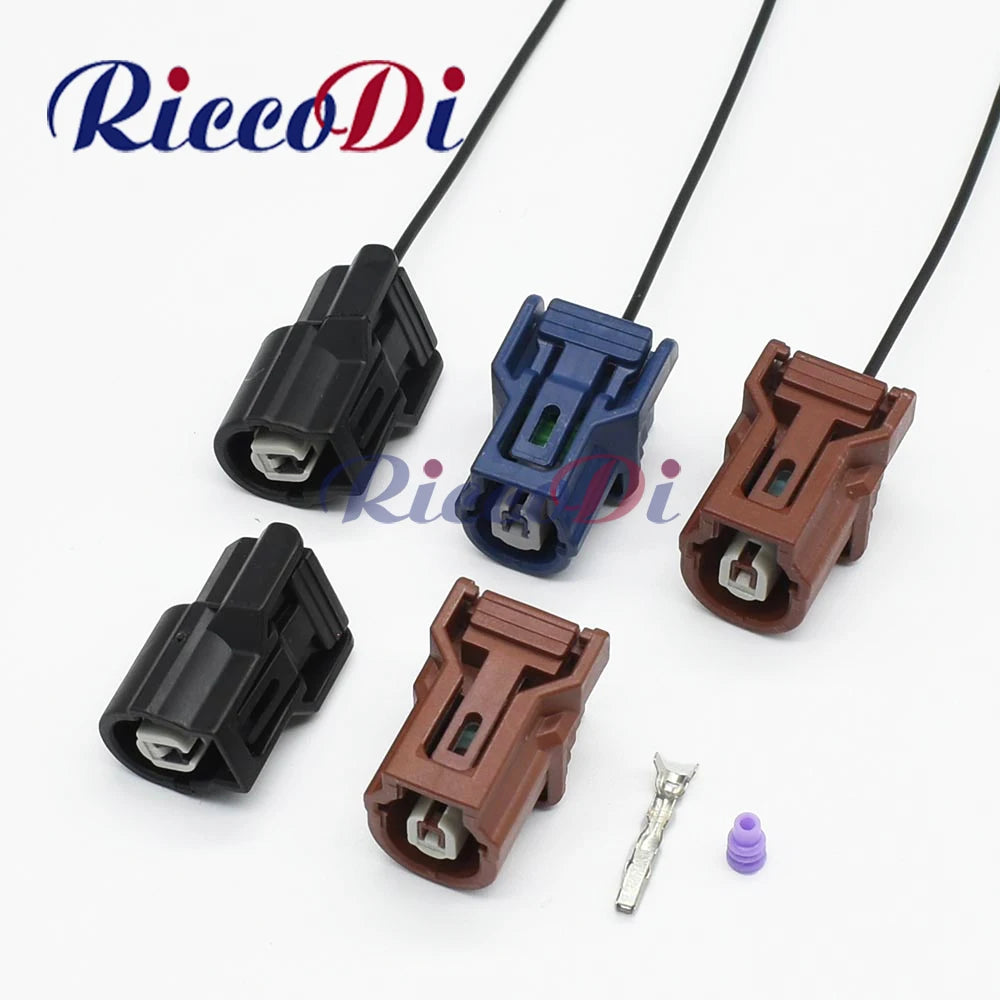

| Multi-pack | Multiple sets (see variant selector) |
Typical Applications
- Toyota / Lexus secondary air injection pump connector repair
- Alternator and charging system wiring harness repair
- Generator sense wire connector replacement
- Underhood sealed connector repair on Sumitomo-harness vehicles
Frequently Asked Questions
Q: Which Toyota/Lexus models use 6189-0940?
The 6189-0940 / 6188-0657 connector appears in Toyota and Lexus service documentation for models including Camry, Corolla, RAV4, Prius, Lexus IS/ES/RX/GS, and other Sumitomo-harness platforms. The exact application varies by model year and engine variant. Cross-reference the part number on your existing connector or consult the Toyota EPC (Electronic Parts Catalog) to confirm fitment for your specific vehicle.
Q: How do I diagnose a faulty air pump connector?
Common symptoms of a failed air pump connector include: P0410 (Secondary Air Injection System Malfunction) DTC, intermittent air pump operation, or visible corrosion/melting at the connector. Inspect the connector for green/white corrosion on terminals, cracked housing, or melted plastic from heat. Measure terminal resistance — a good connection should show less than 0.1Ω; anything above 0.5Ω indicates a failing terminal.
Q: Do I need to replace the wire seals when replacing the connector?
Yes — always install new wire seals when replacing a waterproof connector. Reusing old seals risks moisture ingress that will corrode the new terminals. New wire seals are included with the housing + terminal package option.
